TS29 Shaper, 7.5HP 3PH 230
SKU: PM9-1791284

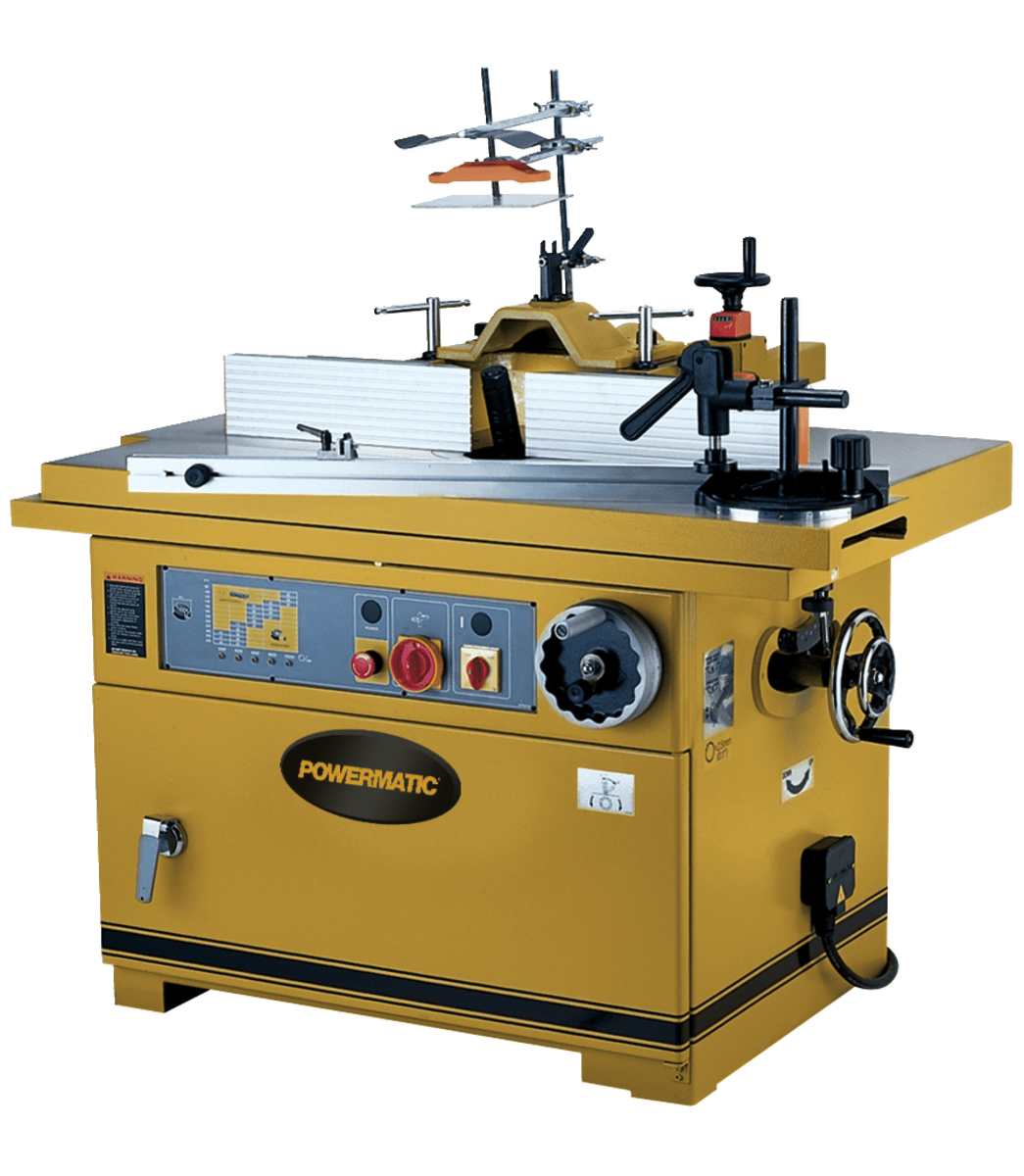

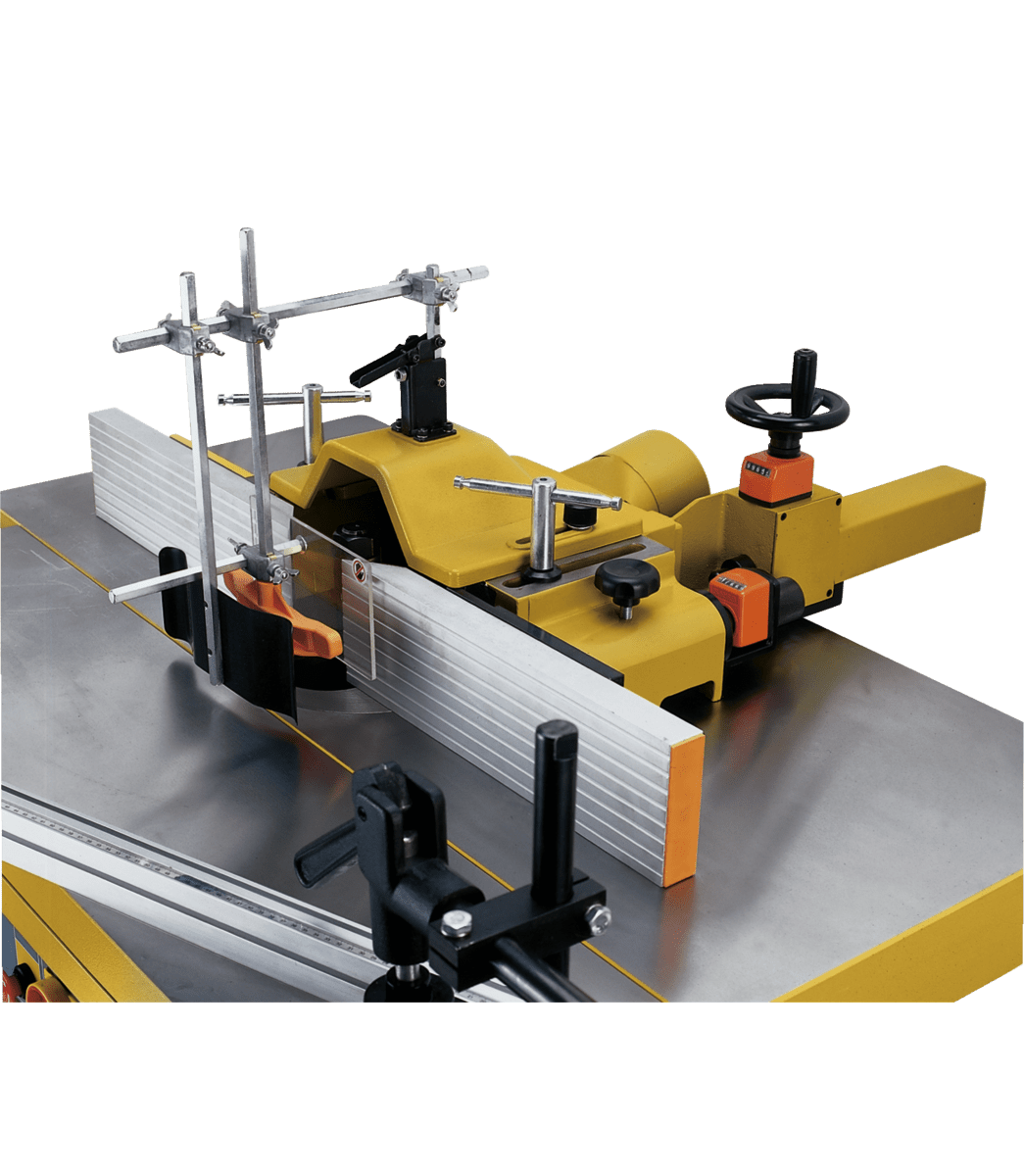

The new TS29 Tilt/Slide Shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently adjustable fence halves for fast, accurate set-ups.

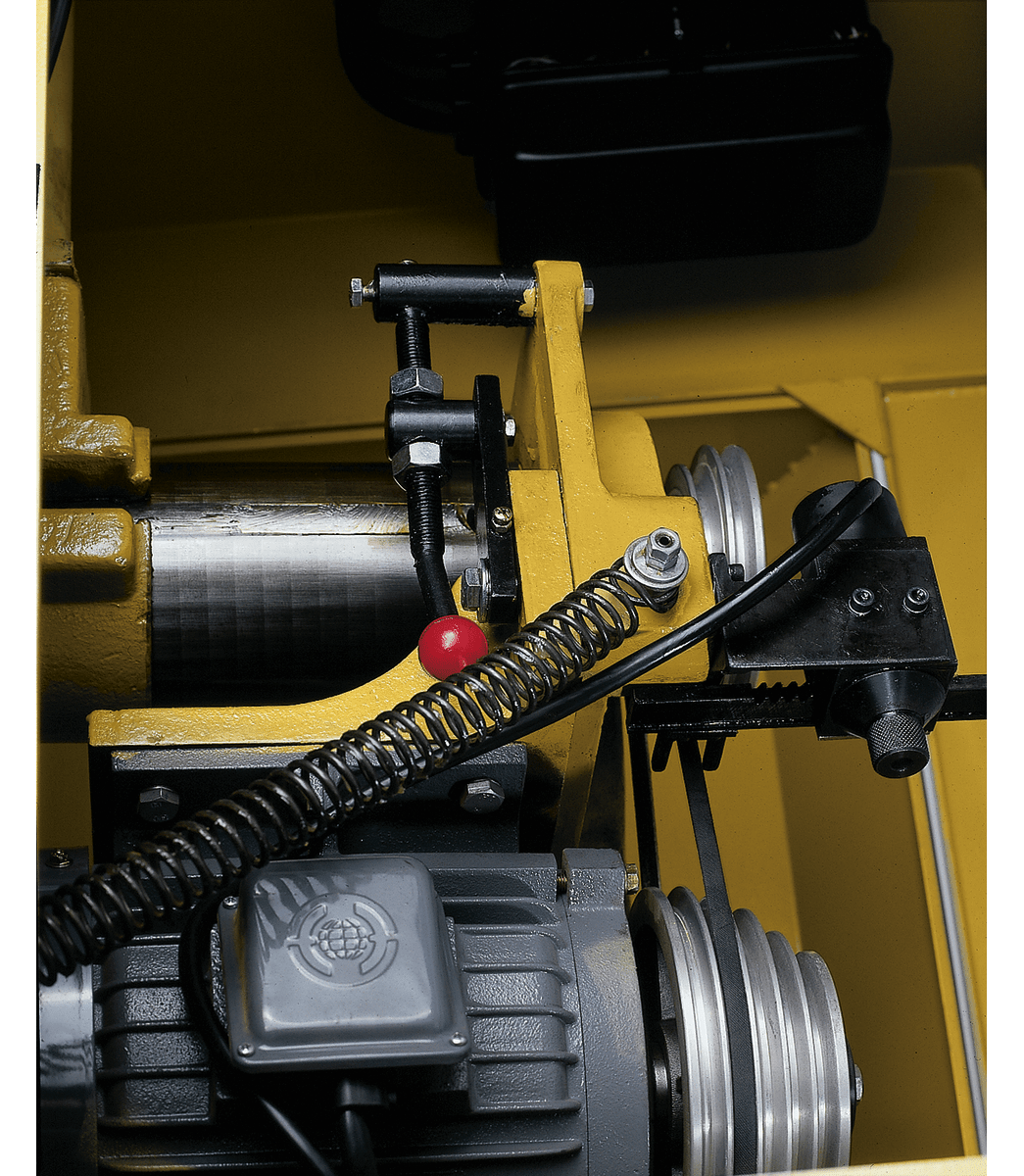

The full guard includes two stock hold-downs and a see-through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table insure a clear work area and improved finish. An extra large quill assembly with a full seven inch stroke has three oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance. Powered by a big 7-1/2HP motor that drives the spindle forward and reverse with five speeds. The massive sliding table is fully supported by six tapered precision bearings through a full four-foot stroke. In addition, on board the table is a large miter head complete with stock hold-down clamp and a 56" miter fence with flip stop. The large table can easily accommodate a stock feeder for longer production runs.
Features
- Five spindle speeds in forward and reverse with lighted indicator
- Full coverage guard with workpiece hold downs

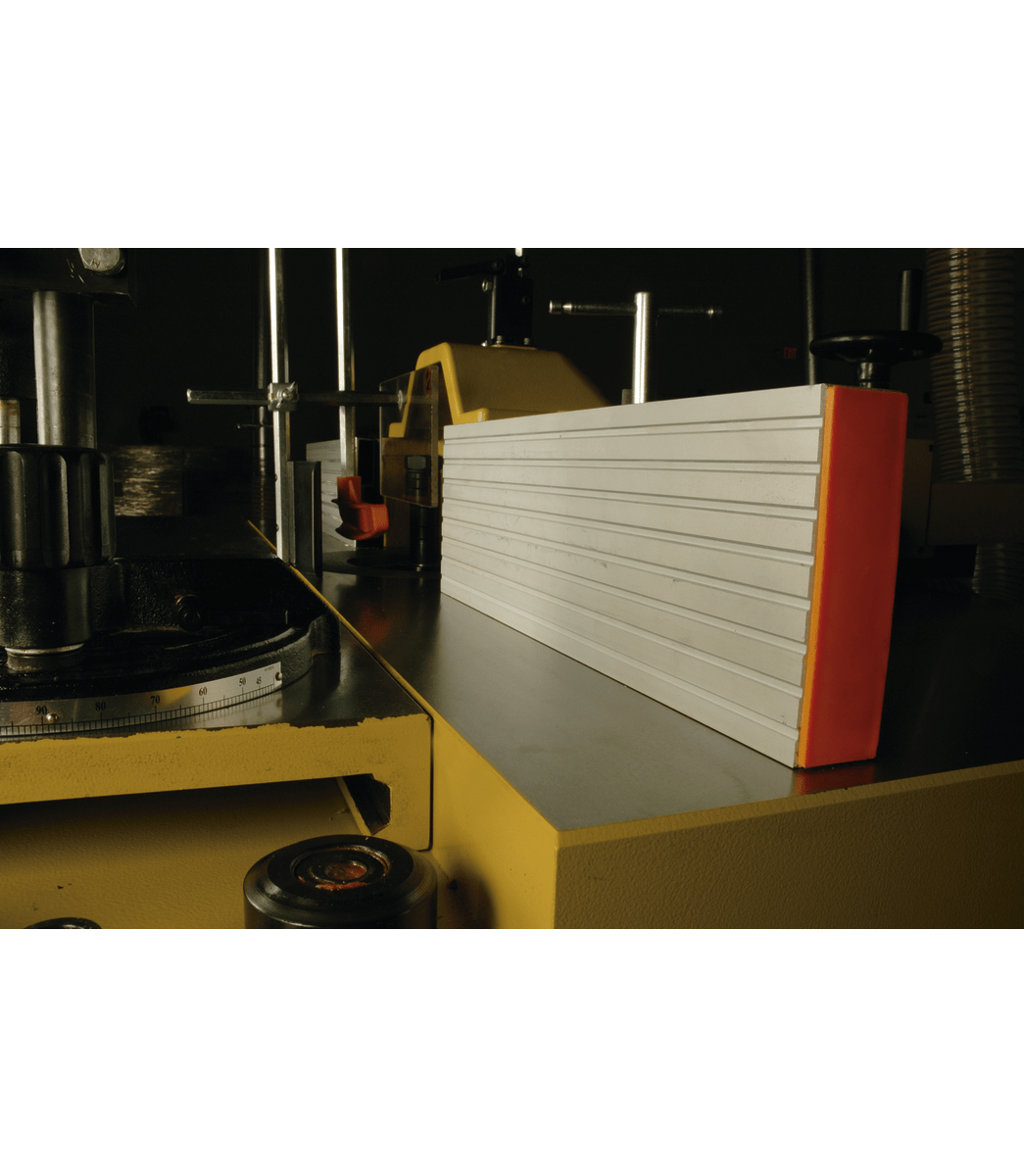

- Fully adjustable fence has dual digital readout positioning with micrometer adjustments

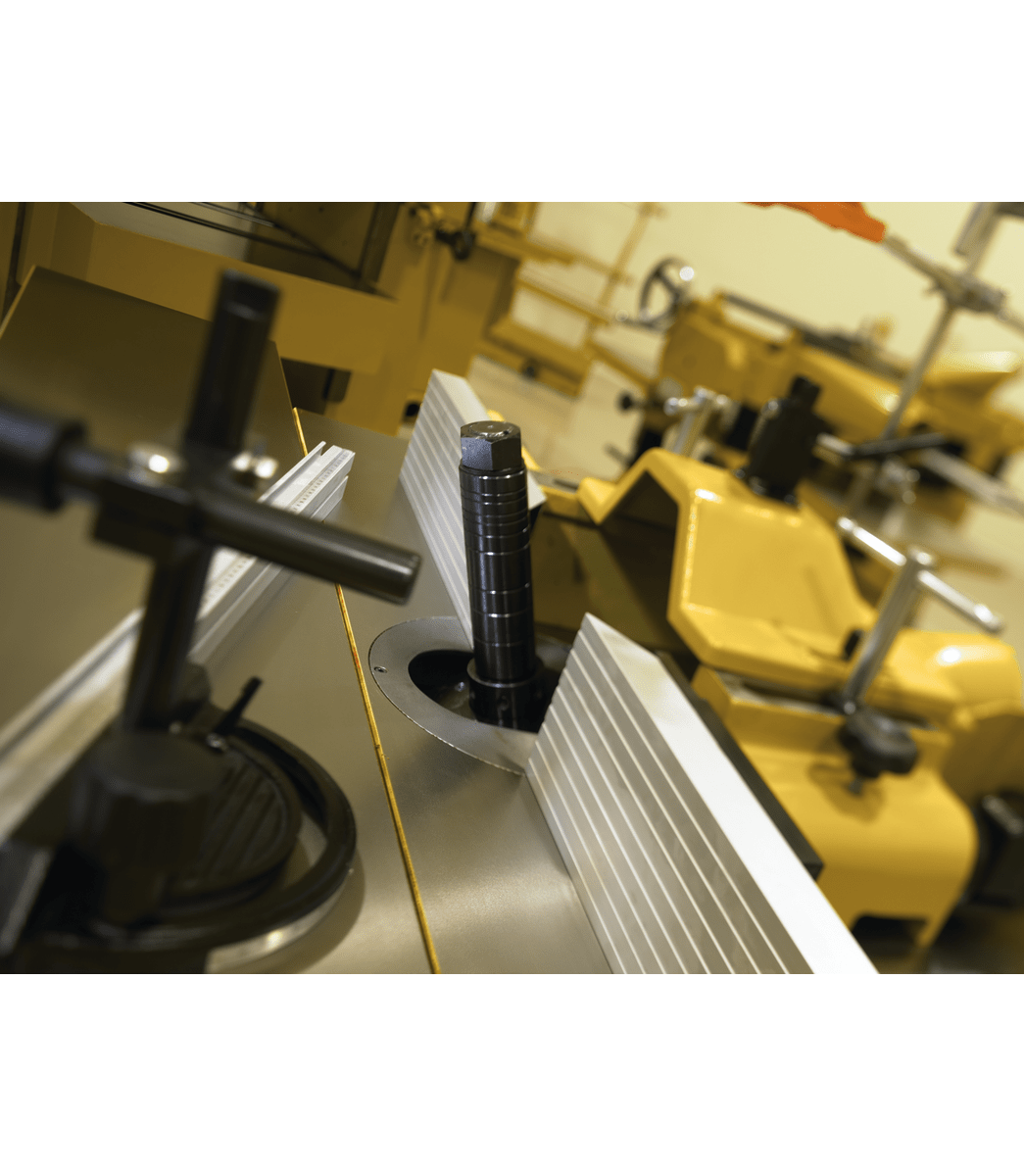

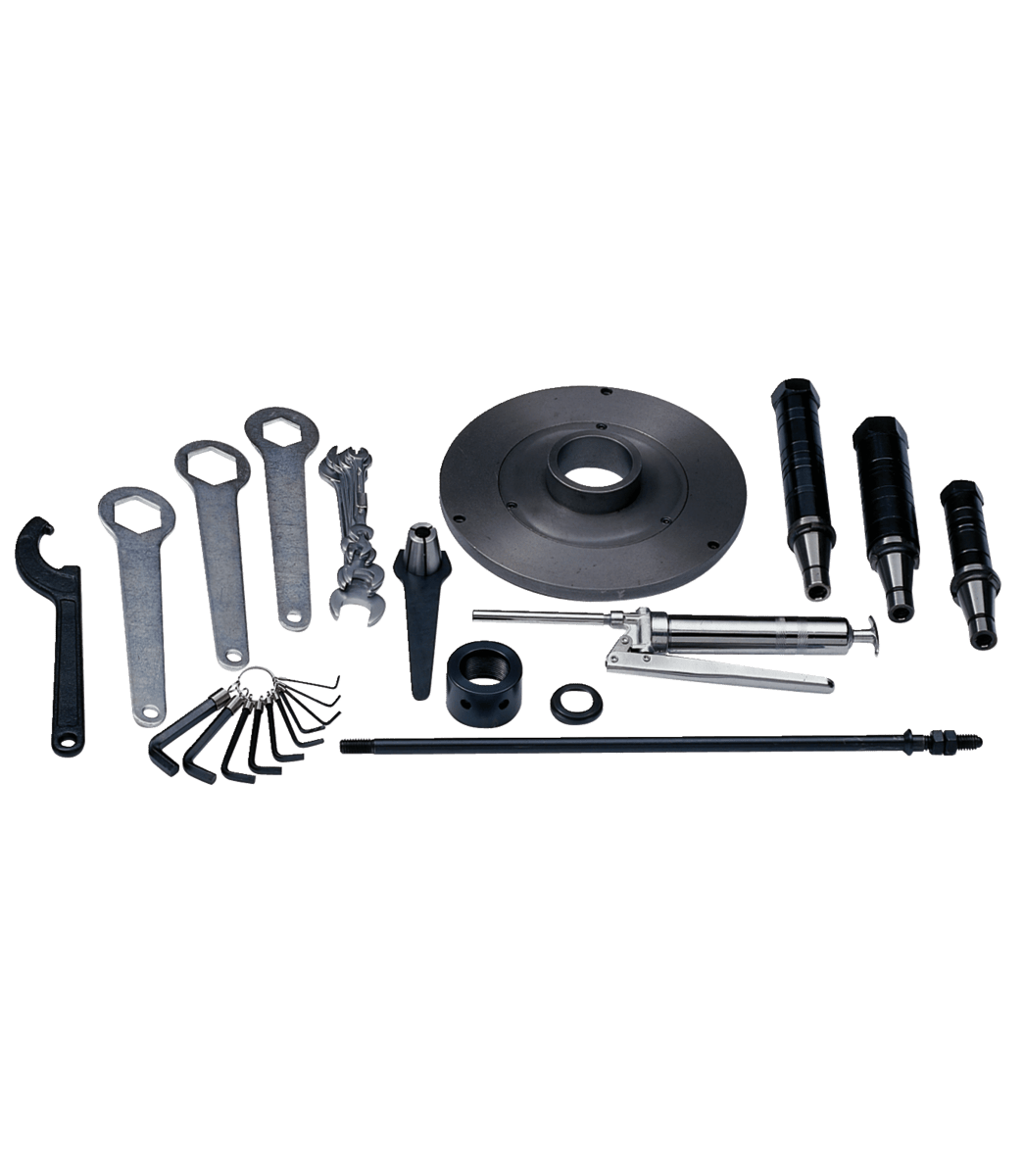

- Includes 3/4", 1" and 1-1/4" spindles
- Large diameter multiple table inserts accommodate virtually any size cutter
- Large table with built-in slider with room for stock feeder
- Sliding table travels a full 49-1/4 inches
- Tilting spindle for additional angles
Specifications
| Stock Number | 1791284 |
|---|---|
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Dust Port Outside Diameter (In.) | 5 |
| Maximum Diameter Cutter Above Table (In.) | 12 |
| Maximum Diameter Cutter Below Table (In.) | 9 |
| Maximum Spindle Diameter (In.) | 1-1/4 |
| Motor Phase | 3 |
| Motor Power (HP) | 7-1/2 |
| Motor Voltage (V.) | 230/460 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Style (Type) | Closed Stand |
