719T Mortiser, 1HP 1PH 115/230V
SKU: PM9-1791264K

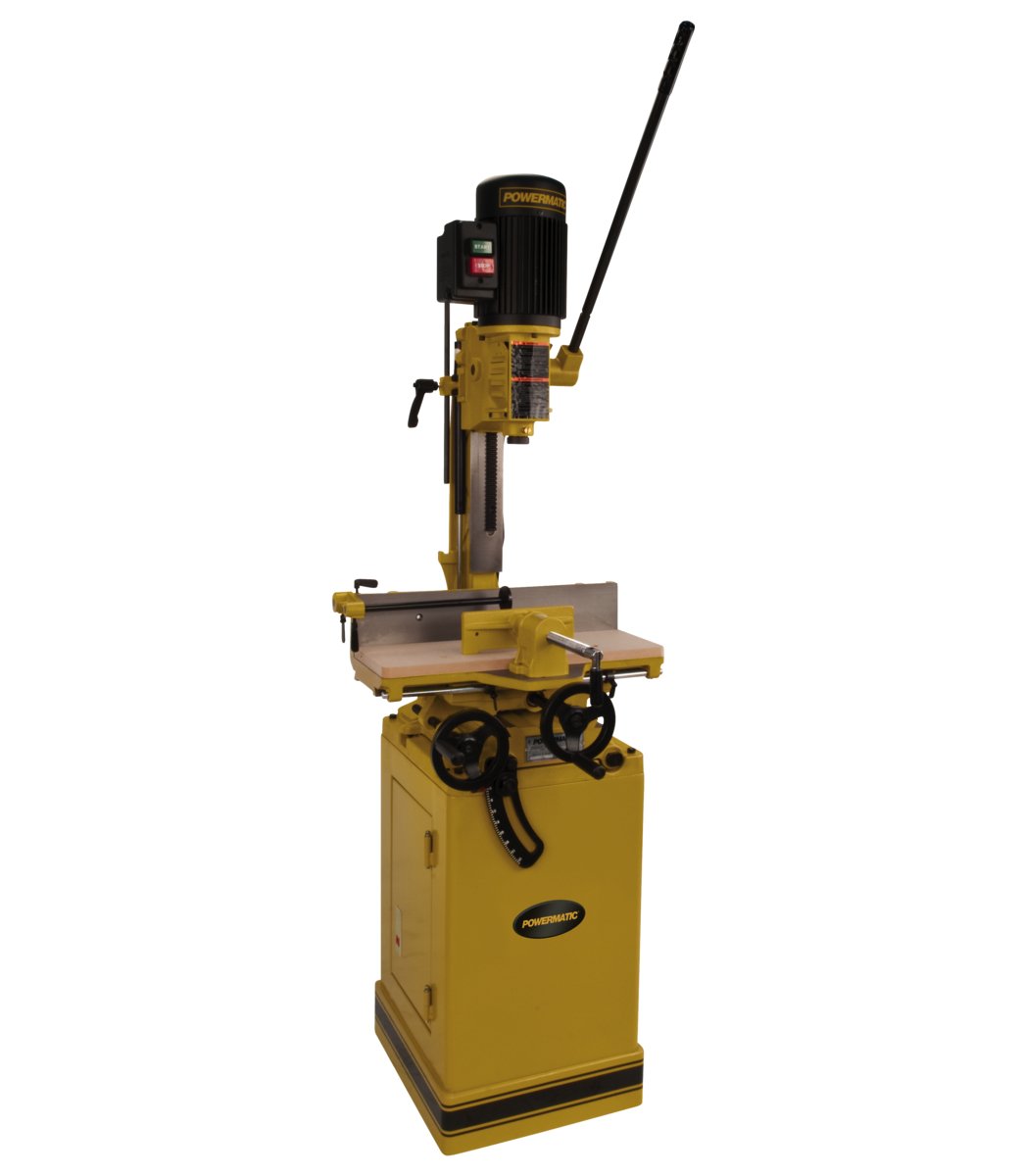

The 719T Tilt Table Mortiser features heavy-duty cast iron construction and a powerful 1HP motor for the most demanding jobs.

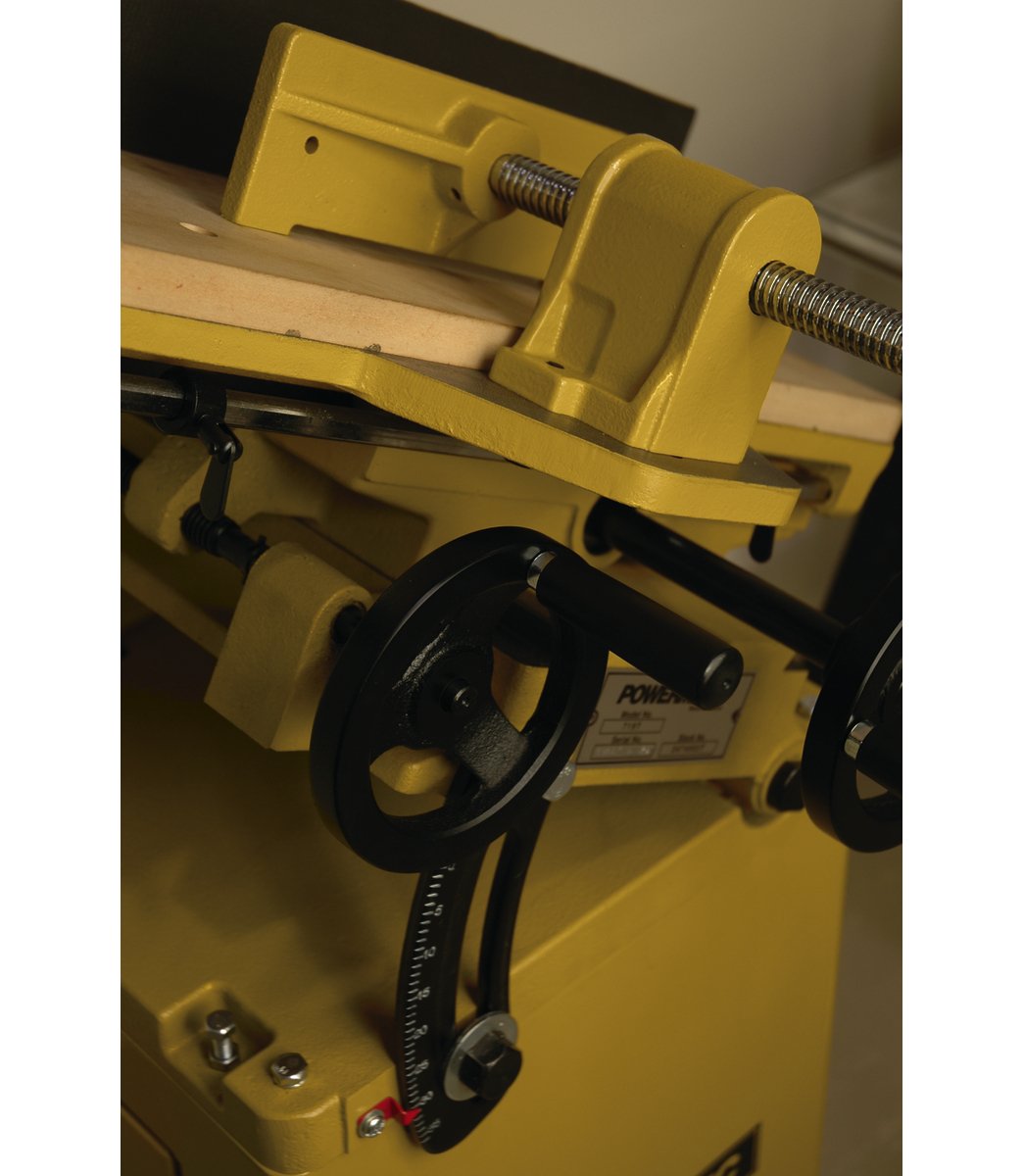

The head is mounted using adjustable gibs to assure years of trouble-free service. The heavy rack and pinion gear system utilizes a spring-loaded six position adjustable handle for movement. A handy quick adjust depth stop gives a uniform depth of mortise. A large 20-1/4" x 7" table gives plenty of work support and will adjust to any angle between 0 and 35°. The table can also move left to right and forward and back on dovetail ways with the large handwheel controls. Adjustable linear stops and flip down stop allow for precision repeatability. The quick adjust clamp provides plenty of work-holding force and will swivel to accommodate angled workpieces. The heavy enclosed steel cabinet provides plenty of storage inside for chisels and accessories.
Features
- Adjustable work stop for repeat cuts
- Feed lever features size positions allowing for quick adjustments
- Gas cylinder controlled rack and pinion system for smooth head raising and lowering

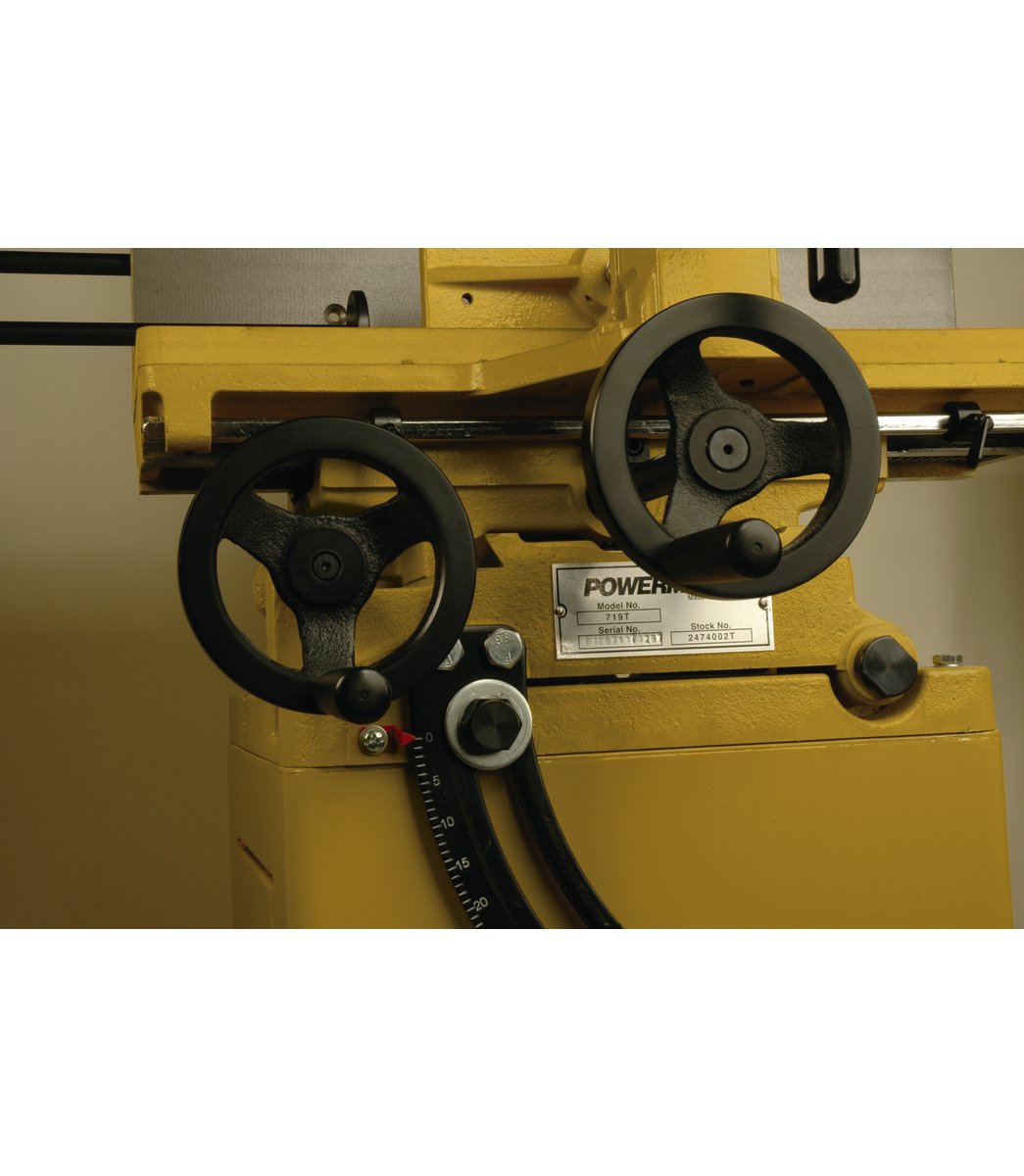

- Handwheels control smooth linear and cross table motions

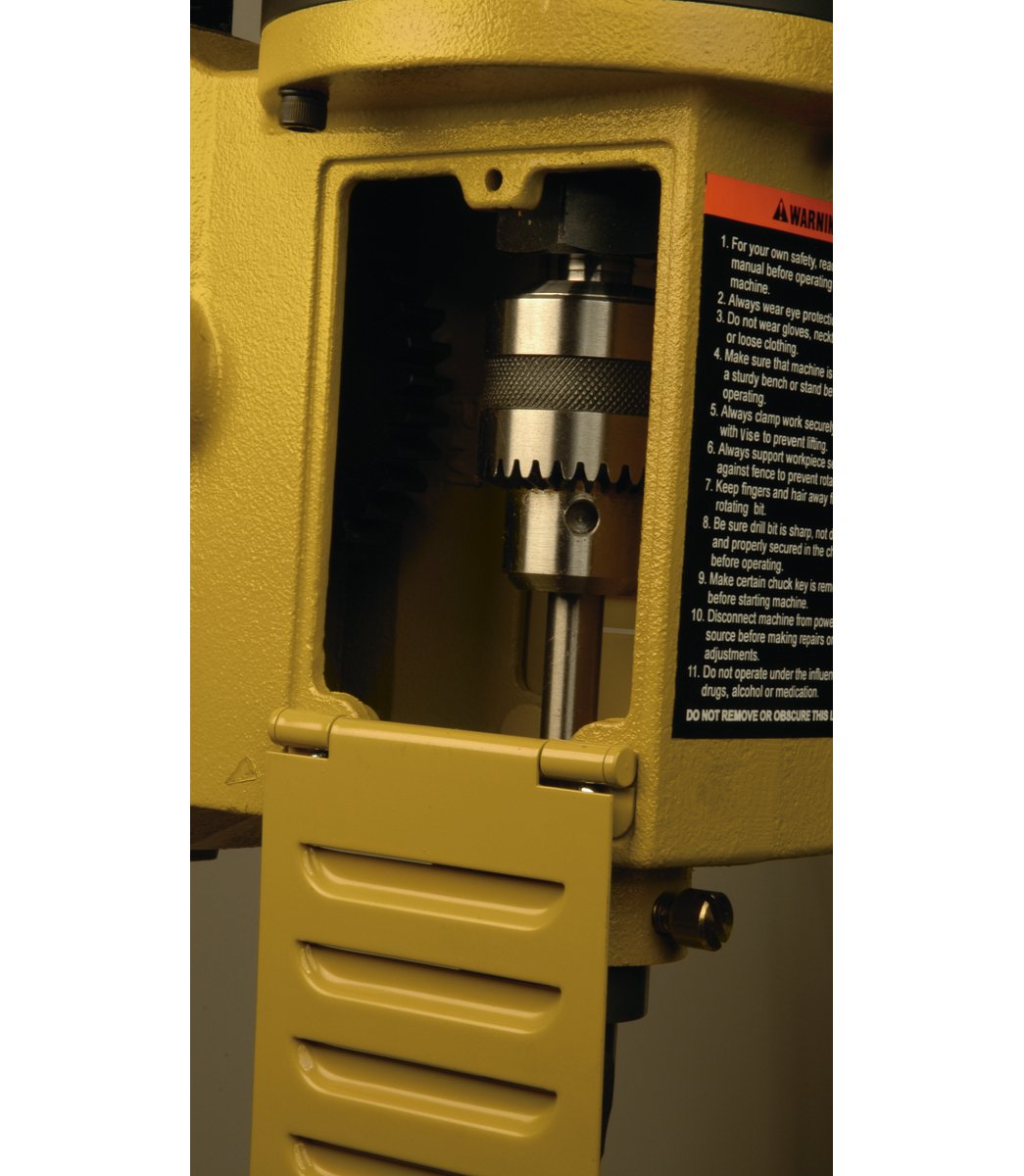

- Hinged chuck door allows easy access for quick bit changes
- Quick position table mounted swiveling vise clamp accommodates angled work pieces
- Sturdy cast iron construction with precision-machined column and table
Specifications
| Stock Number | 1791264K |
|---|---|
| Chisel Capacity (In.) | 1/4" to 1" |
| Chisel Center to Fence (In.) | 4 |
| Chuck Size (In.) | 1/2 |
| Motor Amps | 11/5.5 |
| Motor Phase | 1 |
| Motor Power (HP) | 1 |
| Motor Voltage (V.) | 115/230 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Spindle Speed (RPM) | 1,725 |
