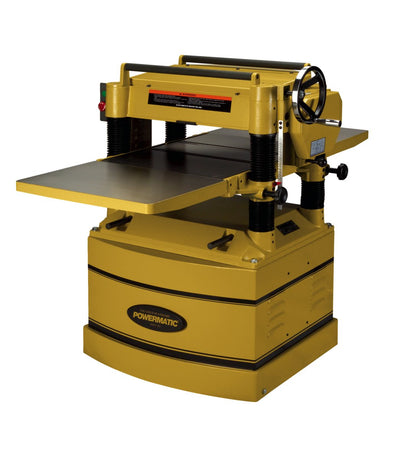

209HH, 20" Planer, 5HP 1PH 230V
SKU: PM9-1791315
The corrugated infeed and fine groove outfeed rollers ensure a smooth feed.

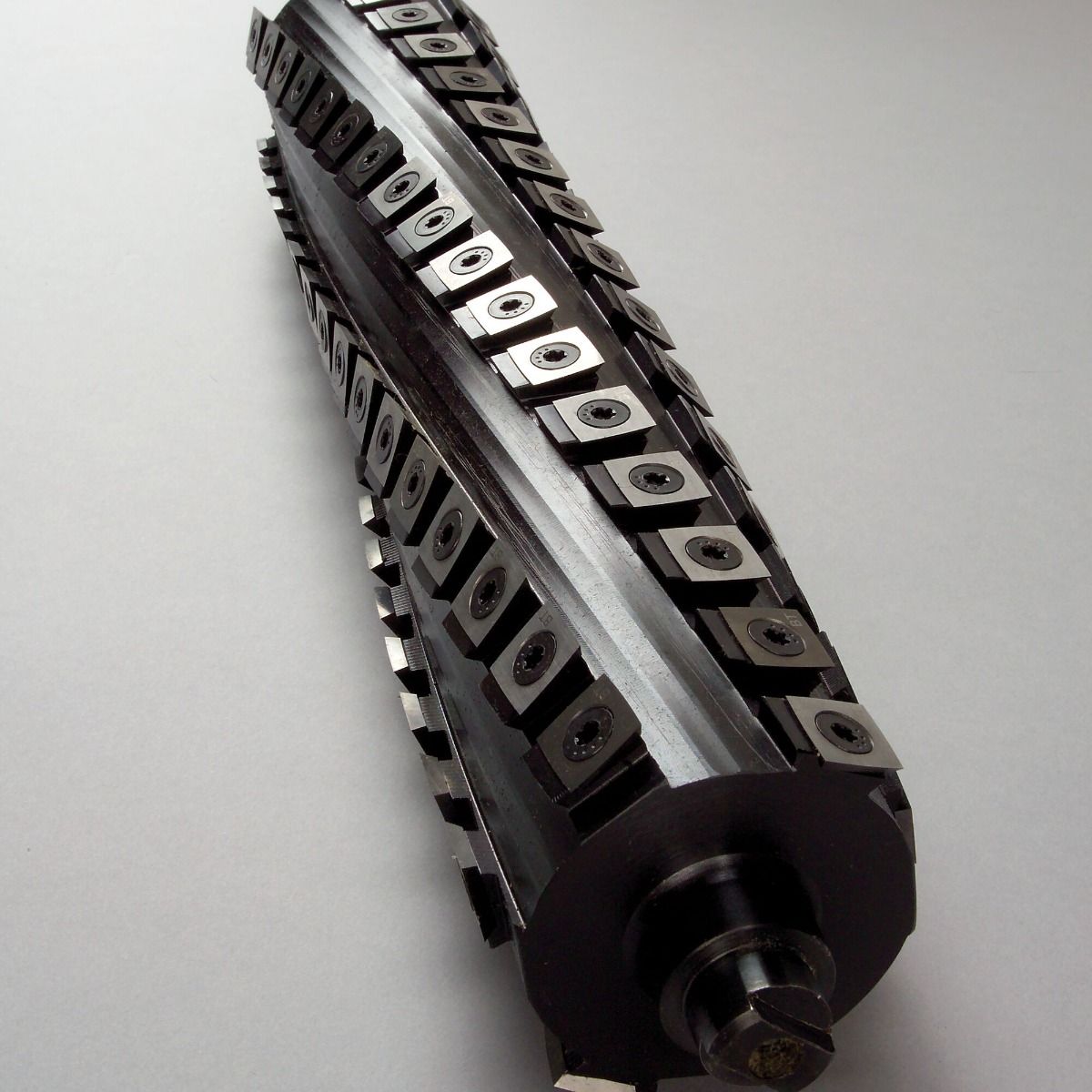

This heavy duty Planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The helical cutterhead provides quieter operation and finer finishing than conventional systems, and the 100 four-sided carbide knife inserts seat themselves without requiring a set-up gauge. The 5" dust port connects easily to any dust collector. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.
Features
Specifications
| Stock Number | 1791315 |
|---|---|
| Cuts Per Minute | 20,000 |
| Cutterhead Diameter (In.) | 3-3/16 |
| Cutterhead Speed (RPM) | 5000.0000 |
| Dust Collection Minimum CFM Required (CFM) | 900 |
| Dust Port Outside Diameter (In.) | 5 |
| Feed Rate (FPM) | 24/31 |
| Maximum Depth of Cut (In.) | 3/32 |
| Maximum Full Width Depth of Cut (In.) | 3/32 |
| Maximum Planing Thickness (In.) | 8 |
| Maximum Planing Width (In.) | 20 |
| Minimum Planing Length (In.) | 6-3/4 |
| Motor Phase | 1 |
| Motor Power (HP) | 5 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 40 |
| Style (Type) | Floor |
| Table Size (L x W) (In.) | 25-3/4 x 20 |
| Table Support | 4 Column |
| Type of Cutterhead | HELICAL |
