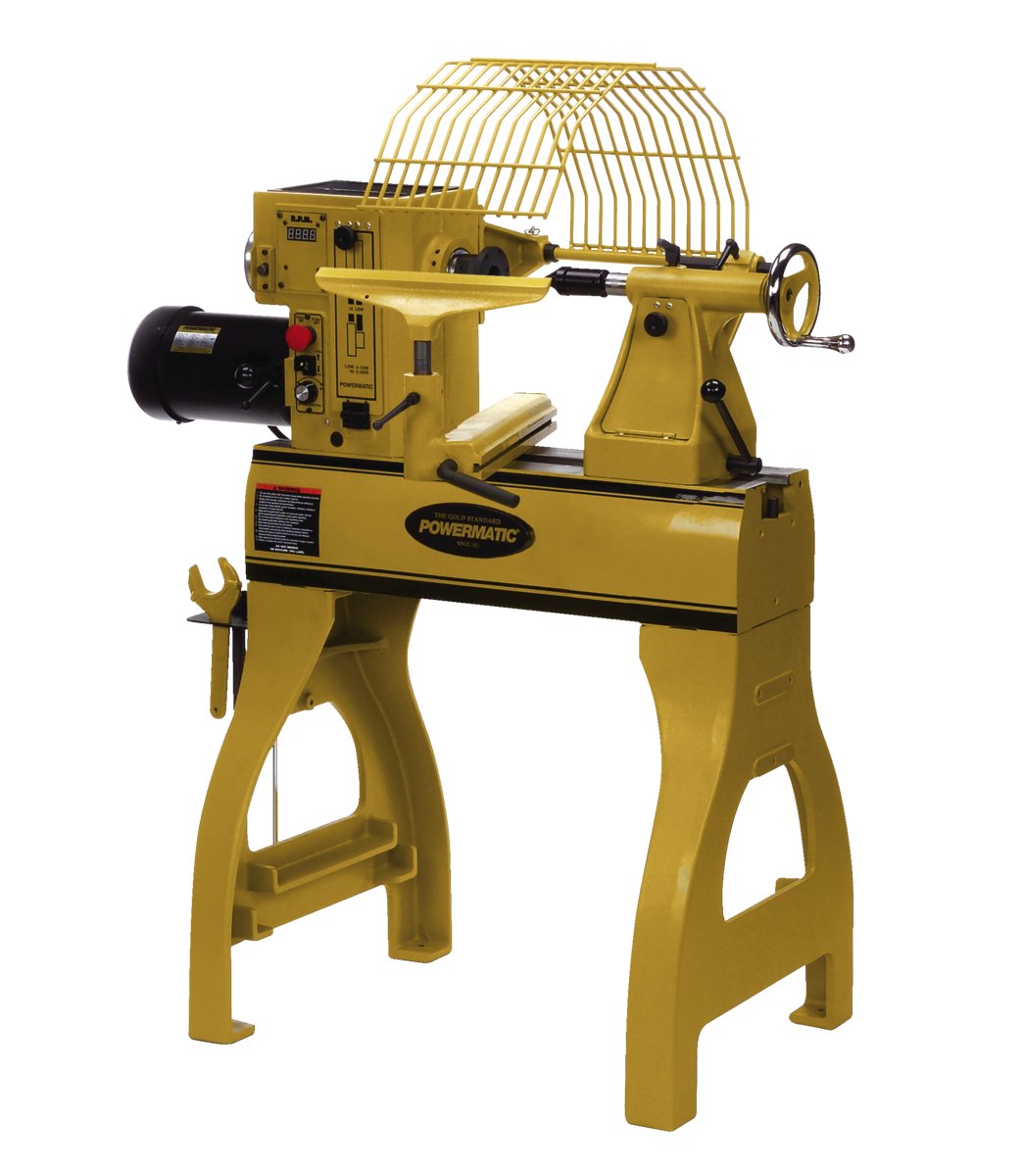

2020B Lathe, 2HP, 1 or 3PH, 220V
SKU: PM9-1792020
The enhanced features include a digital RPM readout, built in spindle indexing on the head stock, and a re-designed tailstock with internal storage, chrome trimmed handwheels, and a laser etched quill which is self-ejecting
The features you love on the 3520B Lathe are now available in a smaller footprint. The PM2020 Lathe is perfect for turners short on space, or projects where a short bed is convenient. Like its big brother, the PM2020 features a sliding headstock, electronic variable speed with low and high speed ranges, and the spindle lock. Additional features include a two position mount for the optional bed extension, a sliding hammer knockout rod with brass tip, an attached tool caddy and a metal shelf for tool storage.
Features
- Brass-tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
- Digital RPM readout for accurate speed adjustments
- Redesigned tool rest geometry allows for better chisel movement along the tool rest
- Set of dead centers which hold a spindle for visual comparison
- Sliding headstock with electronic variable speed
- Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes and other equally spaced features
- Tailstock has internal storage for additional accessories
- Tailstock has internal storage for additional accessories and attached tool caddy allows convenient access to centers and wrenches
- Two position mount for optional bed extension
Specifications
| Stock Number | 1792020 |
|---|---|
| Bed Construction | Cast Iron |
| Distance Between Centers (In.) | 20 |
| Gross Weight (Lbs) | 609 |
| Motor Amps | 6.2 |
| Motor (HP) | 2.0 |
| Motor Phase | 3 |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 220 |
| Net Weight (Lbs.) | 559 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 20 |
| Shipping Dimensions (L x W x H) (In.) | 55-1/8 x 27-1/4 x 30-5/8 |
| Swing Over Bed (In.) | 20 |
| Weight (Lbs.) | 559 |
