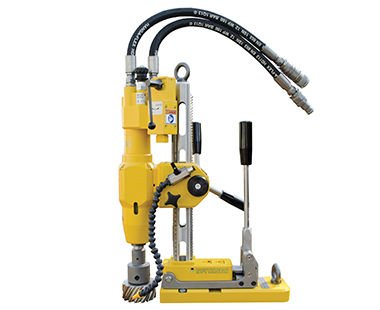

Portable Hydraulic Magnetic Drill

 IDEAL FOR USE IN EX ZONES AND SUBSEA APPLICATIONS

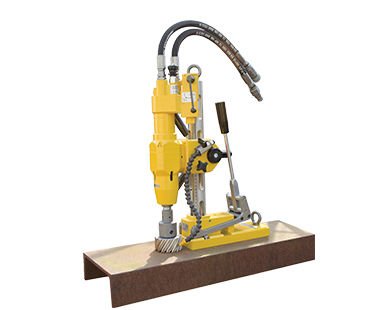

Features

• Ideal for industrial, construction, marine and mining applications
• Drill structural steel and other metals
• Reversible motor for tapping

Safety

• Hydraulic motor safe for underwater use
• ATEX Certified EX II 2Gc IIB T5
• Manually operated permanent magnet with lever control

Accessories

• Uses annular cutters
• Lubricants ideal for cutting steel, stainless steel and hard metals
• Optional clamp allows right angle drilling of steel, cast iron, cement and plastic pipes up to 19-1/2" dia. (see below)

Standard equipment includes:

• • Hydraulic hose set
  • Coolant bottle
  • Arbor adapter to 3/4" Weldon
  • Arbor adapter to 1-1/4" Weldon
  • Safety chain
  • Drift key
  • Allen keys
  • Carrying case

Motor Power (Hydraulic)	3.4 HP
Weight	50 lbs.
Stroke	12"
Hole Capacity	4" dia
Twist Drill Capacity	1-1/4" dia.
Tapping Capacity	1-1/8" dia.
No Load Speed, Variable	40-250 RPM
Hydraulic Supply	5.25 to 6 GPM @ 2000 PSI (140 Bar)
Magnetic Base Size	11-11/16" L x 4" W (2 1345 0010) 12-4/5" L x 7-1/2" W (2 1345 0020)
Dimensions	21-1/2"H x 15-7/16" L x 7-3/4"W
Magnetic Force (3/8" plate)	1874 lbs. (2 1345 0010) 3306 lbs. (2 1345 0020)
Spindle	MT3
ATEX Certification	II2GExhIIBT5Gb
Wide Base Model Available	Order Model 2 1345 0020

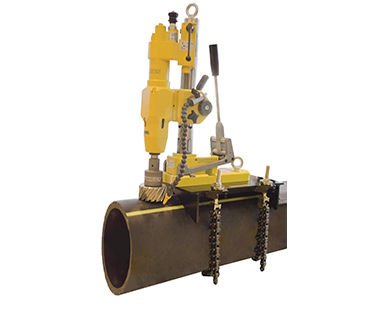

Optional clamp allows right angle drilling of steel, cast iron, cement and plastic pipes up to 19-1/2" diameter

Extension chains available for pipes up to 43-1/4" dia.

• P/N 2 1330 8500 – Clamps for pipes up tp 19-1/2" diameter
• P/N 5 1201 9030* – Extension chain for pipes up to 31-1/2" (800mm)
• P/N 5 1201 9020* – Extension chain for pipes up to 43-1/4" (1100mm)

* 2 extension chain pieces needed for each clamp
