100 Ton Ironworker

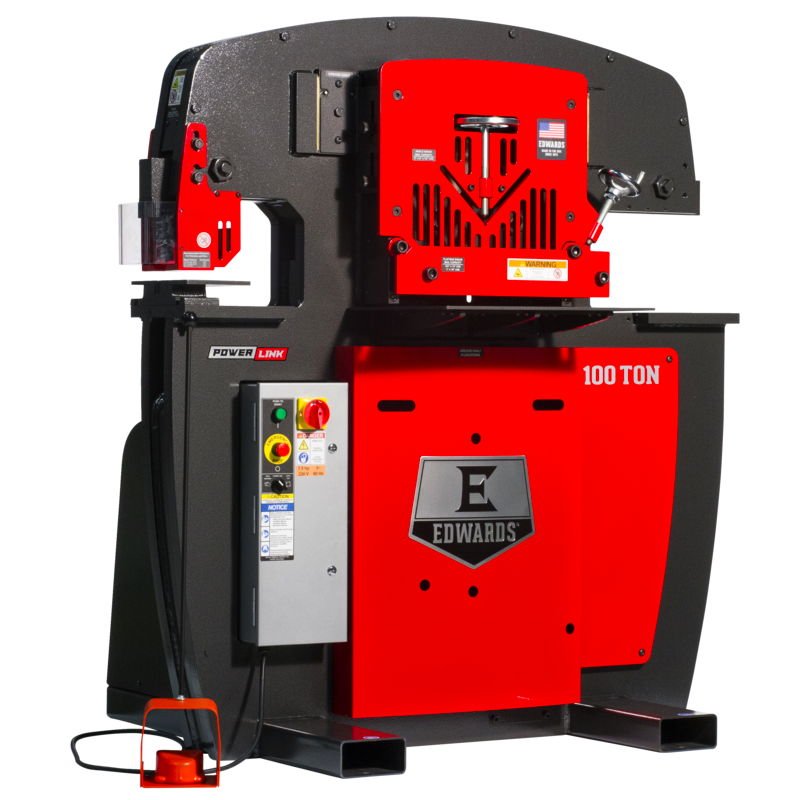

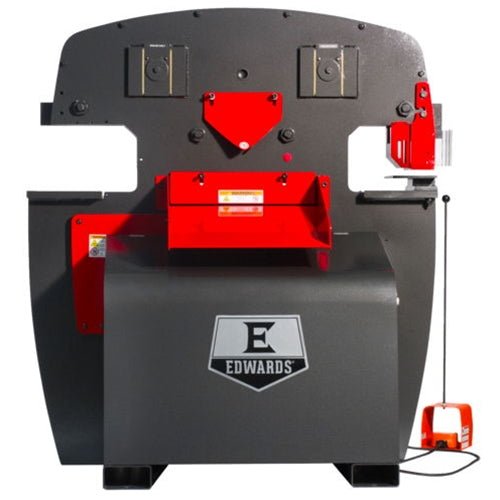

The Edwards 100 Ton Ironworker is a Workhorse with high capacity

• Four Available Workstations
• High Capacity Angle Shear
• Universal Open Tooling Station
• Electric Stroke Control
• ANSI B11.5-1988R(02) Compliant
• ETL/UL Approved Controls

If you're looking for versatility and power, the Edwards 100 Ton Ironworker is perfect for your shop. Standard features include a Punch Assembly, a 14" wide Flat Bar Shear, a high capacity Angle Shear and a universal open tooling station designed for optional Tooling Accessories allowing you to select the perfect tool for your needs.

PUNCH

• Rating 100 Tons

• Max. Capacity 1-1/16" Dia. in 1" A36

• (65,000 PSI Tensile)

• Stroke 1-13/16"

• Throat Depth 11"

• Open Height 8-3/4"

• Shut Height 6-15/16"

• Work Height 39-1/16"


FLAT BAR SHEAR

• Max. Capacity 3/4" x 14"

• 1" x 10"

• Max. Round 1-1/4"

• Max. Square 1-1/4"

• Work Height 37"


ANGLE SHEAR

• Max. Capacity 6" x 6" x 1/2"

• Work Height 43-15/16"

 Optional COPER NOTCHER

• Max. Capacity 2-1/2" x 6" x 1/2"

• Work Height 42"


OPEN STATION

• Throat Depth 14-3/4"

• Open Height 8-3/4"

• Shut Height 6-15/16"

• Stroke 1-13/16"

• Work Height 37"

GENERAL SPECIFICATIONS

• Standard Motor 7.5 HP 3~ 208 V or 230 V

• 1765 RPM 22 A

• Optional Motors 7.5 HP 3~ 460 V

• 1765 RPM 11 A
• 7.5 HP 3~ 575 V

• 1770 RPM 8 A
• 5 HP 1~ 208 V or 230 V

• 1725 RPM 23 A
• *7.5 HP 1~ 230 V

• 1765 RPM 36 A

• *Required for 1~

• Hydraulic Accessory Pack

• Hydraulic Pump 10-1/2 GPM - 2 Stage

• Valve Pressure 3500 PSI

• Reservoir 17 Gallons

• Cylinder 3-1/2" Ram


DIMENSIONS

• Height 61-11/16"

• Width 56-1/8"

• Depth 45"

• Shipping Weight 4650 lb
