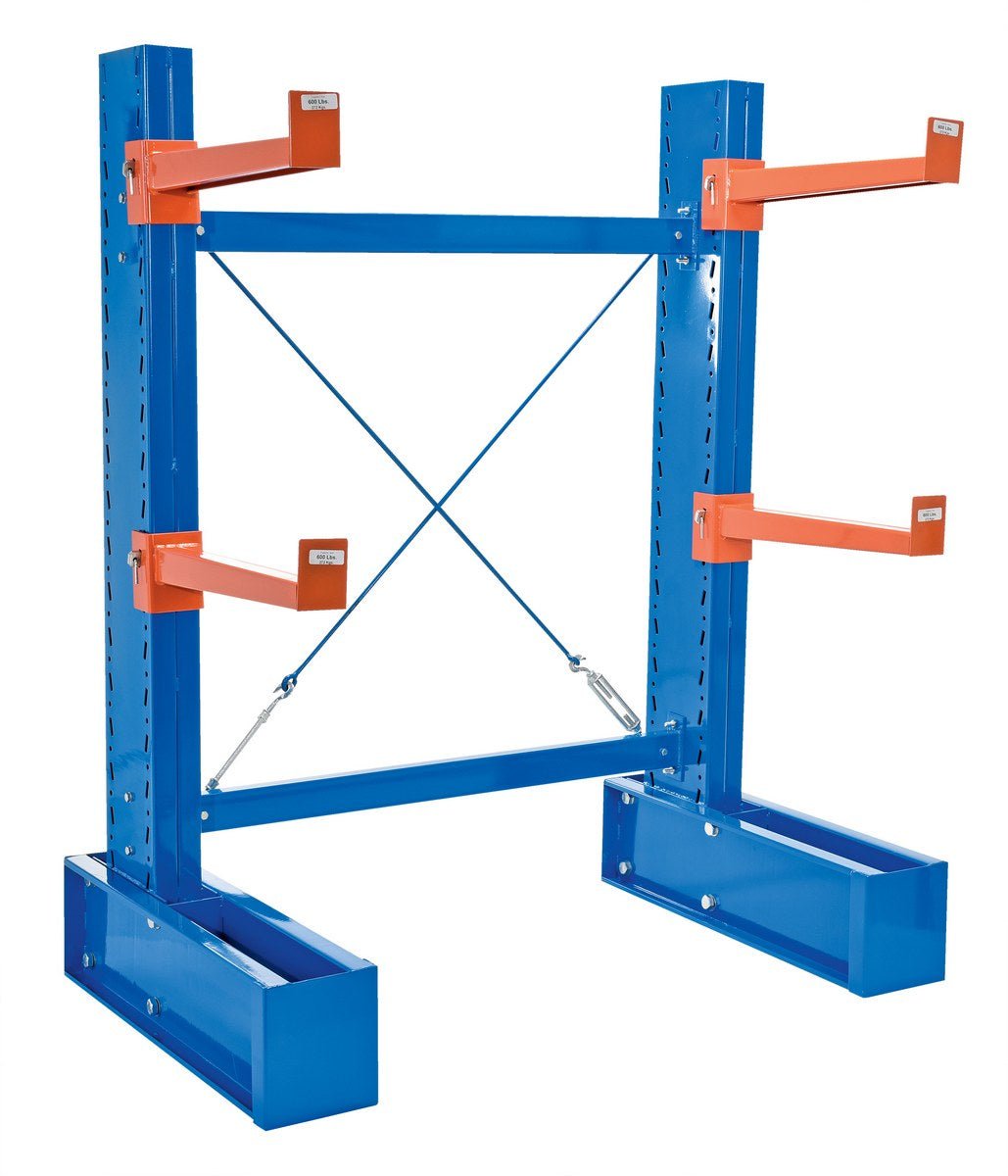

Medium-Duty Cantilever Racking
SKU:
Medium-Duty Cantilever Racks are ideal for manual loading; open design affords easy forklift accessibility. Store bar stock, pipe, tubing, lumber and other light hard-to-stock items that must be kept off the floor.
Arms are adjustable up and down the full length of the upright. To adjust align arms with pre-drilled holes and secure with key lock. All arms feature lips to prevent product from falling off. Uprights are sold separately, not in pairs. Custom rack systems can be designed for your special application. Capacity listed is per upright.
|
Single-Sided Cantilever Uprights |
||||||||
| Model | Image | Height | Base | Arms to Use |
Capacity (lbs) |
Wt. (lbs) |
||
| MU-C-6-12 |  |
 |
6' | 25 3/8" | 12" | 8,100 | 161 | |
| MU-C-6-18 |  |
|
6' | 31" | 18" | 6,600 | 164 | |
| MU-C-6-24 |  |
|
6' | 37" | 24" | 5,500 | 170 | |
| MU-C-6-36 |  |
|
6' | 49 3/8" | 30"'/36" | 4,700/4,100 | 183 | |
| MU-C-8-12 |  |
|
8' | 25 3/8" | 12" | 7,600 | 186 | |
| MU-C-8-18 |  |
|
8' | 31" | 18" | 6,300 | 191 | |
| MU-C-8-24 |  |
|
8' | 37" | 24" | 5,300 | 197 | |
| MU-C-8-36 |  |
|
8' | 49 3/8" | 30"/36" | 4,500/4,000 | 208 | |
| MU-C-10-12 |  |
|
10' | 25 3/8" | 12" | 7,100 | 214 | |
| MU-C-10-18 |  |
|
10' | 31" | 18" | 5,900 | 219 | |
| MU-C-10-24 |  |
|
10' | 37" | 24" | 5,000 | 225 | |
| MU-C-10-36 |  |
|
10' | 49 3/8" | 30"/36" | 4,400/3,800 | 237 | |
|
Double-Sided Cantilever Uprights |
||||||||
| Model | Image | Height | Base | Arms to Use |
Capacity (lbs) |
Wt. (lbs) |
||
| MDU-C-6-12 |  |
|
6' | 34" | 12" | 16,200 | 172 | |
| MDU-C-6-18 |  |
|
6' | 46" | 18" | 13,200 | 183 | |
| MDU-C-6-24 |  |
|
6' | 58" | 24" | 11,000 | 195 | |
| MDU-C-6-36 |  |
|
6' | 82" | 30"/36" | 9,400/8,200 | 215 | |
| MDU-C-8-12 |  |
|
8' | 34" | 12" | 15,200 | 197 | |
| MDU-C-8-18 |  |
|
8' | 46" | 18" | 12,600 | 208 | |
| MDU-C-8-24 |  |
|
8' | 58" | 24" | 10,500 | 219 | |
| MDU-C-8-36 |  |
|
8' | 82" | 30"/36" | 9,000/8,000 | 242 | |
| MDU-C-10-12 |  |
|
10' | 34" | 12" | 14,200 | 225 | |
| MDU-C-10-18 |  |
|
10' | 46" | 18" | 11,800 | 236 | |
| MDU-C-10-24 |  |
|
10' | 58" | 24" | 10,000 | 249 | |
| MDU-C-10-36 |  |
|
10' | 82" | 30"/36" | 8,800/7,600 | 270 | |
| Straight Arms | ||||||||
| Model | Image | Arm Length |
Uniform Capacity Per Arm (lbs) |
Wt. (lbs) |
||||
| MSA-C-12 |  |
|
12" | 1,000 | 10 | |||
| MSA-C-18 |  |
|
18" | 750 | 12 | |||
| MSA-C-24 |  |
|
24" | 600 | 15 | |||
| MSA-C-30 |  |
|
30" | 500 | 17 | |||
| MSA-C-36 |  |
|
36" | 400 | 21 | |||
| 10 Degree Inclined Arms | ||||||||
| Model | Image | Arm Length |
Uniform Capacity Per Arm (lbs) |
Wt. (lbs) |
||||
| MIA-C-12 |  |
|
12" | 1,000 | 10 | |||
| MIA-C-18 |  |
|
18" | 750 | 12 | |||
| MIA-C-24 |  |
|
24" | 600 | 15 | |||
| MIA-C-30 |  |
|
30" | 500 | 17 | |||
| MIA-C-36 |  |
|
36" | 400 | 21 | |||
| Brace Sets (includes two) | ||||||||
| Model | Image | Fits Upright (ft.) |
Length | Wt. (lbs) |
||||
| MB-C-6-36 |  |
|
6 | 36" | 26 | |||
| MB-C-6-48 |  |
|
6 | 48" | 38 | |||
| MB-C-6-60 |  |
|
6 | 60" | 44 | |||
| MB-C-6-72 |  |
|
6 | 72" | 50 | |||
| MB-C-6-96 |  |
|
6 | 96" | 64 | |||
| MB-C-8-36 |  |
|
8 | 36" | 28 | |||
| MB-C-8-48 |  |
|
8 | 48" | 42 | |||
| MB-C-8-60 |  |
|
8 | 60" | 48 | |||
| MB-C-8-72 |  |
|
8 | 72" | 52 | |||
| MB-C-8-96 |  |
|
8 | 96" | 66 | |||
| MB-C-10-36 |  |
|
10 | 36" | 30 | |||
| MB-C-10-48 |  |
|
10 | 48" | 44 | |||
| MB-C-10-60 |  |
|
10 | 60" | 50 | |||
| MB-C-10-72 |  |
|
10 | 72" | 54 | |||
| MB-C-10-96 |  |
|
10 | 96" | 90 | |||
KEY: = Approval Drawing -- = Warranty --
= Testing Certificate
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
