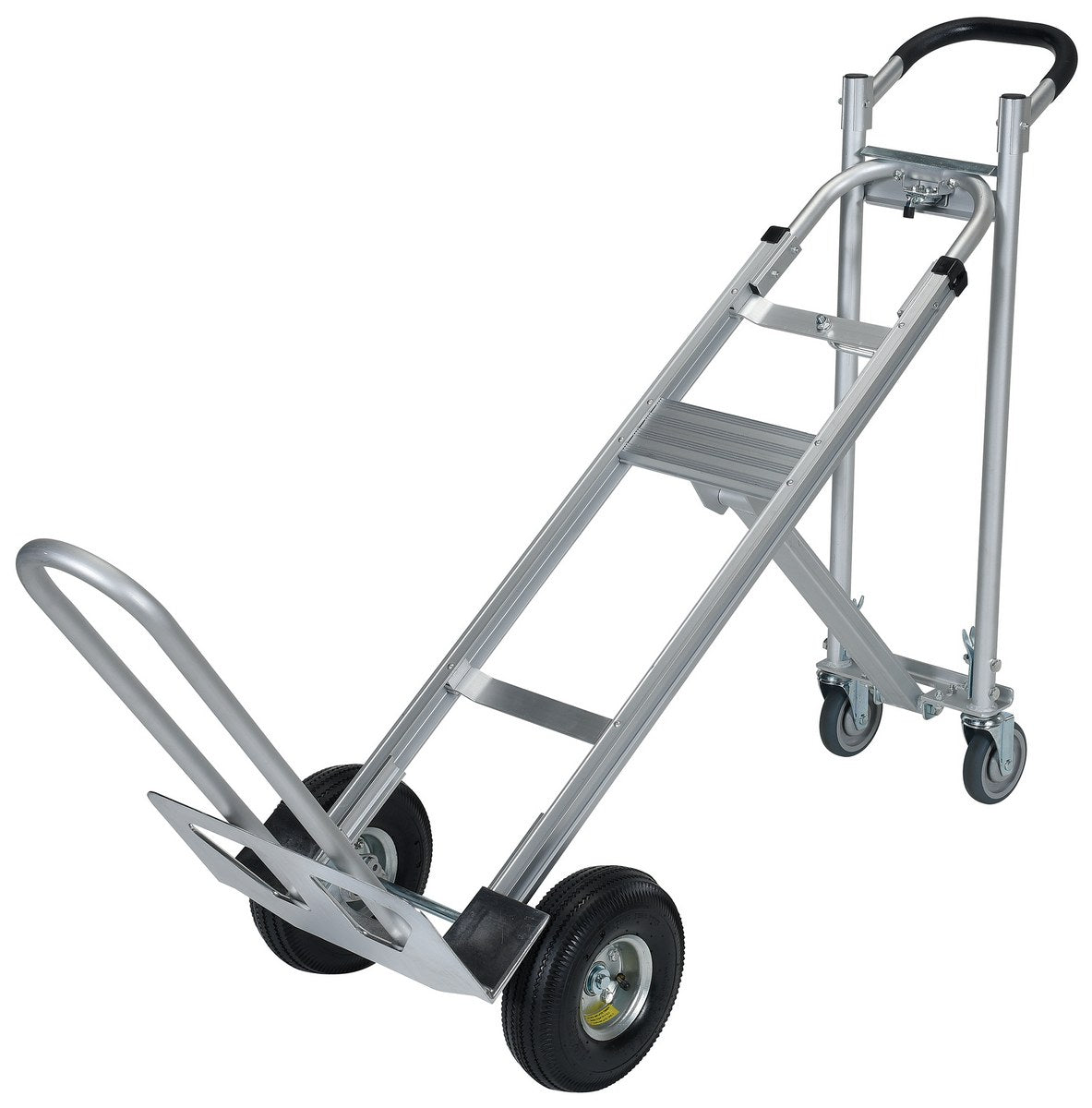

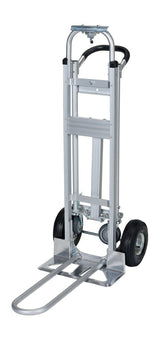

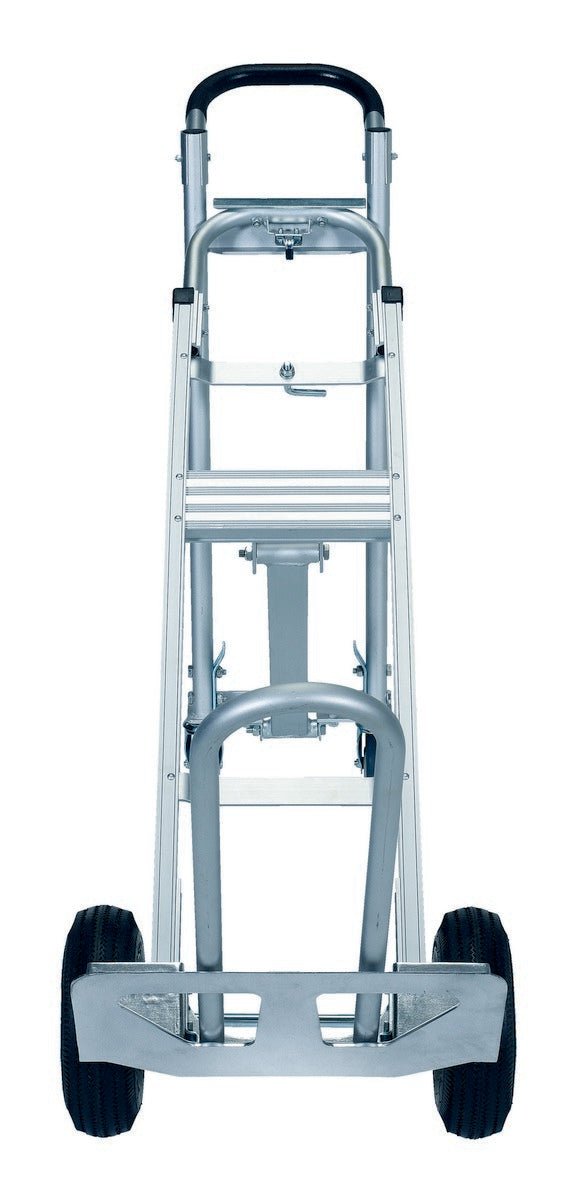

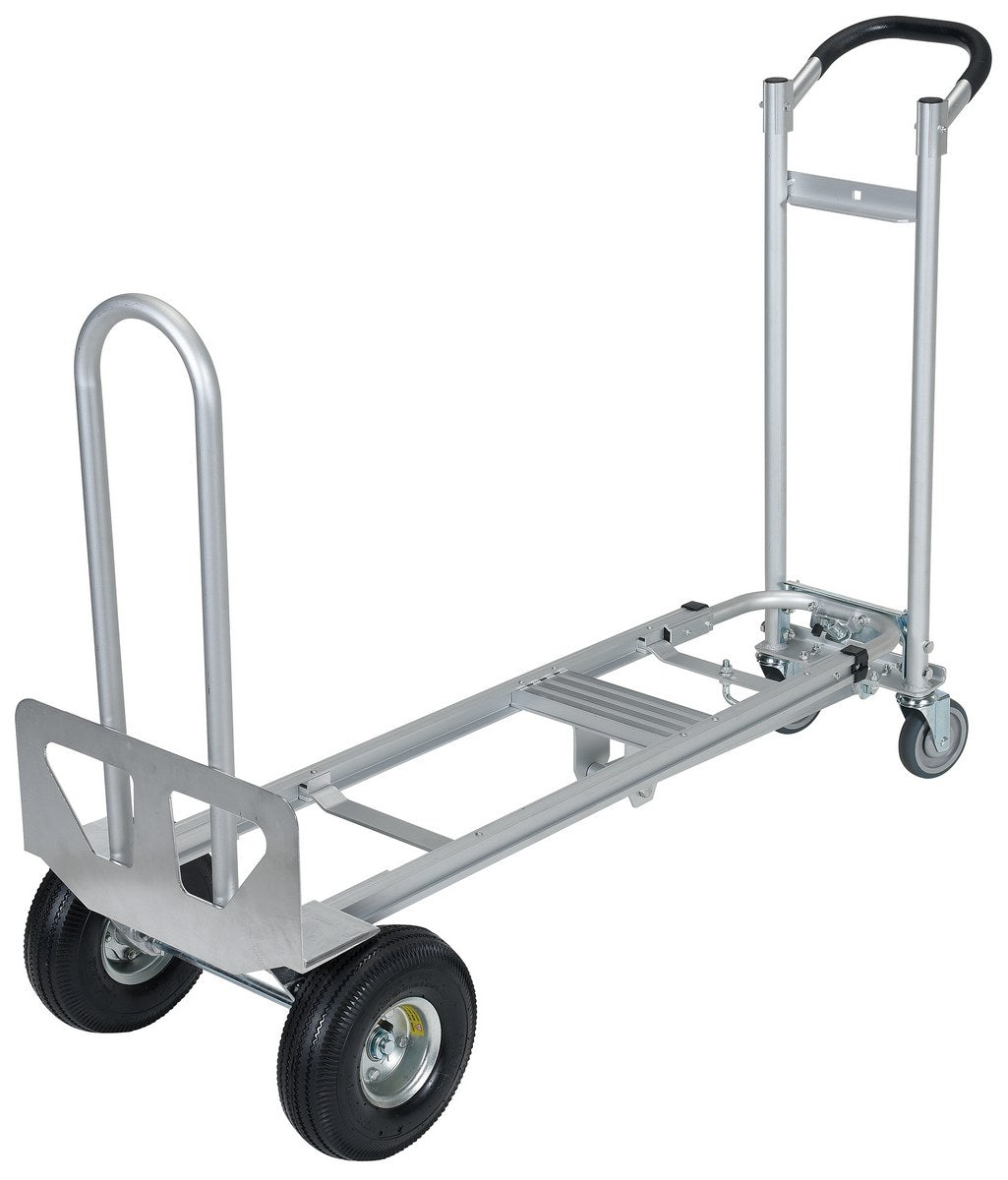

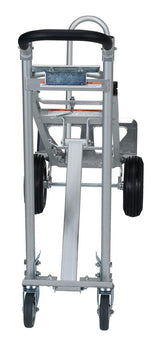

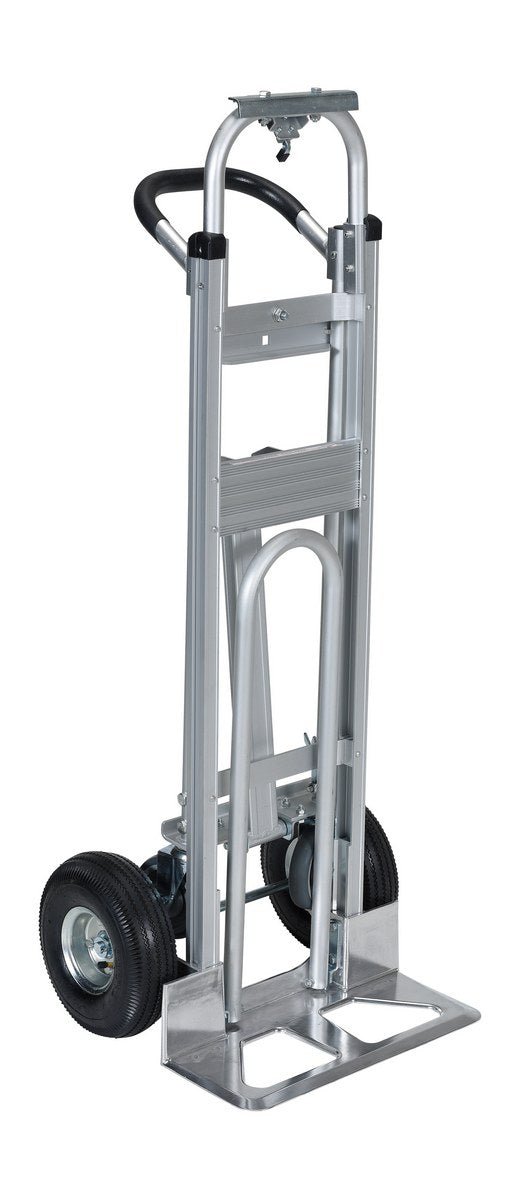

Deluxe Aluminum Hand Trucks
SKU: ALUM-P-HR
Maximize control for different types of loads. These hand trucks can transport boxes wherever they are needed.
Transport loads smoothly and evenly over rough or uneven floors. 10" diameter pneumatic tires are standard on all hand trucks, except for ALUM-H, ALUM-PIN, and ALUM-3-CONV, which are 10-1/2" tires. 10" diameter industrial solid rubber tires are also available. The convertible hand trucks also have 5"x 1-1/4" poly-on-steel swivel casters at the bottom of the handle. ALUM-SG (stair guides) are not compatible with the CONV models. Assembly required.
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Deluxe Aluminum Hand Trucks | |||||||
| Model | Image | Description | Nose Plate (WxD) | Capacity (lbs) | Overall Size (WxDxH) | Wt. (lbs) | |
| ALUM-P |  |

|
"P" Handle | 18"x7-1/2"/ 12" x 27" | 500/200 | 20-1/2"x 18-1/2"x 52-1/2" | 28 |
| ALUM-P-HR* |  |
|
"P" Handle | 18" x 7-1/2" / 12" x 27" | 500/200 | 18-1/2"x18-1/2" x 52-1/2" | 38 |
| ALUM-H |  |
|
Dual Handle | 18"x 7-1/2" | 500 | 20-1/4"x19"x 51-1/4" | 25 |
| ALUM-H-HR* |  |
|
Dual Handle | 18"x 7-1/2" | 500 | 19-1/2"x19"x51-1/4" | 34 |

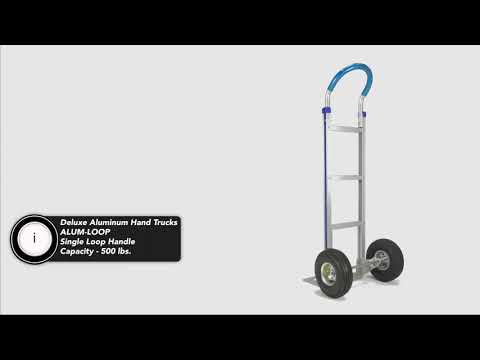

| ALUM-LOOP |  |
|
Single Loop Handle | 14"x 7-1/4" | 500 | 20"x18 1/2"x49 1/4" | 23 |
| ALUM-LOOP-H |  |
|
Double Loop Handle | 14"x 7-1/4" | 500 | 20"x18-1/2"x 62-13/16" | 24 |
| ALUM-LOOP-H-HR* |  |
|
Double Loop Handle | 14"x 7-1/4" | 500 | 20"x18-1/2"x62 13/16" | 38 |
| ALUM-LOOP-HR* |  |
|
Single Loop Handle | 14"x7-1/4" | 500 | 20"x18 1/2"x 49-1/4" | 34 |
| ALUM-PIN |  |
|
Pin Handle | 17-3/4"x 7-1/2" | 500 | 20-3/4"x18-1/4"x53" | 25 |
| ALUM-CONV |  |
|
Convertible 2 in 1 | 18"x 7-1/4" | 500 650 |
20 1/2"x18 7/8"x51-1/2" 20-1/2"x 46-1/2"x 40 1/2" |
42 |
| ALUM-3-CONV |  |
|
Convertible-3 in 1 | 18"x7-1/2" | 500 750 |
20-1/2"x18-7/8"x51-1/2" 20-1/2"x57"x42" |
42 |
| ALUM-CONV-B |  |
|
Convertible- 2 in 1 | 18"x 7-1/4" | 500 650 |
20 1/2"x18-7/8"x 62- 1/4" 20-1/2"x 56-1/2"x 44-7/8" |
42 |
| ALUM-CONV-HR |  |
- | Convertible- 2 in 1 | 18"x 7-1/4" | 500 650 |
20 1/2"x18-7/8"x 51- 1/2" 20-1/2"x 46-1/2"x 40-1/2" |
42 |
|
(*) HR has 10" diameter hard rubber wheels |
|||||||
KEY:
= Approval Drawing --
= Warranty -- = Testing Certificate
