Groves Heavy Duty Bundle Rack Long
SKU: 5-H7290
9,000 Lb. Capacity Bundle Rack for storing slabs
- Patent # 7143901
- Heavy duty powder coated outside rails are designed with slots to hold 2 x 4
- 2 x 4
- Outside rails have 2.5" square holes spaced 5" apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom.

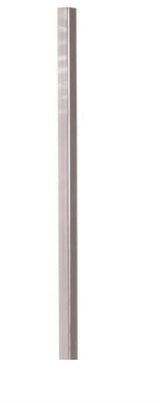

- 2.5" square tube posts with 2.5" square rubber post caps are used to prevent scratches.
- Rails shipped with 11" connector tube for butting rails together in a straight line.
- Note: When assembled the overall usable height of the post is 5.5" less than listed. Example: A 72" post will be 66.5" above the top of the outside rail.
Description
Store bundles or slabs up to 9,000 lbs. between posts. (4,500 lb. capacity per post.). SAFETY WARNING: Use .5" holes located on bottom flange for securing rails to the floor. MAXIMUM WEIGHT ALLOWED PER BUNDLE: 9,000 LBS. (4,500 LBS. PER POST)
The Heavy-Duty Bundle Rack is designed to utilize its 90″ rails for jumbo size stone bundles!
| SUGGESTED PACKAGES FOR HEAVY DUTY BUNDLE RACK – LONG | ||||
| Part No. | Length | Openings | Parts in Package | Weight lbs. |
| 5-H7290 | 7.5″ | 5 | 2 BR2.5-90, 12 SP-72 | 558 |
| 11-H7290 | 15’ | 11 | 4 BR2.5-90, 24 SP-72 | 1,116 |
| 23-H7290 | 30’ | 23 | 8 BR2.5-90, 48 SP-72 | 2,232 |
| 35-H7290 | 45’ | 35 | 12 BR2.5-90, 72 SP-72 | 3,348 |
| 47-H7290 | 60’ | 47 | 16 BR2.5-90, 96 SP-72 | 4,464 |
| 59-H7290 | 75’ | 59 | 20 BR2.5-90, 120 SP-72 | 5,840 |
Outside Rail For 9,000 Lb. Capacity Heavy Duty Bundle Rack Long - BR2.5-90
- Patent # 7143901
- Heavy duty powder coated outside rails are designed with slots to hold 2 x 42 x 4
- Outside rails have 2.5" square holes spaced 5" apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom.
- Note: When assembled the overall usable height of the post is 5.5" less than listed. Example: A 72" post will be 66.5" above the top of the outside rail.
- Rails shipped with 11" connector tube for butting rails together in a straight line.
