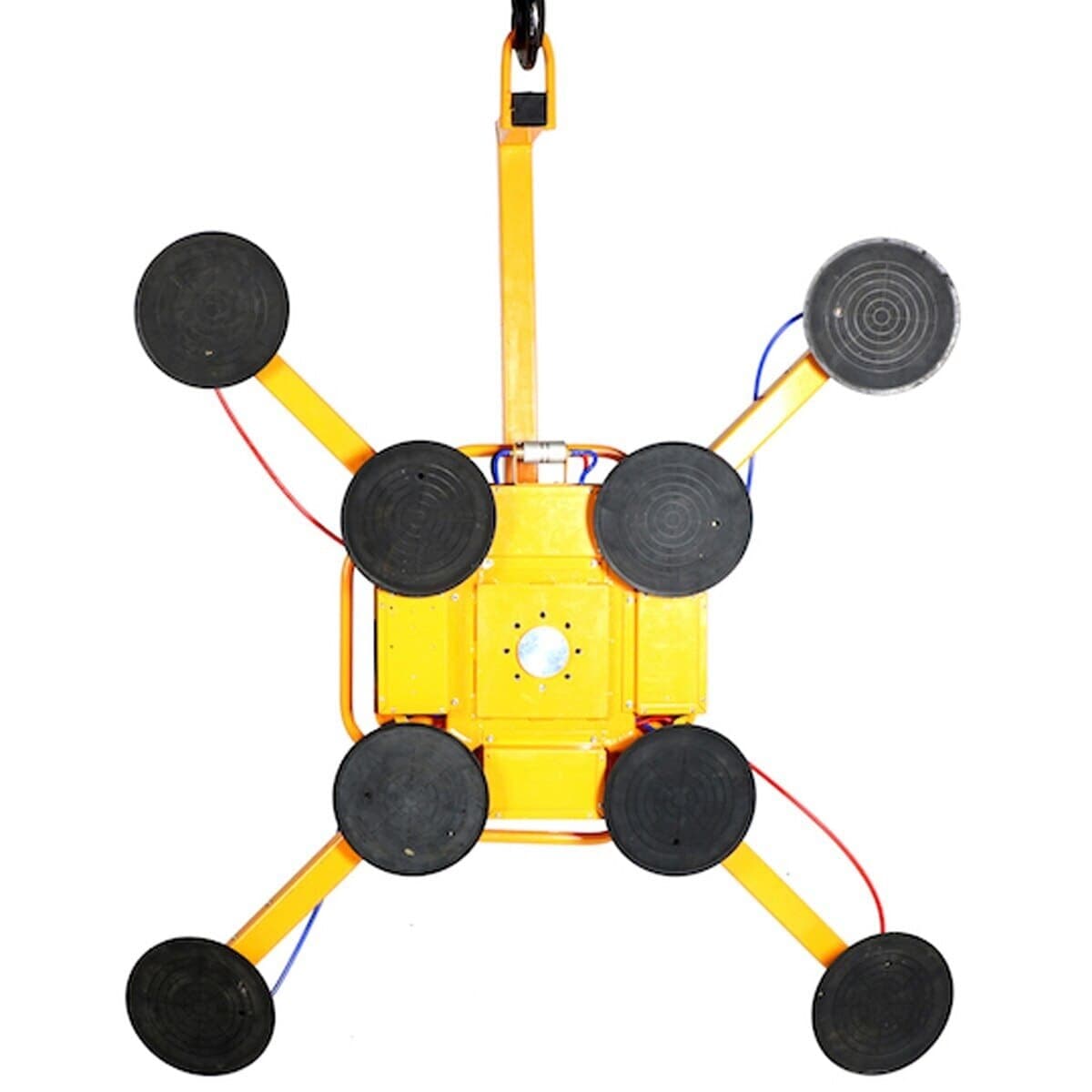

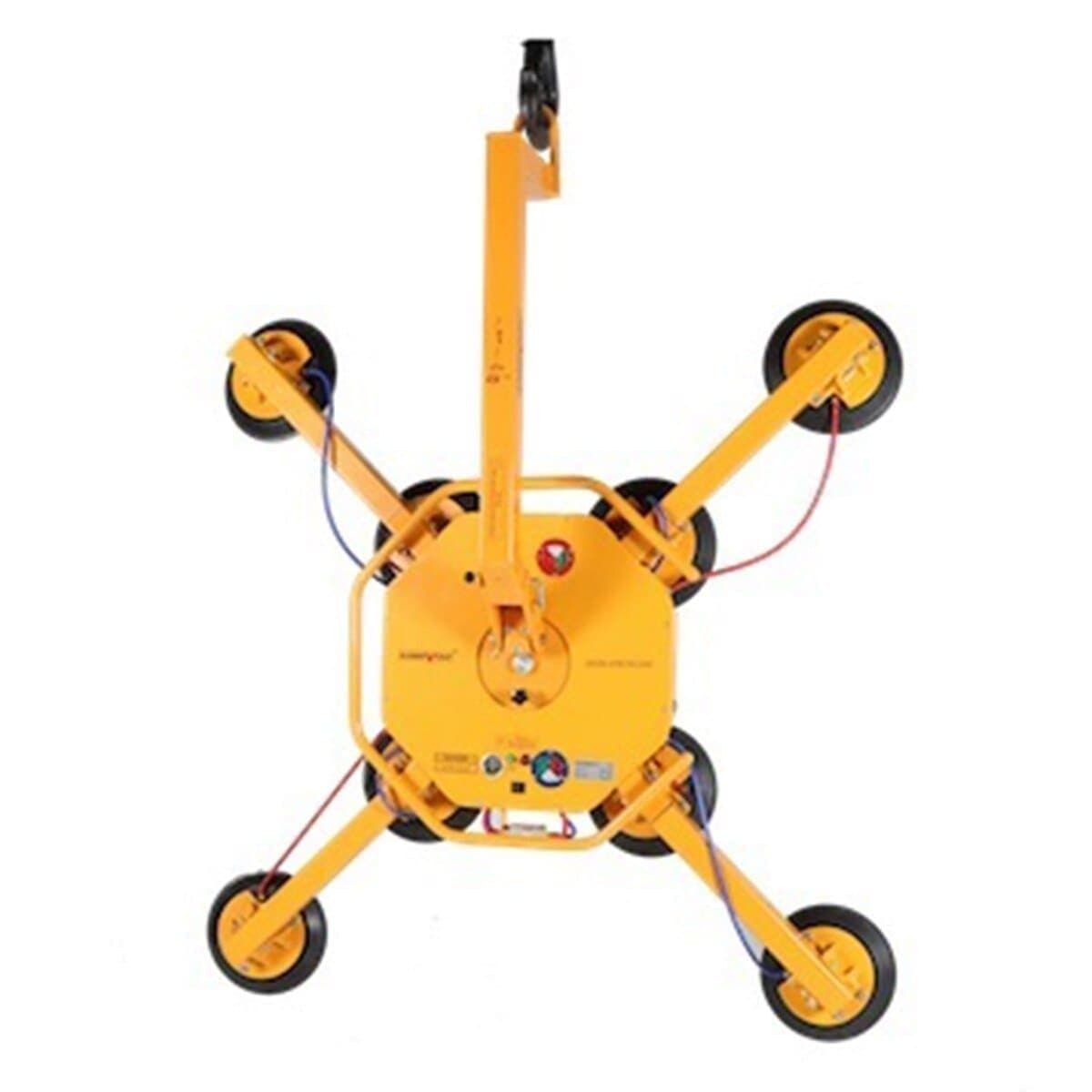

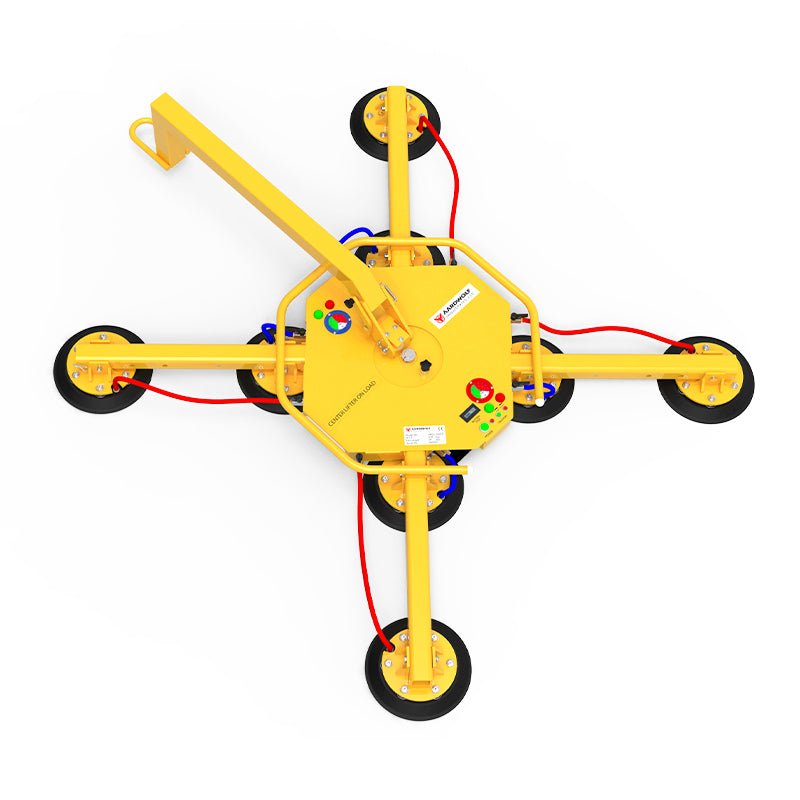

Aardwolf DC Powered Vacuum Lifter (Dual System) ARGL-500DS

Aardwolf DC Powered Vacuum Lifter (Dual System) ARGL an Electrical Vacuum Lifter for the Lifting and Handling of Stone

The original ARGL-500 is also avialable

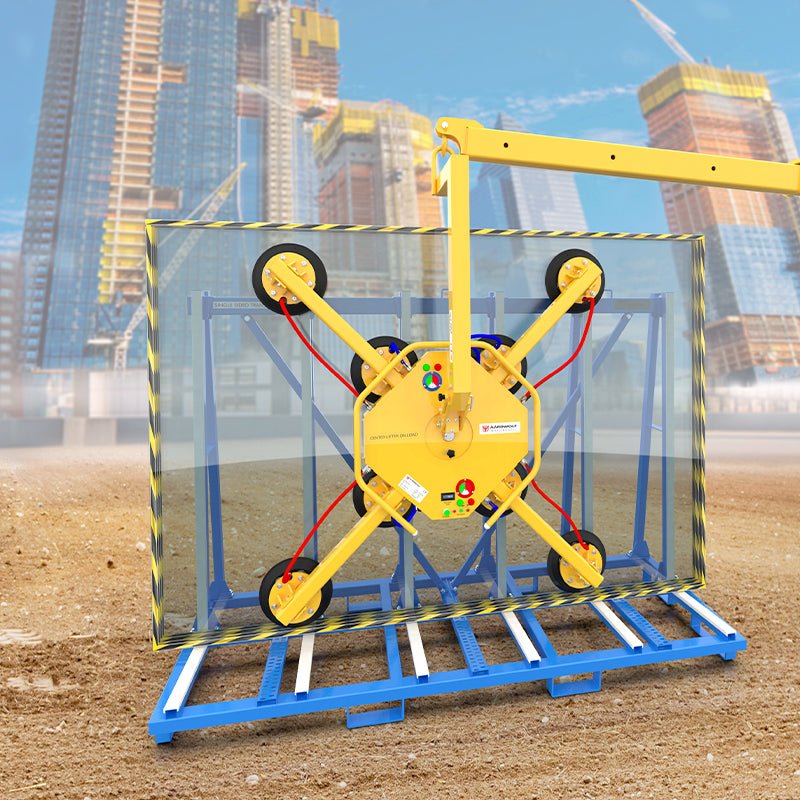

The DC Powered Vacuum Lifter (Dual System) ARGL-500DS is an electrical vacuum lifter with a 4-bar tilting mechanism. Integrated with a multi-angle rotation feature, the ARGL-500DS ensures flexibility when vertically rotating and tilting large glass sheets. The ARGL-500DS is equipped with two independent vacuum circuits, which support each other in the event of a system failure to ensure user safety during the working process.

Features

• Double redundancy with a load capacity of 500kg
• Spring-loaded suction pads
• 360 degree rotation with 45 degree steps
• Four extension arms with the ability to extend and retract
• Two independent vacuum circuits provide mutual aid in the event of a system error
• Automatic vacuum pumping system
• Audio and visual warning system
• 12V power supply by a high-capacity battery

Specifications

	Metric (mm-kg)	Imperial (inch-lbs)
Number of pads	8	-
Pad diameter	300	11.8
Working load limit	Vertical: 400 Horizontal: 500	882 1102
Net weight	83	183
Gross weight	103	227
Packaging dimension	1070x980x540	42.1x38.6x21.3

This Item Ships from over seas! Delivery Times may be longer...
