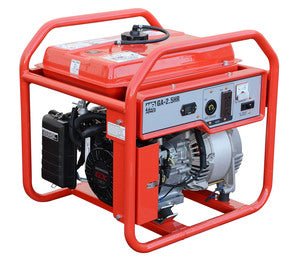

GA25HR Portable Generator
SKU: GA25HR
GA25HR Portable Generator powered by Honda Engine
The GA25HR model is ideal for small tool applications and with its high-quality construction; this unit is tough enough for any jobsite condition.
- Lightweight and compact design for easy transport
- 100% copper windings for maximum conductivity
- Alternator design eliminates maintenance by removing brushes and slip rings
- Hour meter for proper service intervals and usage information
- Heavy-duty 1-inch (25 mm) steel pipe frame and shock mounts protect the generator
- Runs for six hours on a full tank at full load
- Powered by a Honda GX160 engine with low-oil shutdown
| Alternator Design | Brushless | |
| Frequency | 60 hz | |
| Phase | Single Phase | |
| Voltage | 120 V | |
| Sound level at 30 ft | 70 dBA | |
| Fuel Tank Capacity | 3.2 gal | 12 L |
| Maximum | Continuous | |
| Watts | 2500 W | 2200 W |
| Amps at 120V | 20.8 A | 18.3 A |
| Main Circuit Breaker | 20 A | |
| Number of Poles | 1 | |
| 1 Receptacle of Each: |
5-20R 125V GFCI 20A L5-20R 125V T-Lock 20A |
|
| Overall Length | 20.9 in | 530 mm |
| Overall Width | 17.7 in | 450 mm |
| Overall Height | 20.1 in | 510 mm |
| Shipping Dimensions |
20.9 x 17.7 x 20.1 in 530 x 450 x 510 mm |
|
| Operating Weight | 132 lb | 60 kg |
| Shipping Weight | 110 lb | 50 kg |
| Engine Make/Model | Honda GX-160 | |
| Start Method | Recoil | |
| Engine Power | 5.5 HP | 4.1 kW |
| Engine RPM | 3600 | |
| Fuel Type | Gasoline | |
Notice: Features and equipment specifications are subject to change without notice.
