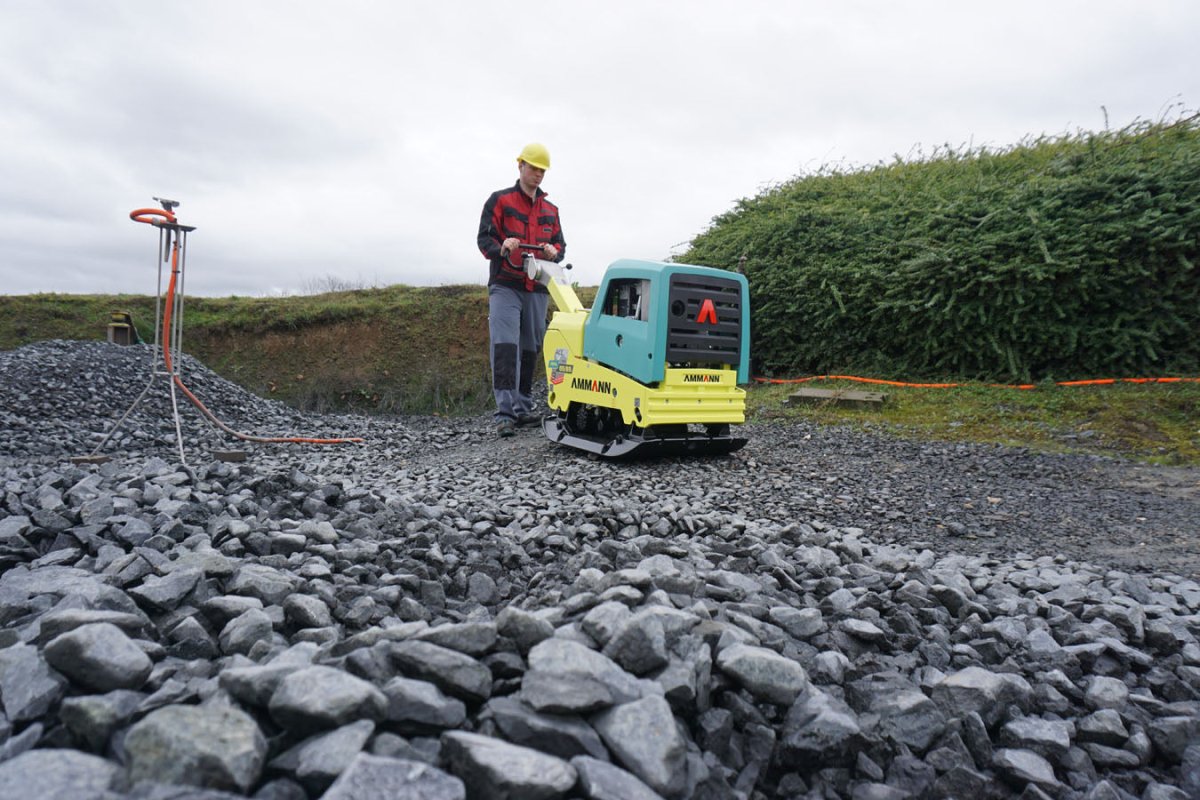

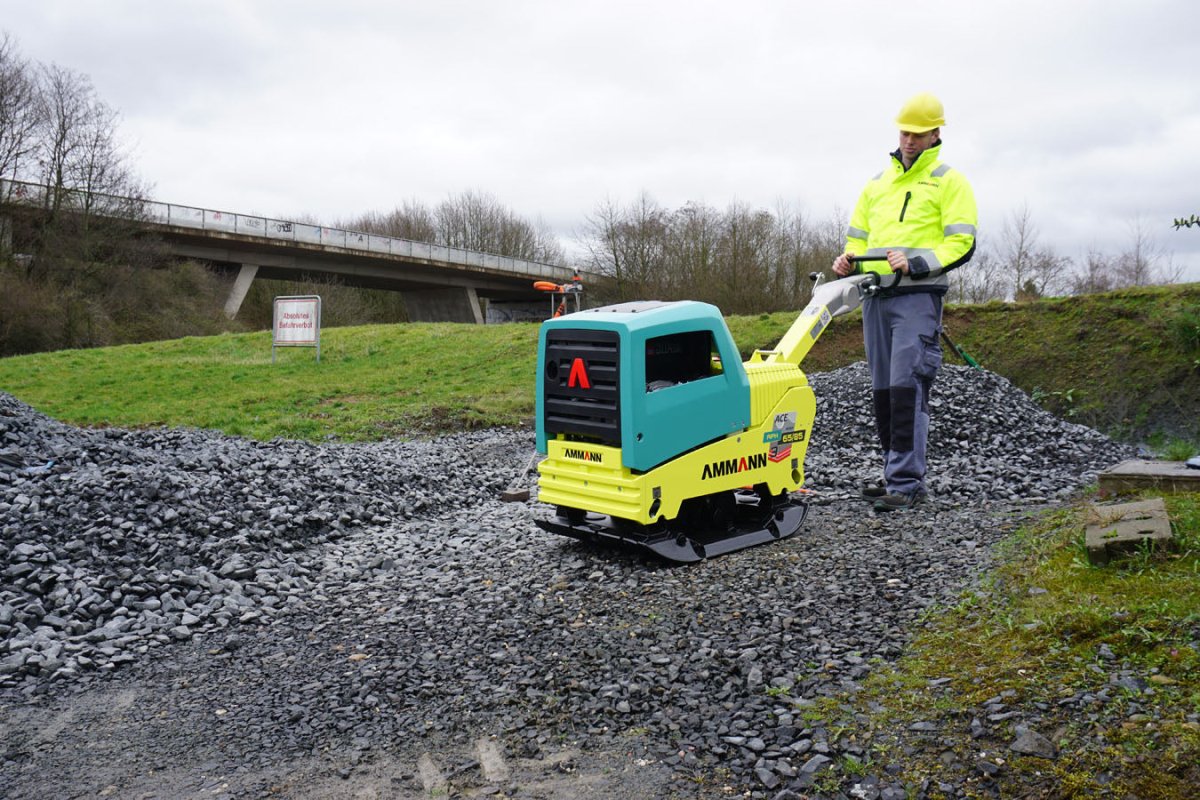

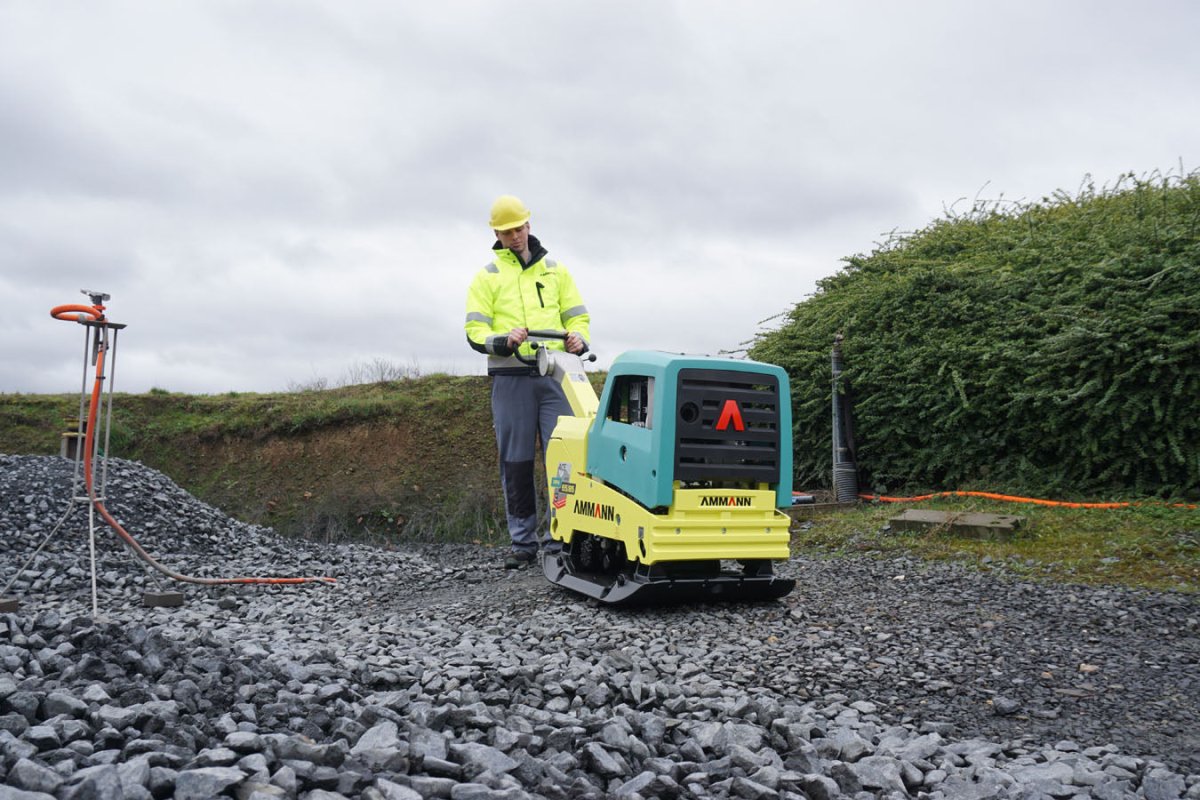

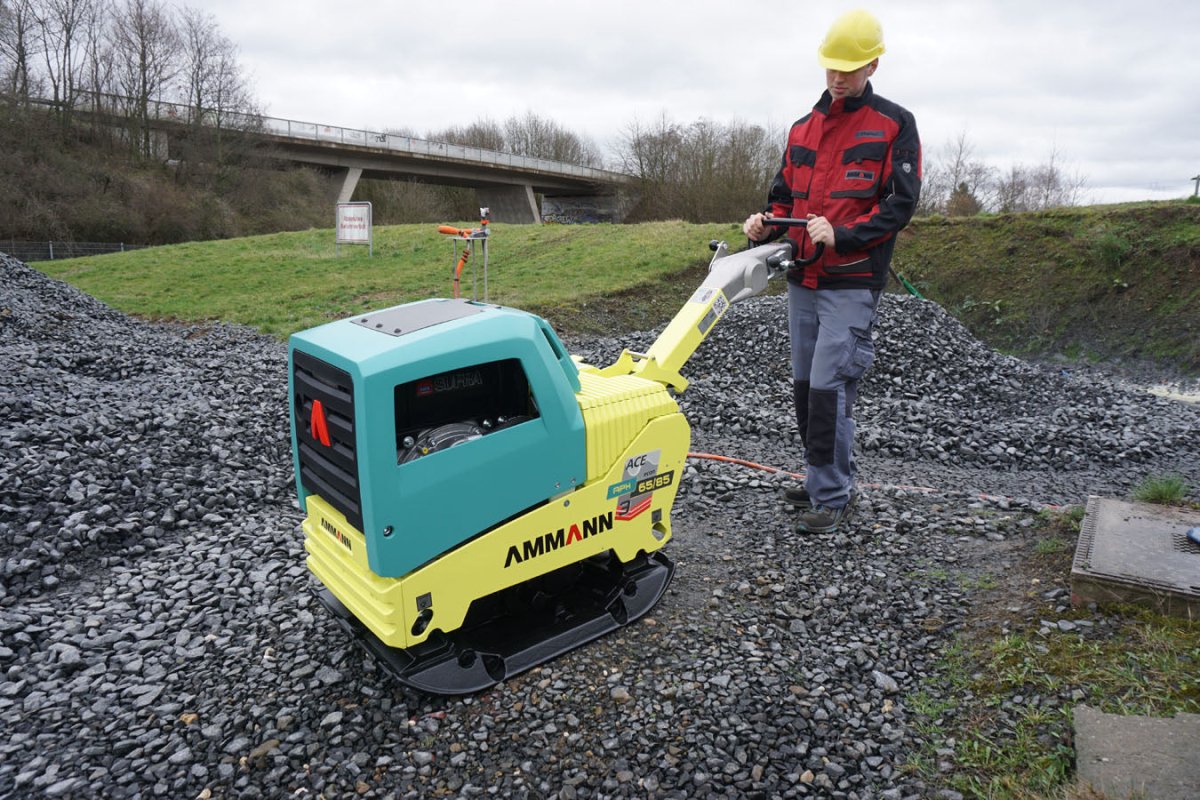

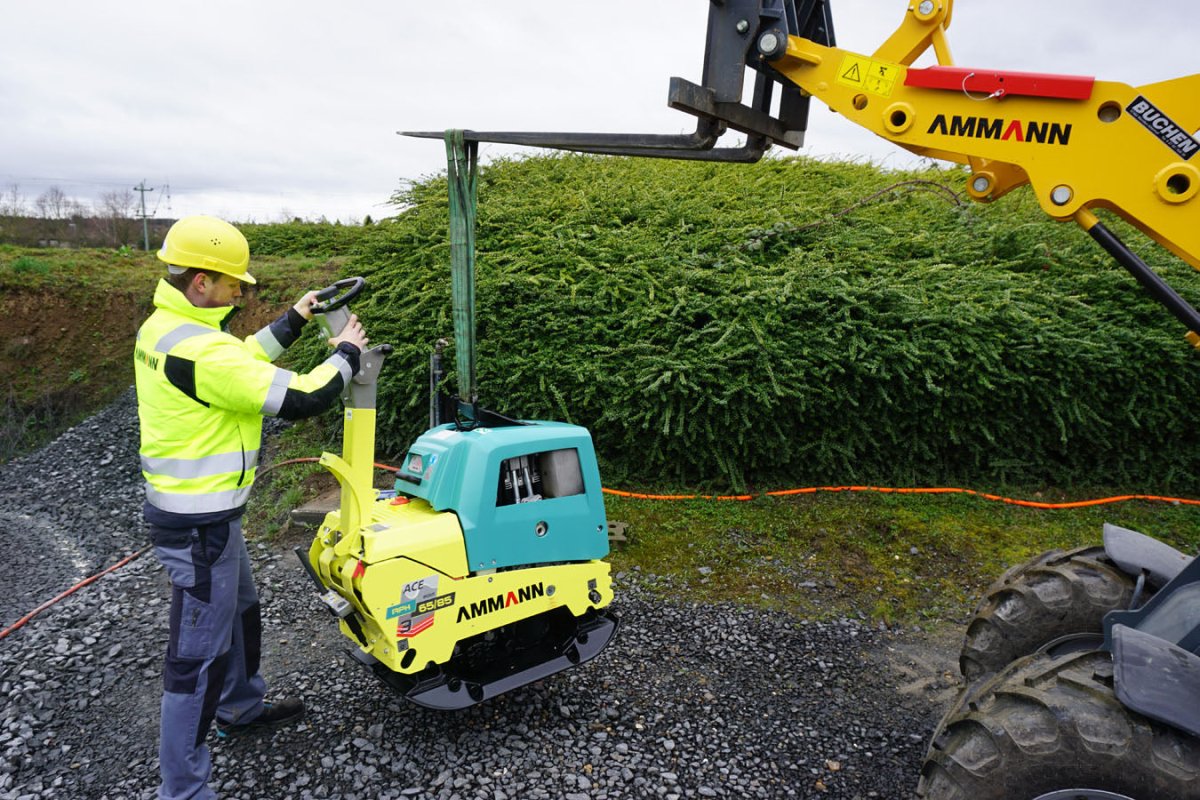

Highly productive on any ground.   The APH 65/85 is a powerful worker that delivers compaction force every step of the way.

The plate is equipped with the market-leading Ammann three-shaft exciter system, which not only enables performance and climbing ability but also makes the machine more responsive and easier to handle for the operator.

The optional ACEforce compaction measuring system is a key tool many contractors utilise in efforts to achieve thorough, efficient compaction results.

AMMANN TRIPLE-SHAFT EXCITER SYSTEM

Ammann is the technological leader in plate compaction with its patented triple-shaft exciter system. The system keeps plate movement consistent, which in turn enables smooth travel – even through heavy, cohesive soils – and helps effortlessly overcome steep grades. APH machines are impressive climbers and can even do so while backfilling saturated areas – work that can leave competitive products at a standstill.

LOW HAND-ARM-VIBRATION VALUES (HAV) TO THE OPERATOR

The standard hand guide for APH plates is isolated to minimise hand-arm vibration. Levels lower than 2.5 m/s² (excluding APH 100-20) enable operators to work longer shifts with the best comfort. The vibration levels are so low that safety codes do not require documentation of operator hours.

AMMANN ORBITROL STEERING

Ammann Orbitrol steering controls the adjustment of the centrifugal weights, allowing a smooth and easy change of direction while ensuring great accuracy on the jobsite. Machine speed and direction can be adjusted by a simple turn of the steering control lever. The machine also can hover and provide on-the-spot compaction for the more challenging areas. This system also helps improve productivity in corners and other tight spots.

FULLY HYDROSTATIC DRIVE

A fully hydrostatic drive system eliminates the need for a V belt and a centrifugal clutch – and the maintenance that go with them. A hydraulic motor drives the eccentric shafts.

ACE COMPACTION EXPERT - BIG TECHNOLOGY IN A SMALL PACKAGE

APH Hydrostatic Vibratory Plates can be equipped with the industry-proven Ammann Compaction Expert (ACE), an automated compaction measurement and control system. The ACE system on the vibratory plates utilises the same technology that has been used on Ammann’s heavy compaction machines for years. It provides operators with an accurate indication of soil stiffness and whether desired compaction has been achieved.



Weights & Dimensions
Machine weight basic unit 471 kg
A Base plate length 470 mm
B Machine length 930 mm
C    with handle 1840 mm
D Machine heigth 905 mm
E Handle height (work) 1000 mm
F Handle height (transport) 1500 mm
G Machine width 700/850 mm
Engine
Engine Hatz 1D81S
Fuel Diesel
Engine Output 13.7 HP / 10.1 kW
    at RPM 3000 rpm
Fuel consumption 2.5 l/h
Compaction Forces
Max. Vibration frequency 55 Hz
Max. Centrifugal force 65 kN
Working surface basic unit 1632 m²/h
Max Surface Pressure 19.76 N/cm²
Miscellaneous
Operating Speed 32 m/min
Tank capacity 7 l
Gradeability 36%
Max. incline to all sides 30°

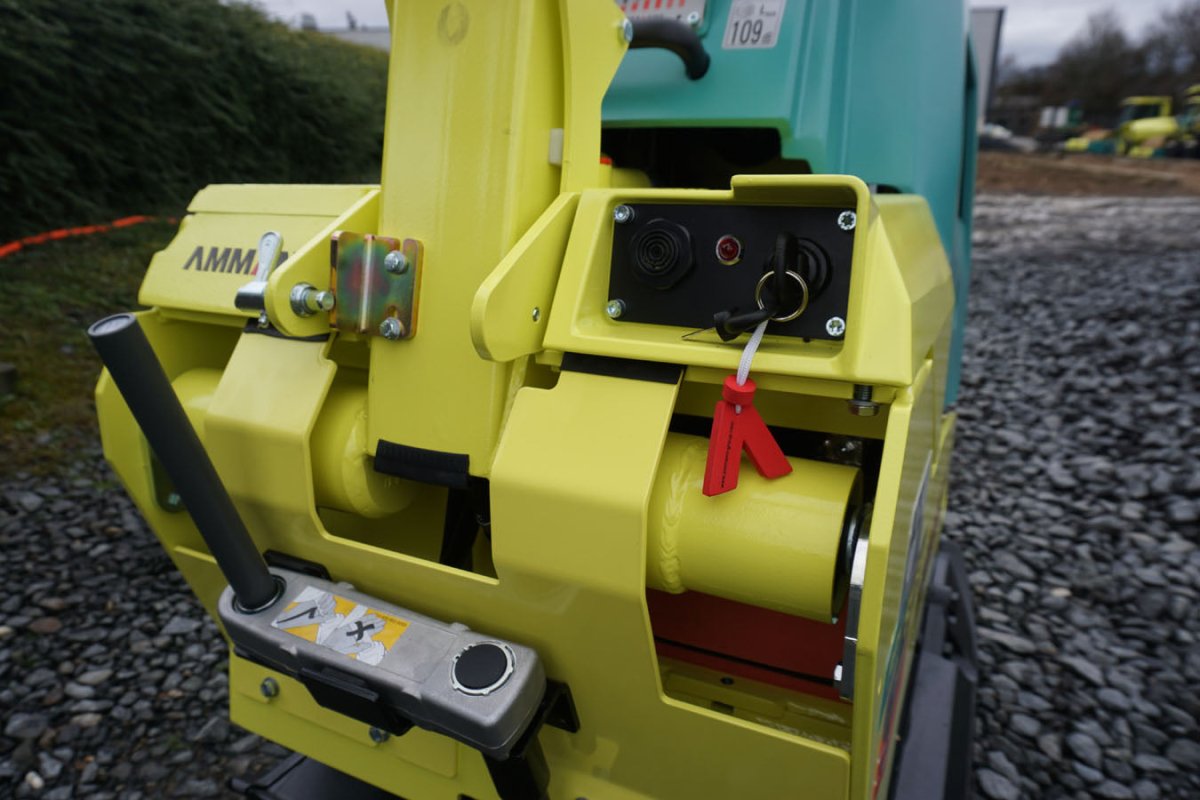

Options
Extension Plates 75 mm / 150 mm
Operation hour meter x
Electric starter x
Emergency stop x
ACE econ X
ACE force x
Working lights
