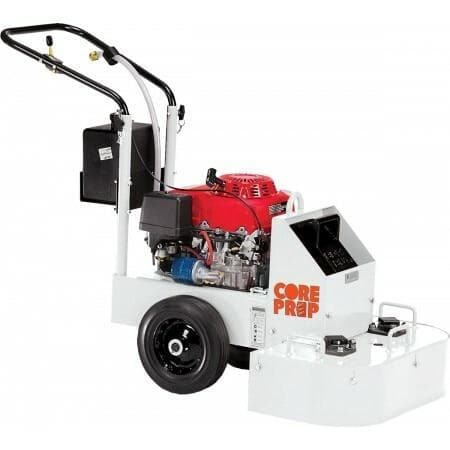

CPG 200 Dual Head Floor Grinder

Features & Benefits:

• Remote throttle
• 2" dust port opening
• Multiple grease point
• 1/4" thick steel box frame
• Water hose connection
• Adjustable operator handles
• Multiple lifting handles and single lifting point
• Dual head allows large 24" grinding area with two 12" grinding heads
• 4 rear axle positions and swivel axle
• Matches the height of the grinding head being used and allows for rapid change in weight distribution during grinding or transport
• Can use diamond grinding head, carbide blocks or grinding stones

NOTE: Each Floor Grinder comes with one 65 lb weight ballast (*excludes Model # CP202E1) Optional Second weight available 2501047 47017 --- --- $308

* Must specify 115V or 230V when ordering Horsepower as rated by the engine manufacturer

Motor/Engine Power	Engine/Motor Make	Power Source	Head Capacity	Part Number	Catalog Number
7.5 HP-3PH, 230V	Baldor	Electric	(2)10"/(2)12"	5801237A	42802
10.2 HP	Honda GXV390	Gas	(2)10"/(2)12"	5801238	42874
2 HP-1PH, 115V or 230V	Baldor	Electric	(2)10"/(2)12"	5801235	42765
7.5 HP-1PH, 230V	Baldor	Electric	(2)10"/(2)12"	5801236	42793
7.5 HP-3PH, 460V	Baldor	Electric	(2)10"/(2)12"	5801237B	42827
