18-22 Ton Water Excavator Undercarriage - AM200-6
SKU# 04703-CAT320D/E-AM200-6ERCall for Pricing
Couldn't load pickup availability
Safe & Secure Payments.
18-22 Ton Water Excavator Undercarriage - AM200-6
Call for Pricing
The AM200-6 is an undercarriage track unit for amphibious or swamp excavation.

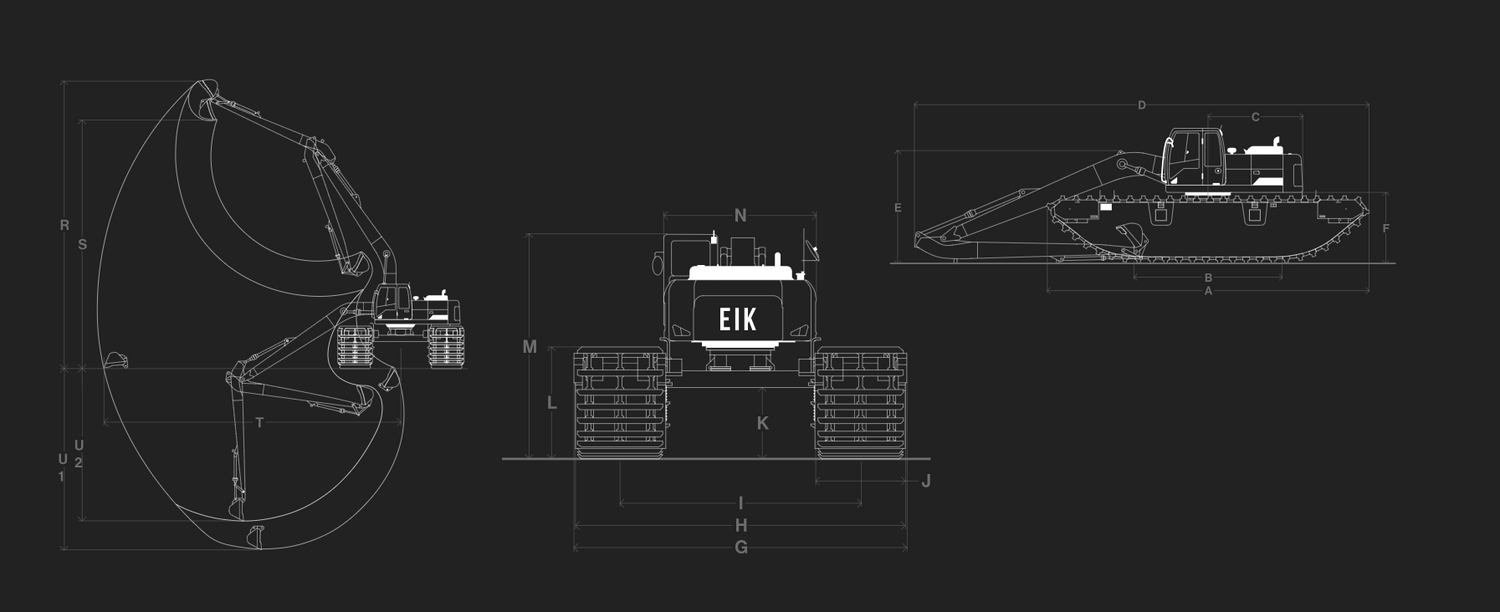

| Equipment Models | AM80 | AM140 | AM200 | AM250 | AM300 | AM350 | AM450 |
|---|---|---|---|---|---|---|---|
|
A
Max Track Length |
22’ 10” ft | 30’ 6” ft | 31’ 7” ft | 31’ 7” ft | 35’ 7” ft | 38’ 10” ft | 38’ 7” ft |
|
B
Track Length On Ground |
10’ 6” ft | 14’ 1” ft | 14’ 9” ft | 14’ 9” ft | 17’ 1” ft | 18’ 8” ft | 19’ 8” ft |
|
C
Rear Upper Structure Length |
5’ 9” ft | 7’ ft | 9’ 4” ft | 9’ 10” ft | 9’ 10” ft | 11’ 6” ft | 11’ 8” ft |
|
D
Overall Length |
30’ 4” ft | 40’ 2” ft | 44’ 5” ft | 47’ 3” ft | 51’ ft | 54’ 5” ft | 59’ 1” ft |
|
E
Height of Boom |
9’ 6” ft | 9’ 8” ft | 11’ 5” ft | 11’ 8” ft | 13’ 5” ft | 13’ 6” ft | 14’ 1” ft |
|
F
Counterweight Clearance |
5’ 8” ft | 6’ ft | 7’ 1” ft | 7’ 3” ft | 7’ 9” ft | 7’ 9” ft | 7’ 10” ft |
|
G
Overall Width |
11’ 1”/13’ 9” ft | 13’ 2”/ 16’ 10” ft | 14’ 9”/19’ 7” ft | 17’ 1”/21’ 9” ft | 19’ 6”/22’ 9” ft | 19’ 8”/23’ 0"ft | 19’ 8”/23’ 0” ft |
|
H
Undercarriage Width Min/Max |
11’/13’ 8” ft | 12’ 11”/16’ 6” ft | 14’ 8”/19’ 6” ft | 17’/21’ 8”ft | 19’ 5”/22’ 8” ft | 19’ 7”/22’ 3” ft | 21’/24’ 3”ft |
|
I Track Gauge min/max |
6’ 9”/9’ 5”ft | 8’ 2” /11’ 9” ft | 9’ 4”/14’ 2”ft | 10’ 8”/15’ 5” ft | 13’ 1”/16’ 4” ft | 13’ 2”/16’ 6” ft | 13’ 11”/17’ 3” ft |
|
J
Track Cleat Width |
4’ 3” ft | 4’ 9” ft | 5’ 4” ft | 6’ 4” ft | 6’ 4” ft | 6’ 5” ft | 7’ 1” ft |
|
K
Min Ground Clearance |
3’ 9” ft | 3’ 8” ft | 4’ 3” ft | 4’ 3” ft | 4’ 3” ft | 3’ 8” ft | 3’ 7” ft |
|
L
Track Height |
5’ 5” ft | 5’ 7” ft | 6’ 8” ft | 6’ 8” ft | 6’ 8” ft | 6’ 8” ft | 7’ 2” ft |
|
M
Overall Cab Height |
12’ ft | 12’ 4” ft | 13’ 5” ft | 13’ 6” ft | 14’ ft | 14’ 1” ft | 14’ 4” ft |
|
N
Upper Structure Overall Width |
7’ 5” ft | 8’ ft | 8’ 4” ft | 9’ 4” ft | 9’ 9” ft | 9’ 10” ft | 11’ 7” ft |
|
R
Max. Cutting Height |
26’ 1” ft | 37’ 5” ft | 40’ 8” ft | 44’ 11” ft | 47’ 11” ft | 50’ 2” ft | 53’ 6” ft |
|
S
Max. Loading Height |
20’ 8” ft | 30’ 6” ft | 34’ 5” ft | 37’ 5” ft | 39’ 8” ft | 42’ ft | 45’ 3” ft |
|
T
Recommended Outreach |
26’ 3” ft | 39’ 4” ft | 45’ 11” ft | 49’ 3” ft | 52’ 6” ft | 55’ 9” ft | 65’ 7” ft |
|
U1
Max. Digging Depth from Front |
12’ 6” ft | 23’ 11” ft | 29’ 2” ft | 30’ 10” ft | 32’ 6” ft | 36’ 1” ft | 45’ 7” ft |
|
U2
Max. Digging Depth from Side |
11’ 2” ft | 21’ 4” ft | 23’ 7” ft | 23’ 7” ft | 27’ 11” ft | 31’ 6” ft | 37’ 1” ft |
* The above specifications are for reference only; actual working range may vary from machine models.
** For the benefit of continuous product improvement, specifications are subjected to change without prior notice.
Multi-synchronous direct drive system
Our patented system allows multiple hydraulic active drive motors to propel each pontoon, which provides at least twice the tracking power and performance capacity of conventional single-moto designs.
Heavy-Duty Track Chain System
We laser trim our track chain systems to extreme precision, strengthening grip on the ground for better weight distribution and improved maneuverability.
Hardened Rollers and Bushings for Extended Operation Life
By only using hardened steel, we provide rollers and bushings that function with extended operation life and provide long-term cost-effectiveness.
Bolt-On Sprocket System for Perfect Track Pitch Alignment
Our sprocket systems tightly bolt onto hubs for perfect track pitch alignment across even the most challenging terrain.
Dual Hermetically Sealed Bulkheads Per Pontoon
We improve buoyancy and enhance safety by dividing pontoons into bulkheads and going the extra mile to prevent water from creeping in.
Service Manholes on Each Pontoon for Easy Maintenance
Easily accessible manholes make maintenance and repair a guaranteed simple process.
Hydraulic Extended Pontoons
With hydraulic expansion and retraction control inside the cab, our pontoons enhance ease of transport and accessibility on even the tightest job sites.
