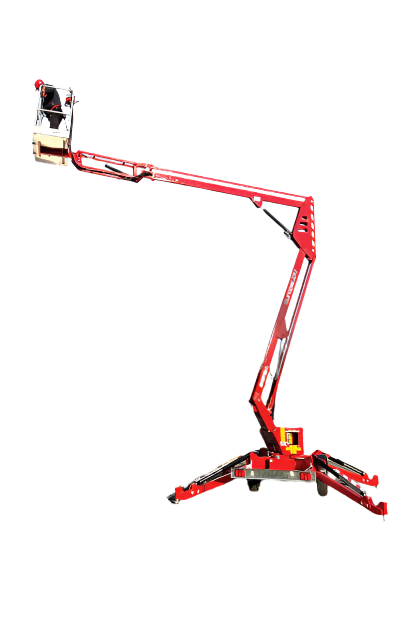

Trailer Mounted Boom/Bucket Rotating Lift - TM3620A

The TM3620A series 36’ Bucket Lifts are designed for superior height access with a rotating platform for enhanced maneuverability.

• TM3620A DC – Battery-powered, offering quiet, emission-free operation. Ideal for indoor and environmentally sensitive areas.
• TM3620A Gas – Powered by a Honda gas engine, delivering reliable performance for outdoor and heavy-duty applications

Both models provide stability, ease of use, and efficiency for elevated work tasks.

Specification:

• Working height 43 ft.
• Horizontal outreach (485 lbs.): 20 ft.
• Articulated telescopic boom
• Flyjib 145°

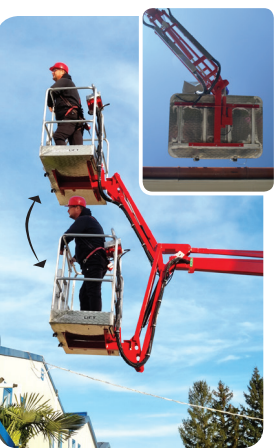

• Platform Rotator 2x45° (option)
• Hydraulic outriggers
• Ground pressure sensors on all outrigger plates with audible and visible alarms

• Fully hydraulic control

Details:

• Technical data 36 20A
• Working height 43 ft.
• Platform height 36 ft.
• Outreach 20 ft.
• Platform capacity 485 lbs.
• Rotation (non-continuous) 355°
• Jib length 4 ft.
• Platform dimensions 3 ft. 11 in x 2 ft. 7,5 in x 3 ft. 7 in
• Platform rotation 2x45°
• Transport length (A) 21 ft.
• Transport width (B) 5 ft.
• Transport height (C) 6 ft. 11 in
• Gross weight (230V) 3262 lbs.
• Outrigger footprint (D) 11 ft.
• Gradeability 8%

STANDARD FEATURES

• Fully hydraulic controls Honda gasoline and Dc Battery power source
• Ground pressure sensors on all outrigger plates with audible and visible alarms
• Hour meter
• Outrigger cylinder rod cover
• Manual recovery with hand pump
• Automatic reverse and overrun brakes plus handbrake
• Aluminum platform

OPTIONS

• Custom colour
• Battery Power 24V 225Ah
• Fiberglass basket with tool tray (2 persons)
• Outrigger plate pads
• Platform rotator 2x45°
• Wheel assist with hydraulic coupling
