Eterra Skid Steer Auger and Concrete Mixer Attachment
SKU: ET-02A250-K005-63

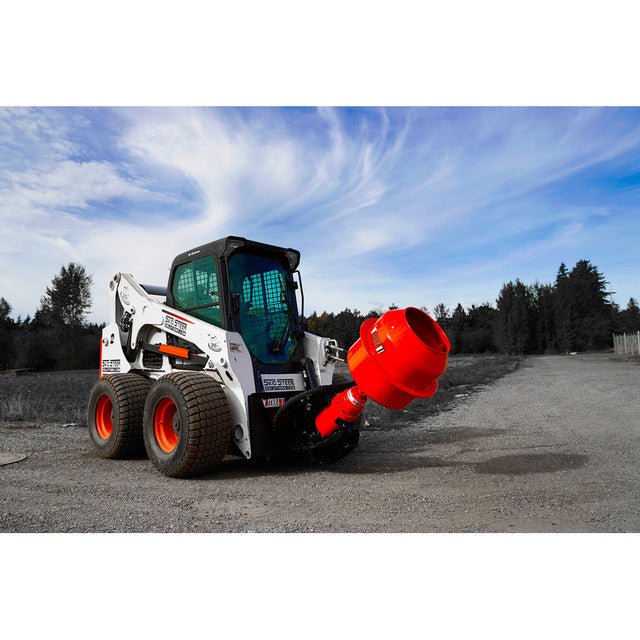

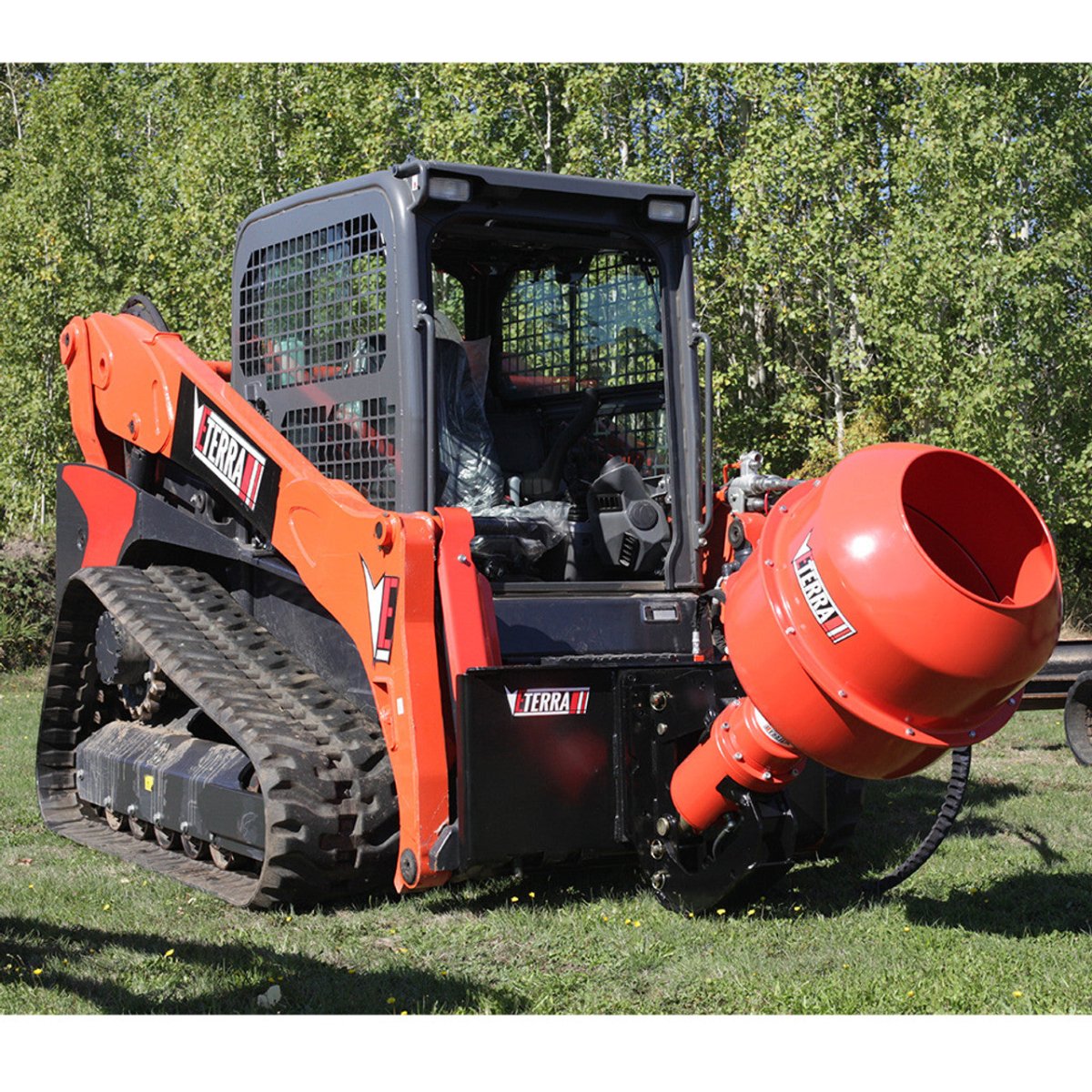

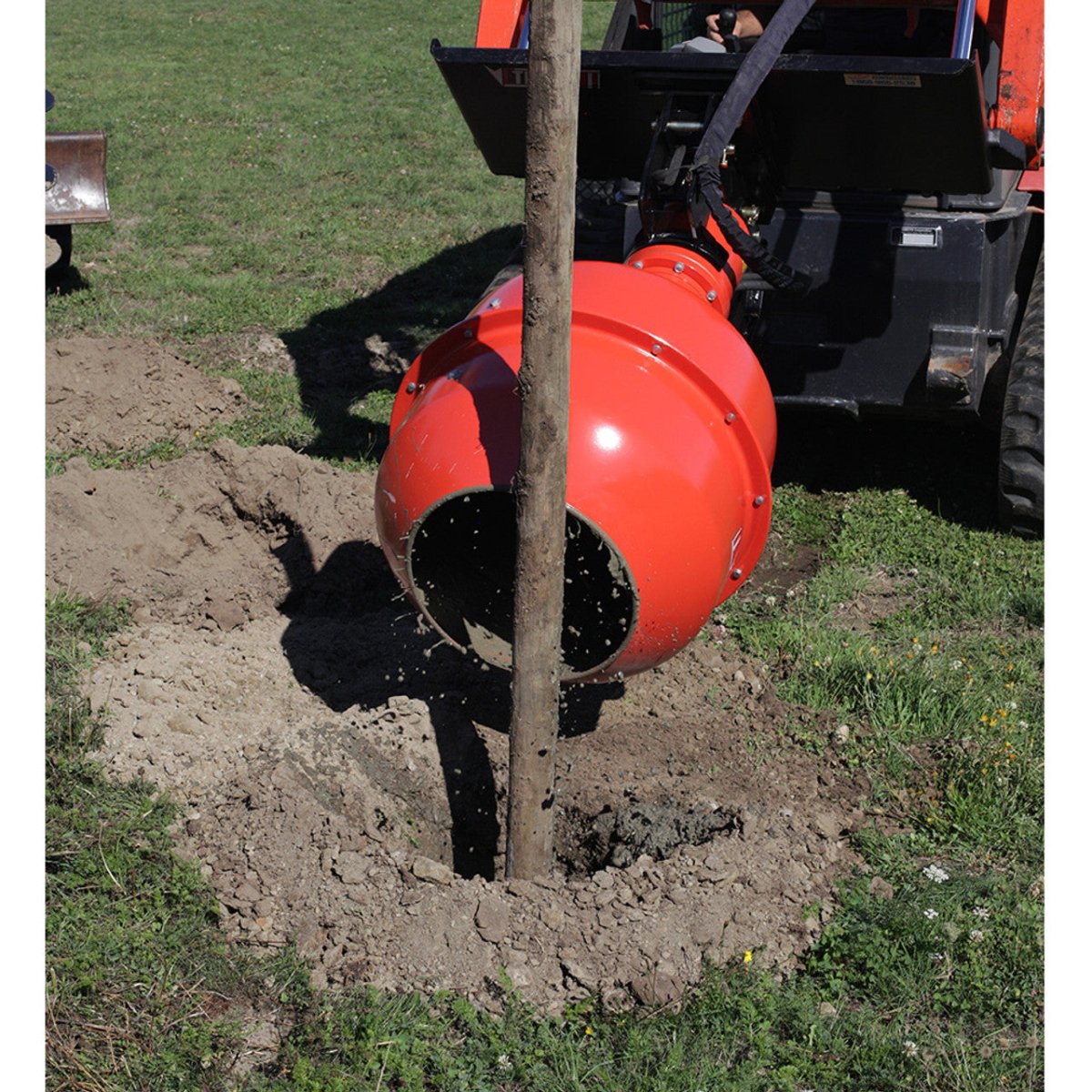

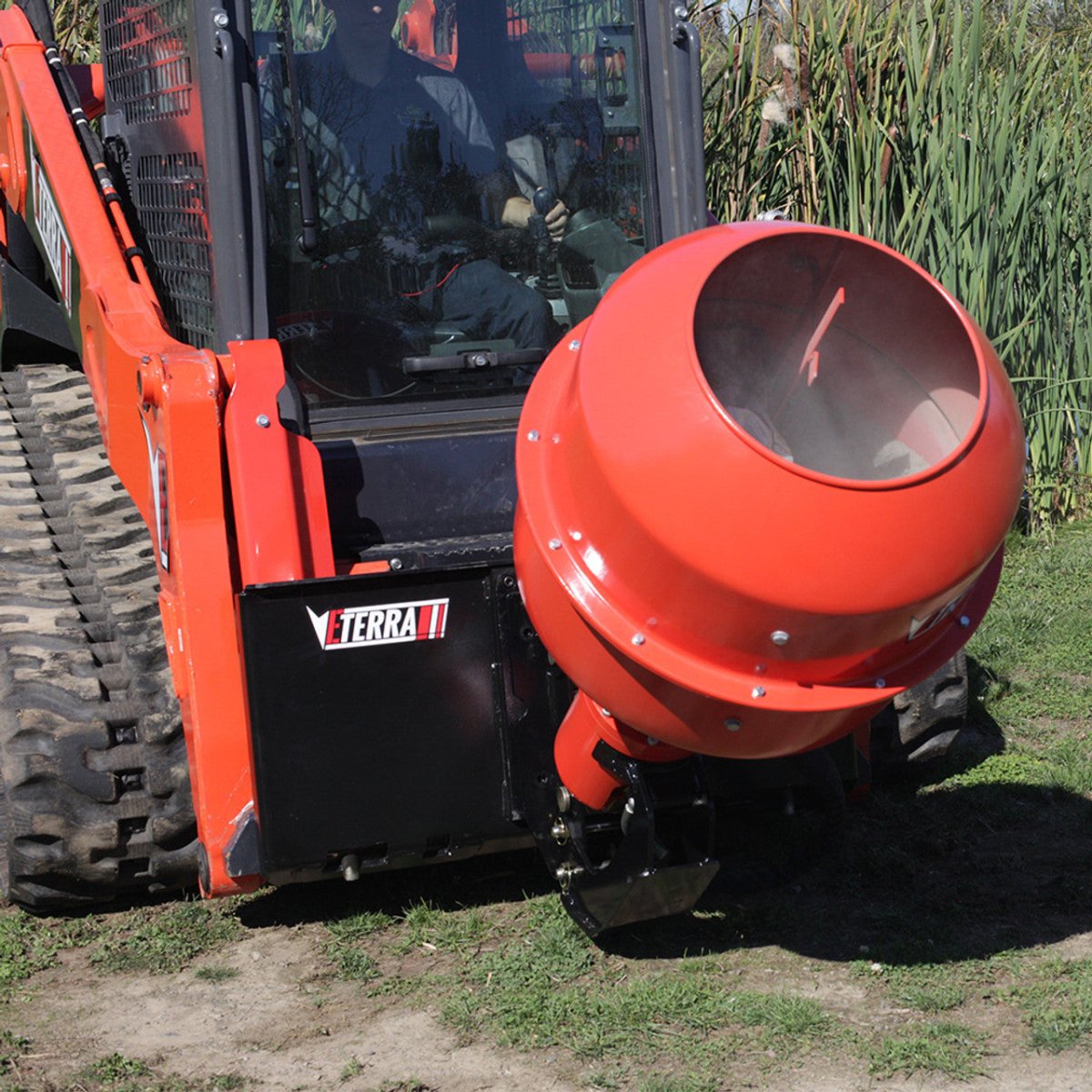

This attachment is an all in one system that allows you to mix concrete or cement with the auger you just drilled a hole with.

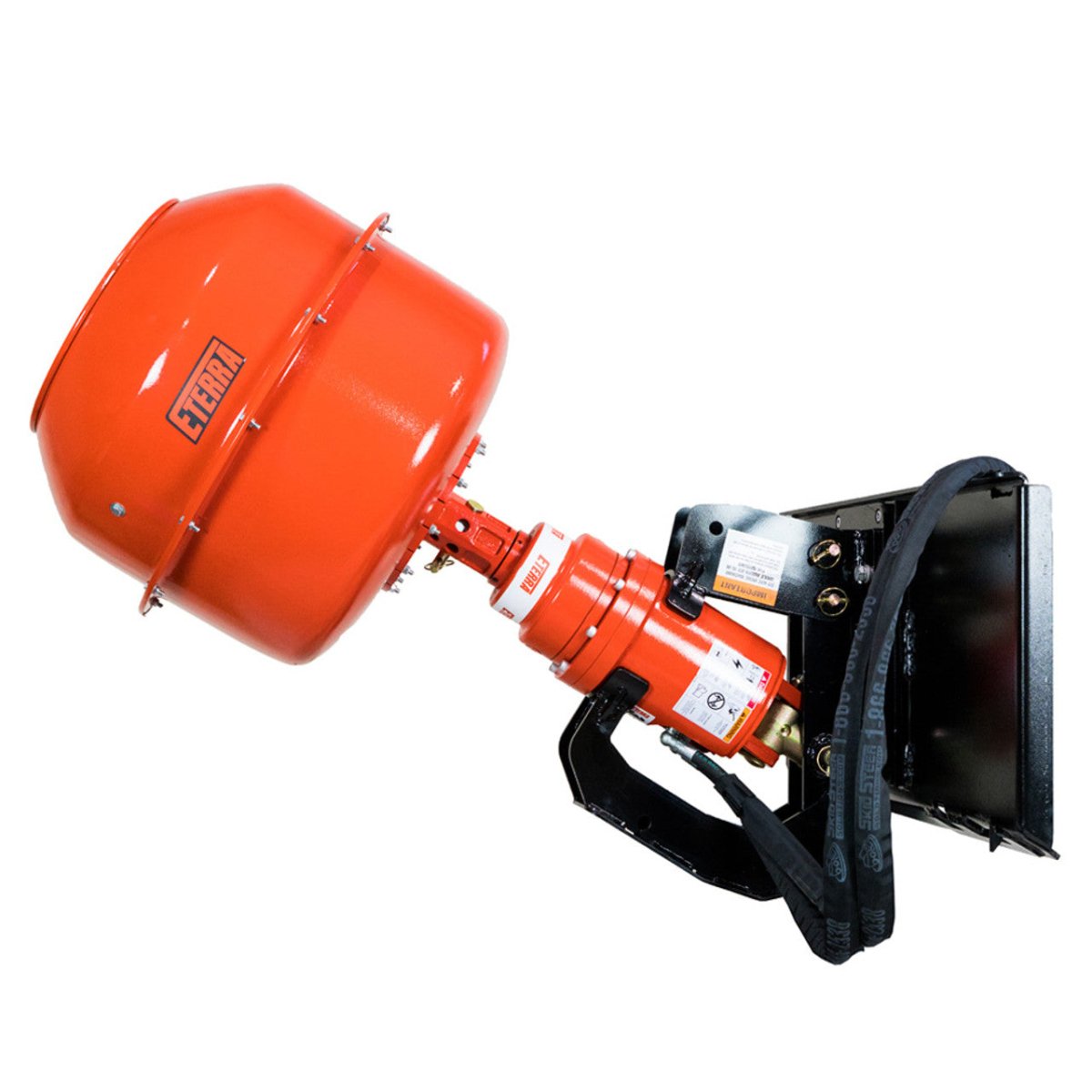

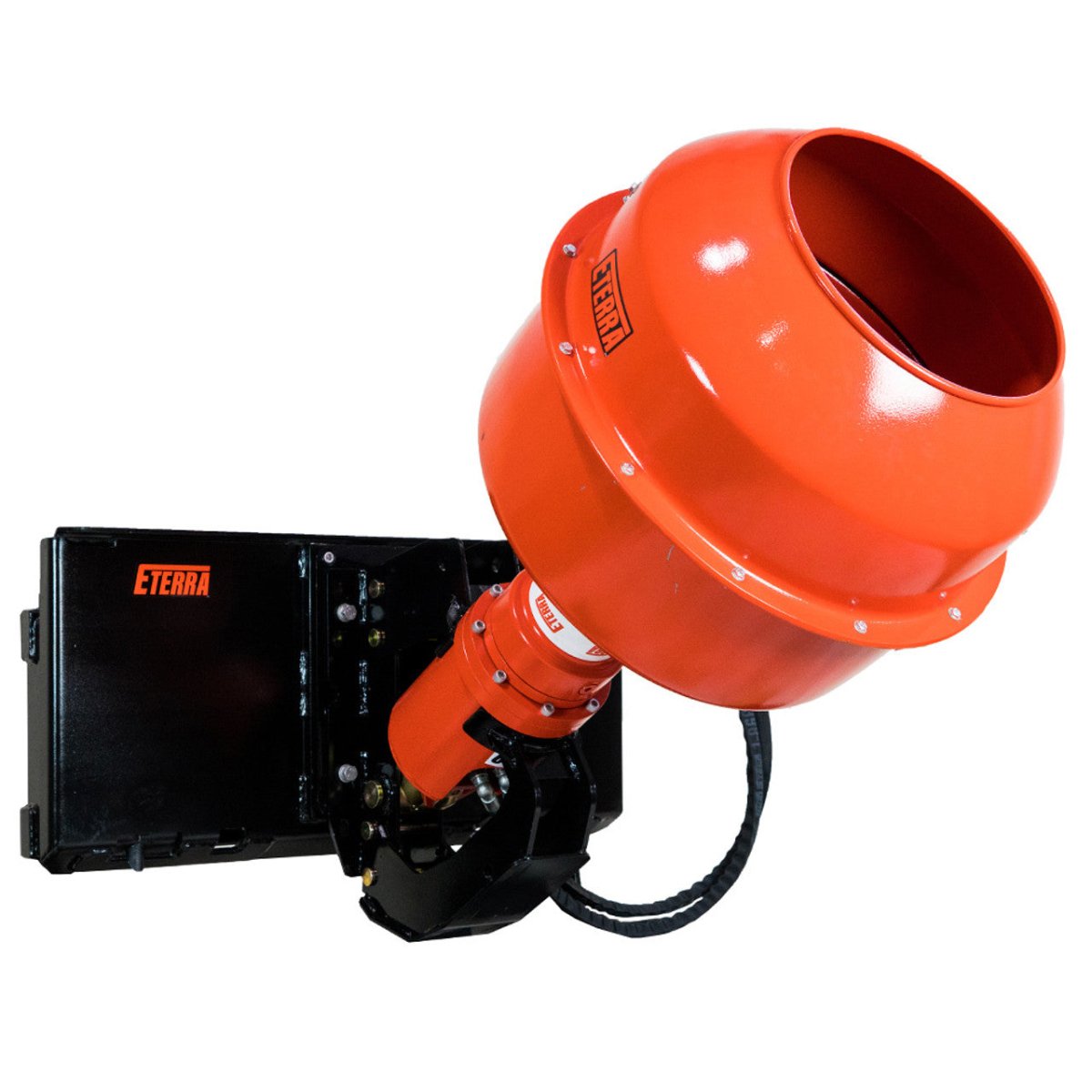

The Eterra Concrete Mixing System comes complete with a universal skid steer mounting plate, flip hitch mount, and concrete mixer bowl, all in one package.
Cement Bowl and Mount is also available separately.
Hoses and flat-faced couplers are also included in this configuration. When you are done mixing, you can flip the mount over and add an auger to drill post holes. Optional extensions and bits can also be selected to make this a complete, all-around auger package.
When Eterra went to work designing a new, state-of-the-art auger they sought to do something that differentiated the brand from the rest of the pack. They applied the Eterra signature of designing products with multiple uses. Eterra strives to create added value for customers by providing multiple options and uses that can result in increased productivity.
Developed with innovated Australian engineers and partners, Eterra is excited to offer the Concrete Mixing System. The base auger is similar to other manufacturers, but comparisons stop there. The Eterra Auger and Concrete Mixing System is offered in three different models, ensuring there is a fit with your specific model and brand of skid steer loader.
Drive system
This drive system is unlike any other system available in the North American marketplace. Every other drive system on the market uses a drive shaft that is inserted from the front. It has a spline and a nut that goes on from the rear to hold the shaft in place. When you hang an auger bit on the shaft you immediately have an issue where the weight and turning motion are working on the shaft and are trying to pull the shaft out of the planetary drive. Eterra's drive shaft is inserted from the back of the gearbox and has a large thrust plate as part of the shaft. This plate keeps the weight distributed over a larger area and locks the shaft into place, virtually eliminating any risk of the shaft ever falling out of the drive unit. Eterra believes that this makes their drives much tougher than anything else available. Through more than 4 years of testing in Australia and Europe there have been no failures and you can believe the Aussies are hard on their attachments.
Flip Hitch
Features
- Hydraulic flow range: 7-30 GPM (varies by model)
- Drill holes, mix concrete/cement, and pour it all with one auger drive system
- Save time, labor and money
- Expertly engineered to be strong, durable and perform with excellence
- Auger Drive, Mounting Plate, Flip Hitch and Mixer Bowl included
- Hoses and flat-faced couplers included
- Recommended bit sizes: 4"-48"
- Mixer Bowl Maximum Capacity: 4 Cubic Feet
What's Included?
- Eterra Skid Steer Auger Drive
- Eterra Flip Hitch
- Universal Skid Steer Mounting Plate
- Eterra Concrete Mixing Bowl
Specifications
- Model - Skid Steer Auger/Concrete Mixer
- Weight (lbs.) - 355
- Flow Range (GPM) - 7-40
- Max Pressure (PSI) - 3500
- Max. Torque Range (ft./lbs.) - 2100-3500 @ 3500PSI
- Hoses - 3.8- 3500PSI
- O/P Shaft (") - 2 Hex
- Max Speed (RPM) - 86
- Gearbox Ratio - 5.77:1
- Mixer Bowl Volume (gal.) - 47
- Mixer Bow Max Capacity (cu. ft.) - 4
