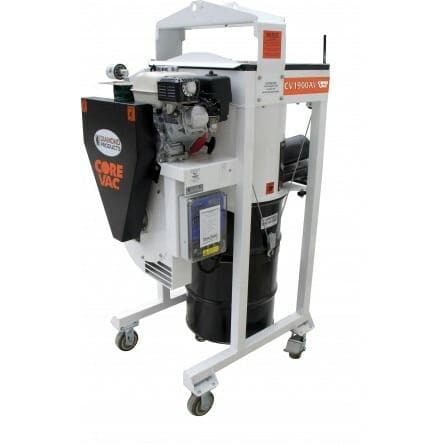

Core Vac CV1900AV Vacuum

CV1900AV Vacuum - Part # 5801900, Cat # 37624

• Honda gas engine
• Electronic timer for reliable filter cleaning - two primary filters that are pulsed clean every 6 seconds with a reversed charge of compressed air; ensuring a continuous vacuum.
• Designed for the contractor who requires a large amount of dust containment.
• The easy to use bolt down strap makes the vacuum usable with any 30 gallon drum
• Heavy duty castors allow for easy mobility for dumping and transportation
• Offers a 5" hose allowing larger air volume and two additional 2" hose inlets for smaller tools
• Less filter cleaning and adaptability to all shrouded equipment

Specifications

Vacuum Hoses:	5" x 15' (standard) with quick release clamps
Compressor:	2.5 CFM Air Cooled
Filtration:	Special pleated cartridge
Wheels:	Two 5" 200lb. rubber Two 5" 200lb. swivel caster

Dimensions

Height:	59" (150cm)
Length:	34-1/2" (88cm)
Width:	28" (71cm)
Weight:	375 lbs. (170kg)

Vacuum Chart

Port Size	CFM	Inch Lift
1 - 5"	1105	3.0
2 - 2"	165 each	5.0

OSHA Compliant with our First-Cut True Early Entry System

For Use on the CC190PRO-EE First-Cut Early Entry Saws

Description	Part Number	Catalog Number
CV1900 gas vacuum for CC190PRO-EE with hoses - dry only	5801900	37624
Vacuum side cover plate attachment for CC190PRO-EE	2708358	80580
Vacuum adapter 3" to 5"	2504846	82102
HEPA FIlter (requires 2 for CV1900)	2505797	40141
