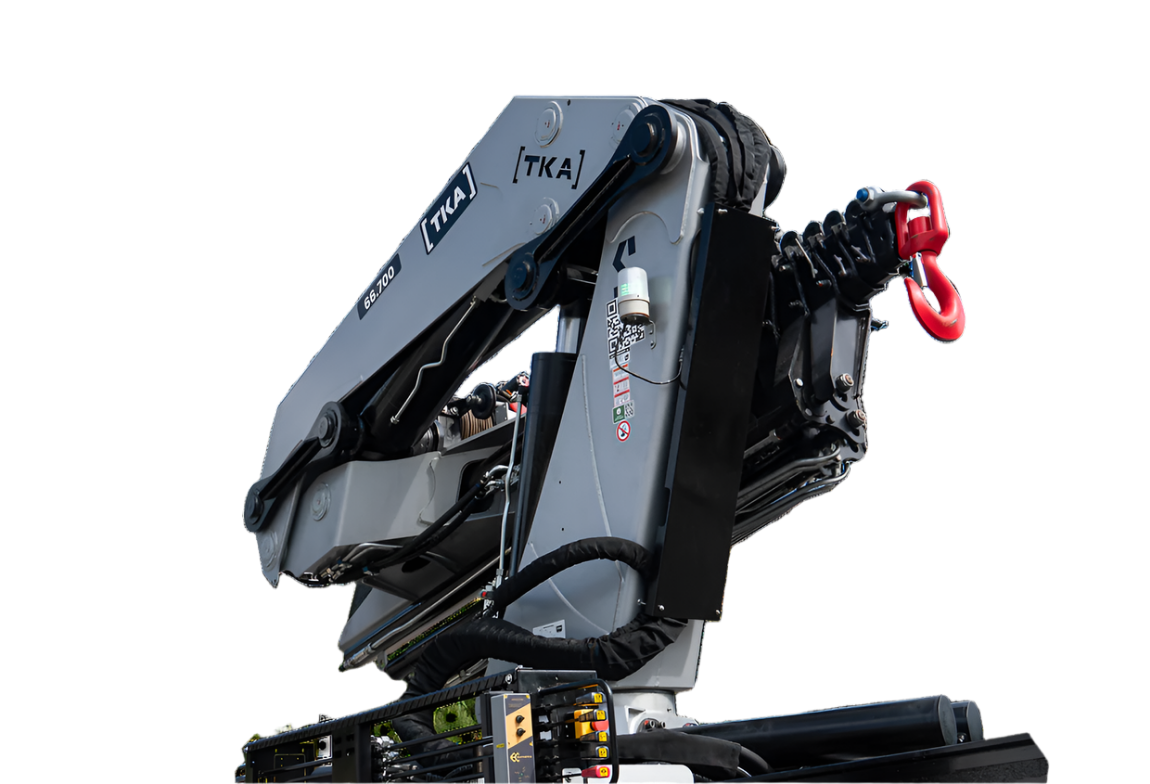

TKA Cranes TKA 66.700 C Knuckle Boom

SKU# TKA 66.700 C 5H0M

$198,461⁵⁴

Shipping calculated at checkout.

Options

5 Hydraulic 6 Hydraulic 7 Hydraulic

Product variants

Safe & Secure Payments.

Finance this product with NewLane Logo

Finance this product with PEAC Solutions Logo

Unsure which financing plan suits you? Discover your options here.

Technical specifications for this crane model are listed below.

Available Accessories

Fly Jib Preparation (Remote Control, Load Limiter, Inclinometer, Hose Cable Reel) – Only available for 66700C 7H0M
Fly Jib 4H1M
Color different from California Orange (standard for TKA Cranes)
Piston Pump
Manual Pump (for basket safety use)
Emergency Stop for Cranes Without Remote Control
Electrical Load Limiter + Inclinometer + Load Limiter Light Indicator + Load Sound Indication (for cranes with remote control)
Hydraulic Load Limiter
Remote Control with 6 Levers (4 + 2 extras) + Emergency Stop
Remote Control Scanreco with 6 Levers + Emergency Stop
Mining Kit (Remote Control, Emergency Stop, Load Limiter, Truck Inclinometer, Blocked Work Over Truck Cabin)
Remote Control Stabilizer Drive Kit for Cranes with Mining Kit
Truck Inclinometer for Cranes Without Remote Control
Winch with 3.0 Ton Capacity with Upper and Lower Pulleys
Drill or Winch Hydraulic Outlet
Drill AND Winch Hydraulic Outlet

Specification	Metric	Imperial
Max. Manual Vertical Reach	29,2 m	95.8 ft
Max. Manual Horizontal Reach	25,6 m	83.9 ft
Max. Hydraulic Vertical Reach	22,2 m	72.8 ft
Max. Hydraulic Horizontal Reach	18,6 m	61.0 ft
Stabilizer Spread (Front)	8,4 m	27.6 ft
Boom Elevation Angle	80°	80°
Max. Operating Pressure	320 bar	4,641 psi
Boom Slewing Angle	400°	400°
Slewing Torque	6,74 tf·m	48,789 lbf·ft
Dead Weight – Base (5H0M / 6H0M / 7H0M)	5.730 kg / 5.940 kg / 6.090 kg	12,626 lbs / 13,096 lbs / 13,417 lbs
Dead Weight – Fly Jib (7H1M / 7H2M / 7H3M)	6.180 kg / 6.270 kg / 6.320 kg	13,621 lbs / 13,822 lbs / 13,934 lbs
Fitting Space Required	1,8 m	5.9 ft
Oil Tank Capacity	175 L	46.2 gal
Minimum GVW Required	23.000 kg	50,706 lbs
