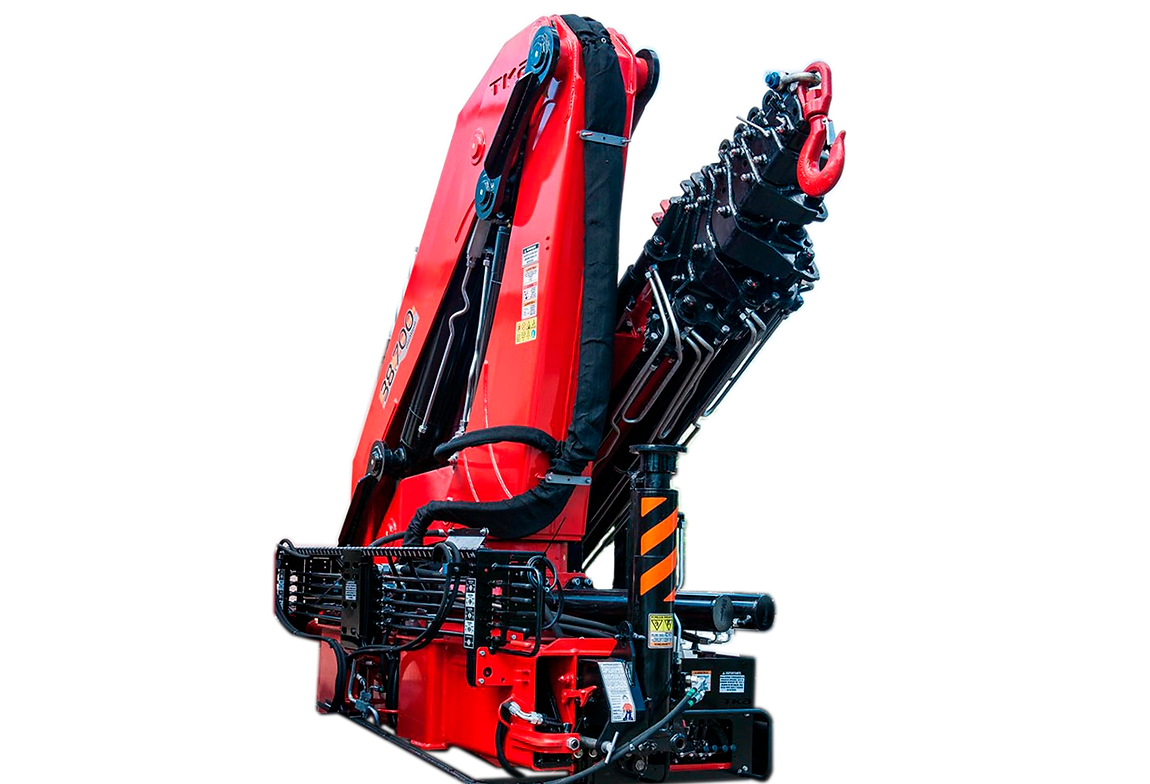

TKA Cranes TKA 38.700 C Knuckle Boom

SKU# TKA 38.700 C 4H0M

$107,857¹⁴

Shipping calculated at checkout.

Options

4 Hydraulic 5 Hydraulic 6 Hydraulic

Product variants

Safe & Secure Payments.

Finance this product with NewLane Logo

Finance this product with PEAC Solutions Logo

Unsure which financing plan suits you? Discover your options here.

Technical specifications for this crane model are listed below.

Available Accessories

Color different from California Orange (standard for TKA Cranes)
Gear Pump
Piston Pump
Manual Pump (for basket safety use)
Emergency Stop for Cranes Without Remote Control
Electrical Load Limiter + Inclinometer + Load Limiter Light Indicator + Load Sound Indication (for cranes with remote control)
Hydraulic Load Limiter
Remote Control with 6 Levers (4 + 2 extras) + Emergency Stop
Remote Control Scanreco with 6 Levers + Emergency Stop
Mining Kit (Remote Control, Emergency Stop, Load Limiter, Truck Inclinometer, Blocked Work Over Truck Cabin)
Remote Control Stabilizer Drive Kit for Cranes with Mining Kit
Truck Inclinometer for Cranes Without Remote Control
Winch with 1.5 Ton Capacity with Upper and Lower Pulleys
Winch with 3.0 Ton Capacity with Upper and Lower Pulleys
Drill or Winch Hydraulic Outlet
Drill AND Winch Hydraulic Outlet

Specification	Metric	Imperial
Max. Manual Vertical Reach	24,5 m	80.4 ft
Max. Hydraulic Vertical Reach	20,9 m	68.6 ft
Max. Manual Horizontal Reach	20,1 m	65.9 ft
Max. Hydraulic Horizontal Reach	16,2 m	53.1 ft
Stabilizer Spread (Front)	6,0 m	19.7 ft
Boom Elevation Angle	80°	80°
Max. Operating Pressure	275 bar	3,988 psi
Boom Slewing Angle	400°	400°
Slewing Torque	3,81 tf·m	27,574 lbf·ft
Dead Weight (4H0M / 5H0M)	4.033 kg / 4.181 kg	8,887 lbs / 9,217 lbs
Dead Weight (6H0M / 6H1M / 6H2M)	4.320 kg / 4.384 kg / 4.425 kg	9,524 lbs / 9,665 lbs / 9,757 lbs
Fitting Space Required	1,5 m	4.9 ft
Oil Tank Capacity	140 L	36.9 gal
Minimum GVW Required	23.000 kg	50,706 lbs
