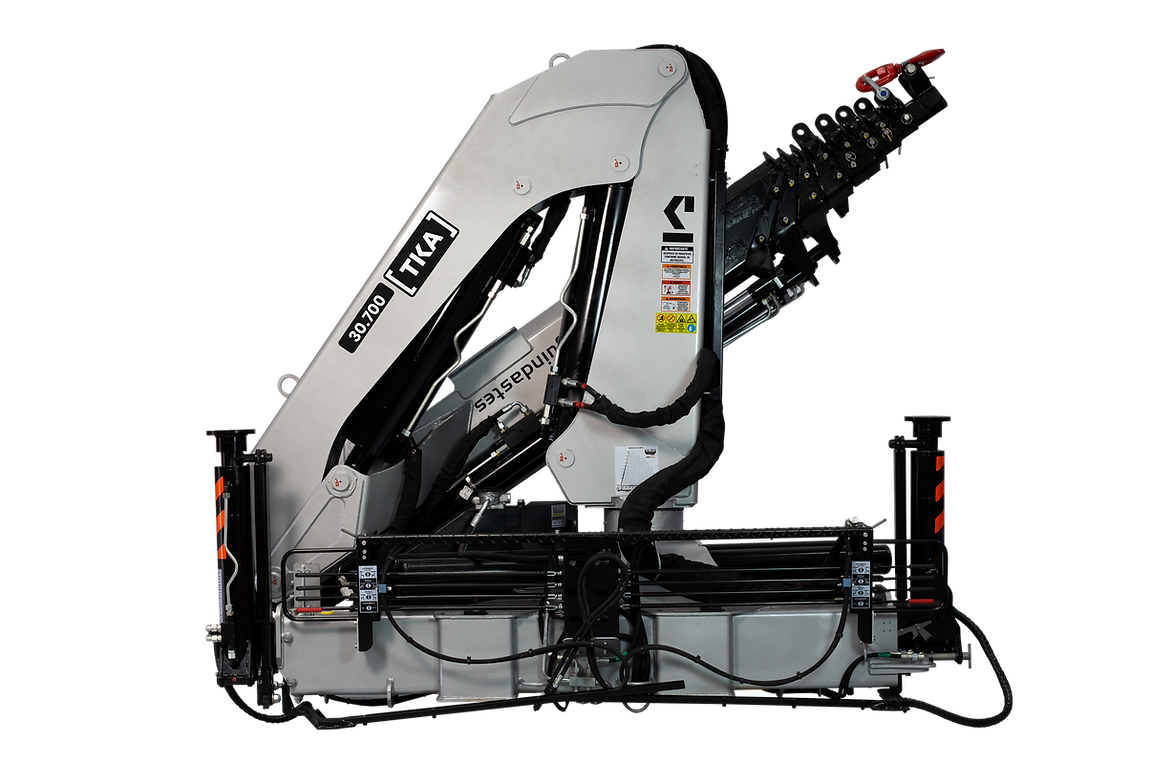

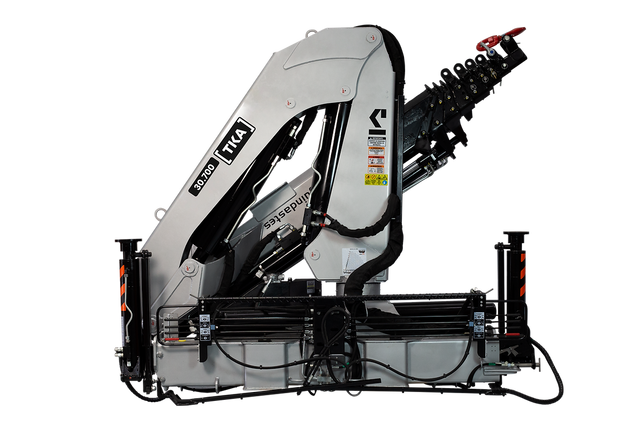

TKA Cranes TKA 30.700 C EX 5 Hydraulic Knuckle Boom
SKU# TKA 30.700 C EX 5H0M
$82,50000
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Finance this product with
Finance this product with
Unsure which financing plan suits you? Discover your options here.
TKA Cranes TKA 30.700 C EX 5 Hydraulic Knuckle Boom
$82,50000
Unit price
/
Make a Selection
Technical specifications for this crane model are listed below.
Available Accessories
- Color different from California Orange (standard for TKA Cranes)
- Gear Pump
- Piston Pump
- Manual Pump (for basket safety use)
- Emergency Stop for Cranes Without Remote Control
- Electrical Load Limiter + Inclinometer + Load Limiter Light Indicator + Load Sound Indication (for cranes with remote control)
- Hydraulic Load Limiter
- Remote Control with 6 Levers (4 + 2 extras) + Emergency Stop
- Oil Radiator
- Remote Control Scanreco with 6 Levers + Emergency Stop
- Mining Kit (Remote Control, Emergency Stop, Load Limiter, Truck Inclinometer, Blocked Work Over Truck Cabin)
- Remote Control Stabilizer Drive Kit for Cranes with Mining Kit
- Truck Inclinometer for Cranes Without Remote Control
- Winch with 1.5 Ton Capacity with Upper and Lower Pulleys
- Winch with 3.0 Ton Capacity with Upper and Lower Pulleys
- Rear Stabilizer with 11.8 ft Opening
- Rear Stabilizer with 11.8 ft Manual Opening
- Rear Stabilizer with 17 ft Opening
- Drill or Winch Hydraulic Outlet
- Drill AND Winch Hydraulic Outlet
| Specification | Metric | Imperial |
|---|---|---|
| Max. Manual Vertical Reach | 23,8 m | 78.1 ft |
| Max. Hydraulic Vertical Reach | 20,7 m | 67.9 ft |
| Max. Manual Horizontal Reach | 17,4 m | 57.1 ft |
| Max. Hydraulic Horizontal Reach | 14,1 m | 46.3 ft |
| Stabilizer Spread (Front) | 6,0 m | 19.7 ft |
| Boom Elevation Angle | 75° | 75° |
| Max. Operating Pressure | 275 bar | 3,988 psi |
| Boom Slewing Angle | 400° | 400° |
| Slewing Torque | 3,81 tf·m | 27,574 lbf·ft |
| Dead Weight (4H0M / 5H0M) | 3.475 kg / 3.610 kg | 7,660 lbs / 7,958 lbs |
| Dead Weight (5H1M / 5H2M / 5H3M) | 3.600 kg / 3.700 kg / 3.740 kg | 7,937 lbs / 8,157 lbs / 8,245 lbs |
| Fitting Space Required | 1,5 m | 4.9 ft |
| Oil Tank Capacity | 120 L | 31.7 gal |
| Minimum GVW Required | 22.000 kg | 48,502 lbs |
