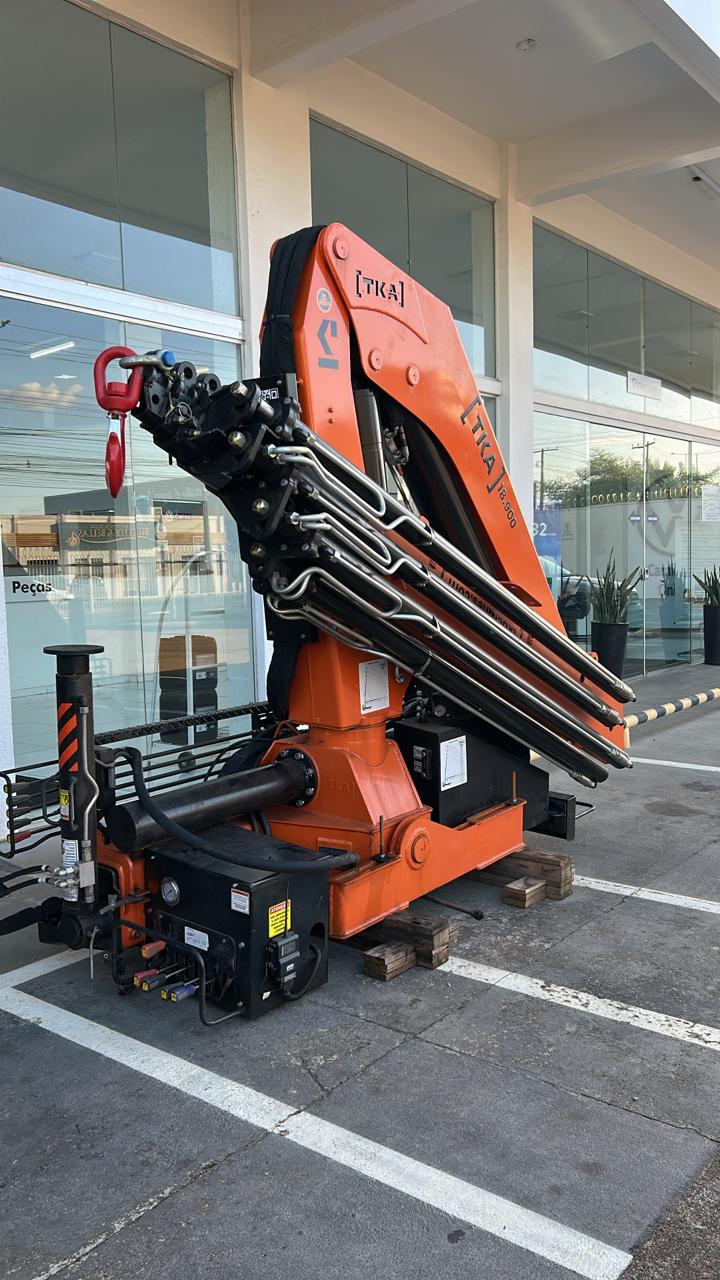

TKA Cranes 18.900 C EX 5 Hydraulic Knuckle Boom
SKU# TKA 18.900 C EX 5H0M
$58,57143
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Finance this product with
Finance this product with
Unsure which financing plan suits you? Discover your options here.
TKA Cranes 18.900 C EX 5 Hydraulic Knuckle Boom
$58,57143
Unit price
/
Make a Selection
Technical specifications for this crane model are listed below.
Available Accessories
- Gear Pump
- Piston pump
- Oil Radiator
- Manual Pump (for basket safety use)
- Emergency Stop for Cranes Without Remote Control
- Electrical Load Limiter + Inclinometer + Load Limiter light indicator + load sound indication, for cranes with remote Control
- Hydraulic Load Limiter
- Remote Control with 06 leavers (4+2 extras) + emergency stop
- Remote Control Scanreco With 06 leavers + emergency stop
- Mining Kit (Remote Control. Emergency Stop. Load Limiter. Truck Inclinometer. Blocked work over truck cabine)
- Remote control stabilizer drive kit for cranes with mining kit
- Truck Inclinometer for Cranes Without Remote Control
- Winch with 1.5-ton capacity with upper and lower pulleys
- Fixed Rear Stabilizers 8.5ft
- Rear stabilizer with 11.8ft manual opening
- Rear stabilizer with 11.8ft opening
- Drill or Winch hydraulic Outlet
- Drill AND Winch hydraulic Outlet
| Technical Data | Specifications |
|---|---|
| Max. Manual Vertical Reach | 22.2 m (72.8 ft) |
| Vertical Reach | 18.7 m (61.4 ft) |
| Max. Manual Horizontal Reach | 17.8 m (58.4 ft) |
| Horizontal Reach | 14.1 m (46.3 ft) |
| Max. Hydraulic Vertical Reach | 5.8 m (19.0 ft) * |
| Boom Elevation Angle | 80° |
| Max. Operating Pressure | 275 bar (3,988 psi) |
| Front Stabilizer Spread | 400° (circular rotation range) |
| Max. Hydraulic Horizontal Reach | 2.89 tf·m (21,087 ft·lb) |
| Slewing Torque | 2.89 tf·m (21,087 ft·lb) |
| Slewing Angle | 400° |
| Dead Weight (Base 3H0M / 4H0M) | 2,300 kg / 2,410 kg (5,070 lb. / 5,313 lb.) |
| Dead Weight (Base 5H0M / 5H1M / 5H2M) | 2,500 kg / 2,540 kg / 2,570 kg (5,512 lb. / 5,600 lb. / 5,666 lb.) |
| Fitting Space Required | 1.2 m (3.94 ft) |
| Oil Tank Capacity | 100 L (26.4 gal) |
| Min. Gross Vehicle Weight (GVW) | 15,000 kg (33,069 lb.) ** |
