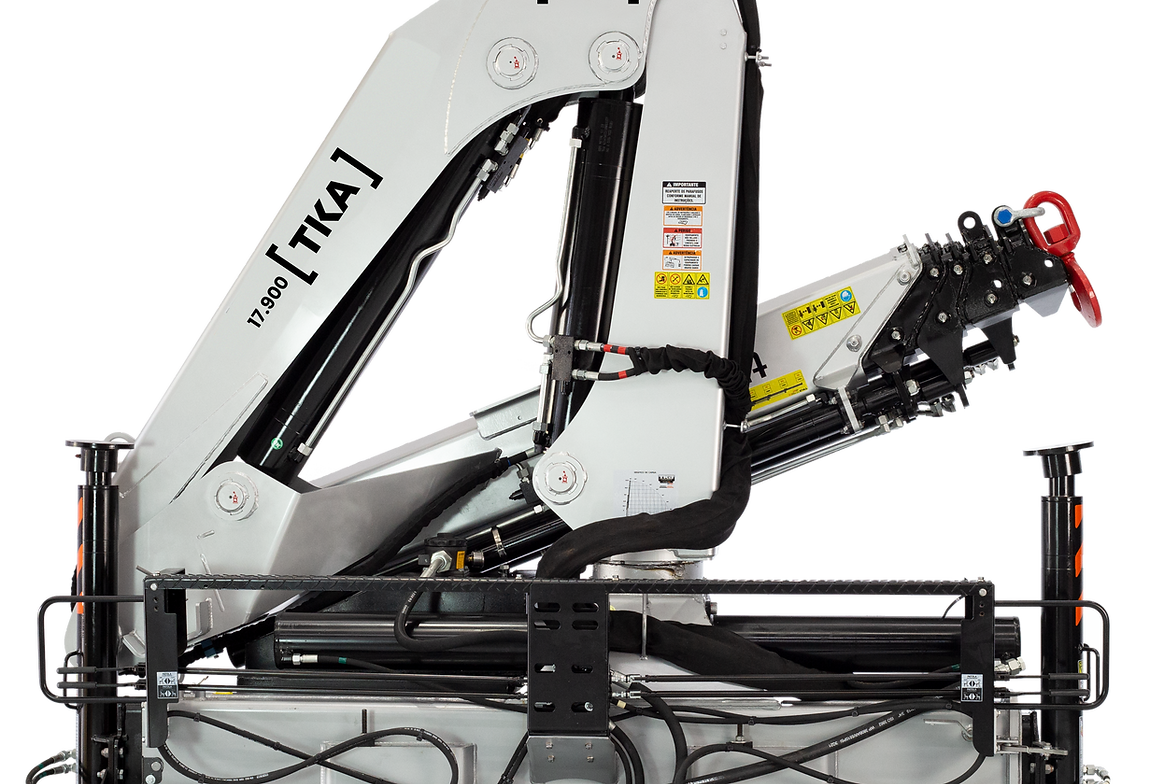

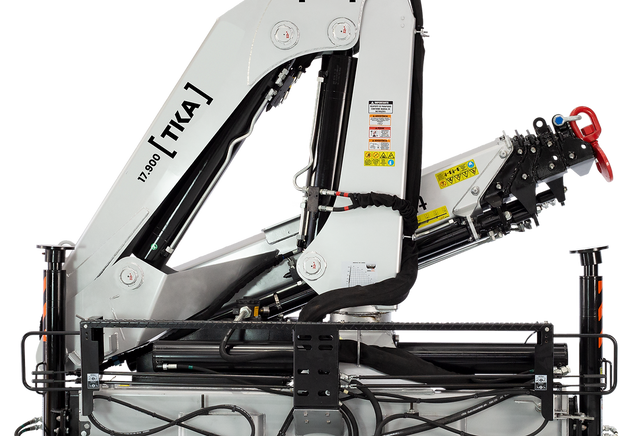

TKA Cranes 17.900 C EX Knuckle Boom

SKU# TKA 17.900 C EX 3H0M

$50,714²⁹

Shipping calculated at checkout.

Options

3 Hydraulic 4 Hydraulic

Product variants

Safe & Secure Payments.

Finance this product with NewLane Logo

Finance this product with PEAC Solutions Logo

Unsure which financing plan suits you? Discover your options here.

This versatile hydraulic crane offers an impressive 64-foot vertical reach and rugged performance with a 2.89 tf.m slewing torque, making it ideal for heavy-duty lifting applications.

Available Accessories

Gear Pump
Piston Pump
Oil Radiator
Manual Pump (for basket safety use)
Front hydraulic outrigger extension
Emergency Stop for Cranes Without Remote Control
Electrical Load Limiter + Inclinometer + Load Limiter light indicator + load sound indication, for cranes with remote control
Hydraulic Load Limiter
Remote Control with 06 levers (4+2 extras) + emergency stop
Remote Control Scanreco with 06 levers + emergency stop
Mining Kit (Remote Control, Emergency Stop, Load Limiter, Truck Inclinometer, Blocked work over truck cab)
Remote control stabilizer drive kit for cranes with mining kit
Truck Inclinometer for Cranes Without Remote Control
Winch with 1.5-ton capacity with upper and lower pulleys
Fixed Rear Stabilizers 8.5 ft
Rear stabilizer with 11.8 ft manual opening
Rear stabilizer with 11.8 ft opening
Drill or winch hydraulic outlet
Drill AND winch hydraulic outlet
Grapple outlet (2 ways – open and close) – 3rd Hydraulic Extension
Grapple outlet (4 ways – open, close, twist) – 3rd Hydraulic Extension
Elevated operating chair with ladder

Specification	Metric	Imperial
Max. manual vertical reach	19,6 m	64.3 ft
Max. hydraulic vertical reach	16,3 m	53.5 ft
Max. manual horizontal reach	15,3 m	50.2 ft
Max. hydraulic horizontal reach	11,9 m	39.0 ft
Front stabilizer spread	5,8 m*	19.0 ft*
Boom elevation angle	81°	81°
Max. operating pressure	275 bar	3,988 psi
Slewing angle	400°	400°
Slewing torque	2,89 tf.m	20,907 ft·lb
Dead weight (3H0M / 4H0M)	2.250 kg / 2.340 kg	4,960 lb. / 5,159 lb.
Dead weight (4H1M / 4H2M)	2.380 kg / 2.420 kg	5,247 lb. / 5,335 lb.
Fitting space required	1,3 m	4.3 ft
Oil tank capacity	100 l	26.4 gal
Min. gross vehicle weight (GVW)	13.000 kg**	28,660 lb**
