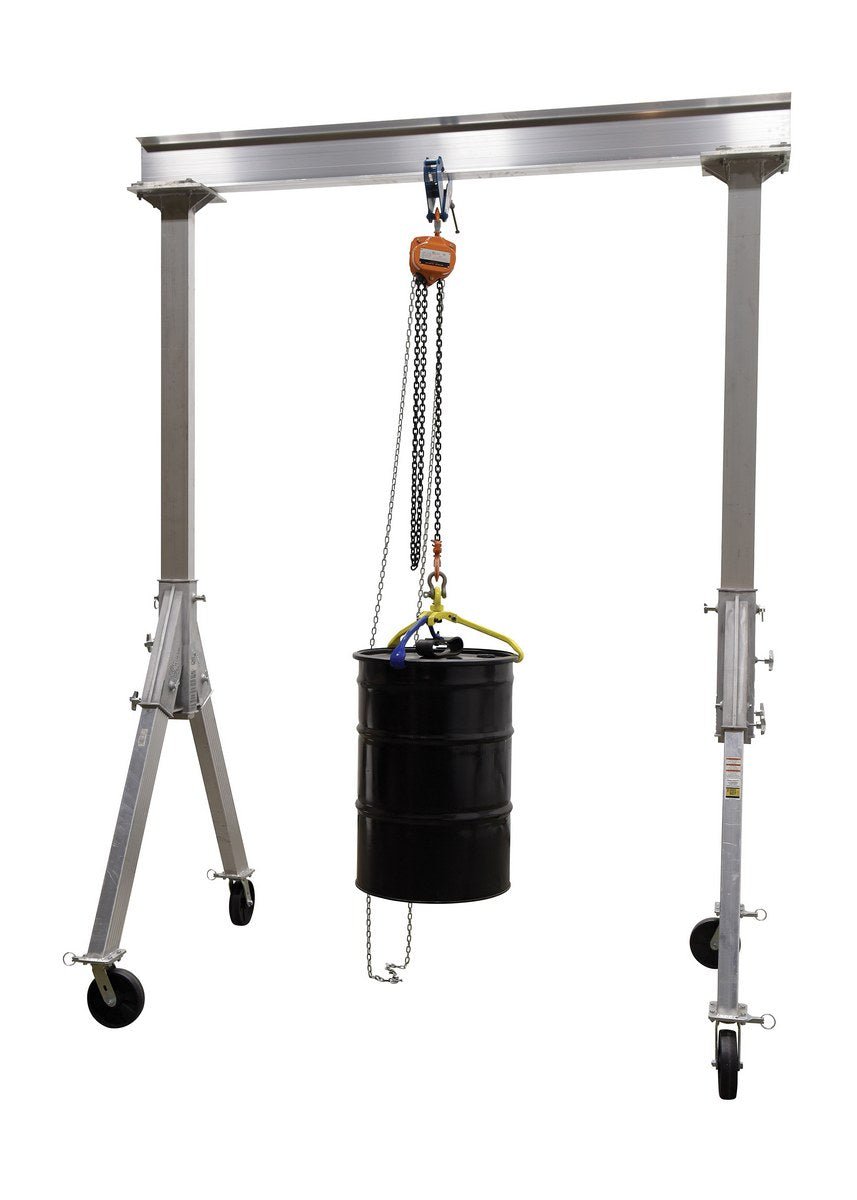

The Fixed Height Aluminum Gantry Cranes are ideal for variety of industries including maintenance and production


The Fixed Height Aluminum Gantry Cranes are ideal for variety of industries including maintenance and production. The aluminum design is easily manageable and can be simply assembled for immediate use. A fixed height is perfect for working in a permanent or semi-permanent environment where the surrounding seldom change. Casters provide a smooth way to transfer units when unloaded and if changing locations is needed. Four (4) 8" swivel casters with four position locks 2K-4K models have glass filled nylon casters, 6K models have phenolic casters. A strong construction allows for long lasting strength through the harshest of environments.



Model Overall I-Beam
Length/ Height
Under I-Beam Range Base Width I-Beam Flange Width Capacity (lbs.) Wt. (lbs.)
FHA-2-8-10 96"/6" 120" 53-3/4" 3-5/16" 2,000 331
FHA-2-10-10 120"/6" 120" 53-3/4" 3-5/16" 2,000 333
FHA-2-12-10 144"/8" 120" 53-3/4" 4" 2,000 355
FHA-2-15-10 180"/8" 120" 53-3/4" 4-3/16" 2,000 445
FHA-4-8-10 96"/8" 120" 53-5/16" 4" 4,000 390
FHA-4-10-10 120"/8" 120" 53-5/16" 4-3/16" 4,000 390
FHA-4-12-10 144"/8" 120" 53-5/16" 4-3/16" 4,000 406
FHA-4-15-10 180"/10" 120" 53-5/16" 4-11/16" 4,000 442
FHA-6-8-10 96"/10" 120" 64-11/16" 4-11/16" 6,000 639
FHA-6-10-10 120"/10" 120" 64-11/16" 4-11/16" 6,000 734
FHA-6-12-10 144"/12" 120" 64-11/16" 7" 6,000 993
FHA-6-15-10 180"/12" 120" 64-11/16" 7" 6,000 994
Usable distance between uprights is overall I-Beam length minus 15-7/8
Usable trolley travel length is overall I-Beam length minus 23-3/4
