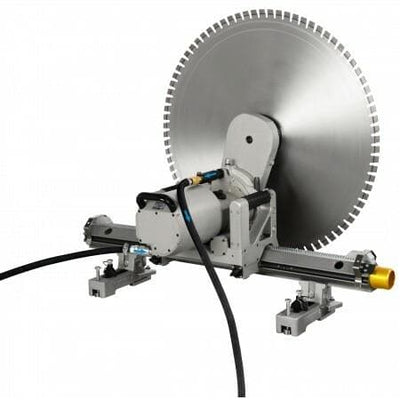

WSE2226 High Cycle Wall Saw System Complete

WSE2226 High Cycle Wall Saw System Complete with a 86" Blade Capacity

Quick Mount

• Quick mounting blade flanges make easy removal of blade
• Up to 40" maximum starter blade without being in the cut
• Feed with Worm Drive System
• Self-locking-no brake necessary
• Improved seals

2 Handles

• Quick disconnect with 2 handles for fast removal and set up 2-stage gear box
• Largest ø range in the industry ( ø 32" to 86")
• Safety clutch in front of gear box for better protection
• Simple re-engage lever in case of blade jams

Specifications:

BLADE

Maximum cutting depth 39"

Maximum blade capacity 86"

Blade size over 60" in diameter requires 60mm flange system (Included with package)

Maximum starter blade size 40"

Blade mount Quick-release flange

DESIGN

Infinitely adjustable swivel arm rotates 360°

2 carrying handles with locking function

MOTOR

Water cooled high frequency motor with 2 speed gearbox

Output at 63 amp 26 kW, 35 HP

POWER PACK/INVERTER INPUT

Voltage 460 Volt

Frequency 50Hz/60 Hz

Output Frequency 400 Hz

WEIGHT

Wall Saw WSE2226 including feed motors-without main drive blade motor 66 lbs.

Electric main blade motor only-detachable 53 lbs.

MINIMUM GENERATOR

SIZE REQUIREMENT 50kW
