Models
| Model | Clearing Area | Power Supply | Horse Power | Weight (lbs) | Removal Rate (Sq. ft. per hour |
| M5-1 | 8" Wide | 115V | 1/2 | 21 | 70-100 |
| M5-2 | 8" Wide | 230V | 1/2 | 21 | 70-100 |
| M5-1E | 12" Wide | 115V | 1/2 | 27 | 100-150 |
| M5-2E | 12" Wide | 230V | 1/2 | 27 | 100-150 |

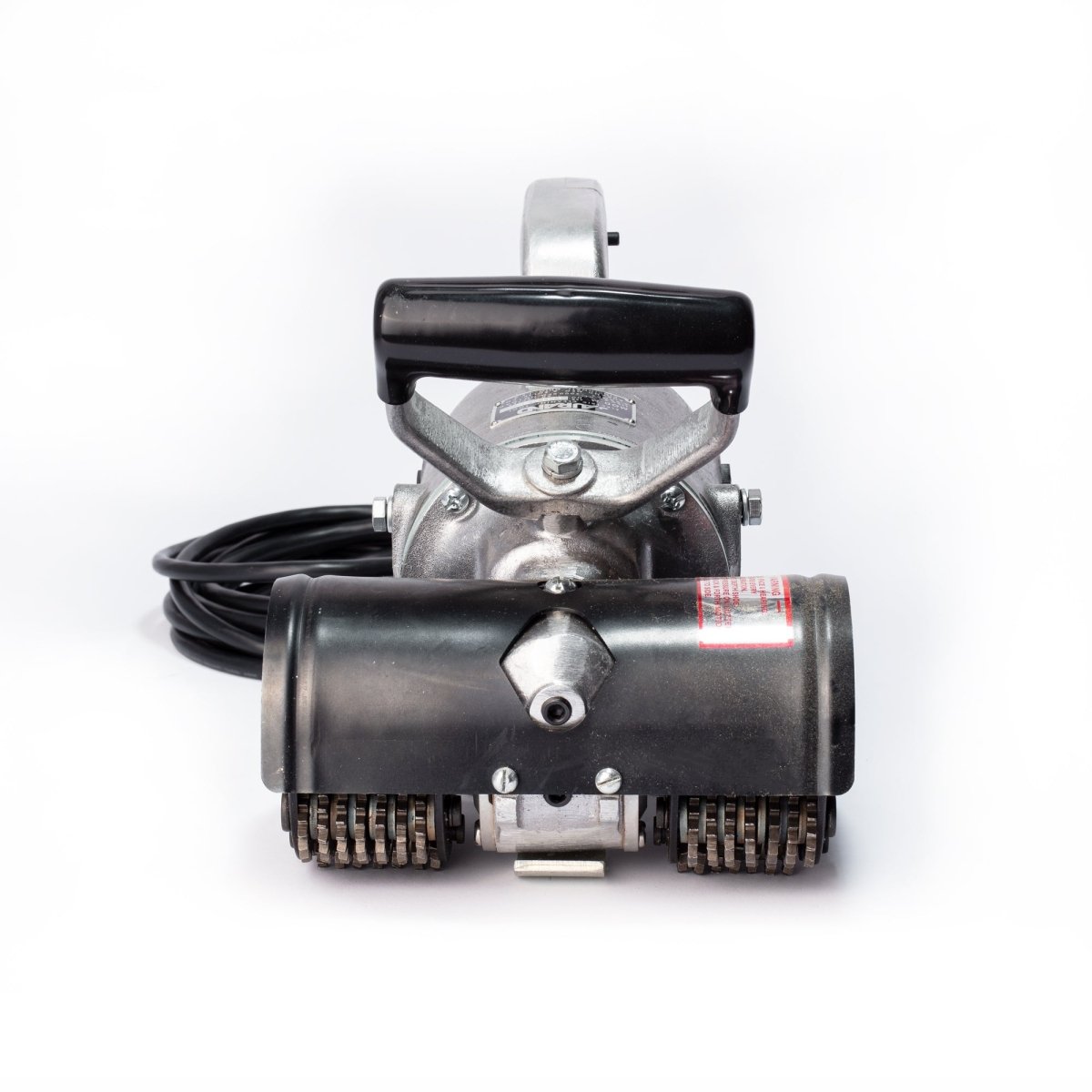

BEFORE OPERATING: The Aurand cleaning tool (electric model) is equipped with a universal type motor which is equally efficient on either direct or alternating current. It is furnished for use with either 115 or 230 voltage, Both voltages are NOT possible on one machine. The voltage for your machines is stamped on the name plate.
The M tool has been thoroughly tested and shipped complete, but DO NOT attempt to operate without reading the following instructions.
OPERATING INSTRUCTIONS:
- Wear safety glasses and hearing protection.
- Grasp both handles and raise front of tool from surface.
- Squeeze trigger and allow cutters to come up to speed before applying to surface.
- Using both hands, guide tool in a forward and backward motion to assure complete coverage. Let weight of tool do the work. Never apply pressure as this will slow down motor speed and cause damage to motor, gears, and cutter bundles.
DEPTH ADJUSTMENT: When adjustment is required to compensate for cutter wear: 1. Loosen SCREW (Ref 7M) 2. Move DEPTH SHOE (Ref 6M) up or down as required. (Cutters should have play in them when touching work surface) 3. Tighten SCREW (Ref 7M)
CUTTER BUNDLE REPLACEMENT:
- Install COTTER PIN & WASHER (Ref 2M) on both ends of SPINDLE (Ref 24M-1 or 24ME-1). Cutter tips must point in direction of rotation.
- Slide CUTTER BUNDLE (Ref 90M) and CUTTER BUNDLE FELT (Ref 29M) from SPINDLE.
- Slide new CUTTER BUNDLE FELT & CUTTER BUNDLES on SPINDLE, with large round hole facing side plate. CUTTER TIPS must point in direction of rotation.
- Install COTTER PINS & WASHER on both ends of SPINDLE.
