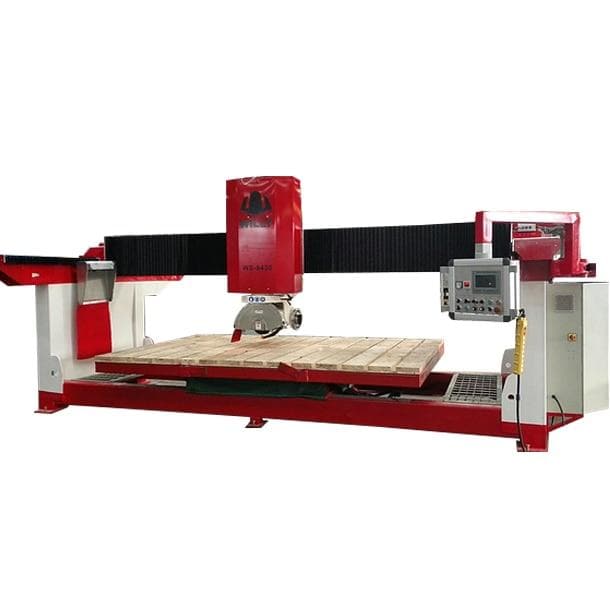

Willy Bridge Saw WS-8450

Willy Bridge Saw Machine for industrial cutting of granite, stone, and other types of slabs

Installation and training included

The Willy Bridge Saw-WS-8450-2016 is a modern strong Mono-block and versatile machine, with ease machine controlled by siemens PLC technology with three axis for simple operation that increase production on the cut natural and artificial stone. The WS-8450-2016 was especially designed for ease transport assemble installations and highly efficiency on cut of slabs with the maximum depth of 130 mm (5"-depending on the blade used). because it is mono-block you can easily move it inside of your shop for adjust your line of production.

Bridge saw machine - Model 2016	willy WS-8450
Total weight - Mono Block Machine	13,000 LB
Electric Power	220-400 Volts.
Machine Dimensioimensions W x D x H	220.5" x 130" x 119.2"
Dimensions of the work platform	130" x 79"
Blade Diameter	16"-18"
Max Work Piece Lifty	10"
Main Engine Power	15 Kw (20 Hp)
Power of the "up-and-down" engine	1,1 Kw (1.5 Hp)
Power of the translation engine	1,5 Kw (2,0 Hp)
RPM	2.100
RPM Optional Invertor	0 up to 3,500
Needed Water Pressure	Mca > 0,2
Water Consumption	M3/H

Path of axis

• Axis of transportation course X
• Axis of transportation course Y
• Axis of course Z
• Axis of tilting motion of the saw B*
• Axis of movement of the table C**

* =Manual inclination
**=Motorized Turn

Size of the tilting table

• Size of the X-axis table
• Size of Y-axis table
