Water Jet WJ-4X4CNC
SKU: BA9-1019139

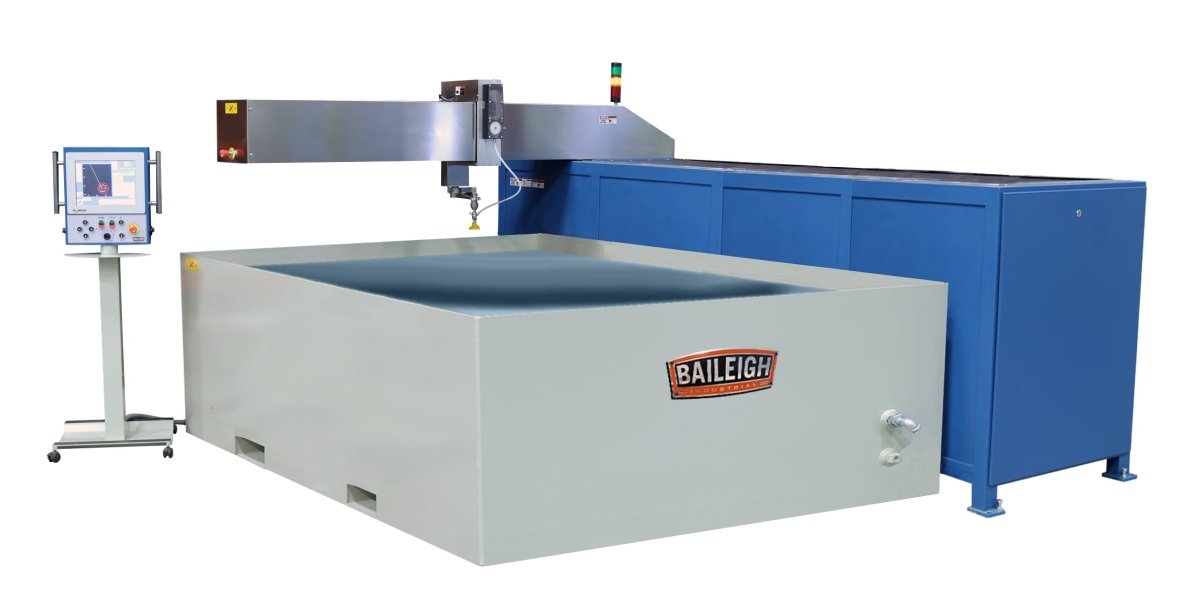

The WJ-4x4CNC water jet from Baileigh Industrial is a great value for anyone looking to get into water jet cutting.

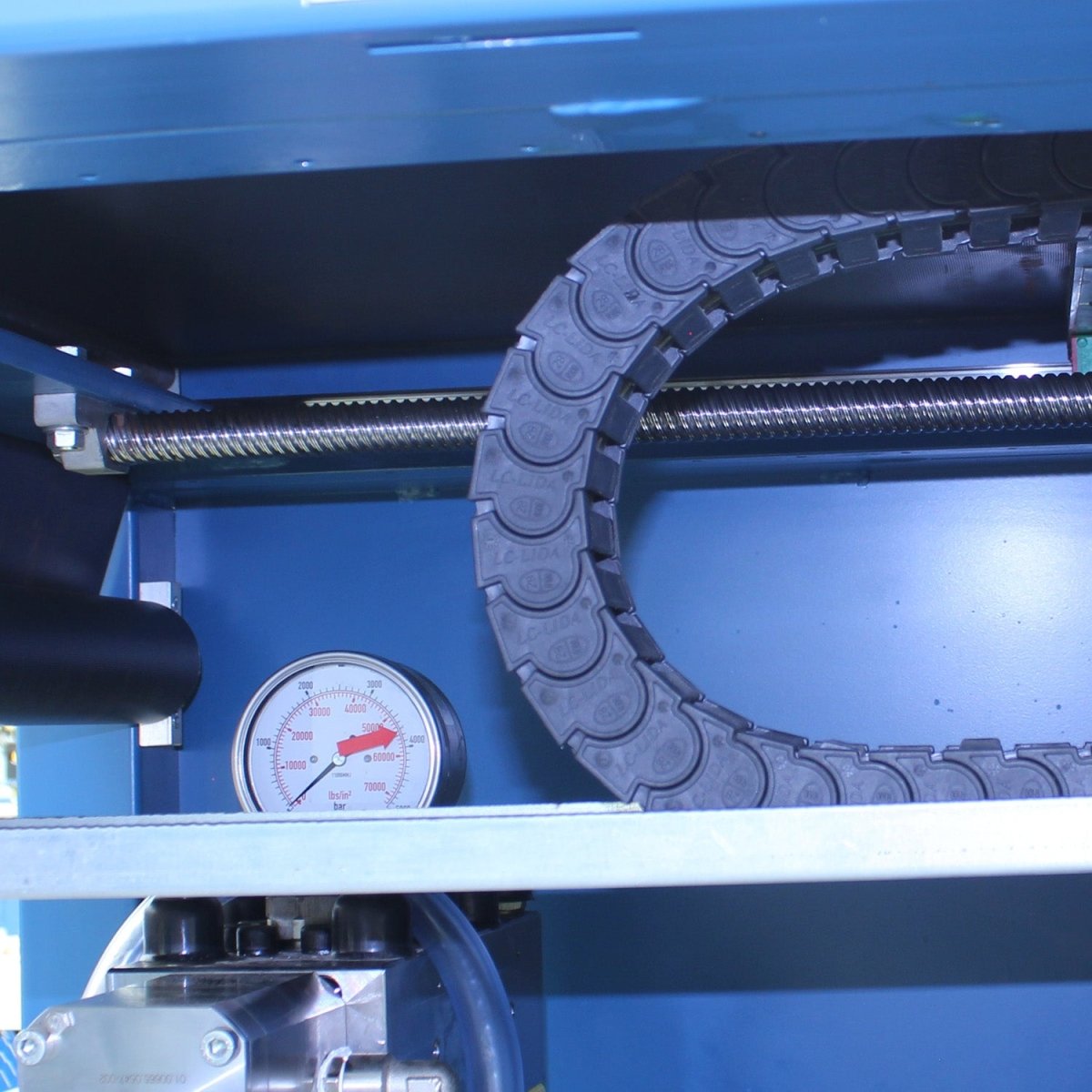

This great machine has the ability to cut just about any material with precision. This includes glass, granite, ceramic, plastic, foam, mild steel, stainless steel, titanium, aluminum, and copper in its 48” x 48” table. The design is a cantilever design that allows for much easier material loading and unloading. This design also offers smoother action on the axis with exclusion of moving parts. All axis ride on precision balls screws with square slide ways. All slide ways are covered and protected from water for long life. The frame of the WJ-4x4CNC is laser cut and interlocked, then welded for strenght, rigidity, and accuracy.

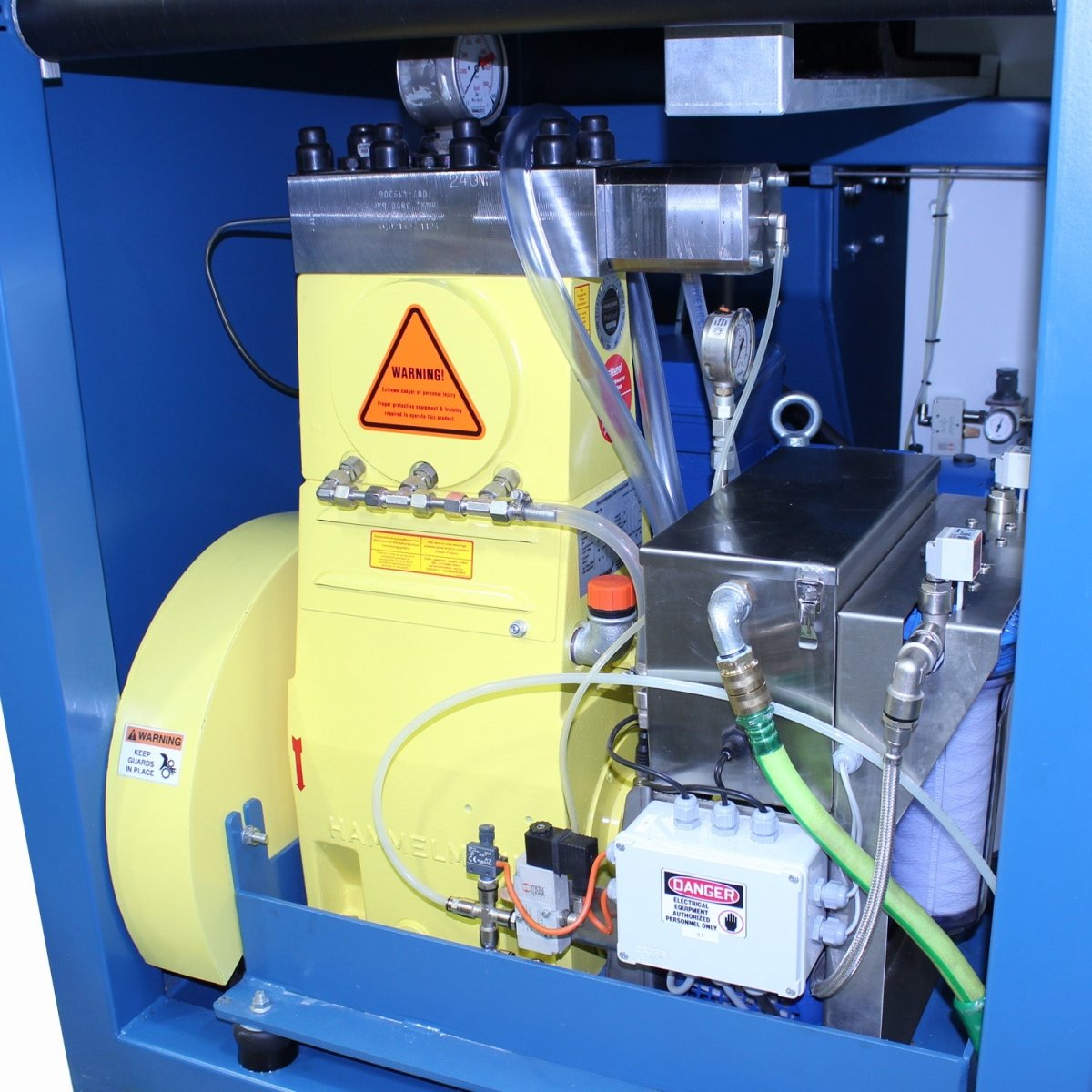

Every WJ-4x4CNC includes our own proprietary abrasive auto feed system that is coupled with a powerful 55,000psi Hammelmann direct drive pump . This system is unique to the Baileigh Industrial line and offers a low maintenance approach to water jet cutting.

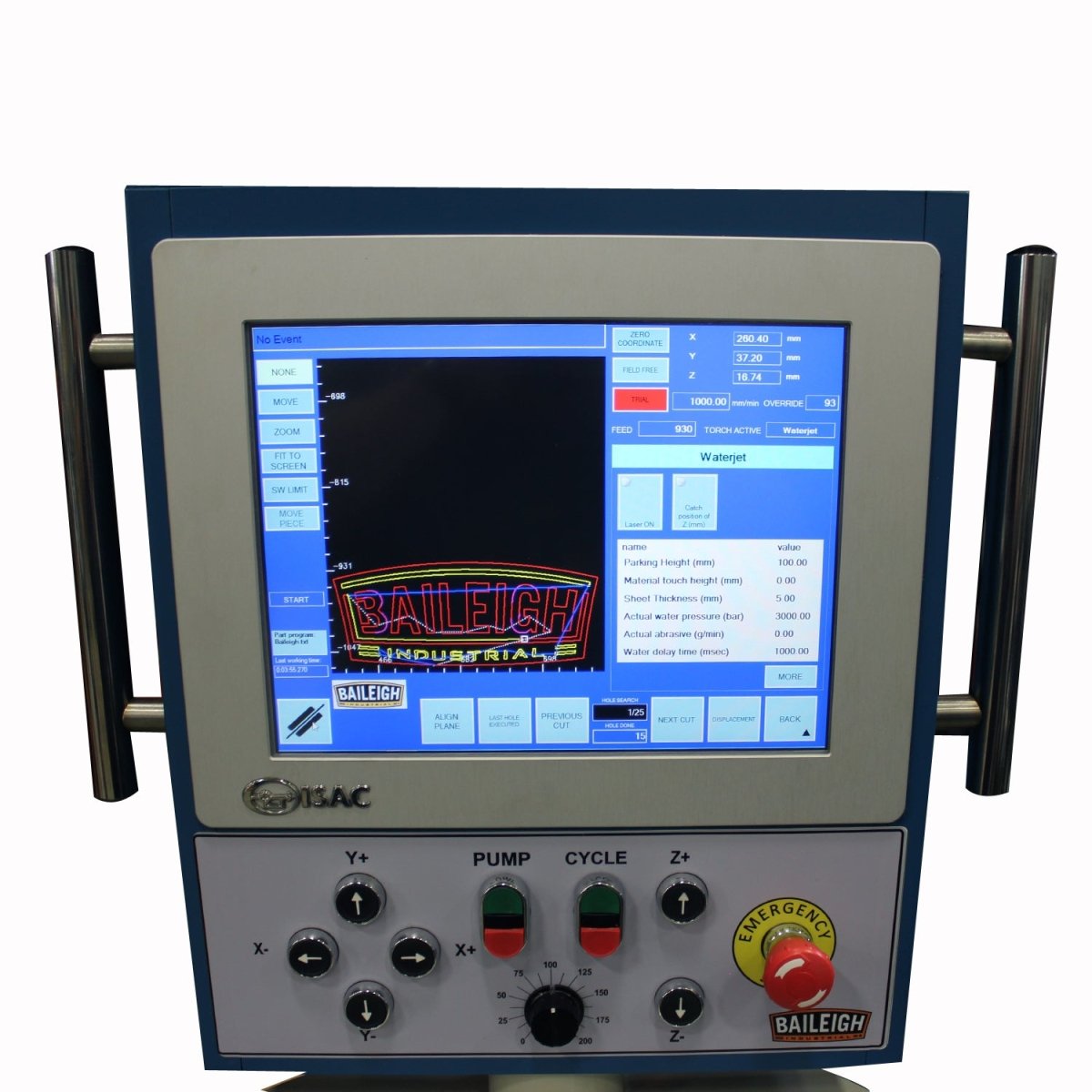

To control the WJ-4x4CNC water jet Baileigh Industrial includes an easy to use windows based operator touchscreen. This programmer will support any DXF file.
BOBCAD-CAM EXPRESS DESIGN SOFTWARE (INCLUDED)
The WJ-4x4CNC comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the plasma table via a USB drive. To learn more or download a free trial, click the BobCAD-Cam logo above.
For more information on the WJ-4x4CNC water jet cutting machine, contact a representative today.
| Item Number | WJ-4x4CNC |
|---|---|
| Motor KW | 30kw |
| Working Table Size | 48" x 48" |
| Working Table Travel (X/Y) | 48"/48" |
| Table Size | 59" x 59" |

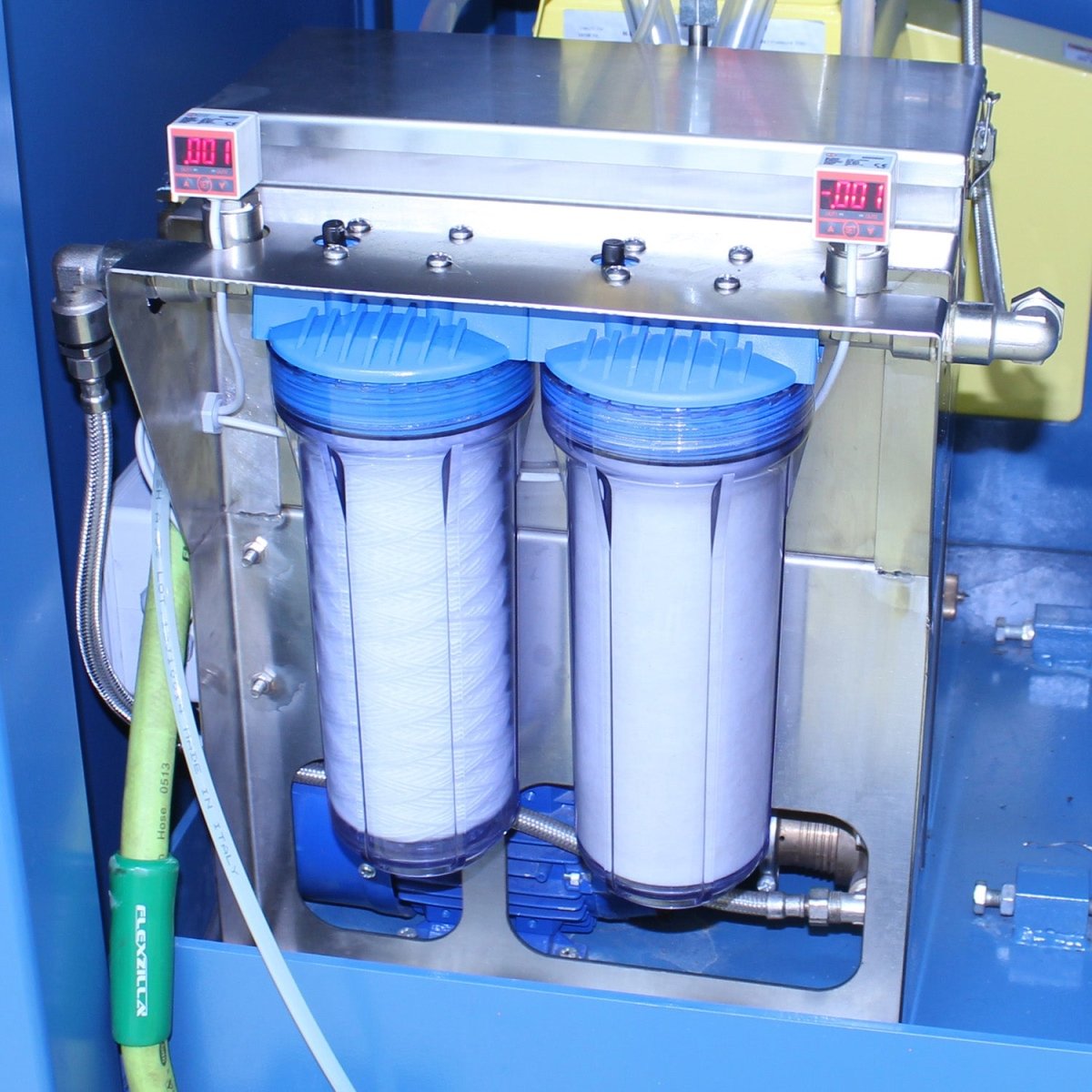

| Filter Type | 2 Stage/2 Filter, 10 Micron & 1 Micron |
| Number of Filters | 2 |
| Supported File Formats | DXF |
| Repeatability Accuracy | ± .001" |
| Production Pressure | 56,000 psi |
| Max. Flow Rate | 7.92 gallons per minute |
| Orifice Size | .014" |
| Travel Speed | 40 fpm (26 fpm Cutting) Maximum |
| CNC System | Windows Based |
| Cutting Accuracy | ±.001" |
| Inlet Pressure | 30 psi |
| Motor | 40 hp |
| X Axis Travel | 48" |
| Y Axis Travel | 48" |
| Z Axis Travel | 6.75" |
| Power | 460V / 3-phase 60amp |
| Shipping Weight | 4000lbs |

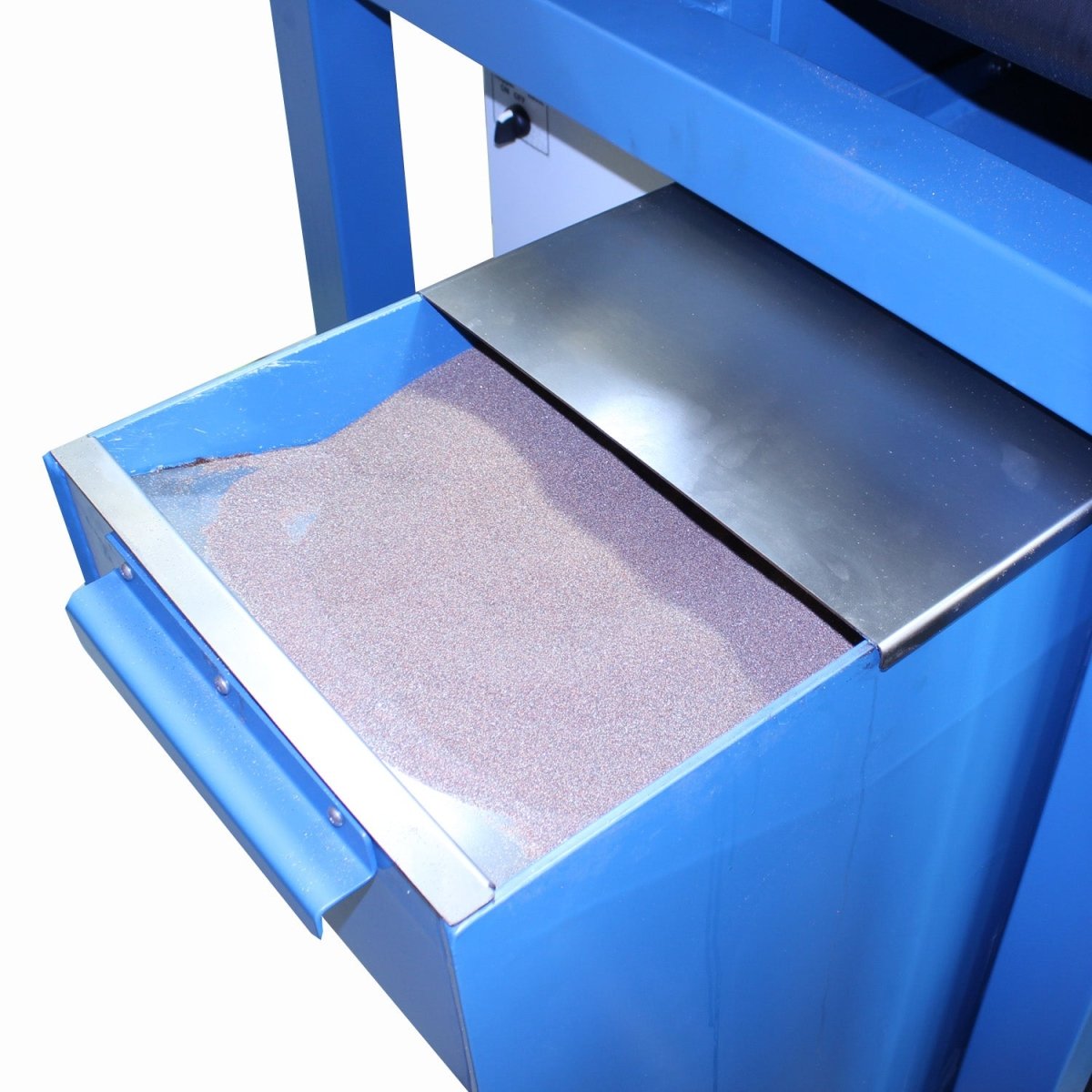

| Hopper Capacity | 250 lbs |
| Software | BobCAD Cam |
| Shipping Dimensions (Inches) | 107x49x75 & 64x64x71 |
* specifications subject to change without notice.
