MBS TS Bridge Saw Mobile Bridge CNC Machine

MBS TS Bridge Saw Mobile Bridge CNC Machine

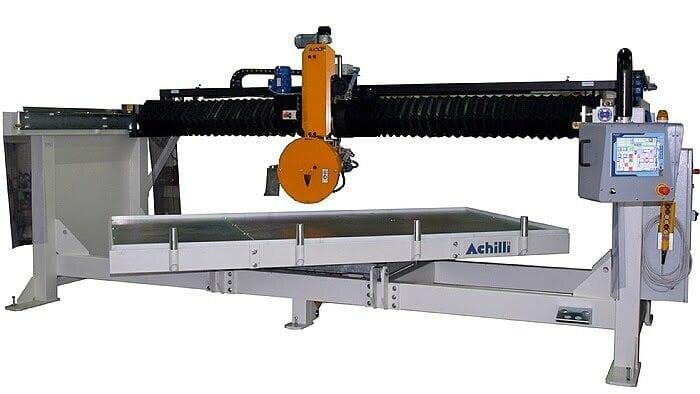

This bridge saw with mobile bridge features a steel frame. It is sandblasted and ceramic coated and it offers a CNC axis control with touch-screen color display for cuts programming. The head of this bridge saw features automatic rotation from 0°-360° to allow for programming interpolated straight cuts. Stone fabricators select this saw more than any other Achilli saw because it is the perfect combination of simplicity, flexibility and durability. Take a closer look the features of the MBS TS Bridge Saw:

If you are in the market for a smaller saw for cutting granite and stone check out Achilli Track Rail Saw and for a more advanced CNC Saw check out the Monster 1 CNC Cutting Machine.

Standard Features

• Frame - The frame is sandblasted and ceramic coated so it is long lasting.
• Head Motion - Operators can utilize the motorized the head's 3 travel axes (x, y, z) with variable speed. Additionally, the head travels on steel guides with angled rack and pinion so you can be assured of high precision.

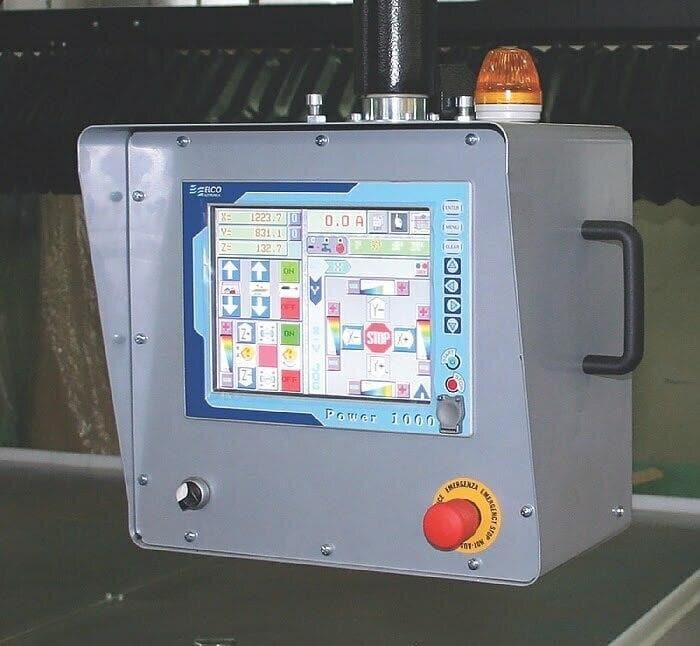

• CNC Control - Programmers utilize the CNC axis control unit with touch screen color display for cuts programming.
• Head Rotation - Operator can lock the main motor rotation by push buttons. Also of interest is the manual rotation of the head from 0° to 340° so the operator can perform interpolated angle cutting in all directions.

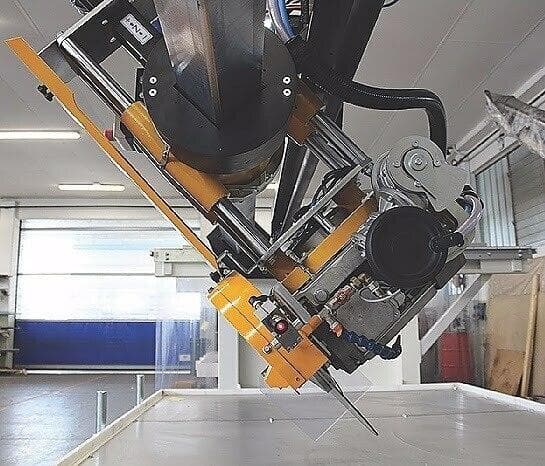

• Head Tilt - Users head can be tilted from 90° to 45° to perform inclined cuts.
• Tilting and/or Rotating Table - Operator enjoys easy slab loading because of the motorized hydraulic worktable tilt. Also available is the rotating table.

Optional Features

• Frame - Customers can choose a hot dip galvanized frame. Hence, increasing durability.
• Laser - Machine operator can make precise cuts by utilizing the optional laser alignment device. Therefore, producing quality work.
• Pop-up Rollers - Machinists can add this optional feature and thus receive assistance with easy slab loading.
• Head Rotation - Customers can opt in for an automatic head rotation feature. As a result adjustments take less effort.
• Slab Loader - Operators can lift many times more than their weight with the motorized slab loader. Hence, loading and off-loading slabs is much easier.
• Pendant Control - Operate the controls from a distance with the pendant control.
• Water Tray - You can add a water tray with a built in recycling pump.



Specs:



MBS TS TECHNICAL DATA
X Axis Travel	118" to 197"
Y Axis Travel	77"
Z Axis Travel	15"
Fixed Worktable Dimensions	151.5" x 86.5"
Diamond Blade Diameter	20"
Blade Bore Size	2"
Manual Head Tilt	90° - 45°
Head Rotation	0° - 90° - 180° - 270° / 0° - 340°
Main Motor Power	7.5kW = 10HP / 11kW = 15HP
Main Motor Rotation Speed	1400 rpm 50Hz - 1700 rpm 60Hz
Main Motor Variable Speed (Special Order)	800 - 2500 rpm
Standard Voltage-Frequency	400V-50/60Hz 230V-60Hz
