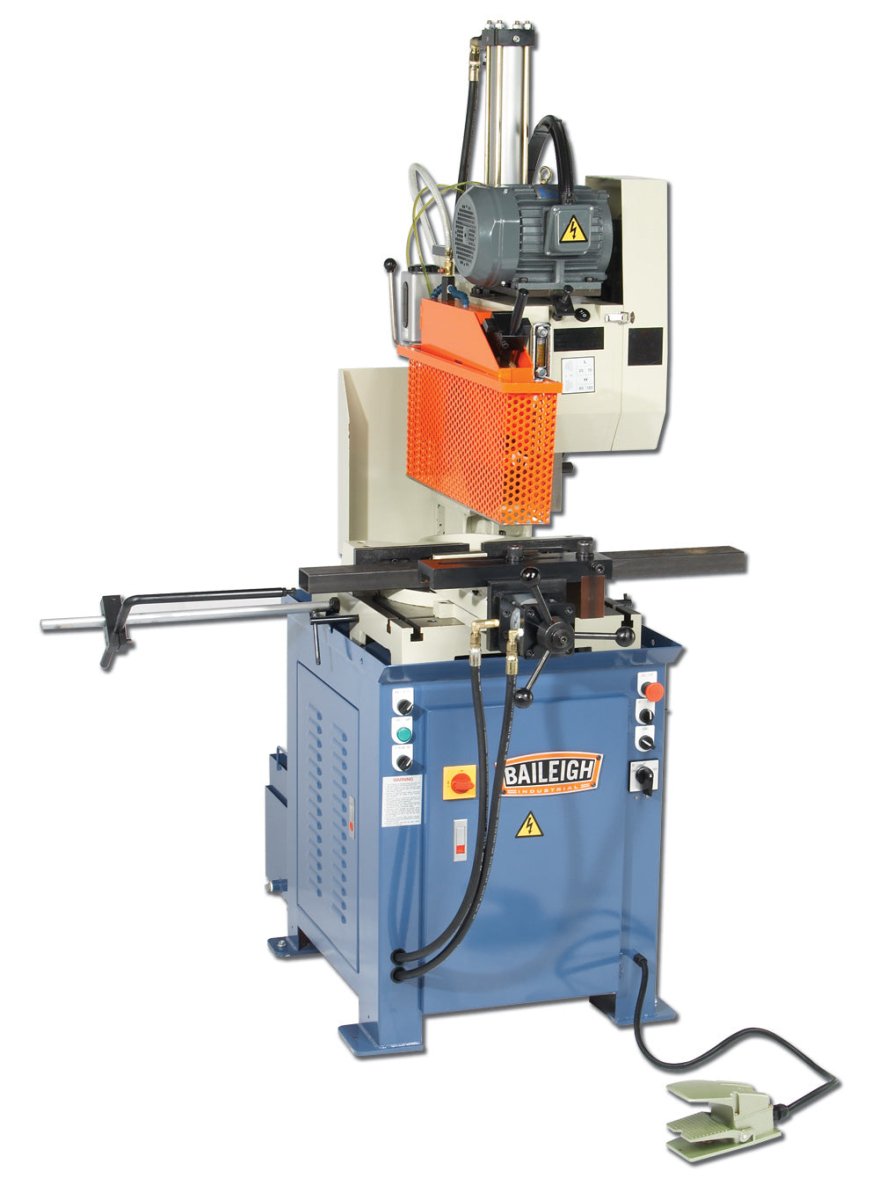

Semi-Automatic Column Coldsaw CS-C425SA

Built from steel and cast iron, this semi-automatic cold saw will last for decades. All industrial-grade components, like the gearbox, hydraulics, and coolant system, keep cuts accurate.

• Accepts a maximum 17” blade.
• Miters 45° left and 60° right, perfect for angle iron and channel.
• You can switch between 4 cutting speeds (35, 60, 70, and 120 rpm) to fit your material.
• 5 hp blade motor runs on 220-volt 3-phase power.
• Cutting head rides up and down heavy slideway tracks, hardened and ground to offer the most accurate cuts in the industry.
• Blade head allows you to adjust the descent speed.
• Adjustable gibs on the column give the slideways a long lifetime of use.
• You can set a hard vertical stop so that the blade only cuts so far down—great for faster cycle times.
• Whole carriage, including motor and blade, will slide up or down with the press of a button so you can get your material in there.
• Hydraulic downfeed movement of the cutting head offers precise cutting pressure through the cycle, which extends blade life.
• Simple to operate: put the material against the stop rod and press the foot pedal to start cutting.
• Hydraulic self-centering vise clamps the material, then the saw starts its descent.
• After the cut, the blade automatically shuts off and returns to home position.
• Choose manual or semi-automatic mode by turning a dial.
• Metered stop rod lets you easily make repeatable lengths for production runs.
• Rugged steel base reduces vibrations to produce burr-free cuts like only a cold saw can.
• Industrial-grade coolant pump cools the blade and washes chips away.
• Flood coolant system prolongs blade and machine life, plus it helps the blade give you cuts with smooth edges.
• Oiler system lets you pump a lever to release oil from the reservoir and keep the head moving up and down without catching.
• Comes with a box of tools for maintenance and blade changeovers.
• Replacement parts are in stock for fast shipments.
• We cover this vertical column cold saw with a 1-year parts warranty.

Item Number	CS-C425SA
Max. Blade Diameter	17" - 14" standard
Operation	Semi-Automatic
Head Miter	45° Left / 30° Right
Round Solid at 45°	2.36"
Square Tube at 45°	3.93" x 3.93"
Round Tube at 45°	4.5"
Rectangle Tube at 45°	3.93" x 1.96"
Round Solid at 90°	2.75"
Rectangle Tube at 90°	4.72" x 1.96"
Square Tube at 90°	4.33" x 4.33"
Round Tube at 90°	4.92"
Coolant System	Yes
Vice Style	Single Action
Max. Vice Opening	6"
Head Style	Column
Arbor Size	1.26"
Included Accesories	Included Accesories
Blade Speed	Four-Speeds, 35 / 70 & 60 / 120 (rpm)
Power	220V / 3-phase
Shipping Weight	1870lbs
Shipping Dimensions (Inches)	60x44x87

* specifications subject to change without notice.
