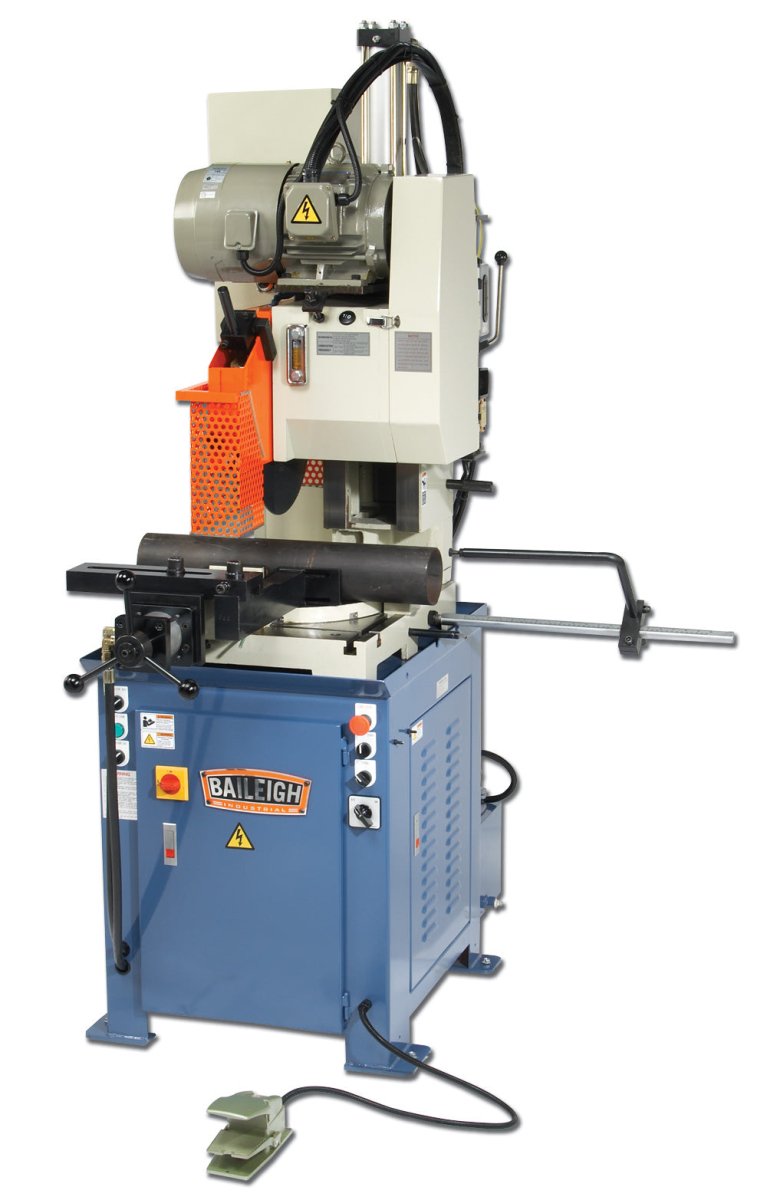

Semi-Automatic Cold Saw CS-C485SA

This vertical column cold saw weighs an impressive 1,898 lbs. That steel construction lets you cut heavy materials and produce a machined-like surface that doesn't need clean-up.

• Accepts up to a 16.5” blade.
• Miters 45° left and 60° right, perfect for tubing, angle iron, and channel applications.
• Yaskawa® inverter drive controls the variable speed from 40 to 240 rpm.
• 5 hp blade motor runs on 220-volt 3-phase power.
• Hardened and ground 2” slideways are attached to the solid column for durability and trouble-free movement.
• Efficient combination of drive motor, hydraulic feeding system, and coolant system will provide decades of profitable use, even in a demanding shop.
• Hydraulic downfeed and upfeed can efficiently tackle high production applications.
• You can limit the upward stroke or travel for faster cycle times and production.
• Semi-automatic system is simple to operate: just step on the foot pedal and the blade will descend to cut your material.
• Foot pedal clamps the hydraulic self-centering vise. You don’t have to adjust when switching between material sizes.
• After cutting, the blade automatically shuts off and returns to home position.
• American-style vise has jaws on both sides of the material to increase blade life.
• Vise slides to allow for a continuously variable range of positions.
• Metered stop rod ensures repeatable lengths for efficient production.
• Steel framework prevents wobbling and maintains accuracy.
• Rigid base gives the saw the structural strength to cut large volumes of maximum capacity material.
• Flood coolant system makes blades last longer and maintains a high cut quality.
• Oiler system with one-shot lube keeps the saw head moving smoothly.
• Integrated chip brush cleans away debris for increased blade life.
• Comes with both standard flat and Vee jaws.
• Replacement parts are in stock at our Wisconsin headquarters for quick shipping.
• We cover this circular cold saw with a 1-year parts warranty.
• Lifetime technical support by phone means you can call our team of experienced metalworkers whenever you have a problem or question.

Item Number	CS-C485SA
Max. Blade Diameter	17" - 14" standard
Operation	Semi-Automatic
Head Miter	45° Left / 60° Right
Round Solid at 45°	2.36"
Square Tube at 45°	3.93" x 3.93"
Round Tube at 45°	4.5"
Rectangle Tube at 45°	3.93" x 1.96"
Round Solid at 90°	2.75"
Rectangle Tube at 90°	4.72" x 1.96"
Square Tube at 90°	4.33" x 4.33"
Round Tube at 90°	2.75"
Coolant System	Yes
Vice Style	Single Action
Max. Vice Opening	6"
Head Style	Column
Arbor Size	1.26"
Included Accesories	Included Accesories
Power	220V / 3-phase
Shipping Weight	1900lbs
Shipping Dimensions (Inches)	60x48x87

* specifications subject to change without notice.
