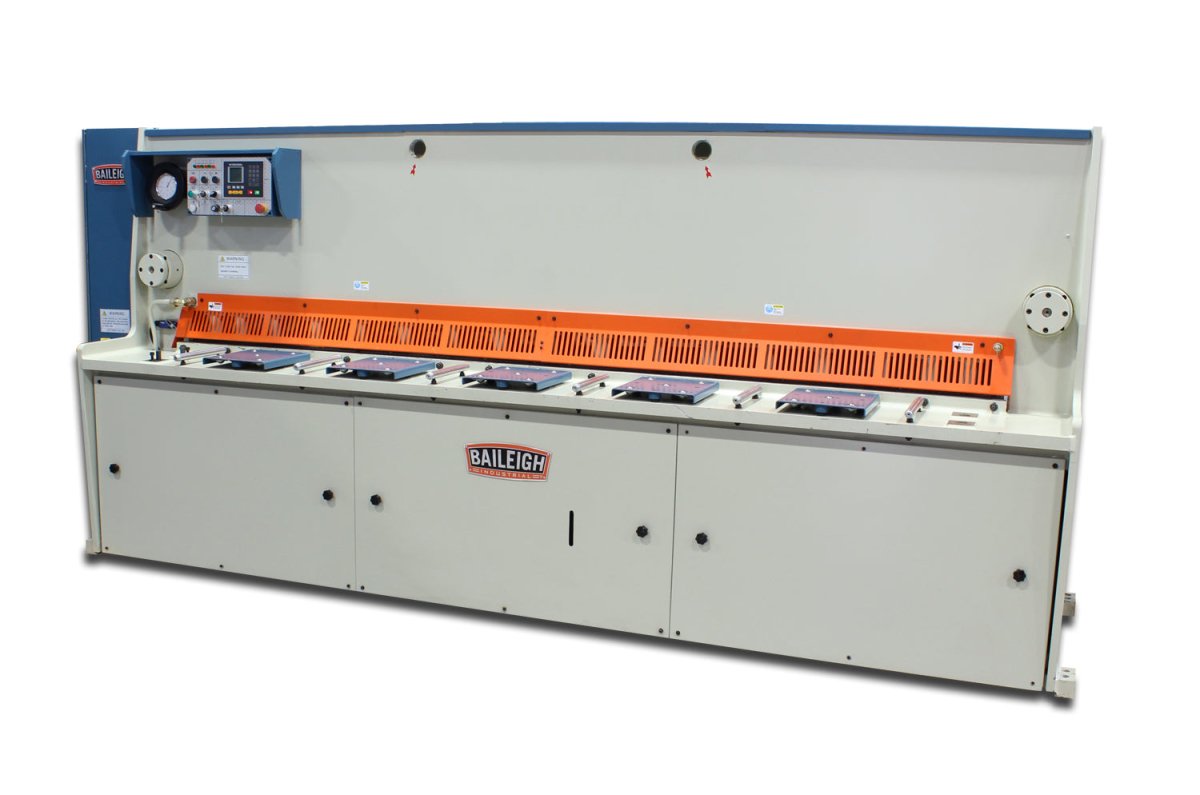

Plate Shear Sh-120250-HD

At 18 strokes per minute with an NC programmable backgauge, this hydraulic shear was designed for production. Its adjustable blade gap and rake angle ensure accuracy.

• 120” length for up to 10-foot sheets.
• Maximum capacity of ¼”-thick mild steel.
• 15 hp motor runs on 220-volt 3-phase power.
• Uses only the best components, like Schneider electrical parts, Rexroth hydraulics, and NOK seals from Japan.
• Hydraulics are located in the front for simple fluid changes. Just lift the panels using the convenient handles.
• Squaring arms support the material and keep it square to the blade.

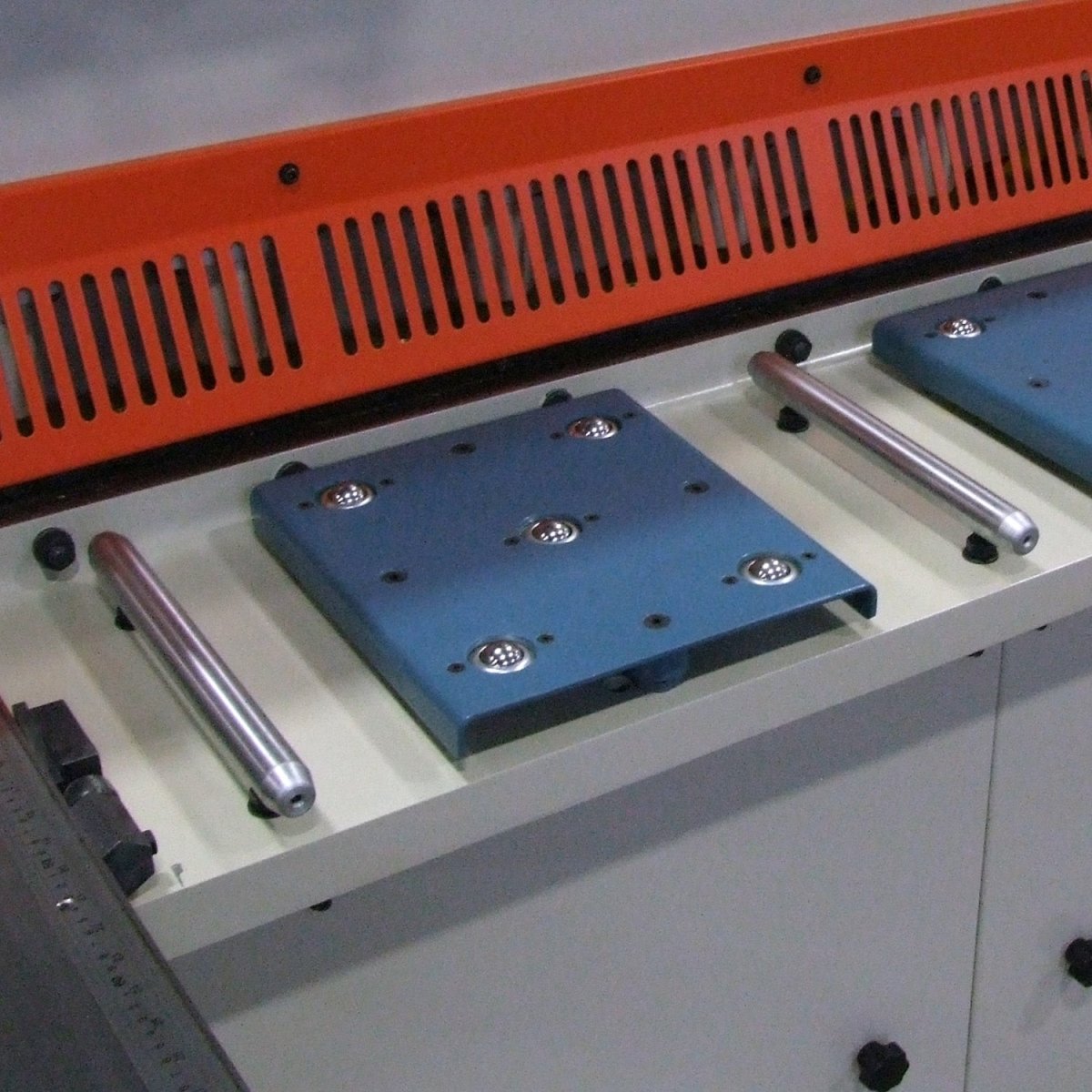

• Roller infeed tables, mounted on the front, help you load heavy materials.

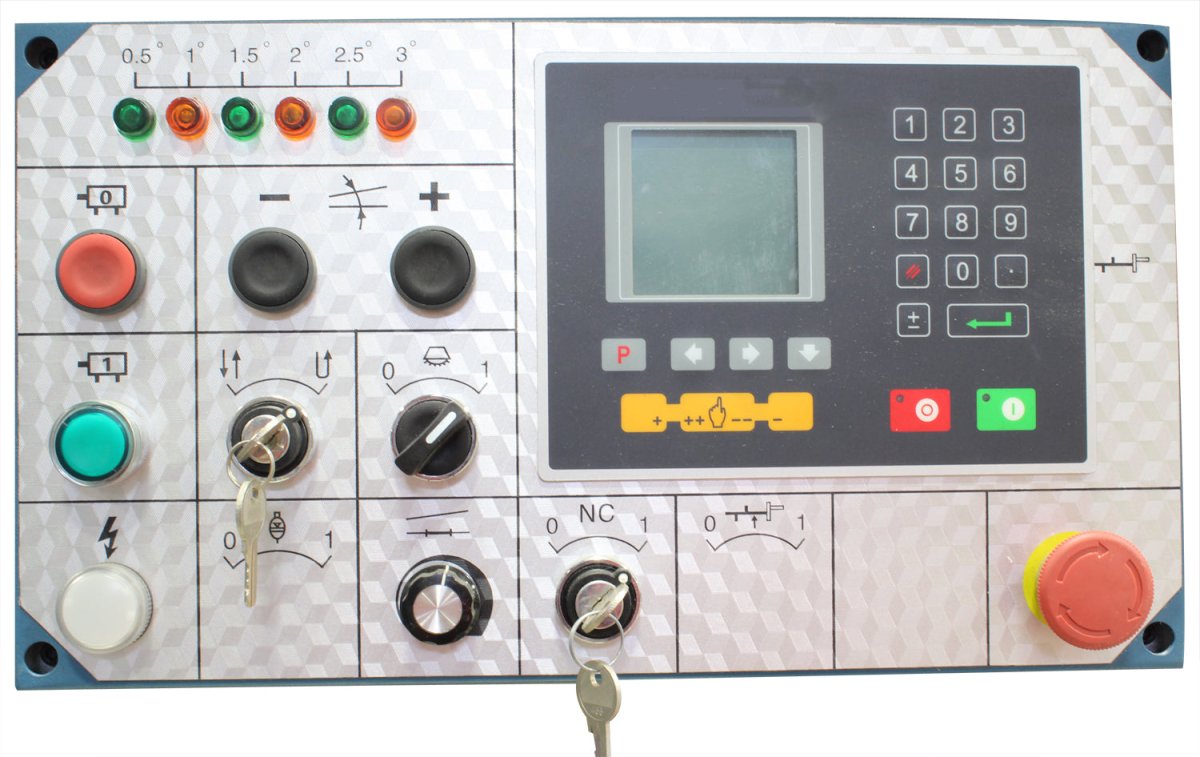

• Fully programmable backgauge is accurate to =/- .01mm.
• Internal memory can hold up to 100 programs.
• Adjustable blade gap prevents crimping or folding. Just turn the handwheel.

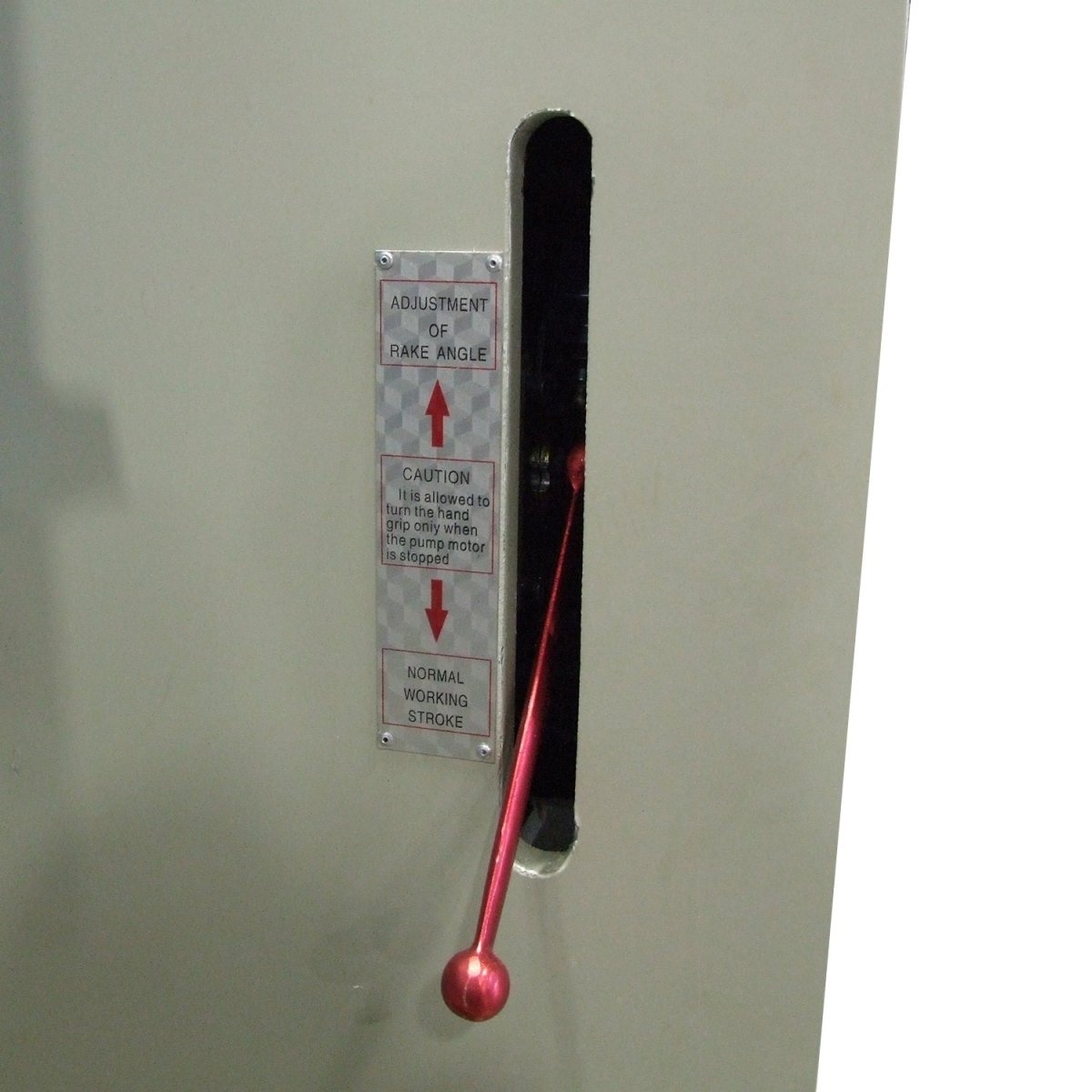

• You can adjust the raked angle for your material thickness to minimize burr and reduce strain on the hydraulics. Press a button, then pull the lever until the light goes on.
• Comes standard with shadow line positioner for accurate material placement.
• Fully welded and integrated steel plate frame eliminates vibrations and stress on the cutting process.
• Covered by a 1-year parts warranty.
• We stock blades and other replacement parts, so we can get them to you quickly.
• Includes lifetime technical support from our team of reps, all with hands-on metalworking experience.

Item Number	SH-120250-HD
Thickness (mild steel)	.250"
Max. Material Thickness (Stainless Steel)	.125"
Blade Rake Angle	.5 to 1.5 Degrees
Blade Clearance	Manual Hand Wheel
Back Gauge Length	25.6" Motorized
Shear Length	120"
Motor	15 hp
Strokes Per Minute	15
Power	220V 3-Phase / 60 Hertz
Shipping Weight	14000lbs
Minimum Material Thickness	18ga.
Shipping Dimensions (Inches)	164x 80x74 & 69x48x9

* specifications subject to change without notice.
