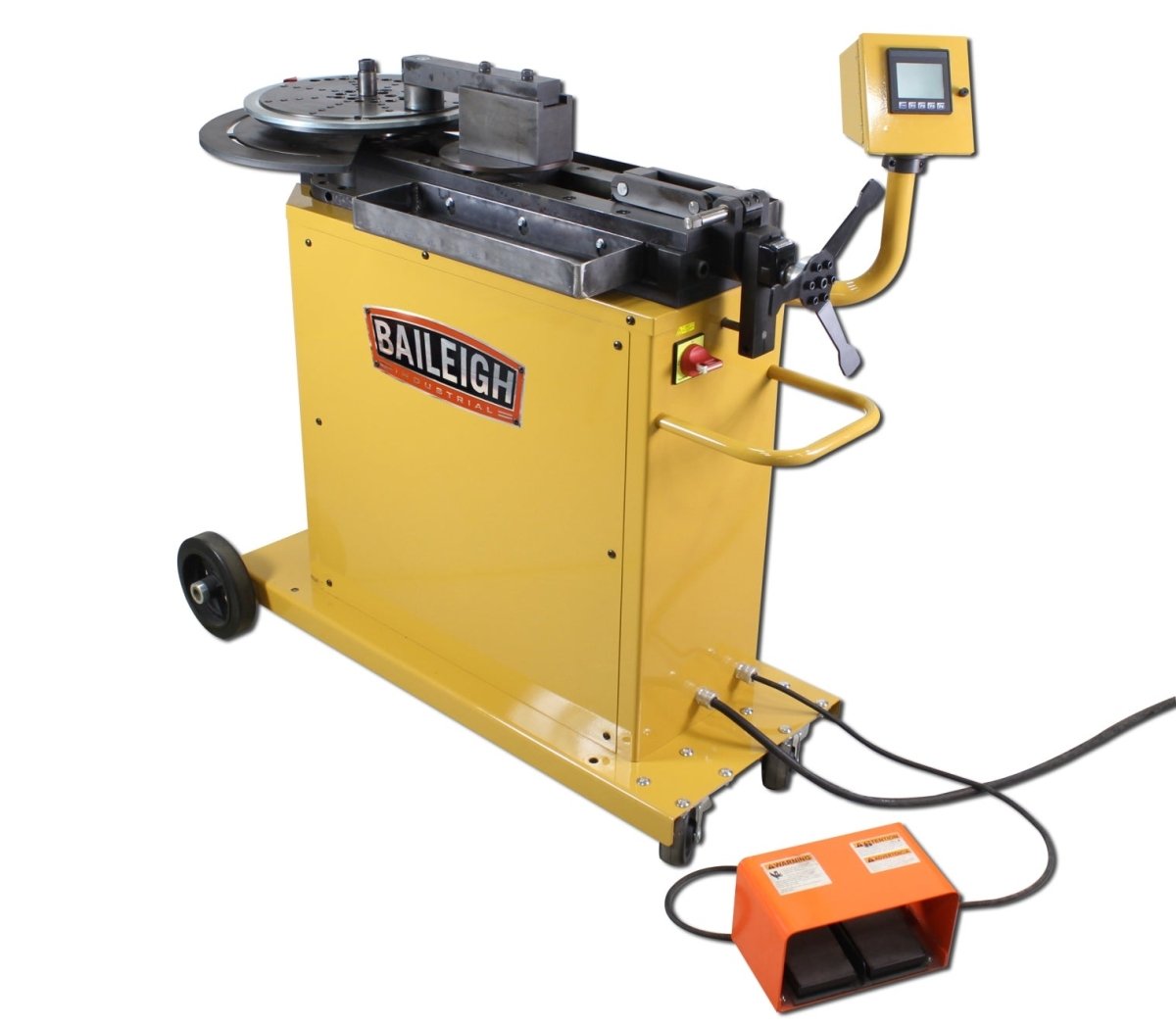

MPB-275 Universal Bender

The MPB-275 high speed universal bender is truly a do it all machine when it comes to draw bending solid rod and wire.

This multi purpose machine has the ability to do tight hook bending, scrolling, and even some rotary draw bending up to 1-1/4" schedule 40 pipe.

 Take a look at the impressive list of features on the MPB-275 Universal Bender

• MAX ROTATION 9999 DEGREES BI DIRECTIONAL
• 5 SECOND 180 DEGREE BEND SPEED
• 6 RPM OUTPUT MAX
• 1.25 SCH 40 PIPE CAPACITY
• 1/2 X 2 EASY WAY SOLID STEEL CAPACITY
• 1 X 1 SOLID BAR CAPACITY
• 1.0 DIA STEEL BAR CAPACITY

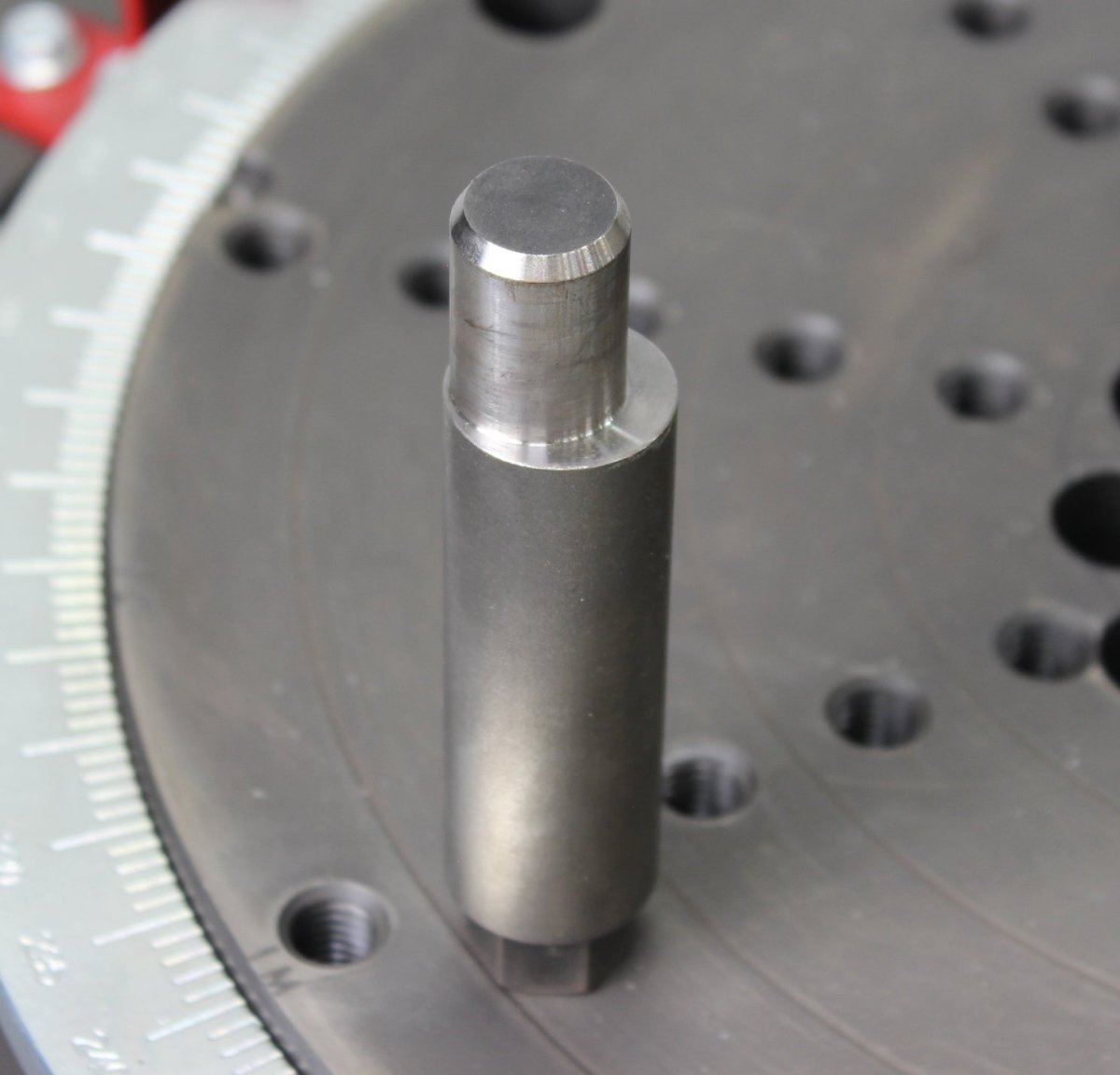

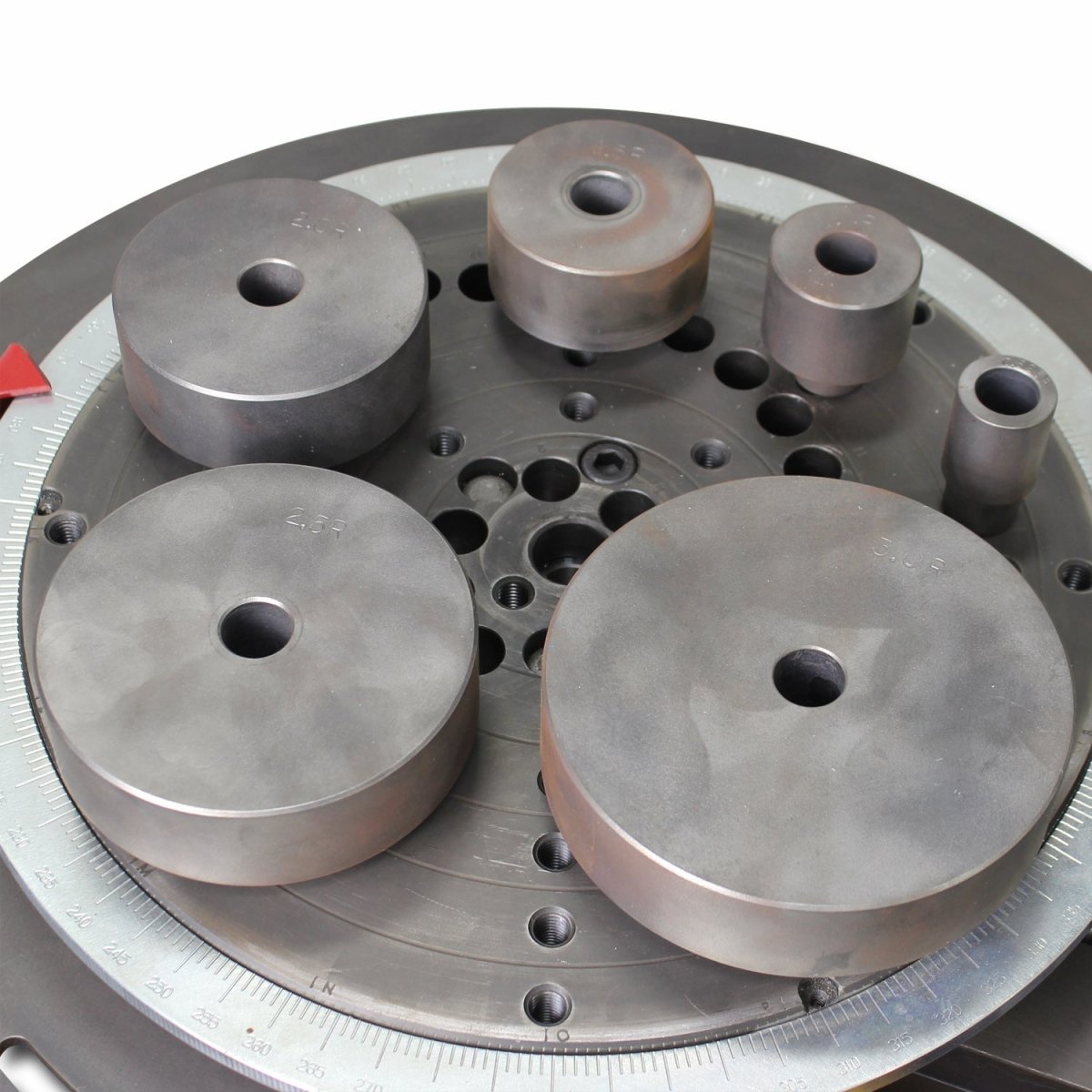

• INCLUDES BEND PINS (2" TALL) - 3.0 IR, 2.5 IR, 2.0 IR, 1.5 IR, 1.25, 1.0, 0.625 IR

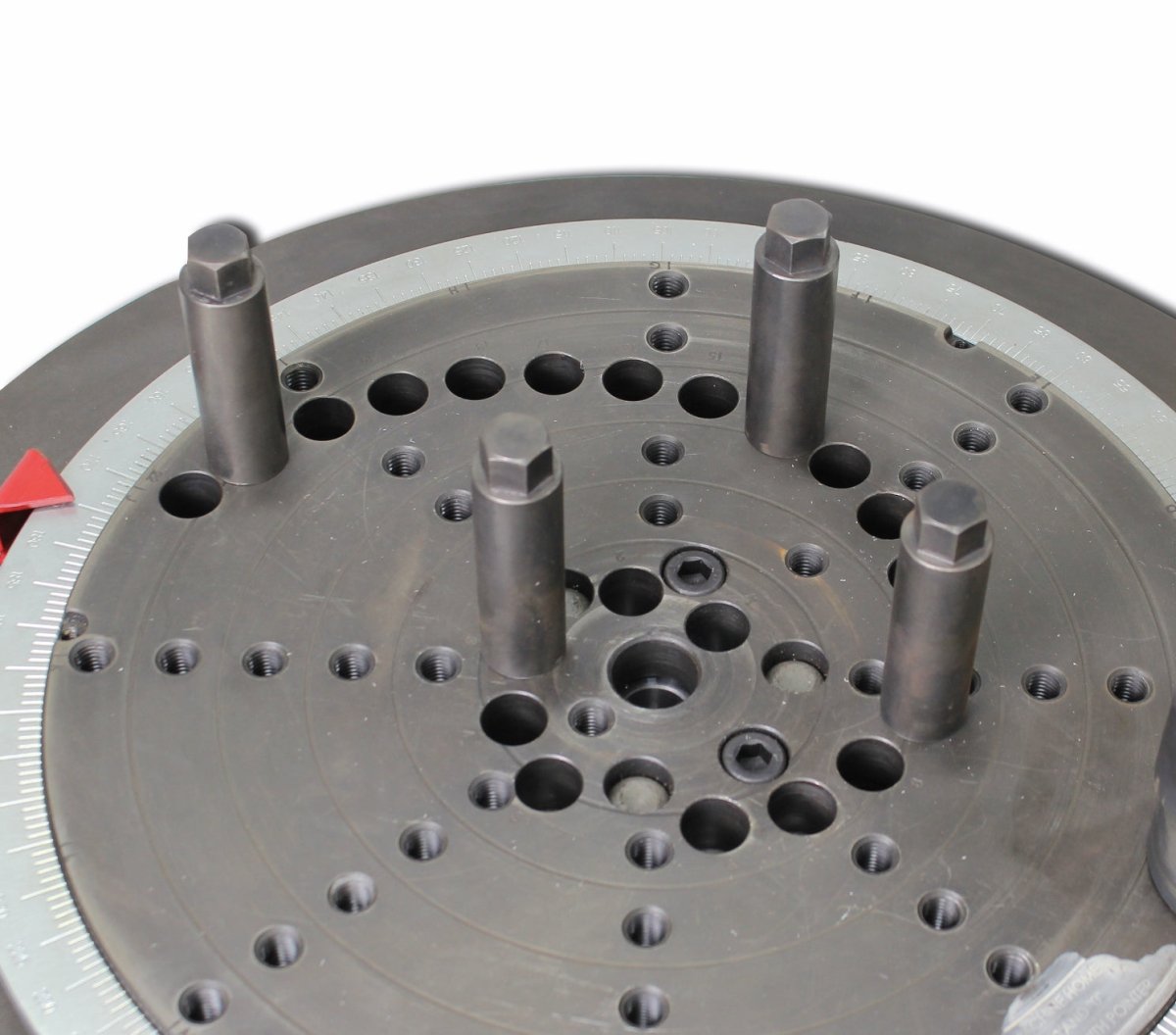

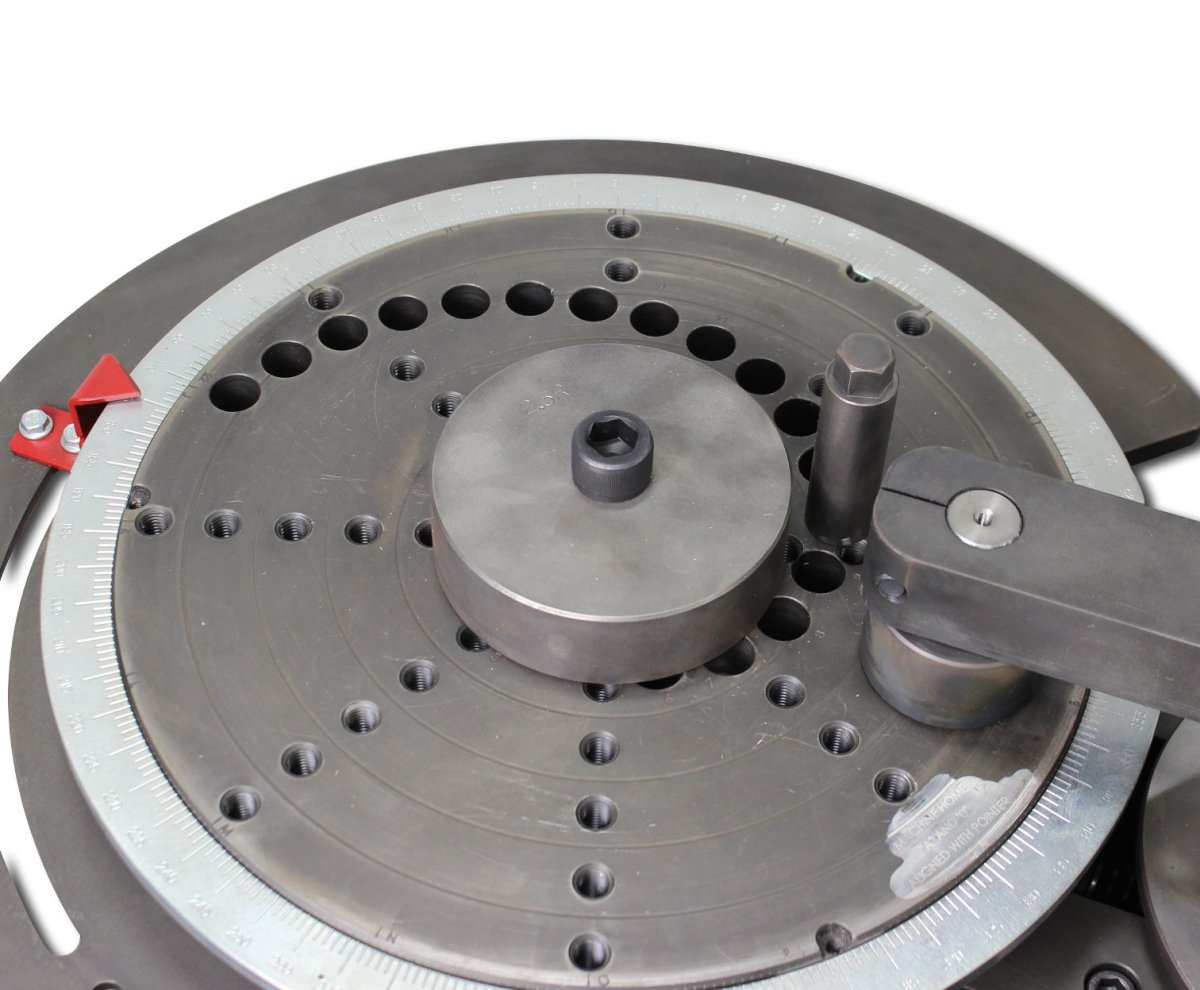

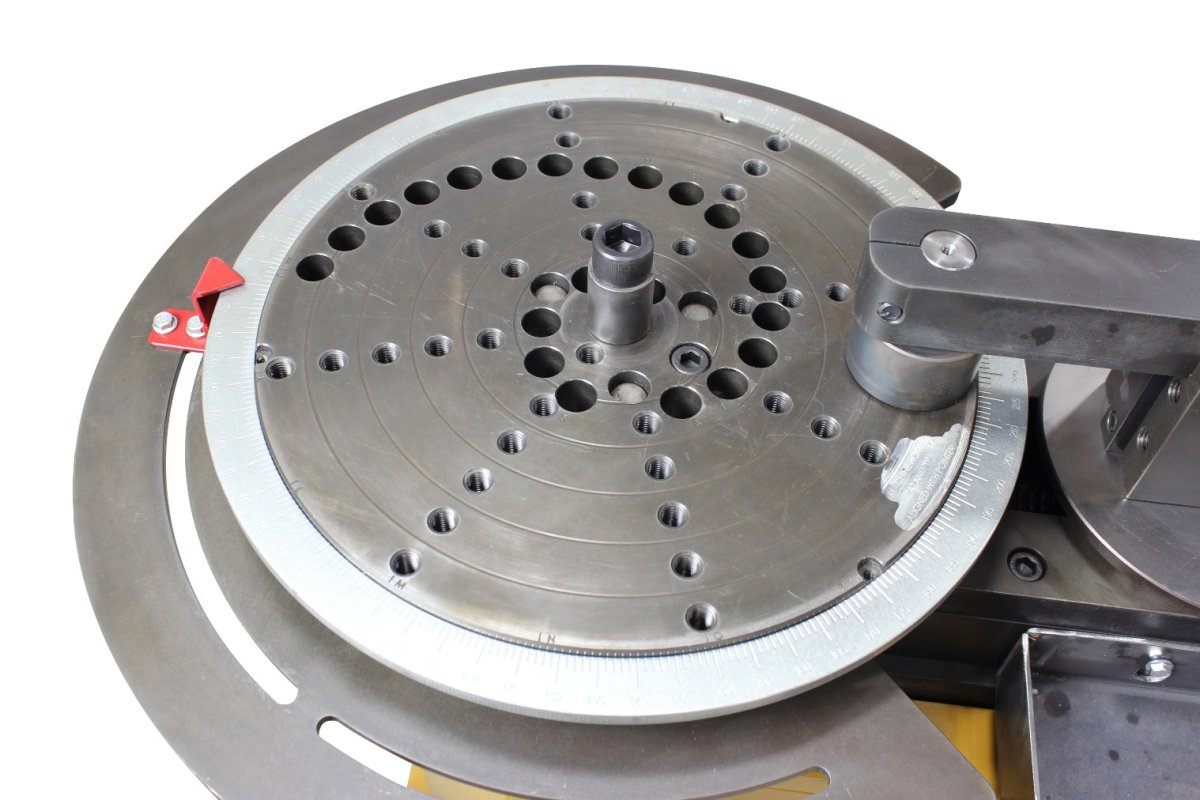

• INCLUDES UNIVERSAL BENDING PLATE WITH 4 HARDENED LOCK PINS INCLUDES TIGHT NOSE BENDING TOOL
• INCLUDES ROLLER BENDING TOOL

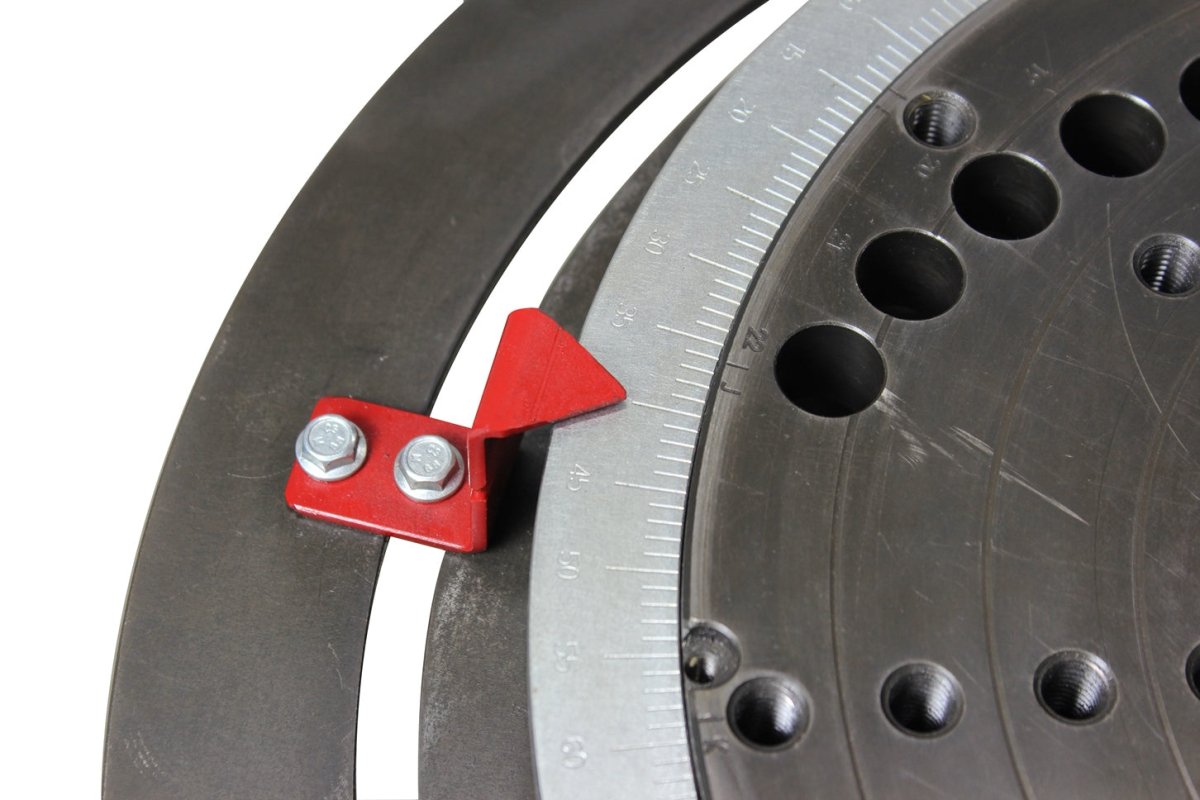

• INCLUDES ONE ROTATING STOP AND ONE FIXED STOP INCLUDES ADAPTER TO RUN STD DIES AND COUNTER DIES STANDARD RDB-250 CONTROLLER
• INCLUDES 4 SHEAR PINS

Specifications

Item Number	MPB-275
Solid Square Capacity	1" x 1"
Solid Round Capacity	1"
Degree of Bend (Max)	17237
Mild Steel Solid Rod	1/2" x 2" Easy Way
Mild Steel Pipe Schedule 40	1-1/4"
Bend Direction	Bi-Directional
Power	220 Volt Single Phase
Shipping Weight	750lbs
Max. RPM	6 RPM
Shipping Dimensions (Inches)	60x44x77

* specifications subject to change without notice.
