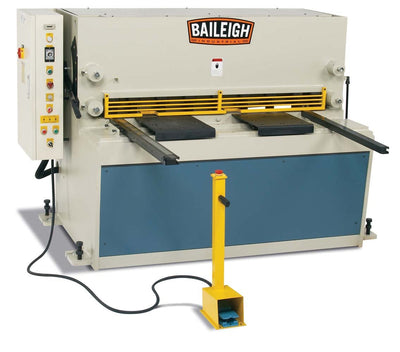

Hydraulic Sheet Metal Shear SH-5203-HD

We build this hydraulic sheet metal shear with only the best components to ensure that it will last for many years. The adjustable blade gap and rake angle improve cut quality and minimize burr.

• ¼” mild steel maximum capacity.
• 52” shearing length.
• 15 hp motor runs on 220-volt 3-phase power.
• Industrial-grade hydraulic system can take anything you throw at it.
• Heavy support arms keep your material square to the blade.
• Easy to operate: just press the foot pedal. Hydraulic hold-downs grab the material to ensure a straight cut, then the blade drops.
• Switch between 3 modes as needed:
  • Jog mode: Inching the blade down to the material.
  • Single cycle mode: One cut for one pedal push.
  • Automatic cycling mode: Continuously cutting for production runs.
• Control panel includes rake angle adjustment, jog/run/stop controls, and production counter.
• Adjust the blade gap in seconds to prevent crimping or folding, especially when working on thinner materials.
• Adjustable rake angle can change for your material thickness, giving you cleaner cuts and reducing strain on the hydraulics.
• It’s simple to set the right rake angle: just hit a button, move the lever, and a light goes on when you reach the correct angle.
• Comes standard with high carbon chromium blades.
• 2-sided upper blades and 4-sided lower blades can be flipped and resharpened many times, saving you money.
• Fully welded plate steel frame ensures rigidity and prolongs blade life.
• Shadow light stretches the entire length of the web width for proper placement of the beginning of the cut, for those one-off shearing requirements.
• Covered by a 1-year parts warranty.

Item Number	SH-5203-HD
Motor Hp	15
Blade Rake Angle	.5 to 2.0 degrees
Back Gauge Length	23.62"
Shear Length	52"
Thickness (SS)	1/4" (7 ga.)
Strokes Per Minute	16 – 24
Front Gauge Length	39.37"
Blade Angle	1/2° – 2° Adjustable
Blade Gap Adjustment	Manual, Lever Acuated
Power	220V / 3-phase
Shipping Weight	5820lbs
Minimum Material Thickness	24ga
Shipping Dimensions (Inches)	88x54x66

* specifications subject to change without notice.
