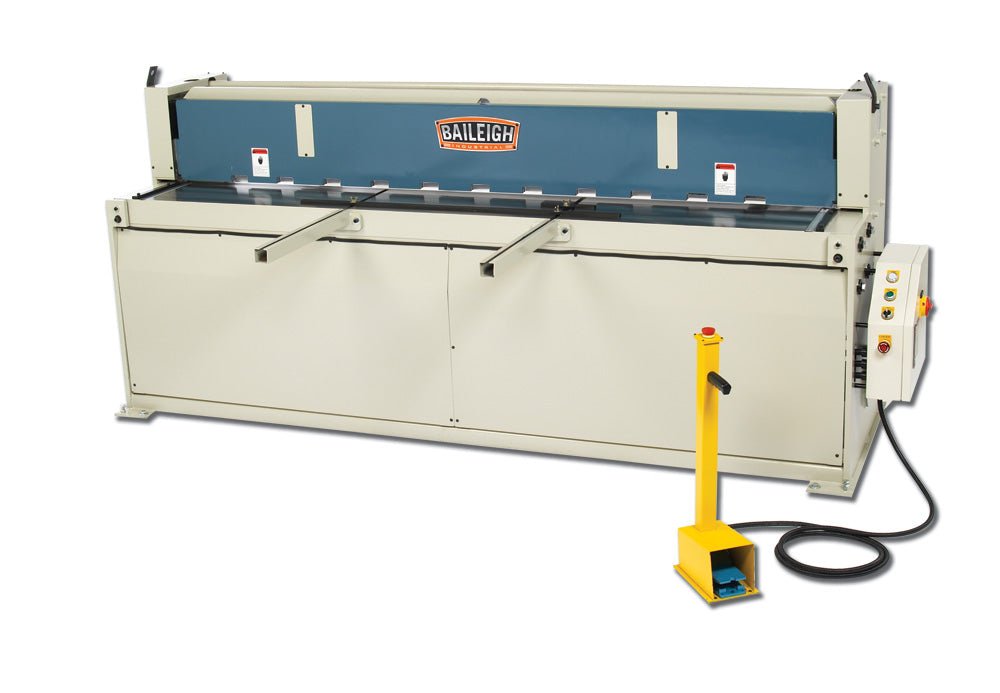

Hydraulic Metal Shear, SH-10010

Want to cut 8-foot sheets without trimming? This 100”-wide hydraulic shear can handle most applications. Its ground and polished steel plate frame ensures quality cuts at full capacity.

• 10 gauge mild steel maximum capacity.
• Minimum capacity of 24 gauge mild steel.
• 7.5 hp motor runs on 220-volt 3-phase power.
• Powerful industrial-grade hydraulics produce smooth movements that prolong blade life.
• Up to 22 strokes per minute.
• Adjustable 24” backgauge provides for repeatability.
• Front support arms and table guides keep the material square to the blade.
• 3 modes on the operator console:
  • Inch mode: Jog the control and ease the blade down to the material.
  • Single mode: Make one cut cycle per foot pedal push.
  • Auto mode: Continue cycling as you hold the pedal down.
• Comes standard with high carbon chromium blades.
• Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
• Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
• Fully welded steel construction helps prevent flex and maintain accuracy for many years.
• Covered by a 1-year parts warranty.
• We stock replacement parts, including blades, in house for fast shipping.

Item Number	SH-10010
Blade Rake Angle	2 degrees
Back Gauge Length	24"
Shear Length	100"
Motor	7.5 hp
Thickness (SS)	10 ga. (13 ga.)
Strokes Per Minute	22
Front Gauge Length	24"
Blade Angle	2°
Power	220V / 3-phase
Shipping Weight	6000lbs
Minimum Material Thickness	24ga
Shipping Dimensions (Inches)	128x44x62

* specifications subject to change without notice.
