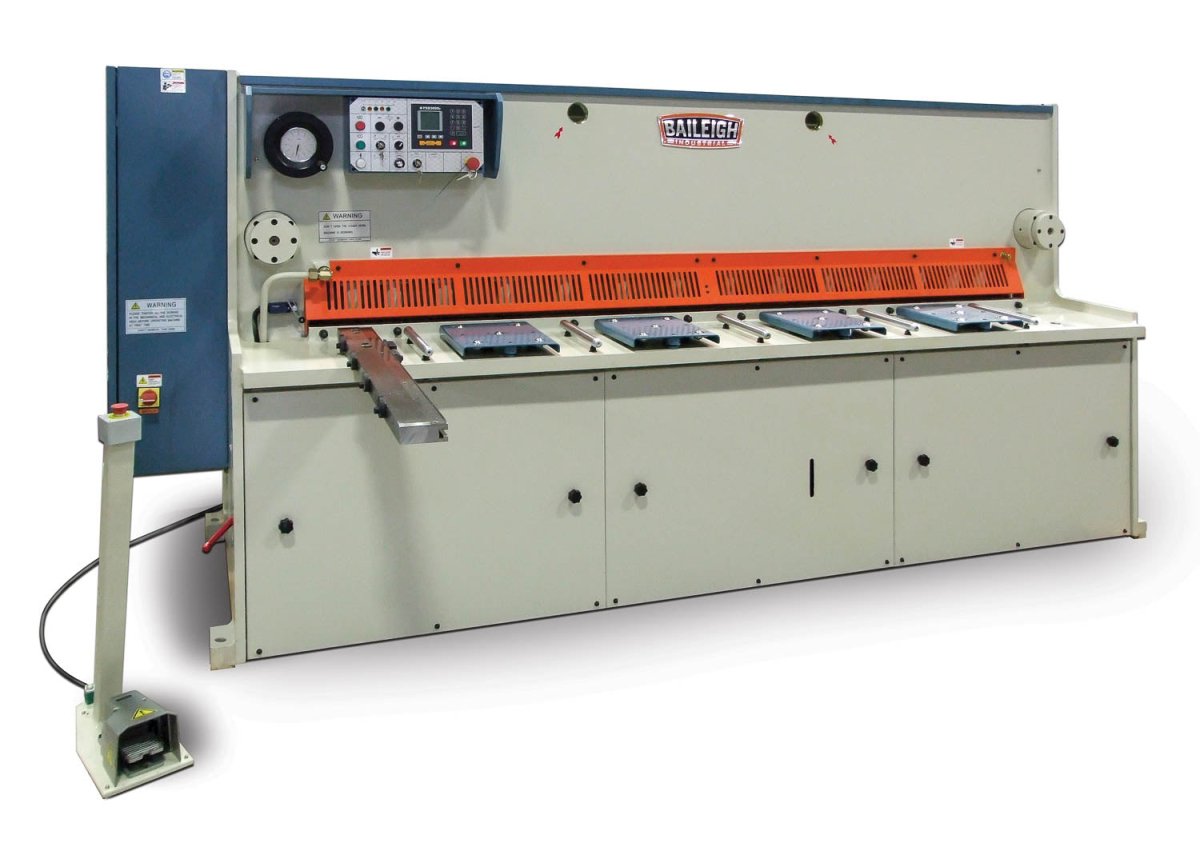

Heavy Duty Hydraulic Shear SH-70250-HD

This NC shear enables fast, precise production runs with a programmable back gauge. The fully welded steel frame on this heavy-duty shear steel frame eliminates vibrations commonly found on other models.

• 96” length
• Maximum capacity of ¼”-thick mild steel.
• 10 hp motor runs on 220-volt 3-phase power.
• Uses only the best components, like Schneider electrical parts, Rexroth hydraulics, and NOK seals from Japan.
• Hydraulics are located in the front for simple fluid changes. Just lift the panels using the convenient handles.

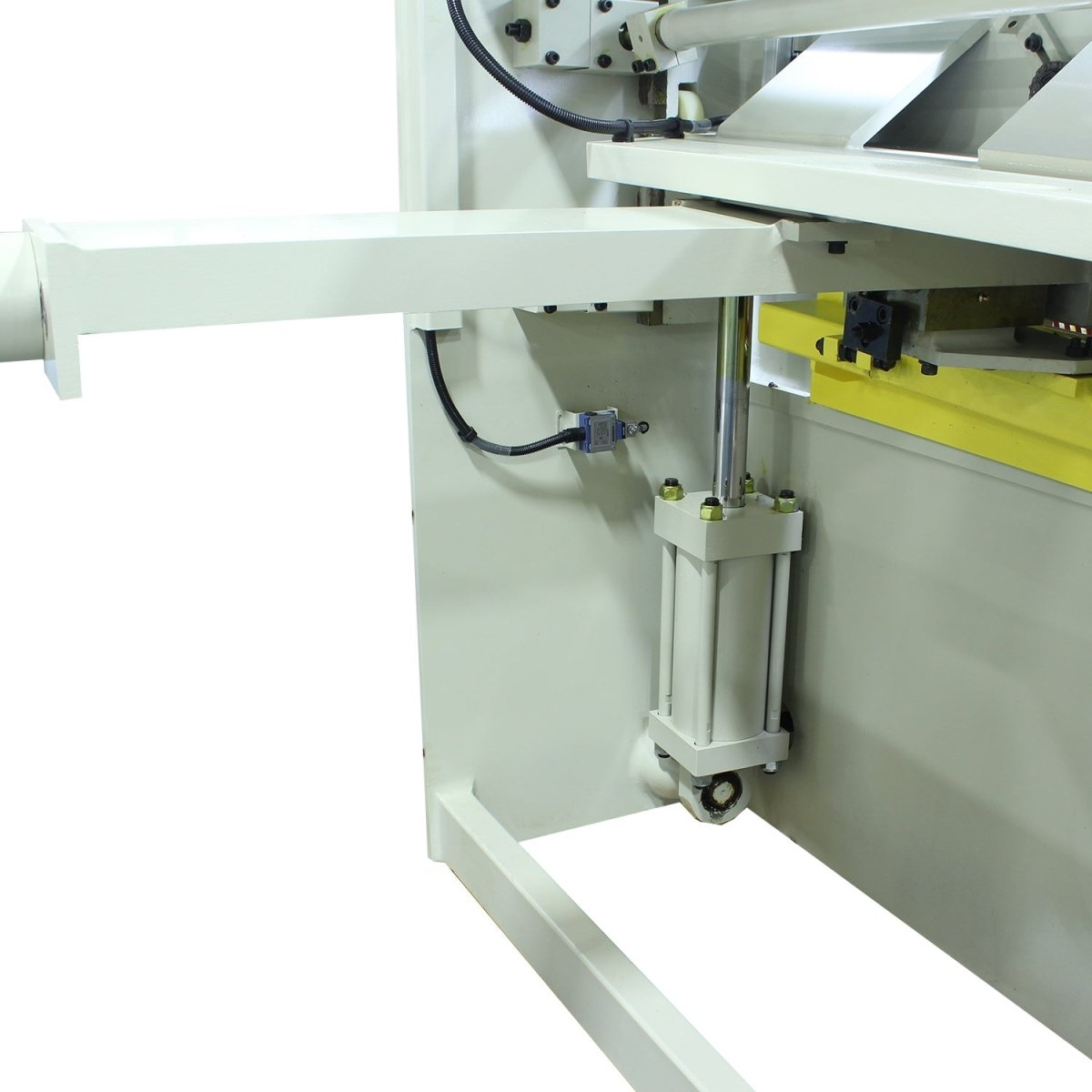

• Squaring arms support the material and keep it square to the blade.

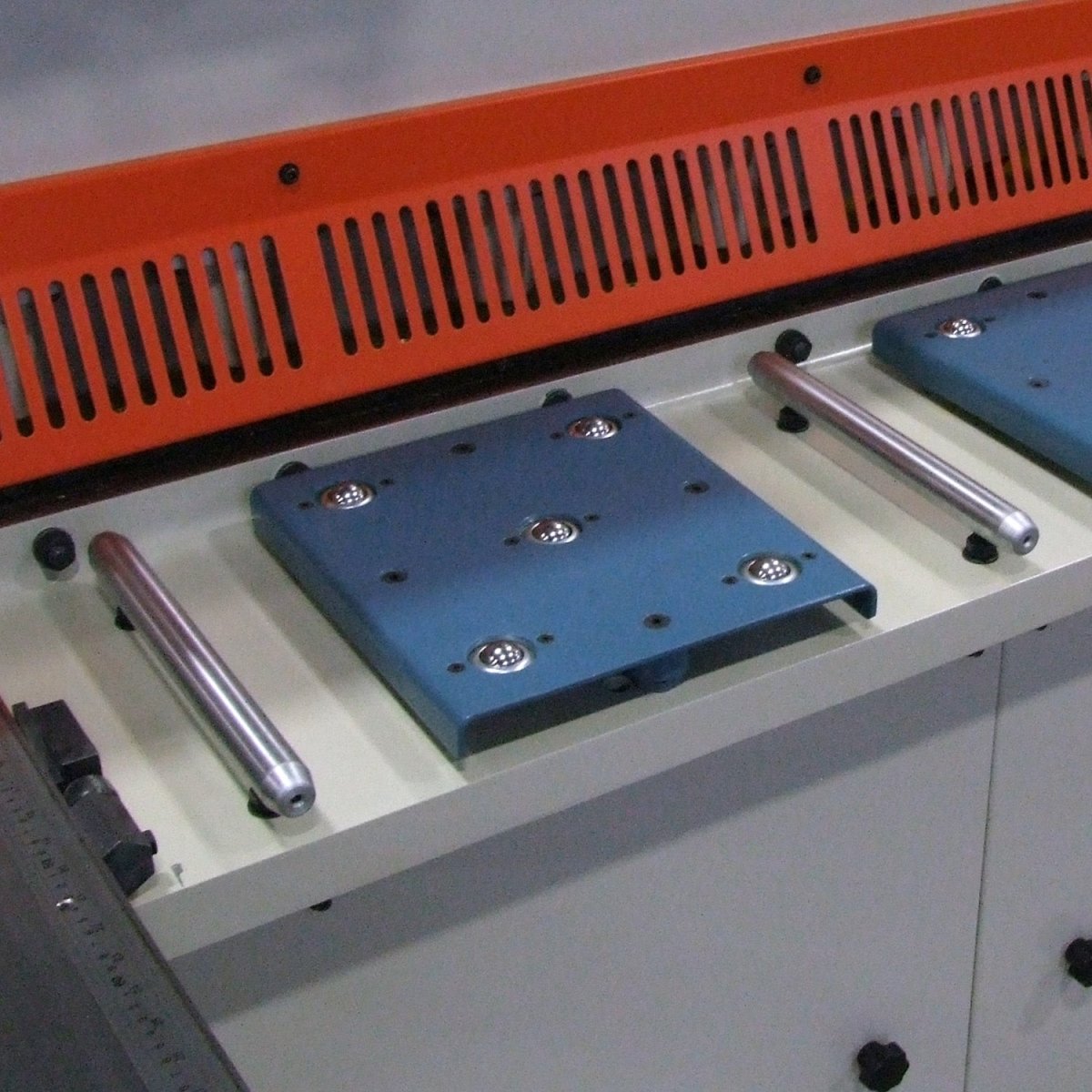

• Roller infeed tables, mounted on the front, help you load heavy materials.

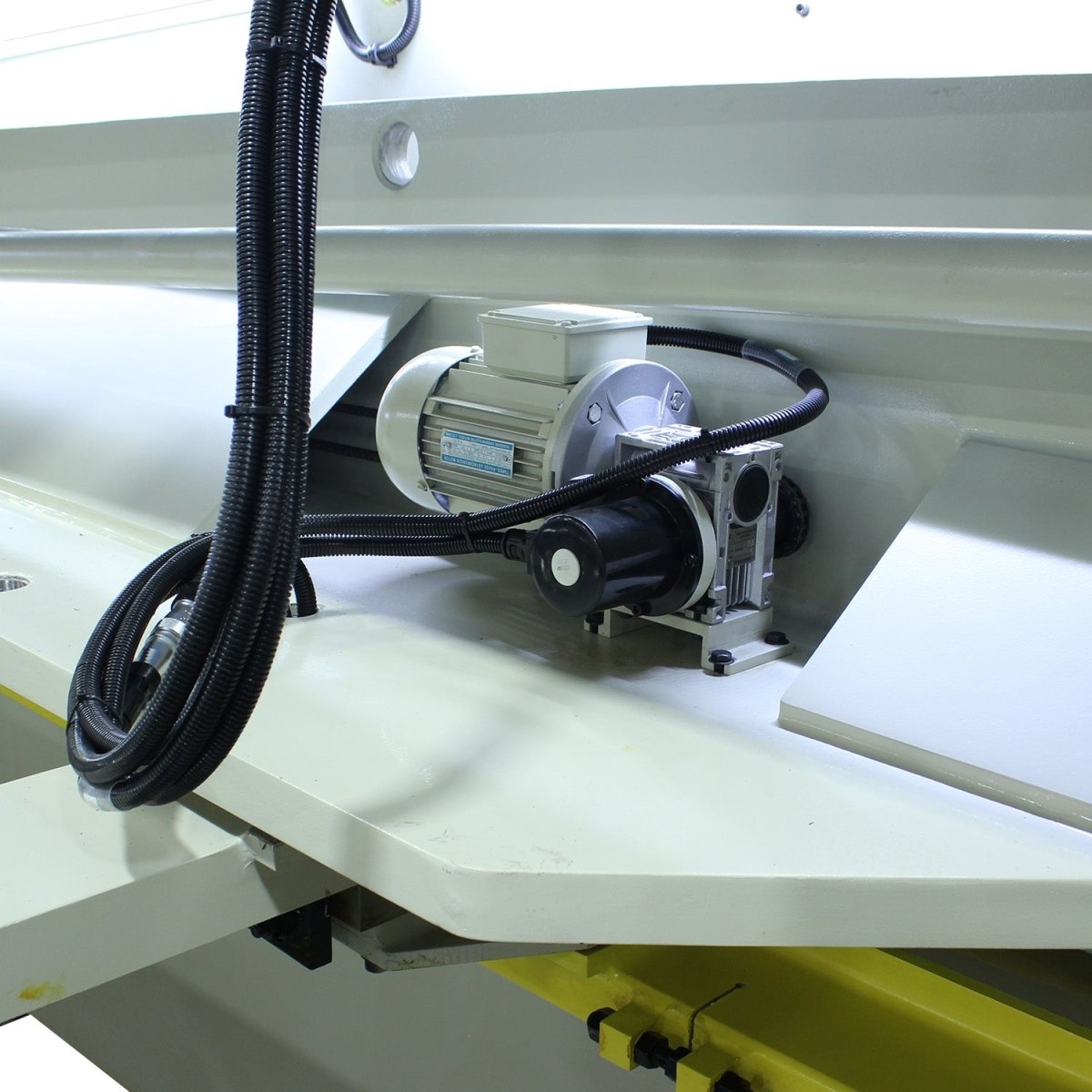

• Fully programmable backgauge is accurate to =/- .01mm.
• Internal memory can hold up to 100 programs.

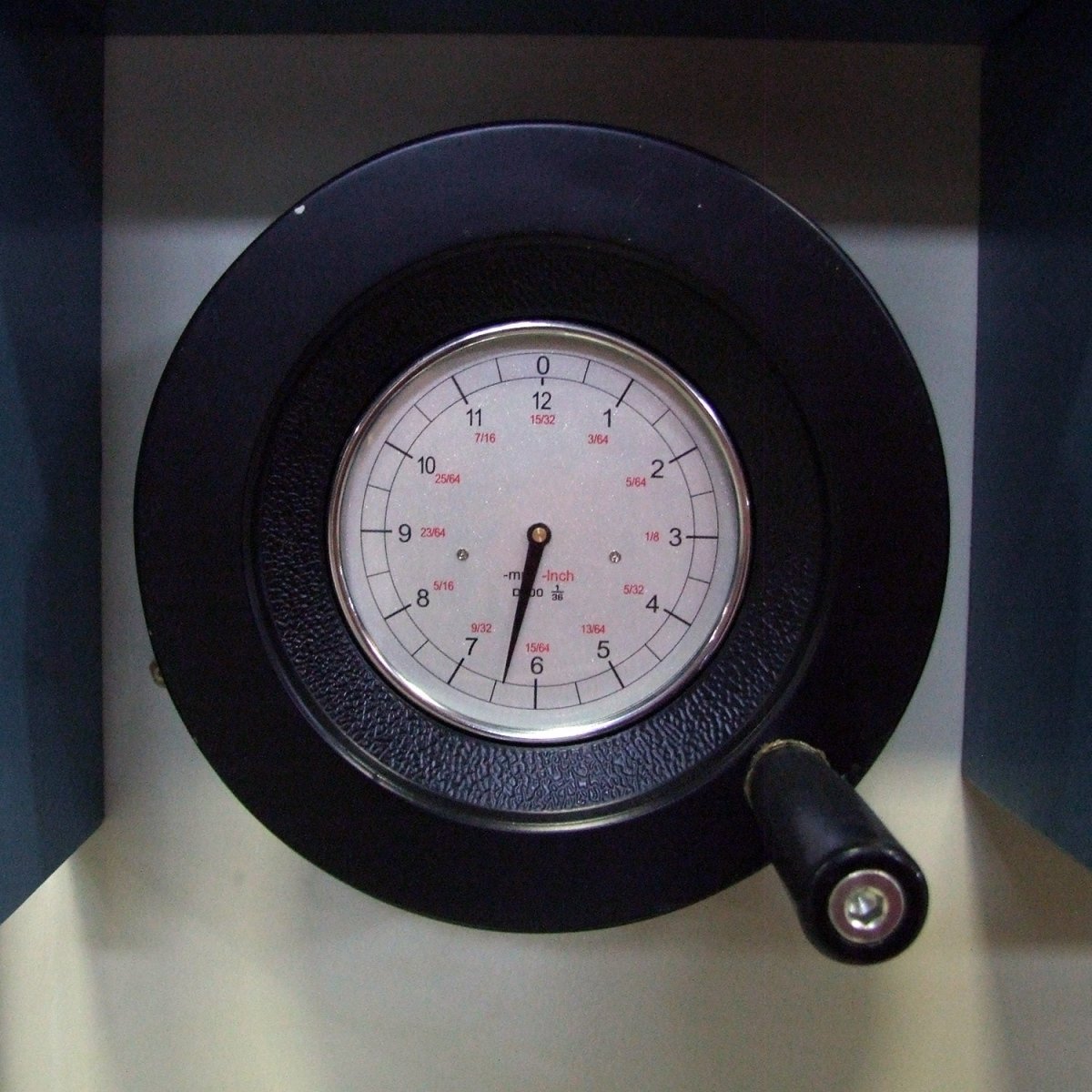

• Adjustable blade gap prevents crimping or folding. Just turn the handwheel.

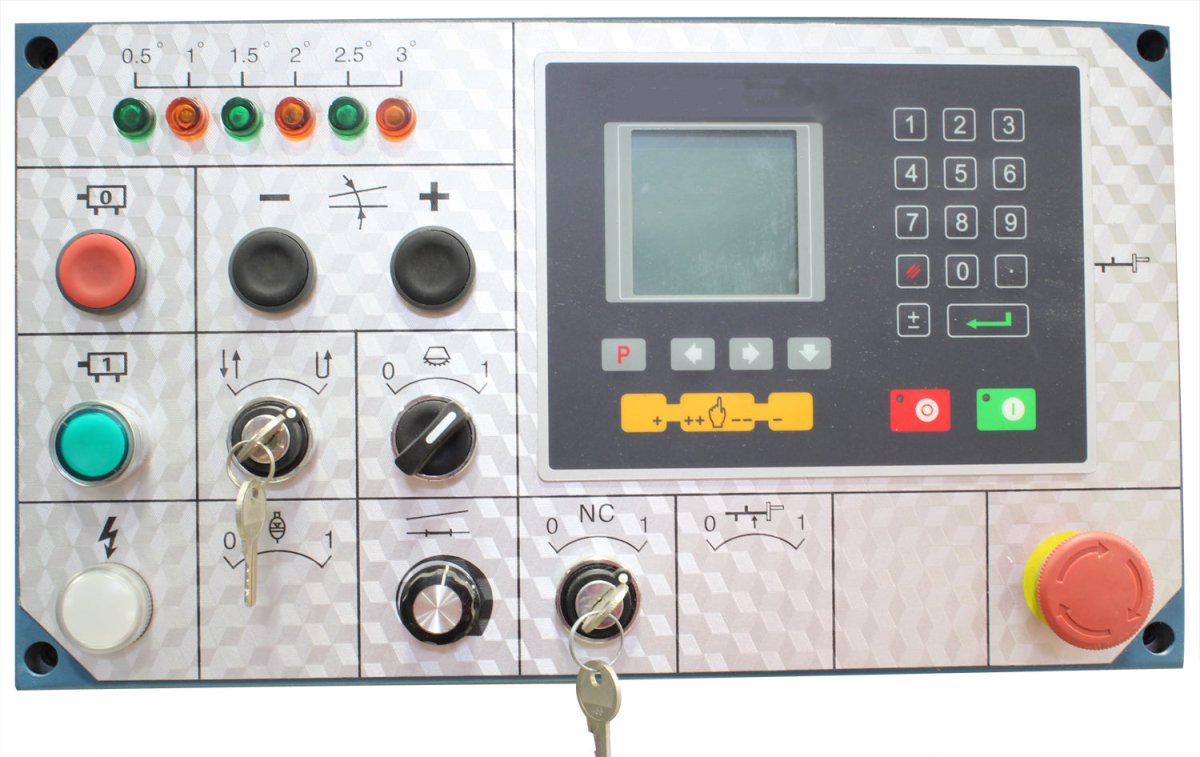

• You can adjust the raked angle for your material thickness to minimize burr and reduce strain on the hydraulics. Press a button, then pull the lever until the light goes on.
• Comes standard with shadow line positioner for accurate material placement.
• Fully welded and integrated steel plate frame eliminates vibrations and stress on the cutting process.
• This hydraulic sheet metal shear is covered by a 1-year parts warranty.
• We stock blades and other replacement parts, so we can get them to you quickly.
• Includes lifetime technical support from our team of reps, all with hands-on metalworking experience.

Item Number	SH-70250-HD
Max. Material Thickness	1/4"
Max. Thickness (Stainless Steel)	.177"
Thickness (mild steel)	.250"
Max. Material Thickness (Stainless Steel)	.125"
Blade Rake Angle	1.5 Degrees
Blade Clearance	Manual Hand Wheel
Back Gauge Length	23.62"
Shear Length	96"
Motor	10 hp
Strokes Per Minute	14 - 45
Power	220V / 3-phase
Shipping Weight	10525lbs
Minimum Material Thickness	18ga.
Shipping Dimensions (Inches)	143x80x73 & 69x44x11

* specifications subject to change without notice.
