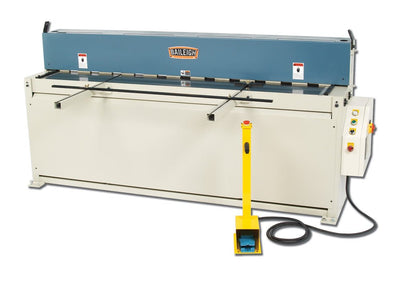

Compact Metal Shear SH-6010

We build this 10 gauge metal shear with a fully welded metal plate frame to reduce flex and ensure accuracy. Industrial-grade hydraulics produce smooth movements that prolong blade life.

• <60” length sheet metal shear..
• 10 gauge mild steel maximum capacity.
• Minimum capacity of 24 gauge mild steel.
• 3 hp motor runs on 220-volt 3-phase power.
• Up to 26 strokes per minute.
• Adjustable 24” backgauge ensures precise repeatability.
• Front support arms and table guides keep the material square to the blade.
• 3 modes on the operator console:
  • Inch mode: Jog the control and ease the blade down to the material.
  • Single mode: Make one cut cycle per foot pedal push.
  • Auto mode: Continue cycling as you hold the pedal down.
• Comes standard with high carbon chromium blades.
• Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
• Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
• Rigid steel frame minimizes deformation and helps deliver clean, high-quality cuts.
• Covered by a 1-year parts warranty.
• We stock replacement parts, including blades, in house for fast shipping.
• Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.

Item Number	SH-6010
Back Gauge Length	24"
Shear Length	60"
Motor	5 hp
Thickness (SS)	10 ga. (13 ga.)
Strokes Per Minute	26
Front Gauge Length	24"
Blade Angle	1°
Power	220V / 3-phase
Shipping Weight	3000lbs
Minimum Material Thickness	24ga
Shipping Dimensions (Inches)	85x35x58

* specifications subject to change without notice.
