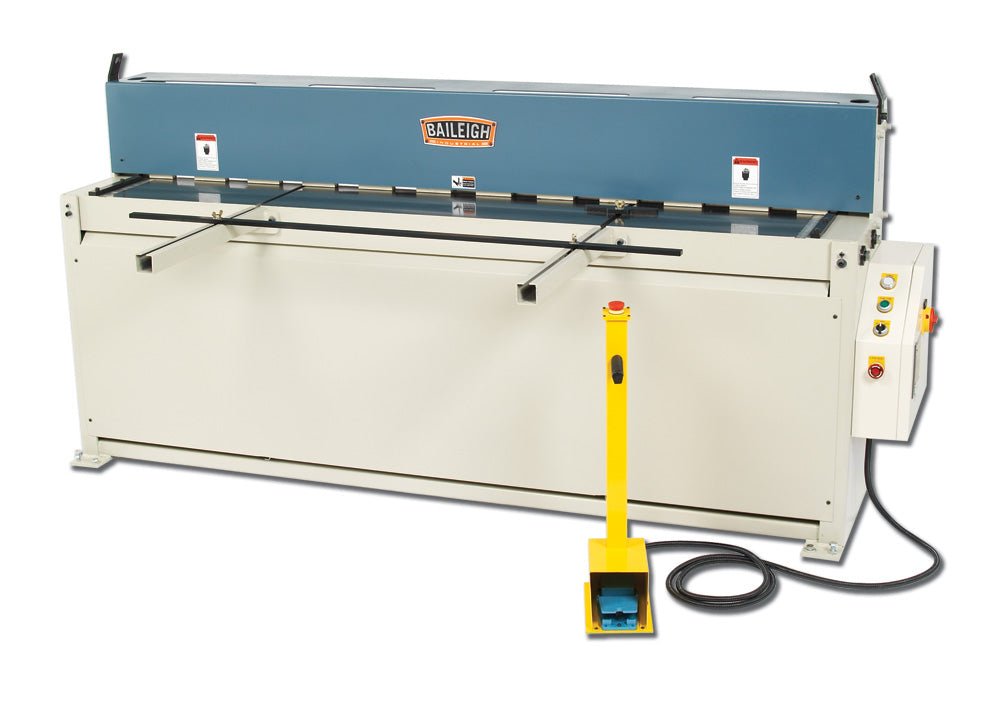

Compact Hydraulic Shear Sh-8014

This hydraulic metal shear for sale is perfect for fabrication shops that mainly work with smaller gauges. Made from ground, polished steel plate, the SH-8014 14 gauge shear at full capacity all day long. Order this 14 gauge shear from Baileigh Industrial.

• 80” length.
• 14 gauge mild steel maximum capacity.
• Minimum capacity of 24 gauge mild steel.
• 3 hp motor runs on 220-volt 3-phase power.
• Up to 26 strokes per minute.

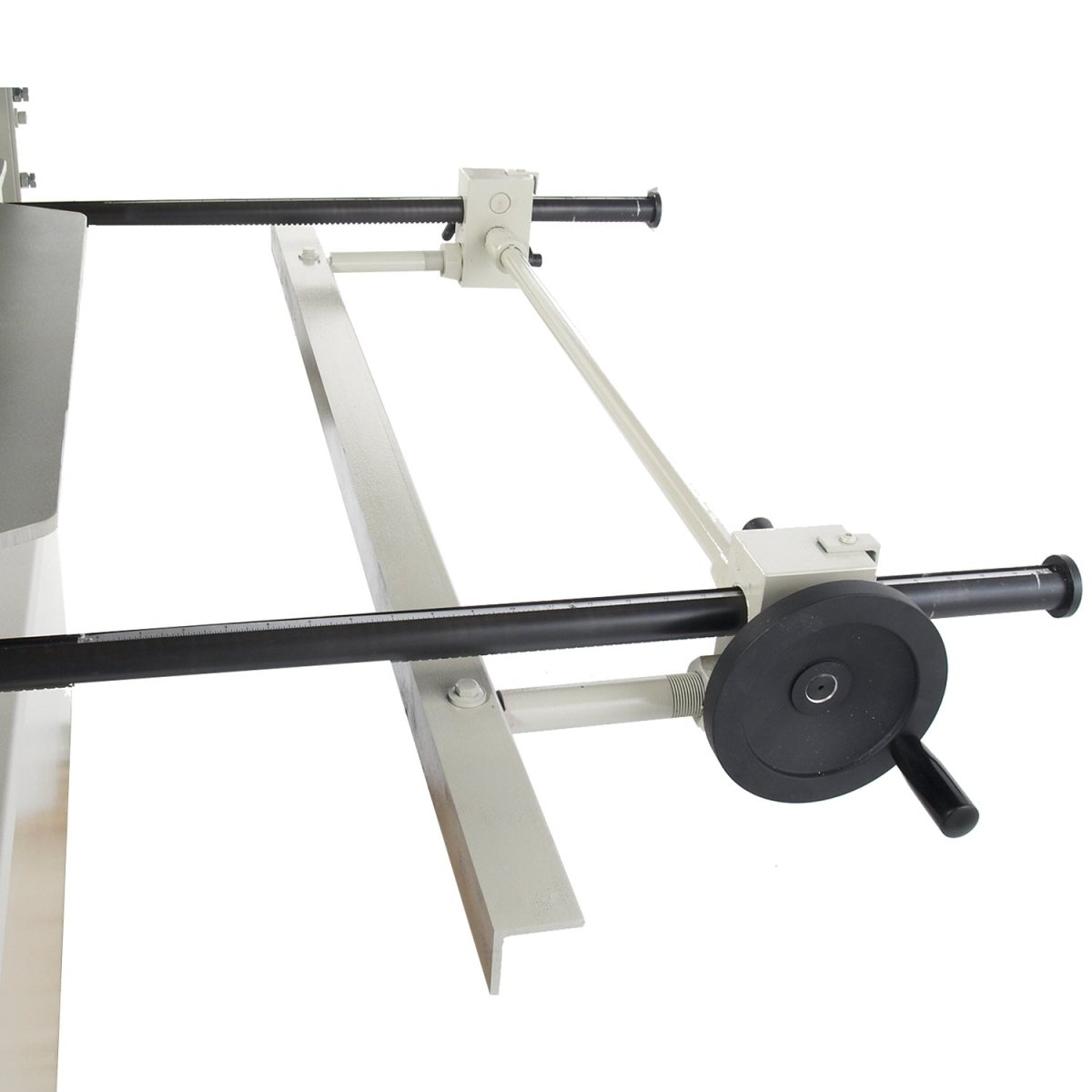

• Adjustable 24” backgauge ensures precise repeatability.

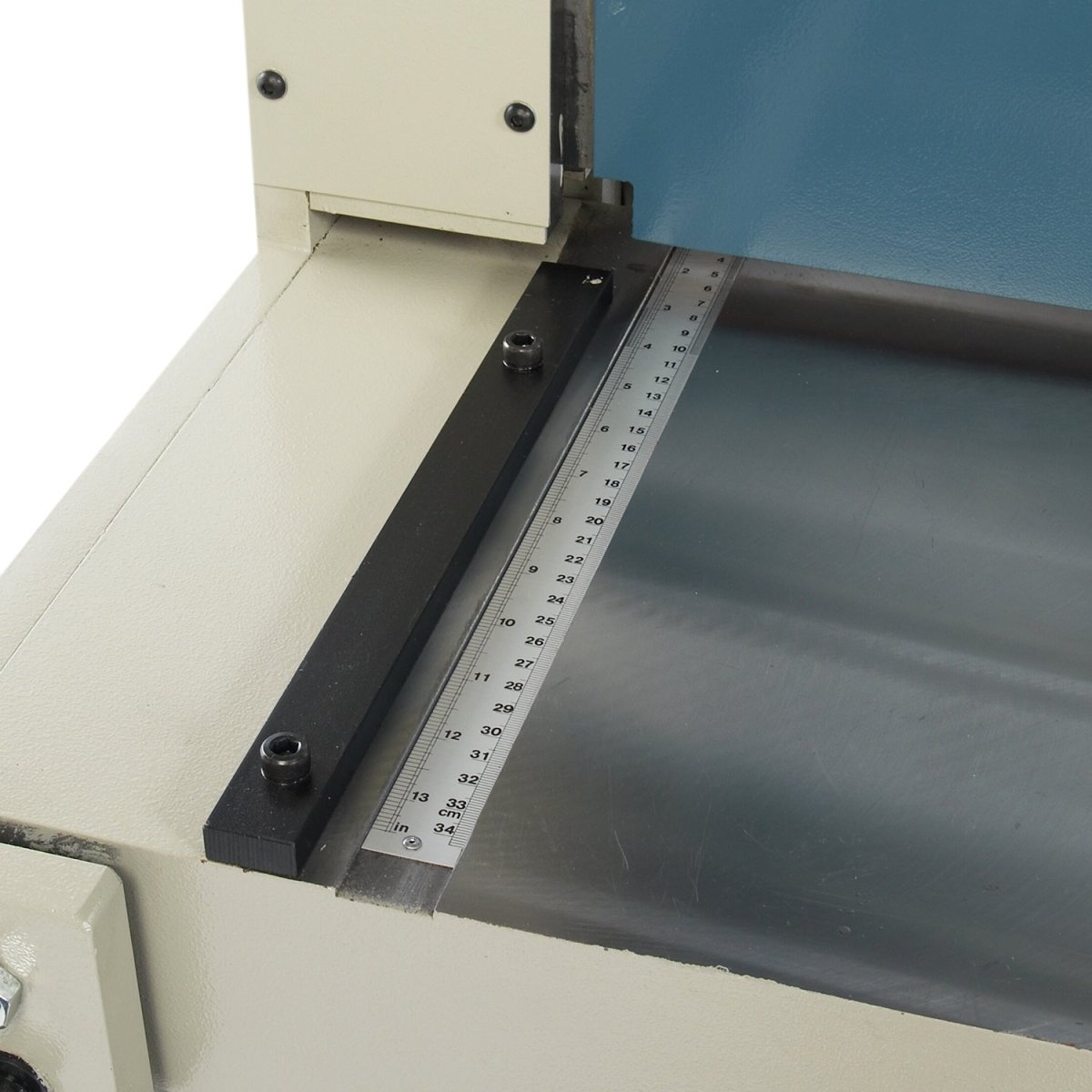

• Front support arms and table guides keep the material square to the blade.
• 3 modes on the operator console:
  • Inch mode: Jog the control and ease the blade down to the material.

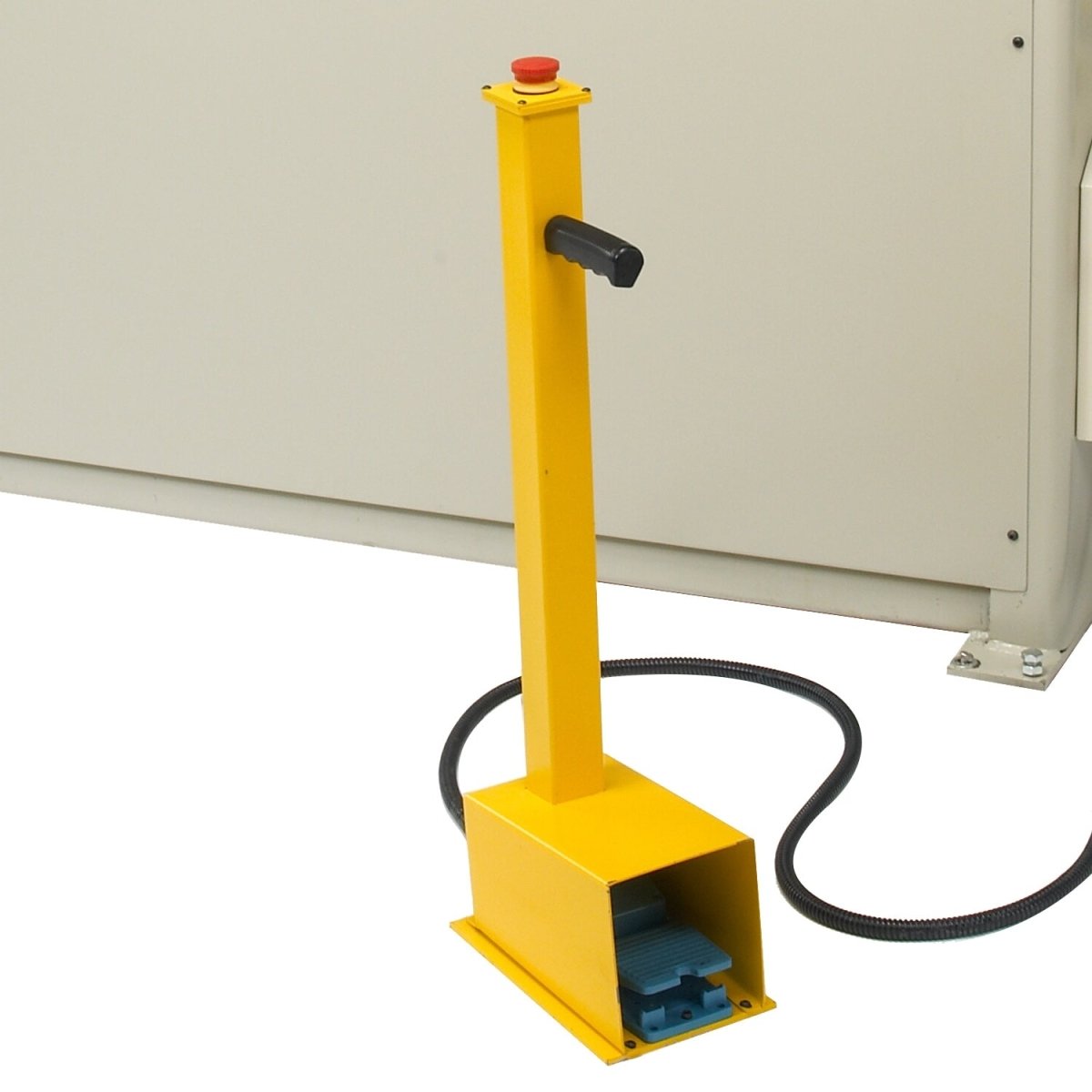

  • Single mode: Make one cut cycle per foot pedal push.
  • Auto mode: Continue cycling as you hold the pedal down.
• Comes standard with high carbon chromium blades.
• Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
• Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.

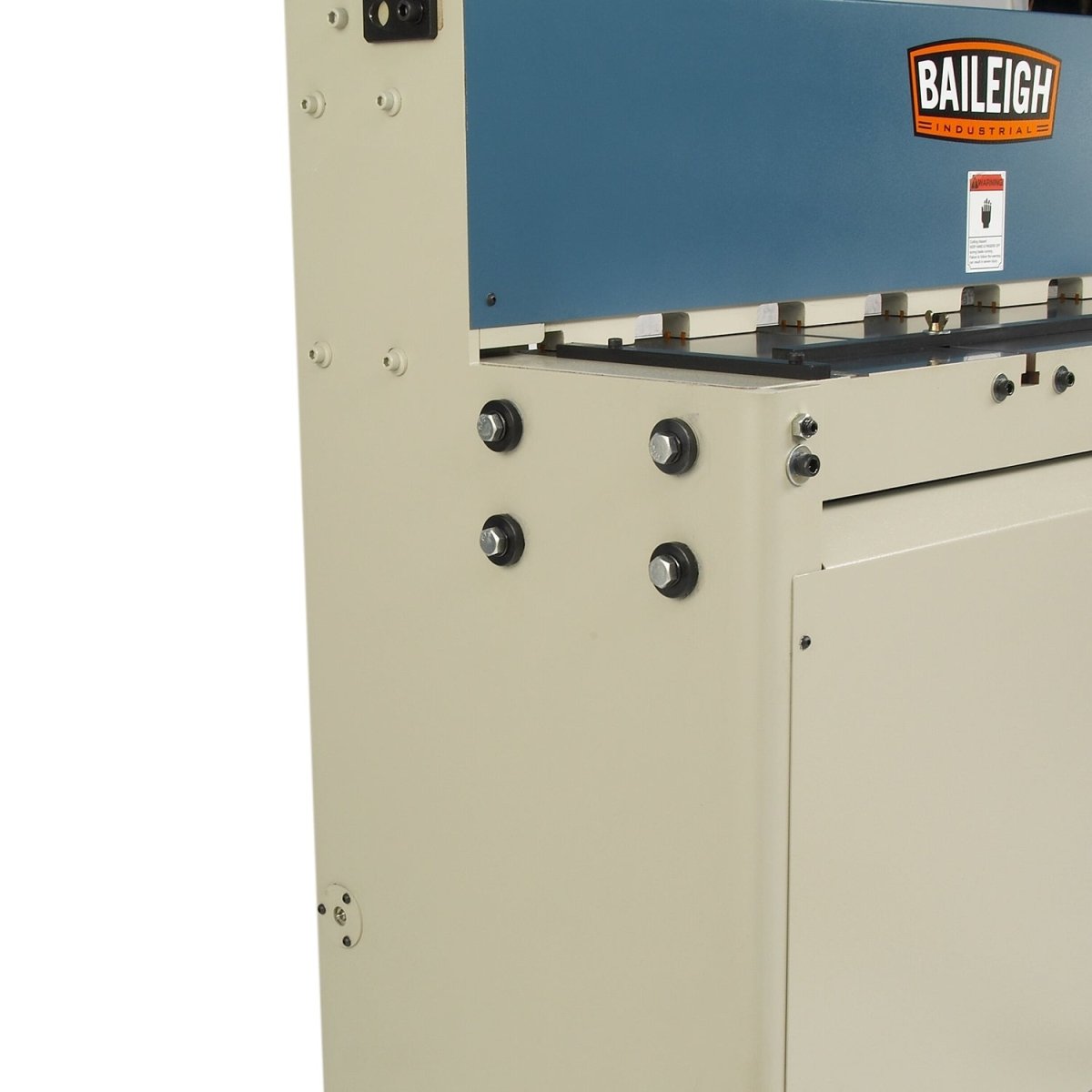

• Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.
• Covered by a 1-year parts warranty.

Specs on the Compact Hydraulic Shear Sh-8014

Item Number	SH-8014
Back Gauge Length	24"
Shear Length	80"
Motor	3 hp
Thickness (SS)	14 ga. (18 ga.)
Strokes Per Minute	26
Front Gauge Length	24"
Blade Angle	1°
Power	220V / 3-phase
Shipping Weight	3700lbs
Minimum Material Thickness	24ga
Shipping Dimensions (Inches)	106x37x57

* specifications subject to change without notice.
