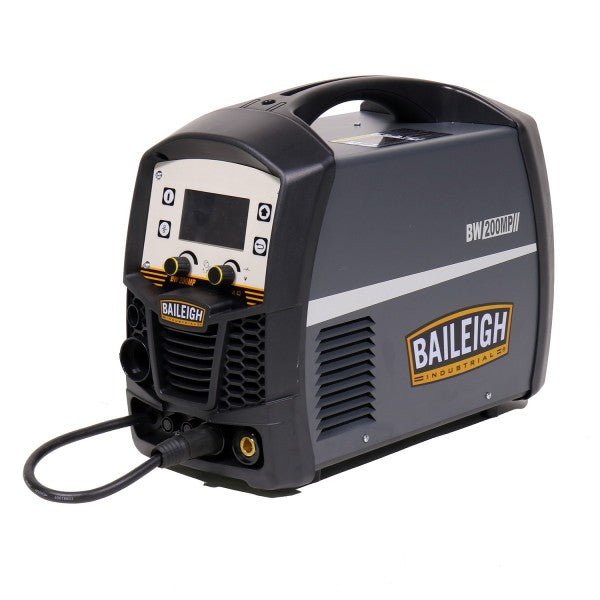

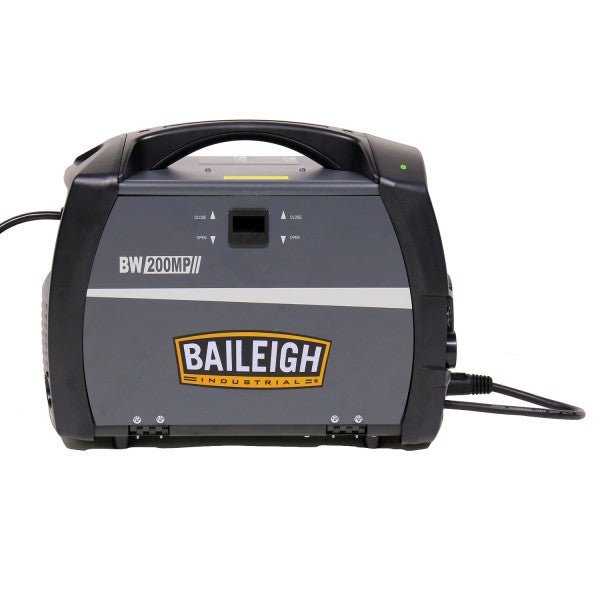

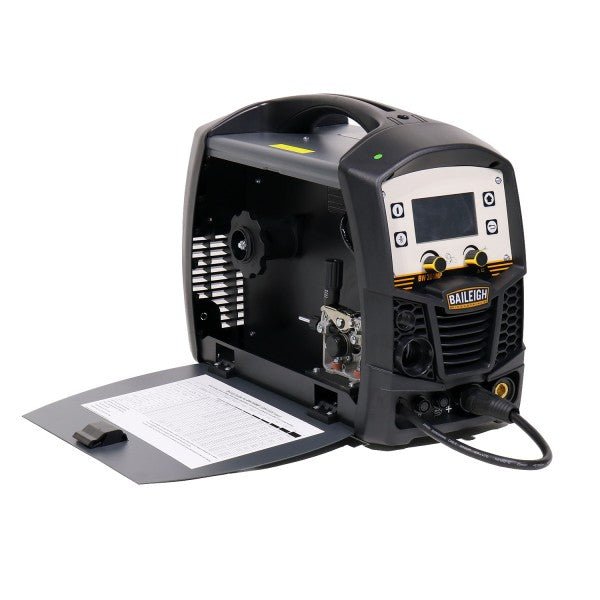

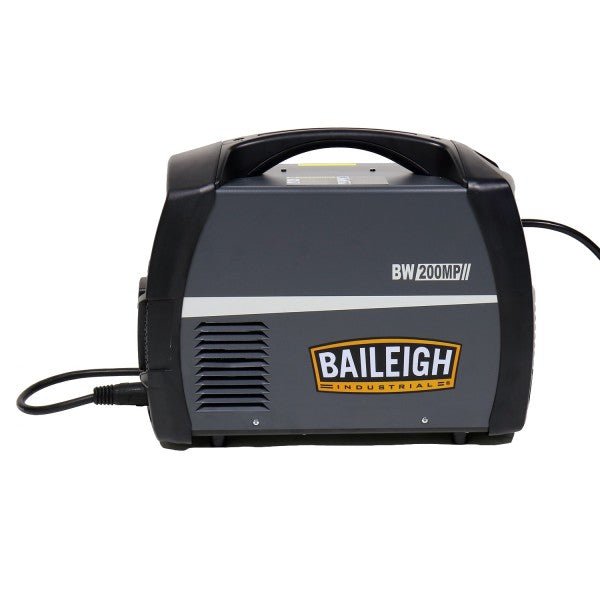

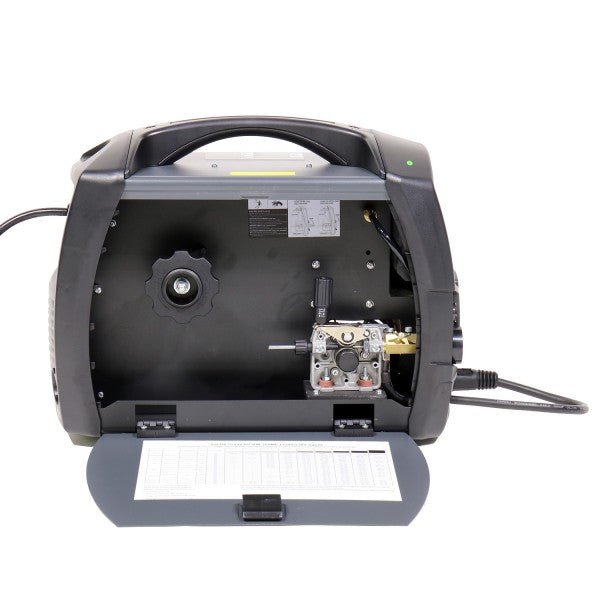

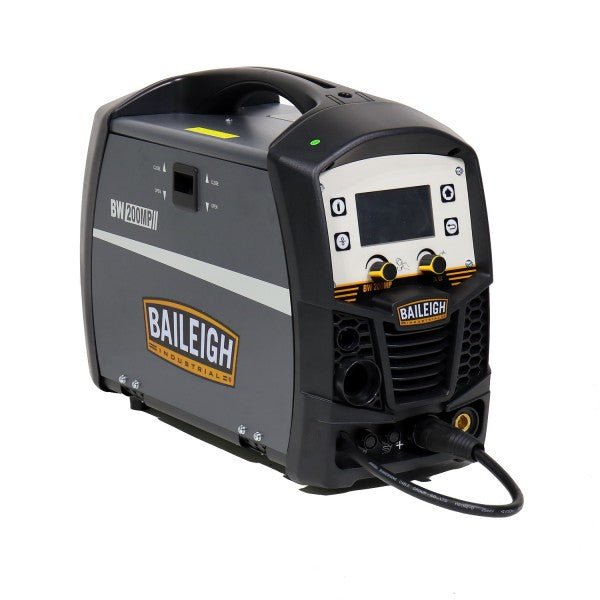

BW-200MP - 200A Multi-Process Welder

The Baileigh Industrial BW-200MP is a dual-voltage inverter-powered multi-process welder that features an LCD control screen that quickly and easily walks the user through setup.

This 200A welder will accel in almost any environment and comes with the features that you demand. Order this multi-process welder for sale today!

• The BW 200 IGBT inverter technology requires 25% less input power and delivers consistent power output
• Dual voltage can run on 120 volt or 230 volt single-phase power

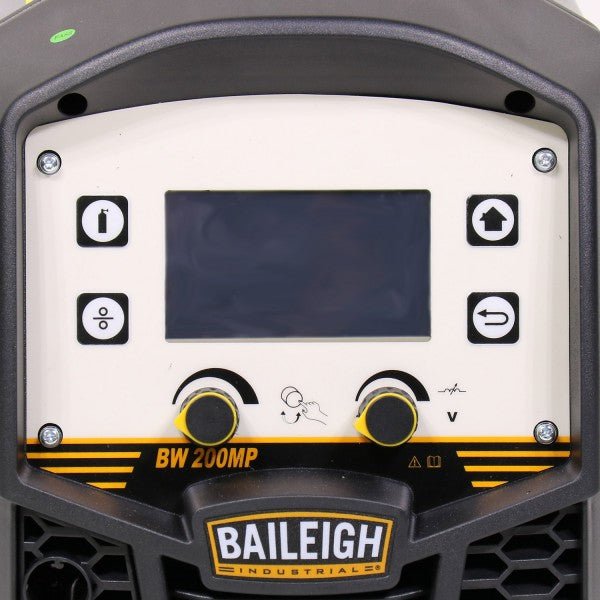

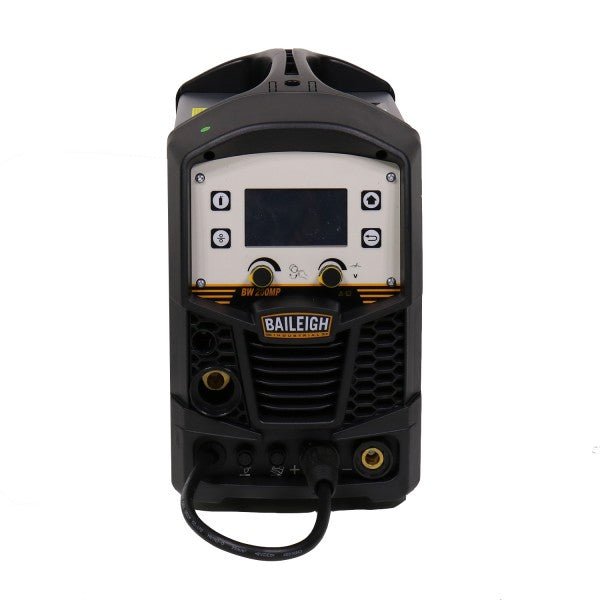

• LCD control screen provides quick and easy setup with save for future setup mode
• Performs MIG and Flux Core Welding 40–140 Amps (120V) and 40–200 Amps (230V); TIG Welding up to 180 Amps; Stick Welding up to 180 Amps
• Built-in, adjustable spot timer adds versatility
• Synergic wire diameter and material thickness settings makes for easy work

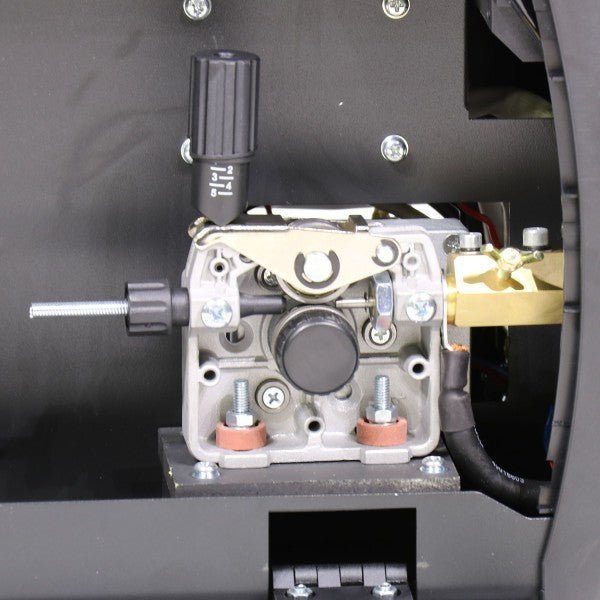

• Infinite wire feed speed control allows user to adjust the voltage and current accurately
• ARC force (MMA)
• Hot start (MMA)
• 2T/4T (trigger lock off/ trigger lock on)
• Generator Safe
• Easily sourced consumables

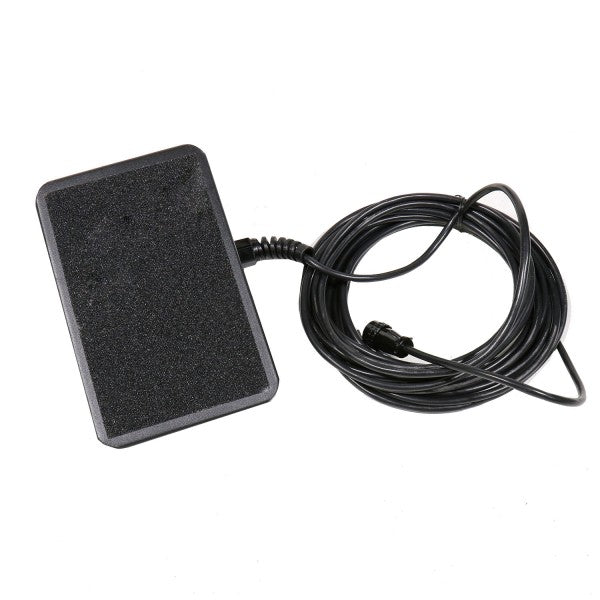

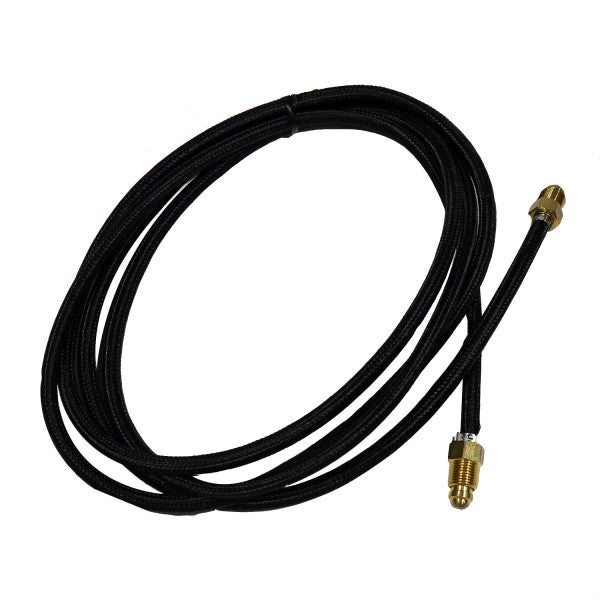

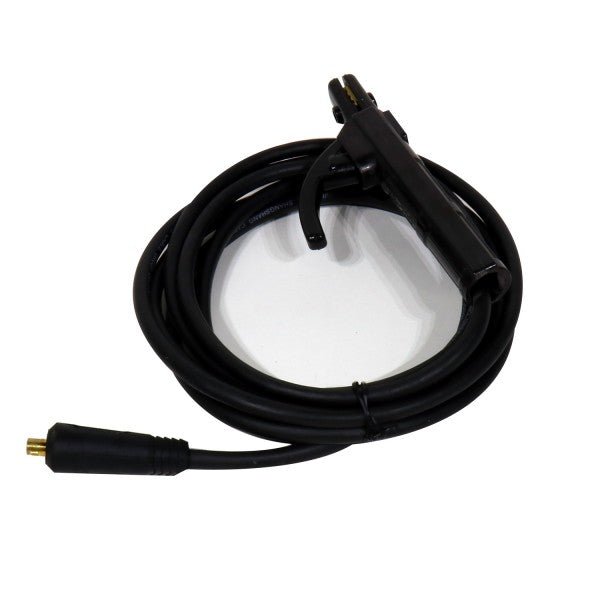

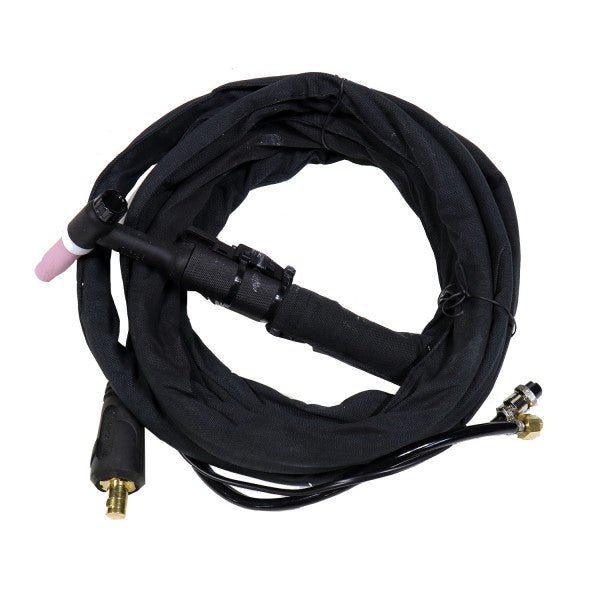

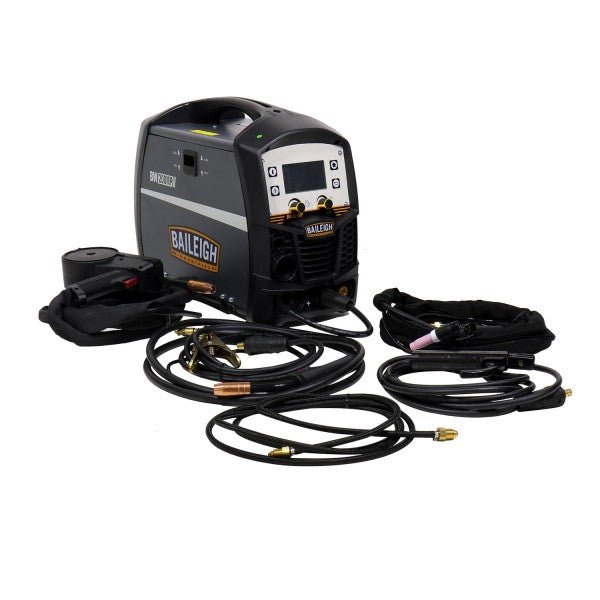

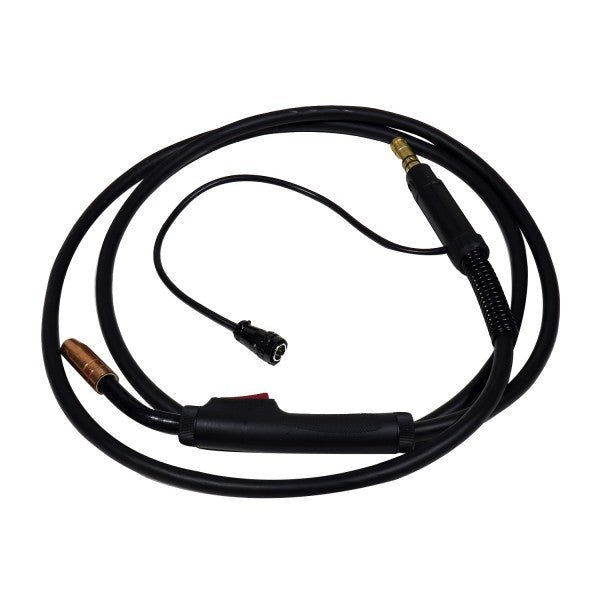

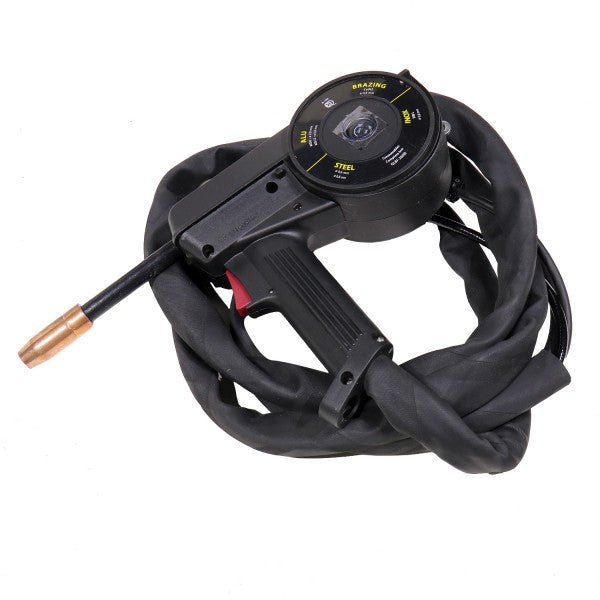

• 200A Inverter Welder Includes: 10ft. spool gun, electrode holder, TIG torch, foot pedal, MIG torch, ground clamp, gas regulator w/hoses, 6-50P 250V plug, and adaptor to 120V plug

Item Number	BW-200MP
Cooling System	Fan Cooled
Maximum Current	200 Amps
Power	Dual Voltage - 120V/230V Single Phase
Shipping Weight	71lbs
Rated Input Current	20A (120V) / 36A (230V)
Rated Input Capacitance	3.5KVA (120V) / 8.6KVA (230V)
No-Load Voltage	69V (120V) / 69V (230V)
Rated Working Voltage	18.5V (120V) / 24V (230V)
MMA Welding Current	10A~70A (120V) / 10A~180A (230V)
LIFT Welding Current	10A~70A (120V) / 10A~180A (230V)
MIG Welding Current	40A~90A (120V) / 40A~120A (230V)
Rated Duty Cycle	40% (120V) / 20% (230V)
100% Rated Duty Cycle	57A (120V) / 89A (230V) - 10 Minutes
Efficiency	85%
Power Factor	.75
Insulation Class	F
Enclosure Protection	IP21S
Special Notes	Includes 10ft. spool gun, electrode holder, TIG torch, foot pedal, MIG torch, ground clamp, gas regulator w/hoses, 6-50P 250V plug, and adaptor to 120V plug
Certification	CSA UL
Shipping Dimensions (Inches)	28x13x18
