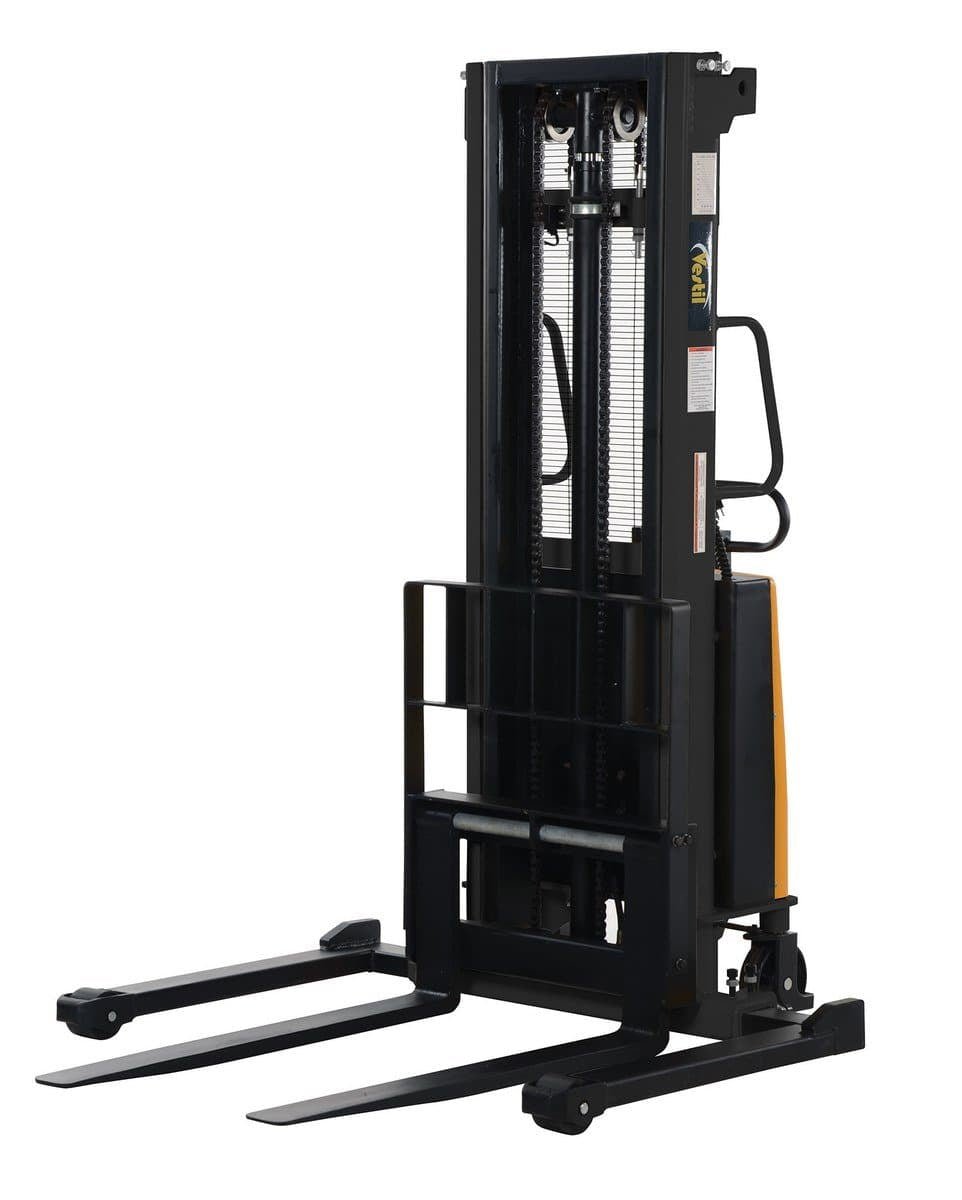

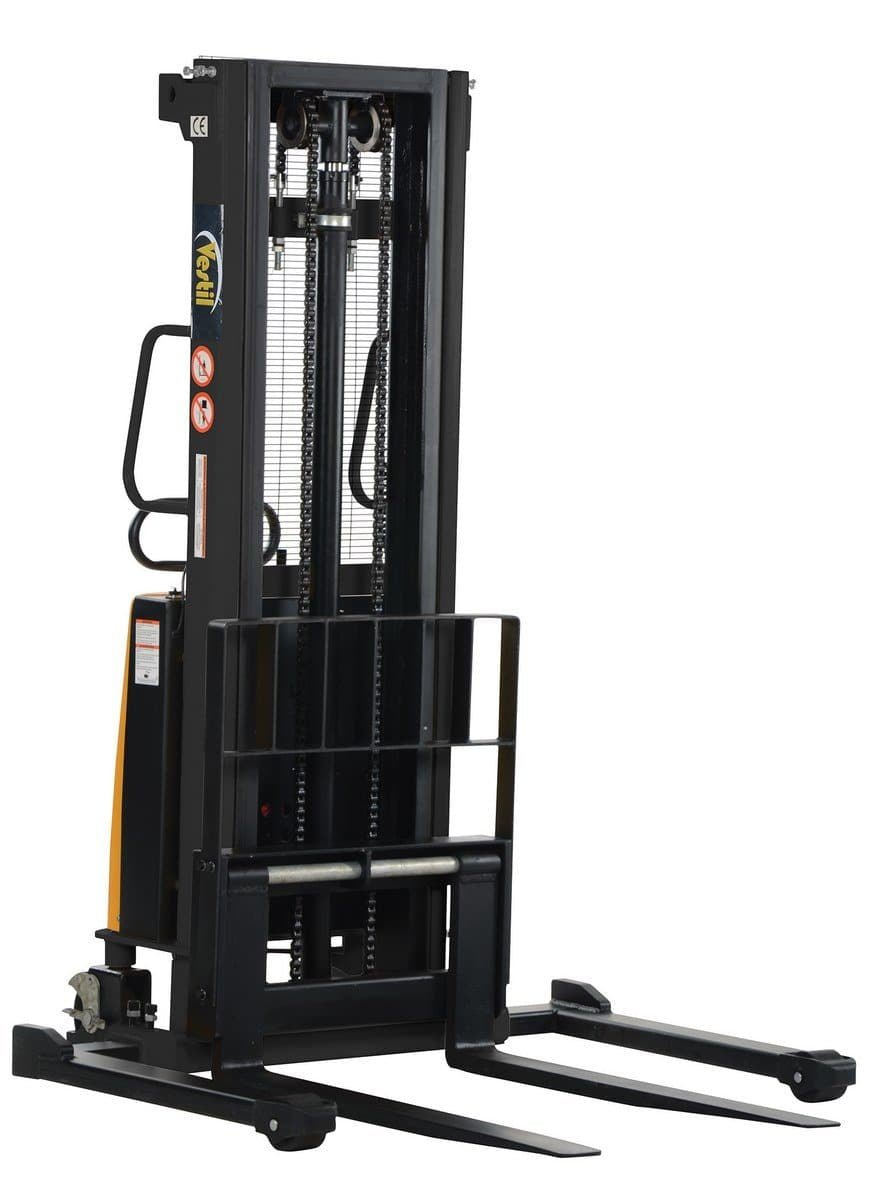

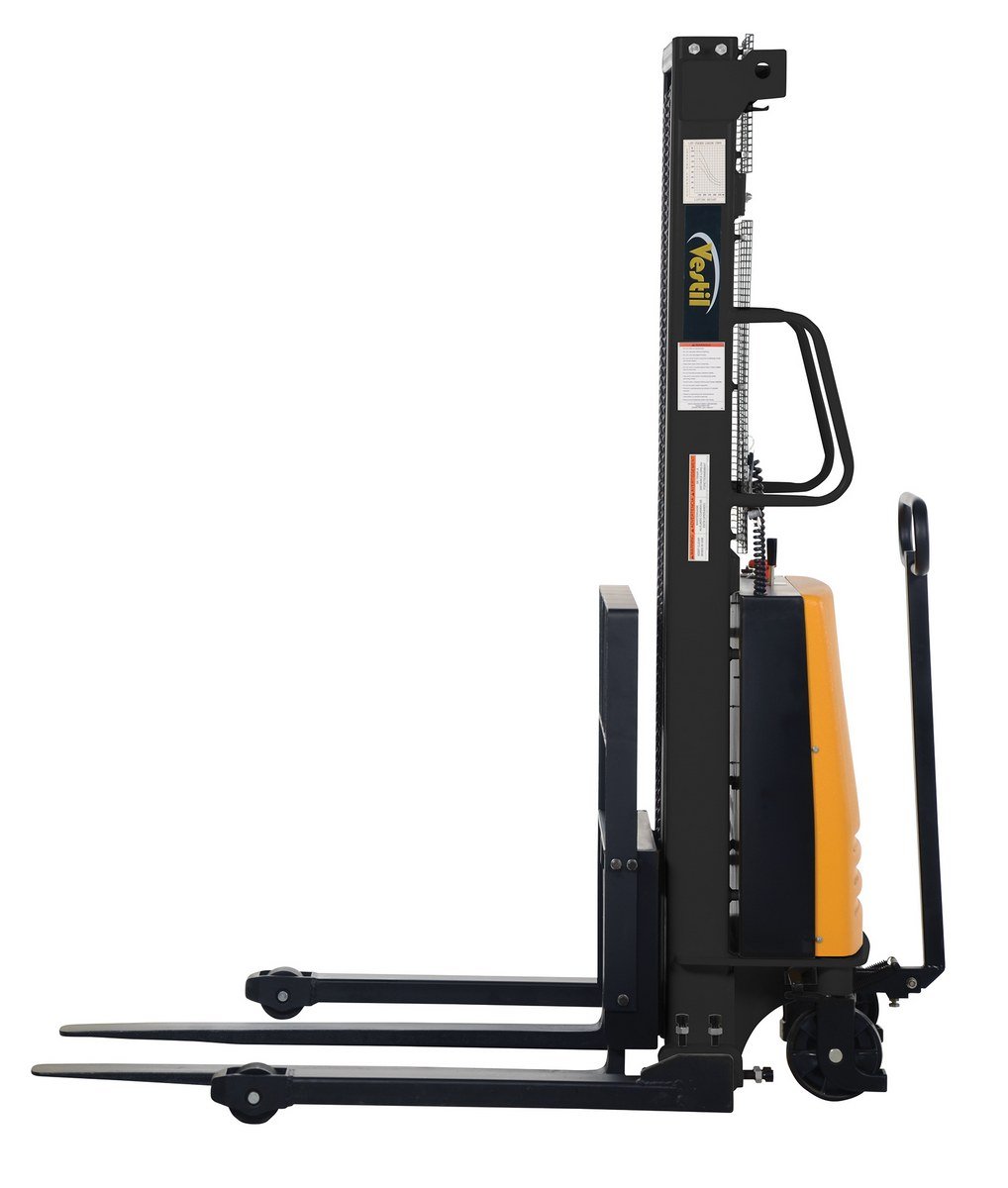

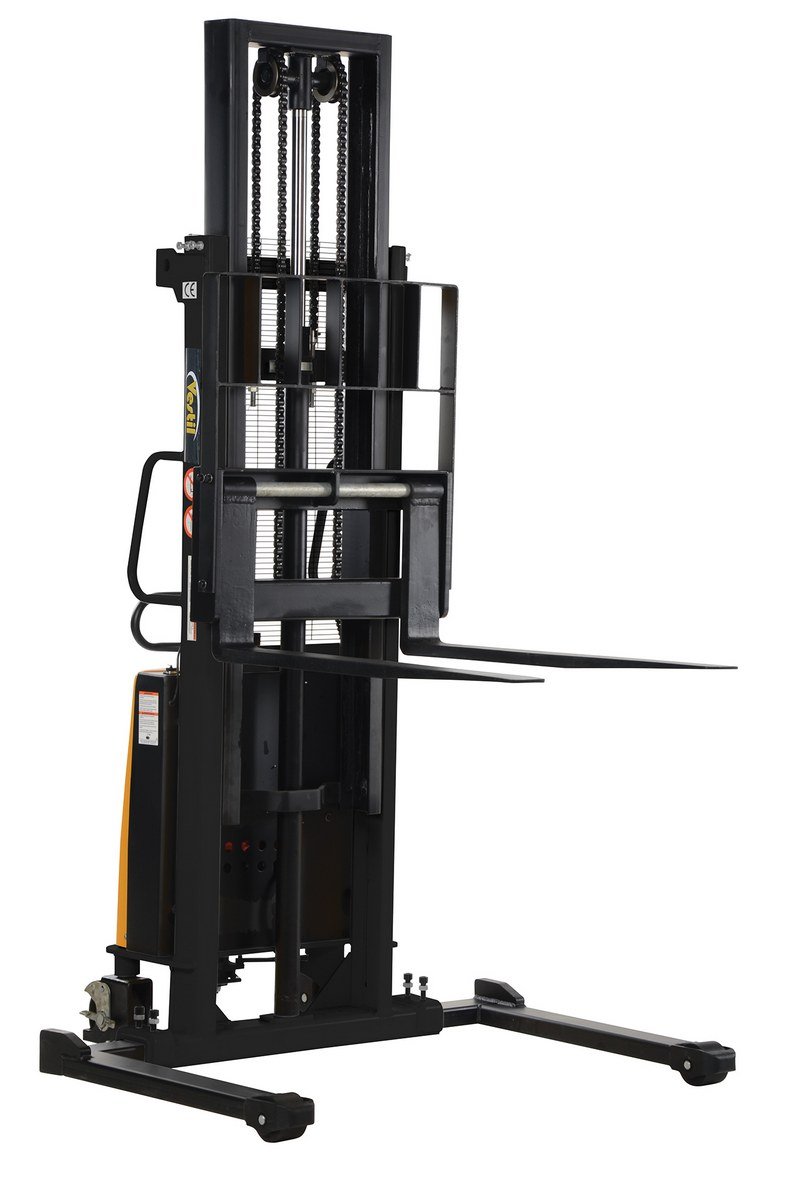

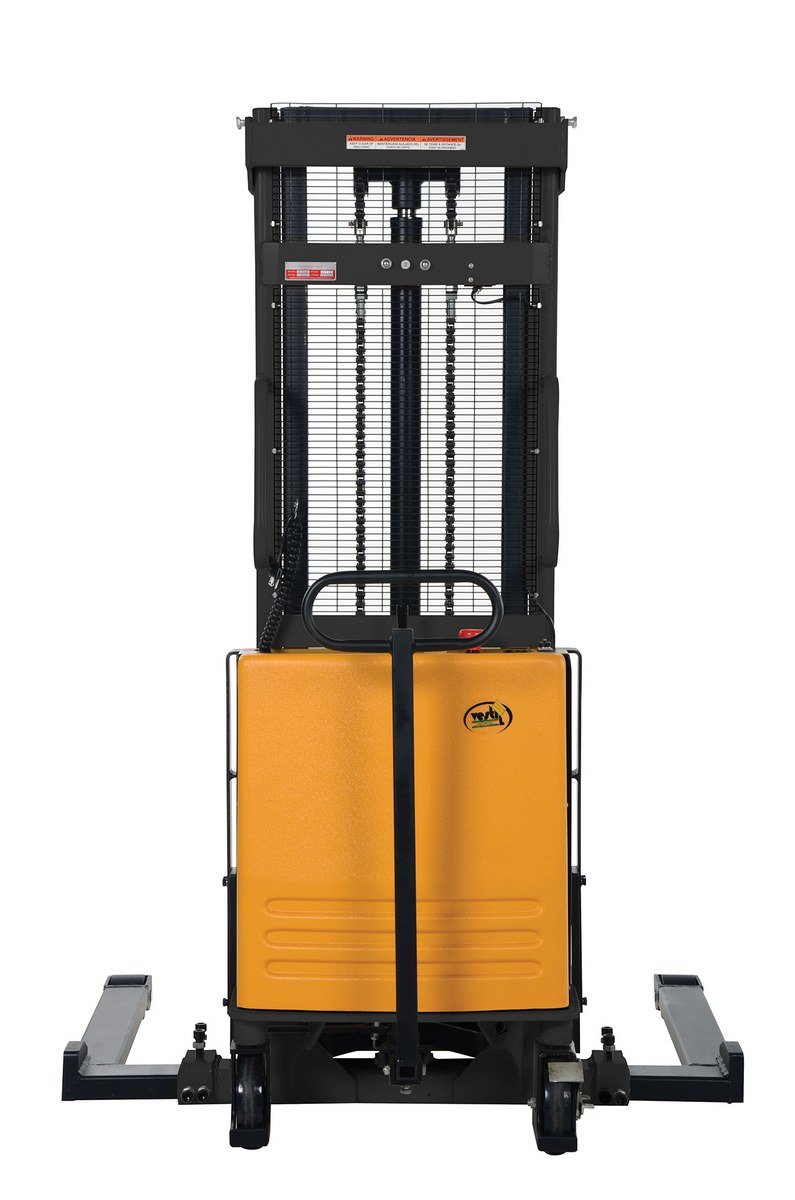

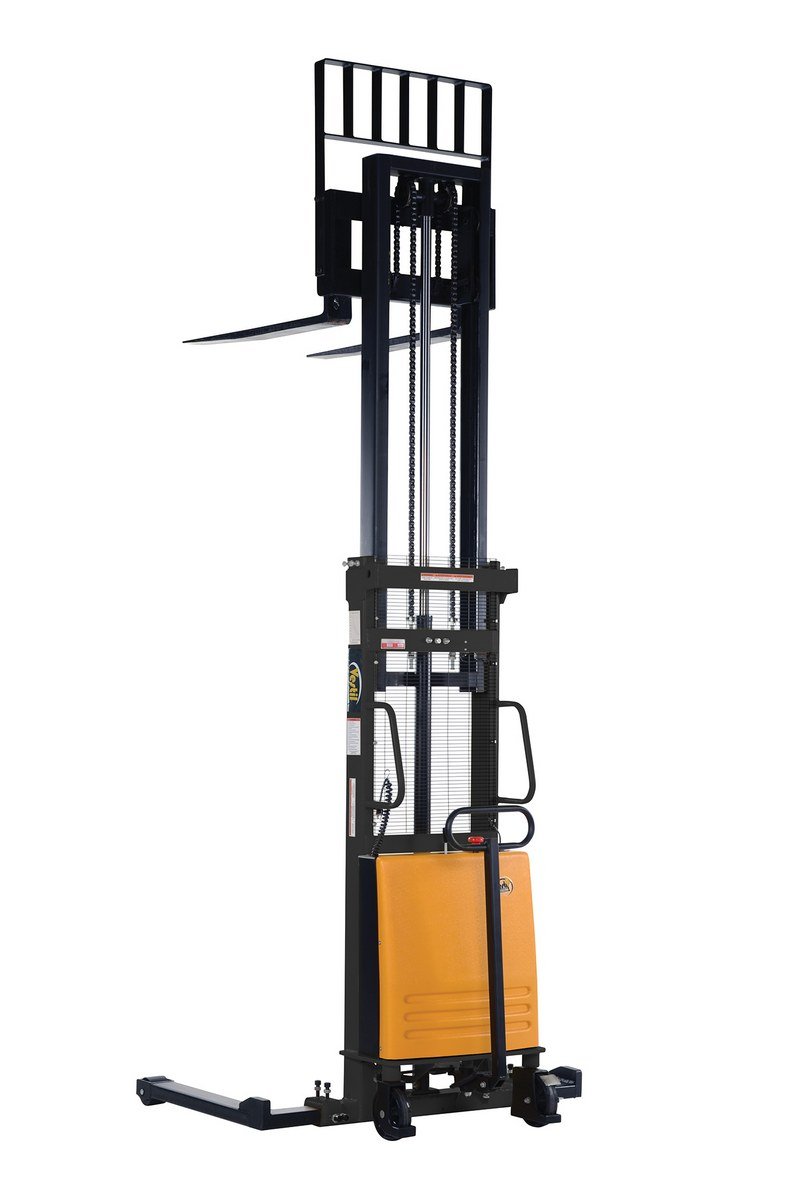

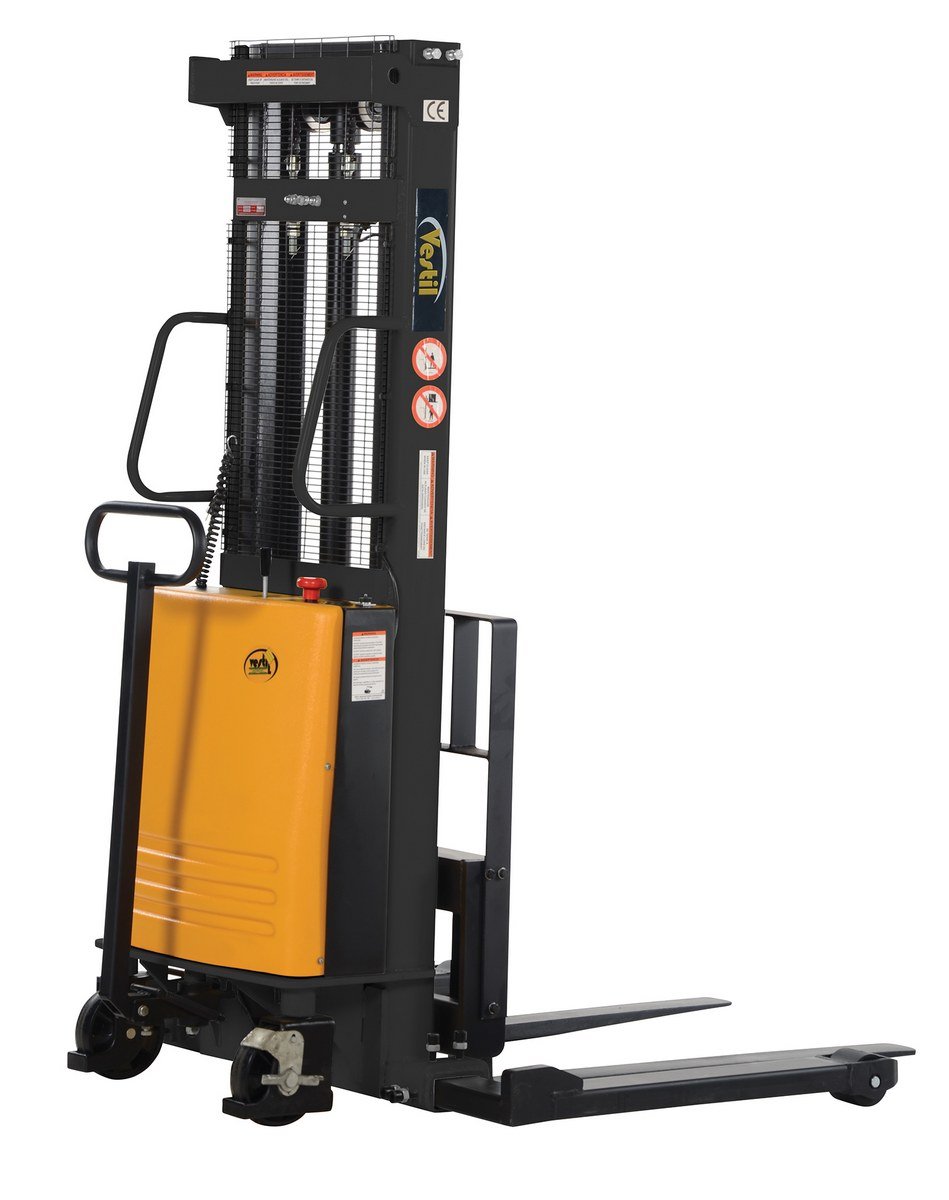

Stacker with Powered Lift
Call for Pricing
Semi-Electric Stackers with Powered Lift will raise and lower loads quickly and easily.
Manual push operation stackers are made using high quality material and parts. All models are easily maneuverable using the standard pulling handle. Stackers are highly efficient and durable. Semi-electric stackers use (1) 12V. Integral battery charger and battery level gauge. Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. PTDS includes: Combination throttle / direction butterfly style controller, An adjustable steering yoke, An auto reverse emergency "belly switch", (1) 12V battery.
KEY:
= Approval Drawing --
= Warranty --
= Testing Certificate
| Stacker with Powered Lift | |||||||||
| Model | Image | PDF's | Lowered Height |
Raised Height |
Uniform Capacity 0"-63" RH |
*Uniform Capacity 63"-118" RH |
*Uniform Capacity 118"-137" RH |
*Uniform Capacity 137"-150" RH |
Wt. (lbs) |
| Adjustable Forks/ Adjustable Support Legs (works with pallets & skids) | |||||||||
| SL-63-AA |  |
|
2-1/8" | 63" | 2,000 lbs. | -- | -- | -- | 1132 |
| SL-118-AA |  |
|
2-1/8" | 118" | 2,000 lbs. | 1,500 lbs. | -- | -- | 1294 |
| SL-137-AA |  |
|
2-1/8" | 137" | 2,000 lbs. | 1,500 lbs. | 1,000 lbs | -- | 1289 |
| SL-150-AA |  |
|
2-1/8" | 150" | 2,000 lbs. | 1,500 lbs. | 1000 lbs. | 750 lbs. | 1359 |
| Fixed Forks Over Fixed Support Legs (works for skids only) | |||||||||
| SL-63-FF |  |
|
3-3/8" | 63" | 2,000 lbs. | -- | -- | -- | 1010 |
| SL-118-FF |  |
|
3-3/8" | 118" | 2,000 lbs. | 1,500 lbs. | -- | -- | 950 |
| Adjustable Stacker W/Power lift, power traction drive | |||||||||
| SL-63-AA-PTDS |  |
|
2-1/8" | 63" | 2,000 lbs. | -- | -- | -- | 1136 |
| SL-118-AA-PTDS |  |
|
2-1/8" | 118" | 2,000 lbs. | 1,500 lbs | -- | -- | 1294 |
| SL-137-AA-PTDS |  |
|
2-1/8" | 137" | 2,000 lbs. | 1,500 lbs | 1,000 lbs | -- | 1420 |
| *Uniform Capacity at specific raised height | |||||||||
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
