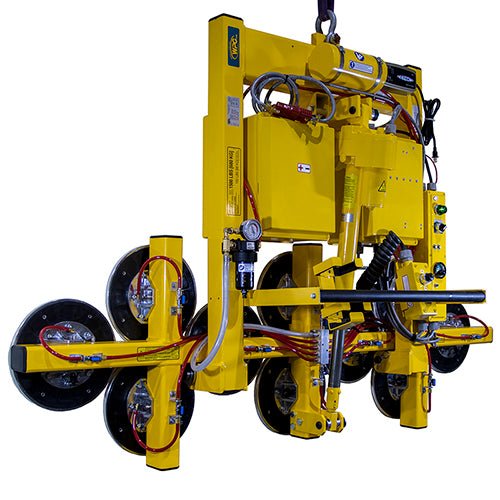

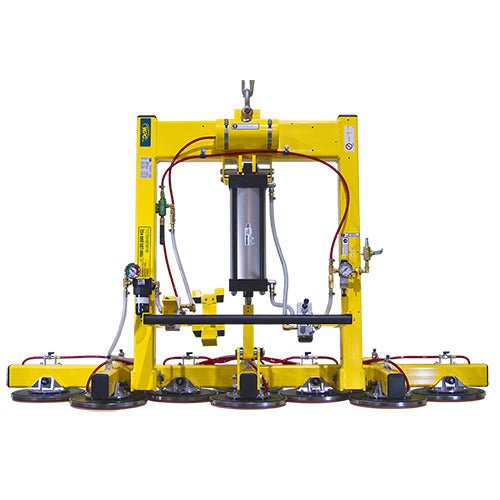

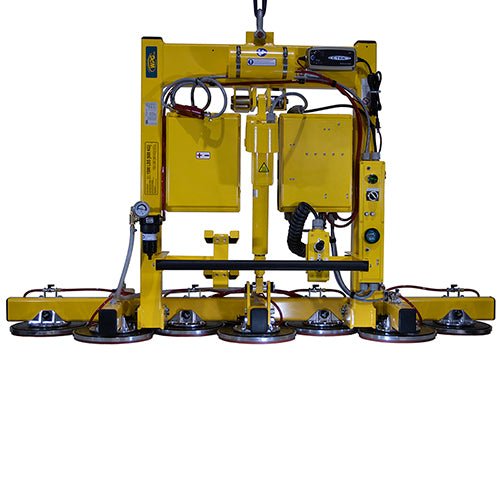

PT10 Lifter Series - Power Tilter 1500

Power Tilter (Air-Powered) designed to reduce the risk of load damage, this vacuum lifter provides effortless power tilting and optimal support of stone and other high-density materials.

Made When Ordered

Instructions

Specifications

Stock#	Model#	Description	Load Capacity	Power
97106	PT1410TAIR	Compressed-air powered lifter with 60-¾ x 90-¾" [154 x 230 cm] max pad spread.	1500 lbs [680 kg]	Air
97105	PT1010TAIR	Compressed-air powered lifter with 23-¾" x 74-¾" [60 cm x 190 cm] max pad spread.	1500 lbs [680 kg]	Air
97111	PT1410TDC	Mobile, battery-powered lifter with 60-¾" x 90-¾" [154 cm x 230 cm] max pad spread.	1500 lbs [680 kg]	DC
97110	PT1010TDC	Mobile, battery-powered lifter with 23-¾" x 74-¾" [60 cm x 190 cm] max pad spread.	1500 lbs [680 kg]	DC
97121	PT1410TACS	SPECIAL ORDER: Corded, AC outlet powered lifter with 60-¾" x 90-¾" [154 cm x 230 cm] max pad spread.	1500 lbs [680 kg]	AC
97120	PT1010TACS	SPECIAL ORDER: Corded, AC outlet powered lifter with 23-¾" x 74-¾" [60 cm x 190 cm] max pad spread.	1500 lbs [680 kg]	AC



Standard Pad Spread:
23-3/4" x 74-3/4" [60 cm x 190 cm]

Number / Size of Vacuum Pads:
10 / 10" [25 cm] diameter pads with replaceable sealing rings

Maximum Load Capacity:
1500 lbs [680 kg]

Weight of Lifter:
360 lbs [163 kg]

Standard Operating Power:
Compressed air, 11 SCFM [311 liters/minute] @ 80 psi [552 kPa]

Apply / Release Times:
10 seconds / 3 seconds (approx)

Load Movement:
Power tilt, 90° between upright and flat

Time for 90° Tilt:
8 seconds (approx)

Tilt Duty:
Continuous

Standard Features:
Vacuum gauge
Vacuum reserve tank
Vacuum line filter
Spring-mounted vacuum pads
Individual shutoffs to all vacuum pads
Flexible rubber pad rings
Blow-off for quick release
