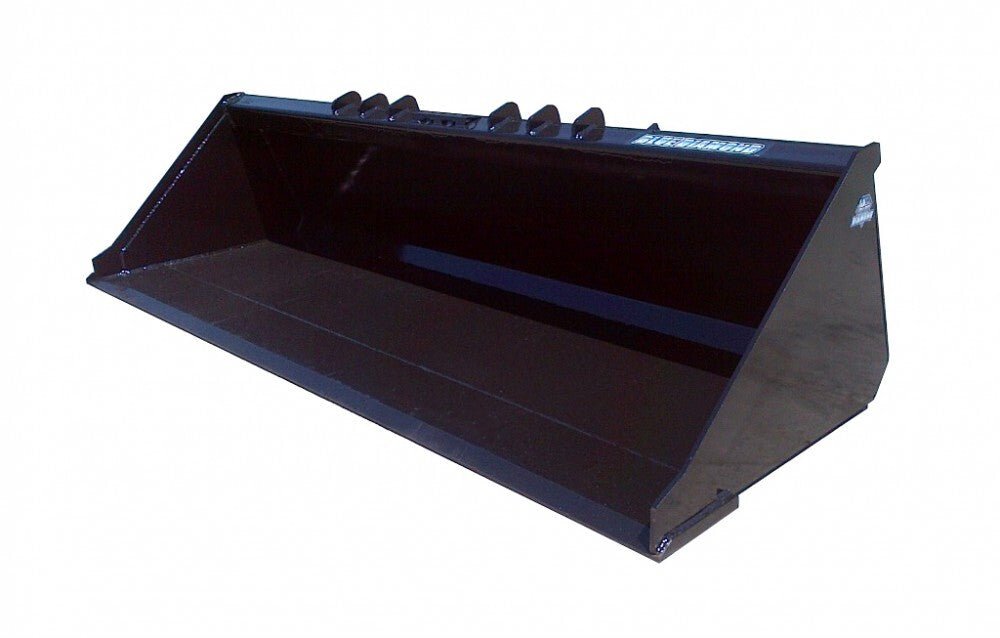

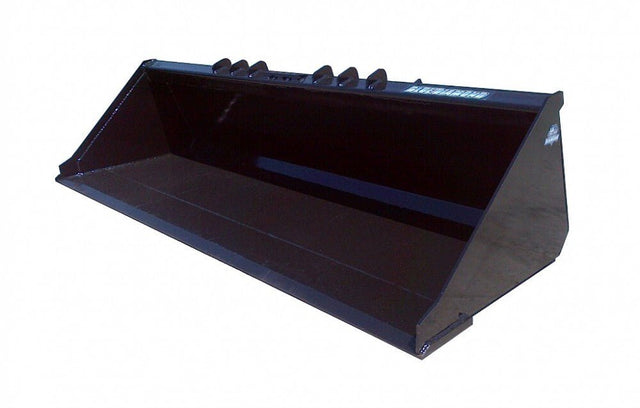

The Blue Diamond® Severe Duty Bucket is among the heaviest duty skid steer buckets on the market.

It is available in 60”, 72”, 78”, 84”, or 90” widths, low profile, and/or, high capacity. It is constructed from heavy gauge steel consisting of a 1/2” bottom, double-layer 1/4” back, and a 1” x 8” cutting blade. Rental Recommended.

FEATURES INCLUDE :

  • 1/2″ floor
  • Double layer 1/4″ back
  • Heavily gusseted quick attach

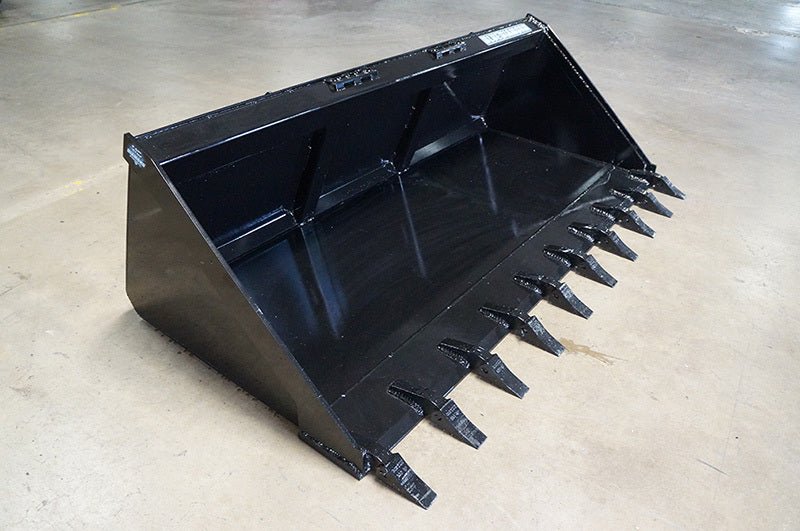

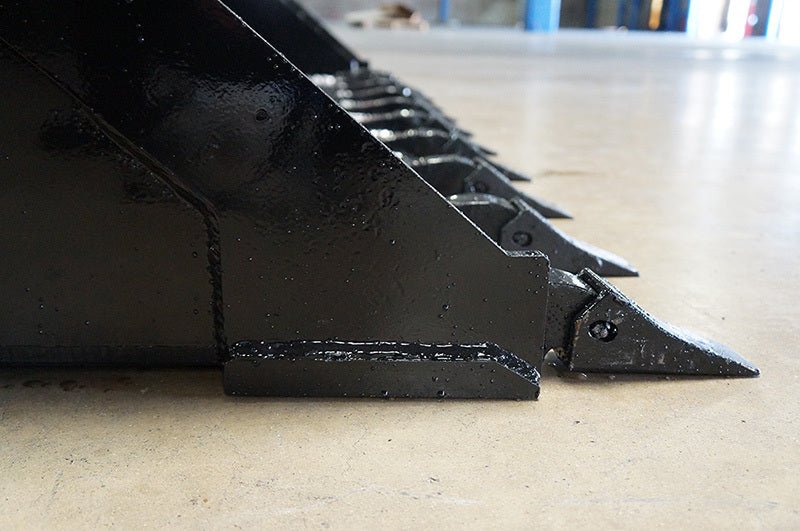

  • Tooth buckets use a 1″ x 8″ cutting edge
  • Available in low profile, long bottom, and high capacity
  • Low profile: 19” tall, 29” deep
  • Long bottom: 19” tall, 35” deep

LOW PROFILE - SEVERE DUTY BUCKET SPEC SHEET

PRODUCT SPECS

PART NUMBER MODEL STRUCK CAPACITY WEIGHT
108260 66" Low Profile, Severe Duty, Smooth 11.4 cu ft 650 lbs
108263 66" Low Profile, Severe Duty, Tooth 11.4 cu ft 675 lbs
108270 72" Low Profile, Severe Duty, Smooth 11 cu ft 710 lbs
108273 72" Low Profile, Severe Duty, Tooth 11 cu ft 724 lbs
108275 78" Low Profile, Severe Duty, Smooth 12 cu ft 690 lbs
108277 78" Low Profile, Severe Duty, Tooth 12 cu ft 757 lbs
108280 84" Low Profile, Severe Duty, Smooth 12.9 cu ft 738 lbs
108282 84" Low Profile, Severe Duty, Tooth 12.9 cu ft 813 lbs
108283 90" Low Profile, Severe Duty, Tooth 18.8 cu ft 925 lbs
108284 72" Low Profile, Severe Duty, Smooth-Long Bottom 23 cu ft 732 lbs
108285 72" Low Profile, Severe Duty, Tooth-Long Bottom 23 cu ft 774 lbs
108286 78" Low Profile, Severe Duty, Smooth-Long Bottom 25 cu ft 759 lbs
108287 78" Low Profile, Severe Duty, Tooth-Long Bottom 25 cu ft 826 lbs
108290 84" Low Profile, Severe Duty, Smooth-Long Bottom 27 cu ft 848 lbs
108293 84" Low Profile, Severe Duty, Tooth-Long Bottom 27 cu ft 965 lbs
108296 90" Low Profile, Severe Duty, Tooth-Long Bottom 18.8 cu ft 875 lbs
