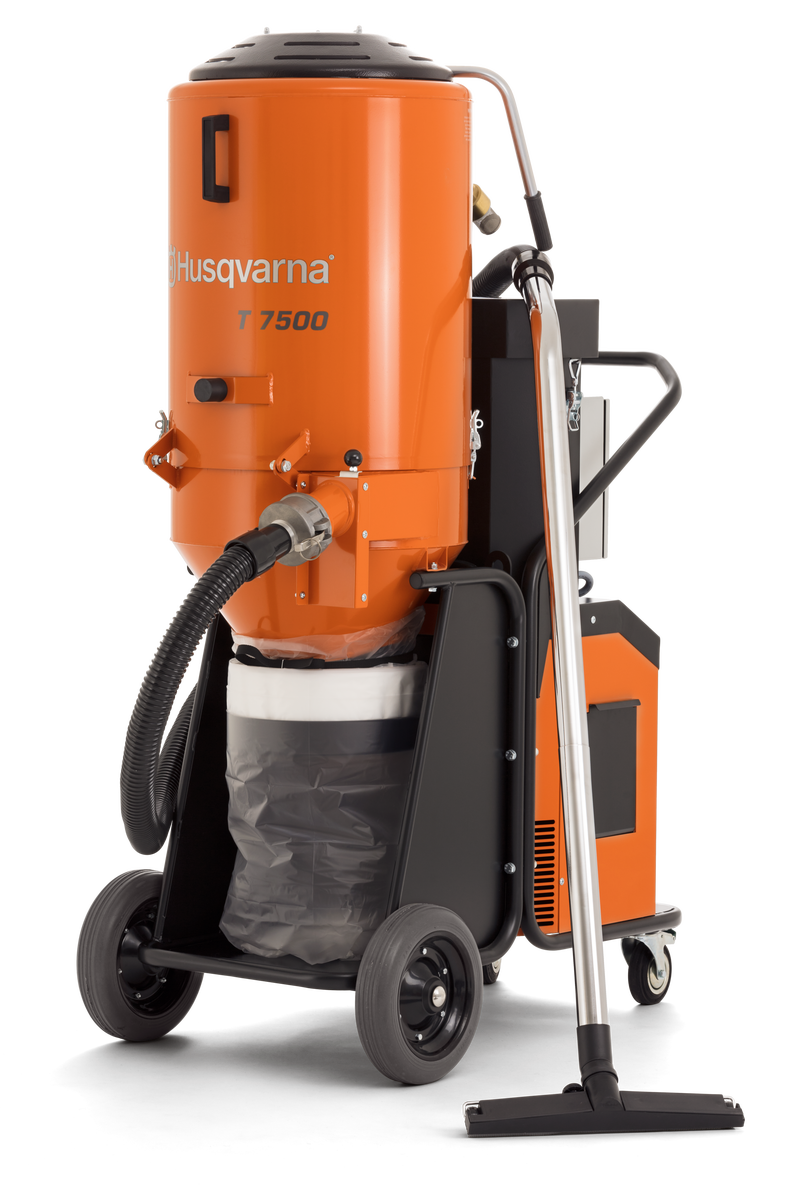

Husqvarna T 7500 Heavy Duty Dust Extractor

T 7500 is an effective industrial dust extractor to match the grinding machines Husqvarna PG 820, PG 680 and PG 400 (3-phase) as well as shavers, shot blasters and saws.

Ideal for heavy-duty work and exacting demands on dust extraction. T 7500 is equipped with a quiet, yet powerful turbine motor delivering exceptional airflow. The machine can deal with materials that are difficult to handle, such as grinding dust and demolition materials in a wide variety of applications. Has a reliable filter system with high collecting efficiency and a long filter life, and can deal with large quantities of fine dust. Comes with two oversized tested and certified HEPA class H13 filters and sock-style pre-filters providing nonstop grinding and a long service life. The pre-filters can be cleaned from outside of the tank via Jet Pulse negative air pressure. The Longopac® bag hose system ensures simple, dust-free bag changes.

Phases - 3~
Air requirement - 353 cfm
Rated input power - 10.1 hp

FEATURES

Want to take a closer look? Learn more about the product in depth by exploring its features and benefits.

Efficient filtration system

The three separate filtering stages result in longer working time between filter cleaning. The dust is filtered through a cyclone chamber, which separate the heaviest parts, up to 95% of the dust, before the washable main filter. The HEPA micro filters are individual tested and certified to capture 99.99% of the remaining silica dust in the respirable fraction (0.3µm).

Easy and efficient filter cleaning

The Jet Pulse filter cleaning system ensures high continuous airflow thanks to easy and efficient cleaning of the conical main filter without opening the machine.

Durable design

Corrosion-resistant steel clamps, welded frame with dust bag platform and durable steel handle make it ready to serve for many years.

Excellent stability and mobility

The slim design, solid non-marking tires, swivel casters and hitch for attaching a separator allows for excellent mobility and stability.

High Efficiency Particulate Air filter

Individually tested and certified HEPA micro filters catching 99.99% of the remaining silica dust in the respirable fraction (0.3µm).

Easy-to-read airflow monitoring
Alerts you when the filter needs to be cleaned or changed.

Clean and simple bag change
The Longopac® bag hose system ensures simple changes of the bag without any dust spills.

For demanding industrial applications
For demanding industrial applications, where high suction and flow are required to eliminate airborne dust.

Control
The hour counter facilitates you to know when it is time for service and how many the hours the machine has been used.

Motor

Phases
3~
Voltage
230 V
Rated current
24.2 A
Max. vacuum
4.06 psi
Rated input power
10.1 hp
Specifications

Air requirement
353 cfm
Water lift
110 in

Dimensions

Product size width
27 in
Product size height
69 in
Weight
454 lbs
