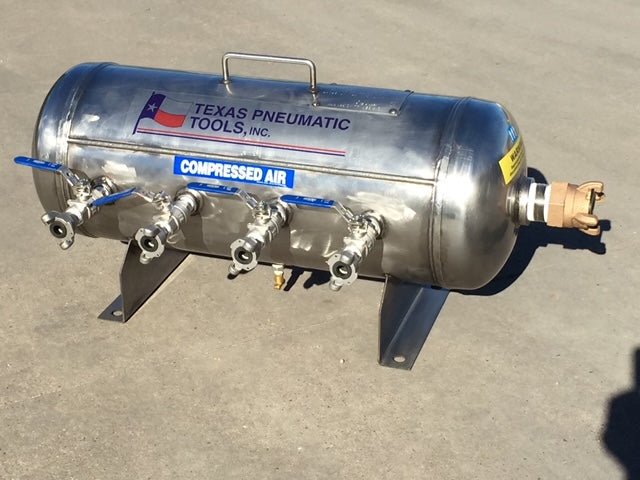

TX-2AMF-SS - Stainless Steel Air Manifold (15 Gallon, ASME Tank)

Stainless Steel Air Manifold (15 Gallon, ASME Tank)

• 15 Gallon Air Manifold (ASME Tank)
• 2″ – 4 Prong (Bull Hose) Inlet Coupling
• 8 outlets w/ 3/4″ Ball Valves & Crow Foot Couplings
• 200 psi Pressure Relief Valve
• Drain Valve on Bottom of Tank
• Pressure Gage w/ Plastic Cover
• Units can be linked together by replacing the square plug with a hose coupling

The Texas Pneumatic Air Manifolds can be used in any industry where there is a need to have multiple outlets of air to supply various pneumatic tools simultaneously.

Specifications:

• Weight = 73 lbs.
• Height = 18″
• Length = 34.5″
• Tank Diameter = 12″
• Width w/ Fittings = 22″
• Inlet Size = 2″
• Size of Outlets = 3/4″
• Working Pressure = 200 PSI
• Test Pressure = 300 PSI
• Boxed Weight = 84 lbs.
