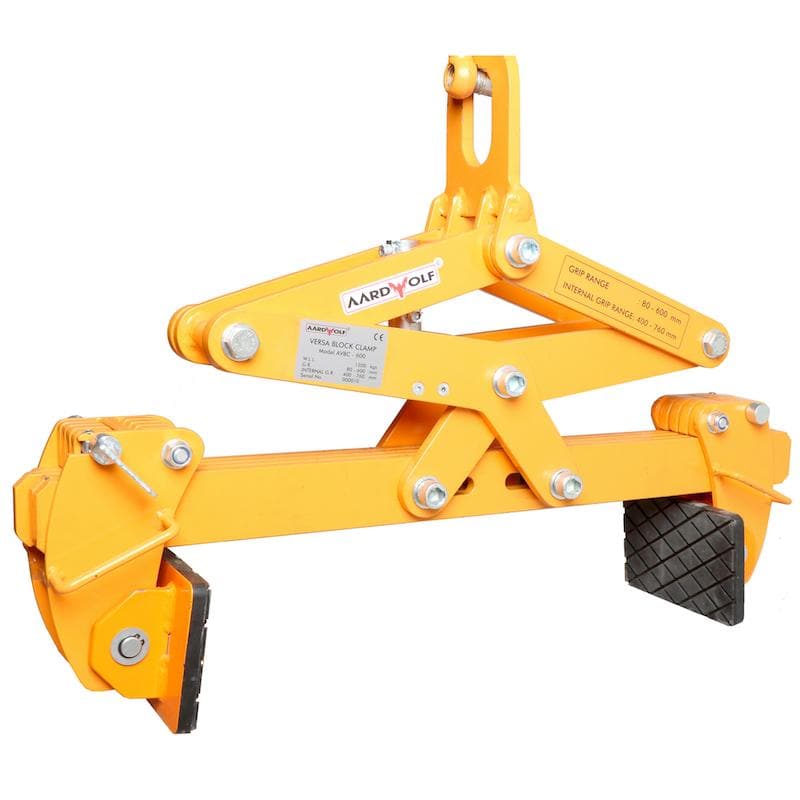

Versa Block Clamp AVBC

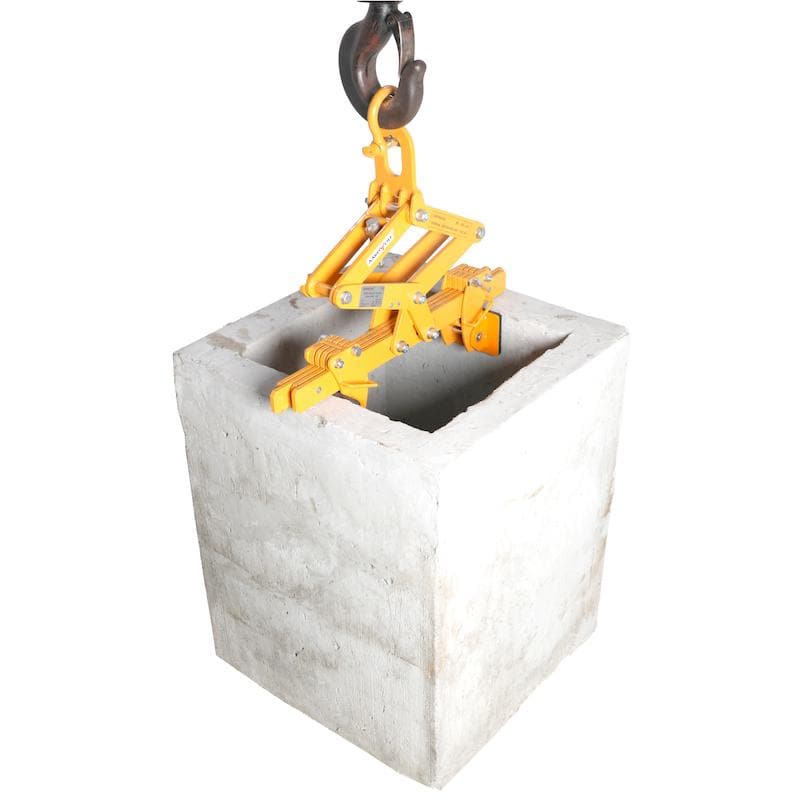

The Versa Block Clamp is made for lifting and moving concrete blocks, rubber tires, drums or other materials

General

The clamp consists of two sliding pads that can be adjusted to the desired widths and they are locked by a locking latch on each side. The Versa Block Clamp is a multipurpose solution when fitted with different jaws to grab the different material types, whether square or curved shapes. These jaws can be easily changed and reversed to allow for picking up objects from the inside face or inside out.

Features

• Handles heavy loads with different capacities.
• Grips and releases the load automatically.
• The jaw width is simple and easy to adjust.
• The rubber jaws protect loads from being damaged.
• Optional jaws for different material shapes.
• Lifting eye allows for easy hook attachment.

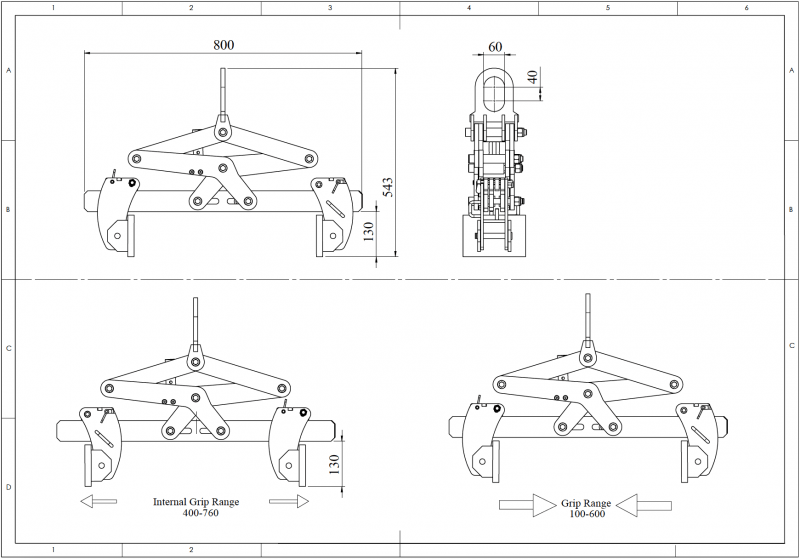

Specifications

AVBC-600	Metric (mm-kg)	Imperial (inch-lb)
Grip range	100 - 600	4" - 24"
Working load limit	1200	2646
Net weight	50	110
Gross weight	55	121
Packaging dimensions	840x220x490	33"x8.7"x19.3"

AVBC-1100	Metric  (mm-kg)	Imperial  (inch-lb)
Grip range	150 - 1100	6" - 43.3"
Working load limit	3000	6614
Net weight	161	355
Gross weight	175	386
Packaging dimensions	L.1500xW.570xH.360	59"x22"x14.2"
