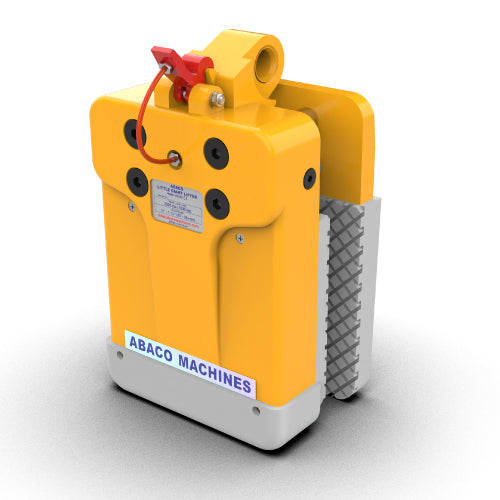

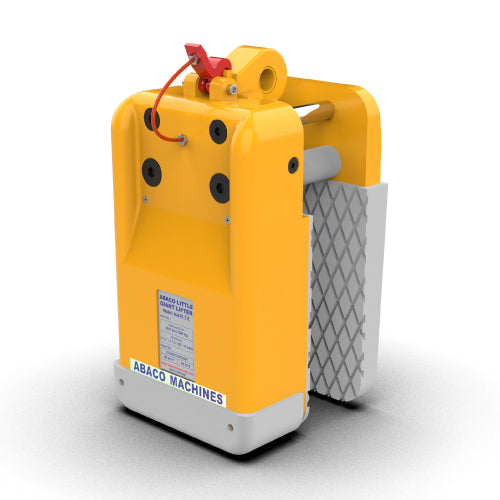

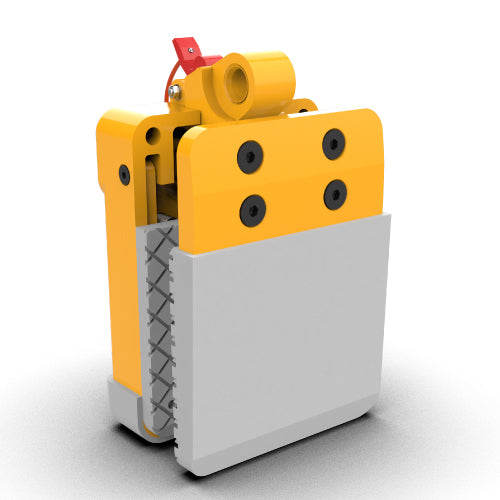

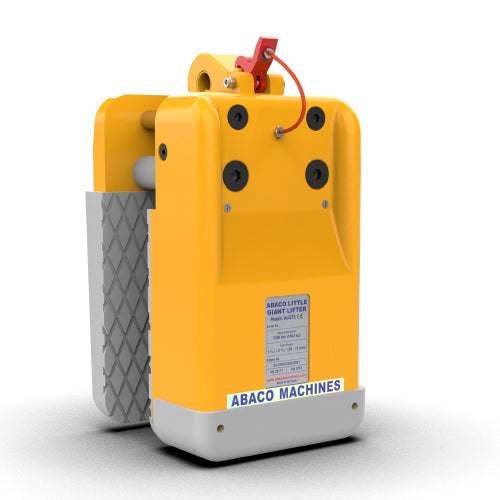

ALG Abaco Little Giant Slab Lifter
SKU: ALG40-B
Abaco Little Giant Slab Lifters is a series of lifters with different gripping range and weight capacities for moving and handling stone, granite, marble, and heavy slabs
These lifters all come with the swivel shackle included!
Abaco Little Giant Lifter is also available in an Automatic Lifting Clamp version.
The Little Giant series are quality slab lifters offered by Abaco Machines. The Abaco Little Giant Slab Lifter is well named for the lifters are smaller and affordable while maintaining power and reliability. The Slab Lifters range in grip range, weight, and weight capacity. Abaco Slab Lifters are designed for the moving and handling of stone, granite, marble, and heavy slabs.
These Abaco clamps, with their rubber-lined jaws, have been developed to handle material in slab or sheet form, stacked in racks, without damaging the material's surface. They have a number of advantages over the common clamping devices.
Better & Stronger With:
- Strong Lifting Pin
- Lower Overall Height
- Straight Lift
- Large Grip Range
- Swivel Shackle
Features:
- Safety: This new Abaco Clamp has an unbreakable center plate that makes it a lot safer than the old Abaco Lifter.
- Size: Compact construction allows for close packed slabs to be lifted out of racks and containers. Lower height slabs can be placed alongside taller slabs with no problems.
- Versatile: Ideal for construction work. Because the clamping mechanism is to the front of the slab, it allows panels to be placed close to walls.
- Secure: It grips slabs firmly with a force-multiplying factor of approximately 2.7 to 1 compared with the old Abaco Lifter of approximately 2.5 to 1.
- Designed to move one slab at a time
Comparison
| Model |
Length In (mm) |
Width In (mm) |
Height In (mm) |
Gip Range In (mm) |
Net Weight lbs. (kg) |
W.L.L. lbs. (kg) |
| ALG30 |
7 7/8 (200) |
5 11/16 (144) |
12 13/16 (325) |
3/8 - 1 3/16 (10 - 30) |
34 (15.5) |
2200 (1000) |
| ALG40 |
8 5/16 (211) |
6 13/16 (173) |
14 9/16 (370) |
3/8 - 1 9/16 (10 - 40) |
49 (22.4) |
2860 (1300) |
| ALG50 |
8 5/16 (211) |
7 3/16 (183) |
14 9/16 (370) |
9/16 - 1 15/16 (15 - 50) |
49.5 (22.5) |
2860 (1300) |
| ALG60 |
8 1/2 (216) |
7 15/16 (202) |
15 7/8 (403) |
13/16 - 2 3/8 (20 - 60) |
60 (27.4) |
3300 (1500) |
| ALG75 |
8 1/2 (216) |
8 5/8 (219) |
15 7/8 (403) |
1 3/16 - 2 15/16 (30-75) |
60.5 (27.5) |
3300 (1500) |
For lifting larger pieces of stone, glass, and building materials see our Vacuum Lifters
