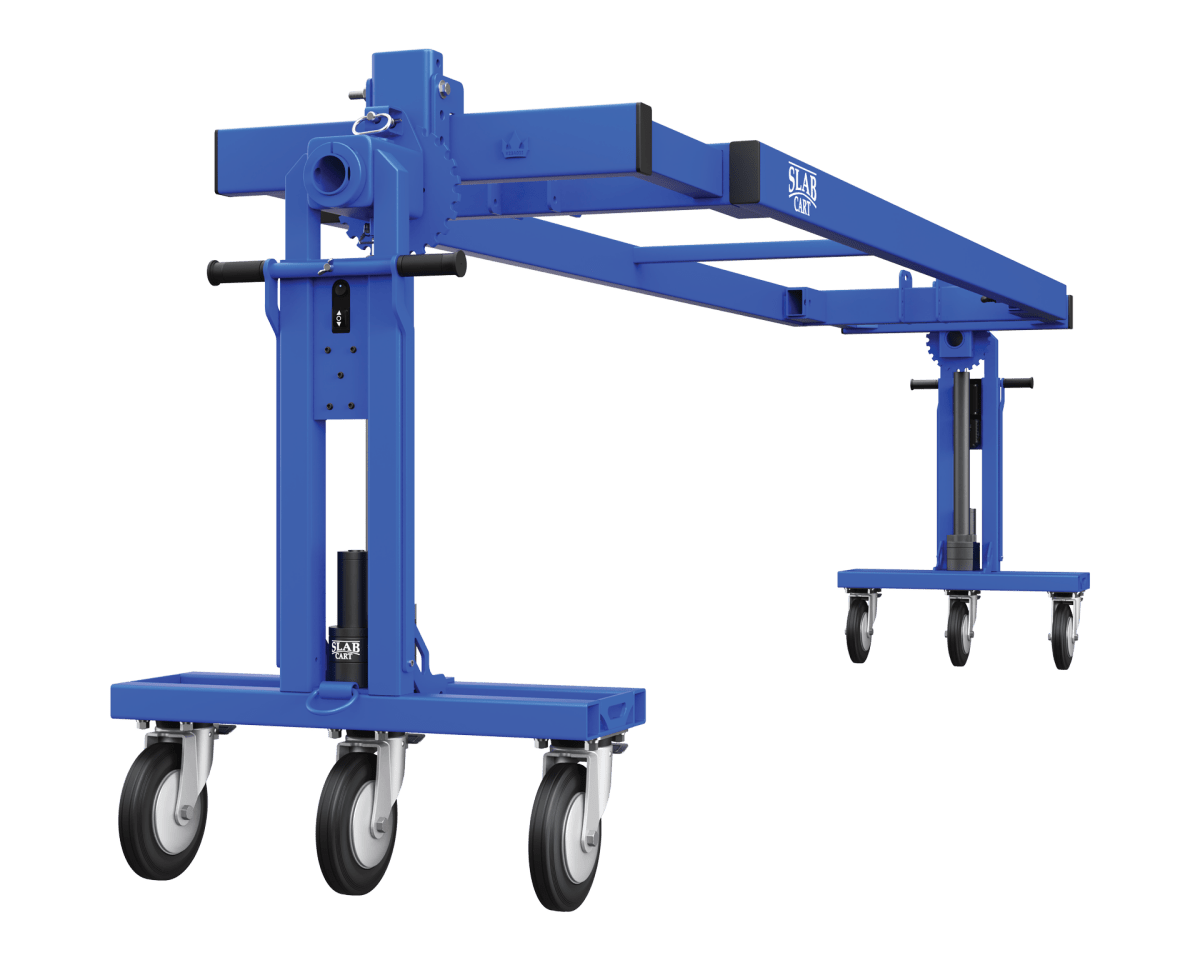

Slab Cart System-PRO

Grabo sold separately!

Our Pro line series offers a large capacity frame with dual telescopic extensions capable of extending the frame to 146”.

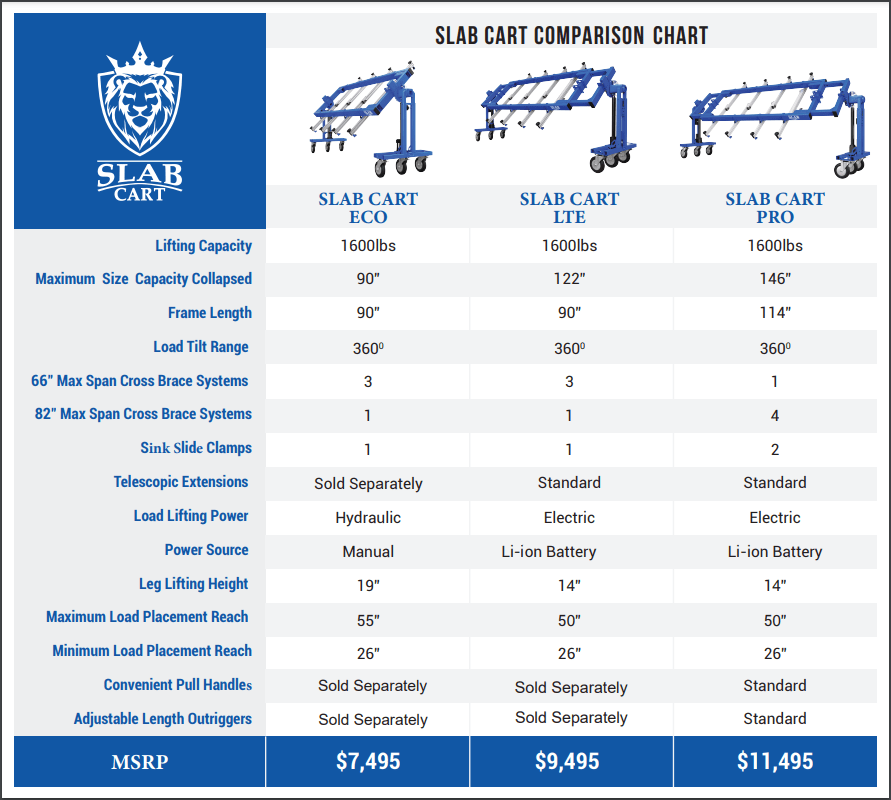

The slab cart systems come in three great options:  the Pro, the Eco, and the LTE.

This package level can safely carry and handle the largest stone slabs currently being manufactured. The dual Power Lift allows for a safe carrying and handling load of up to 1600lbs. This cart can safely handle the biggest manufactured slabs, the Super Jumbo Slab!

What’s Included:

• One(1) XL Cart Frame with a Load capacity up to 1600lbs and 114”
• Two(2) Telescopic/Removable Extensions – Adjusts the carrying capacity up to 146”
• Two(2) Power Lift Leg assemblies w/ a total of six (6) solid rubber swivel locking casters
• Two(2) Adjustable Balance Axis Assemblies with full 360° Tilt and Position Locks
• Two(2) Telescopic/Removable Out riggers w/ two additional solid rubber casters.
• Four(4) 82” Adjustable Span Cross Brace Assemblies
• One(1) 66” Adjustable Span Cross Brace Assembly
• One(1) Slide Clamp

List of Features!

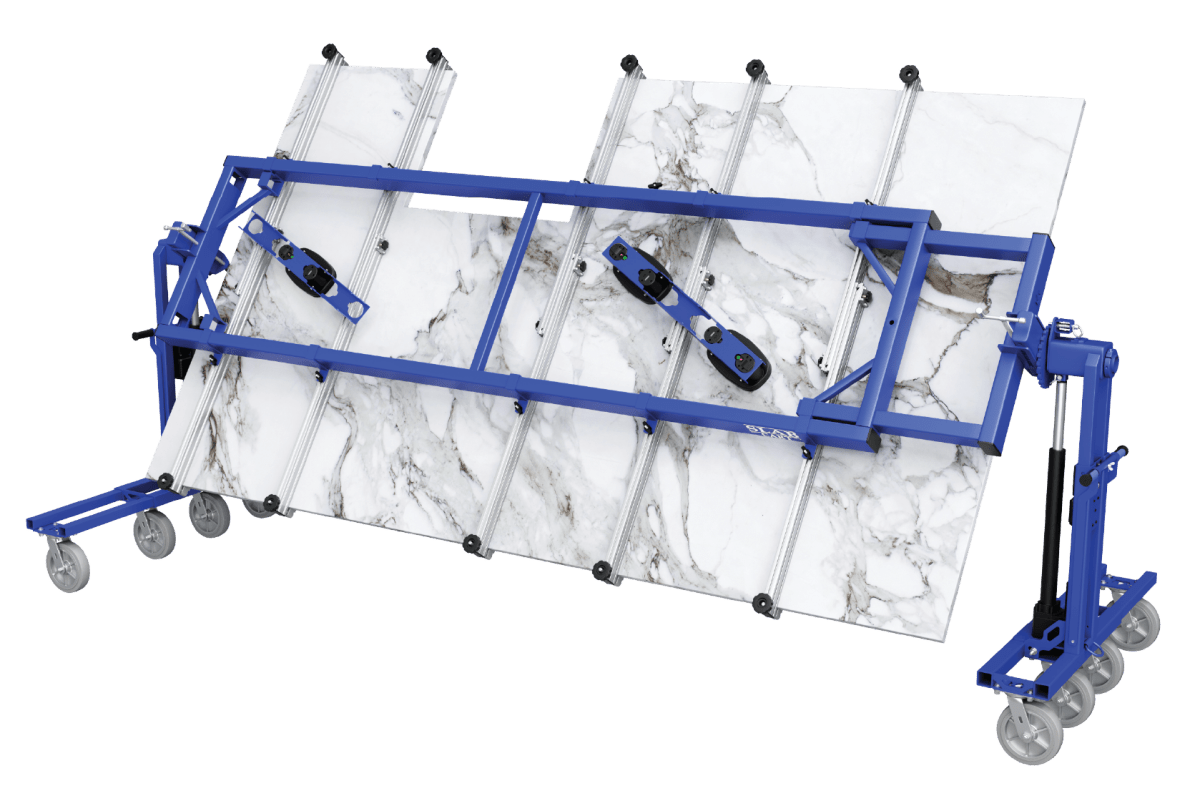

–Over-The-Top Clamping System: Patent Pending and the single biggest innovation to slab handling and installation industry in the past 30 years! The unique support system provides a modular platform to adapt to any size/shape slab while allowing the ability to set directly in place a top cabinetry. TRULY A SYSTEM THE REQUIRES NO LIFTING!

– 1600lb Load Capacity: Designed and Engineered to safely handle the largest slabs currently available on the market today and the only installation cart with this handling capacity. We built this for the BIG STUFF!

– Telescopic Cart Length: We know every job won’t require the need to transport a full-length slab. Telescopic Extensions allow you to adjust the overall length of your Slab Cart to suit the size of your slab, make handling easier to maneuver in tighter spaces.

– Adjustable Cross-Bracing Support: Designed to clamp to any size/shape up to a full-size slab design. The adjustable length and placement design allows for strategic clamping at ANY point around the perimeter or sink opening of your slab.

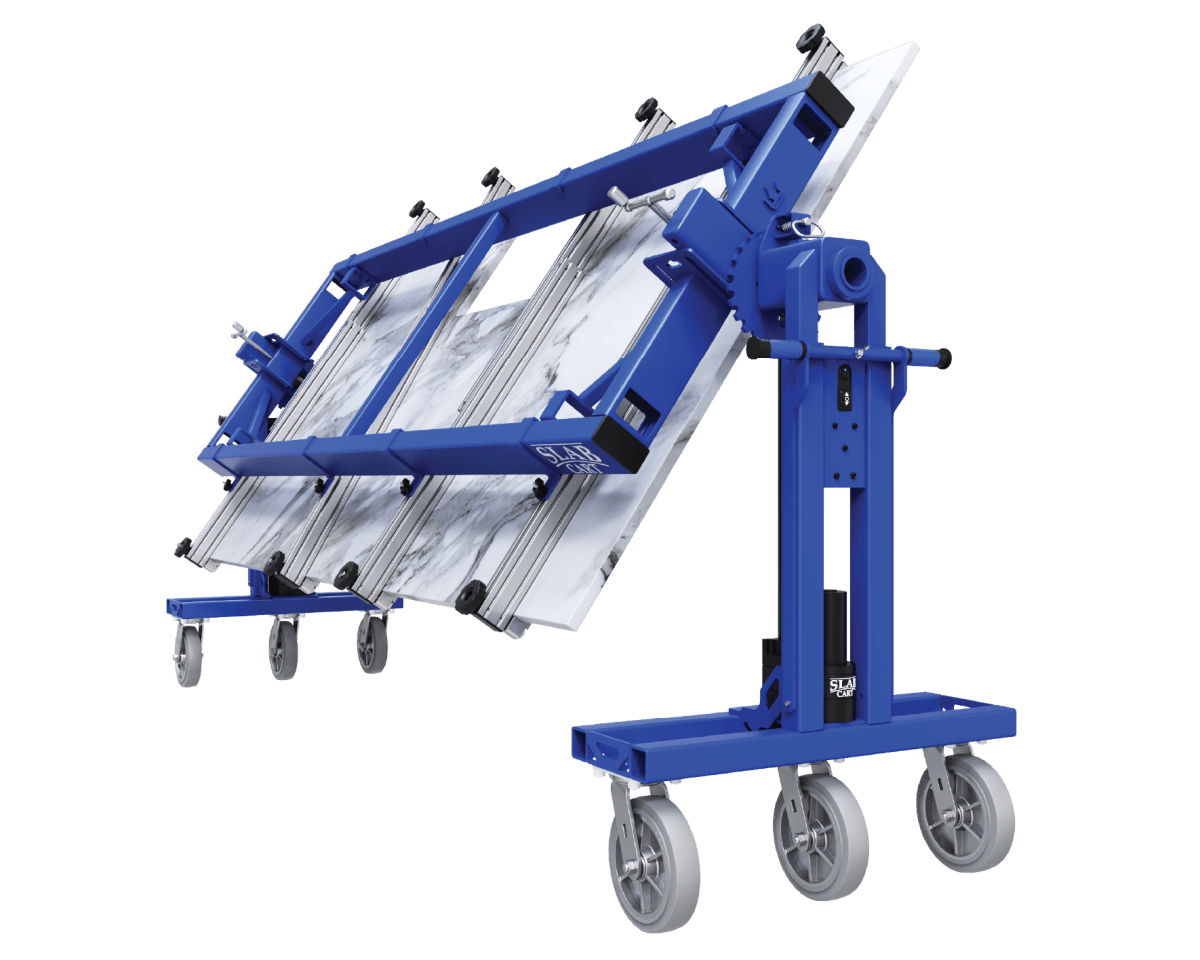

–Full 360° Locking Tilt: With a full clear span between the leg supports, you can rotate a full balanced slab effortlessly and lock in position during transport or adjust to navigate narrow passages and obstacles.

-Multifunctional Transport Device: Designed to replace the need for a transport rack or the need to move from one handling device to another. Our design allows uninterrupted handling from fab shop to install site. Locking Casters and built-in anchor points make this system easy to strap down within a box truck, van, or trailer.

– Electric Power Lift: Muscle with precision! Push button controls allow users to navigate around obstacles, through doorways, up and down stairs, all while having full control of your slab and allowing you to gently set directly in place atop cabinetry. The dual power lift system comes with rechargeable Lithium-Ion batteries and charger.

– Independent Wheel Systems: The rolling leg assemblies lift/lower independently from each other and can tilt separately of each other while carrying a balanced load. This means both leg systems can sit on different surfaces and inclines while all wheels maintain safe and stable contact with the floor.

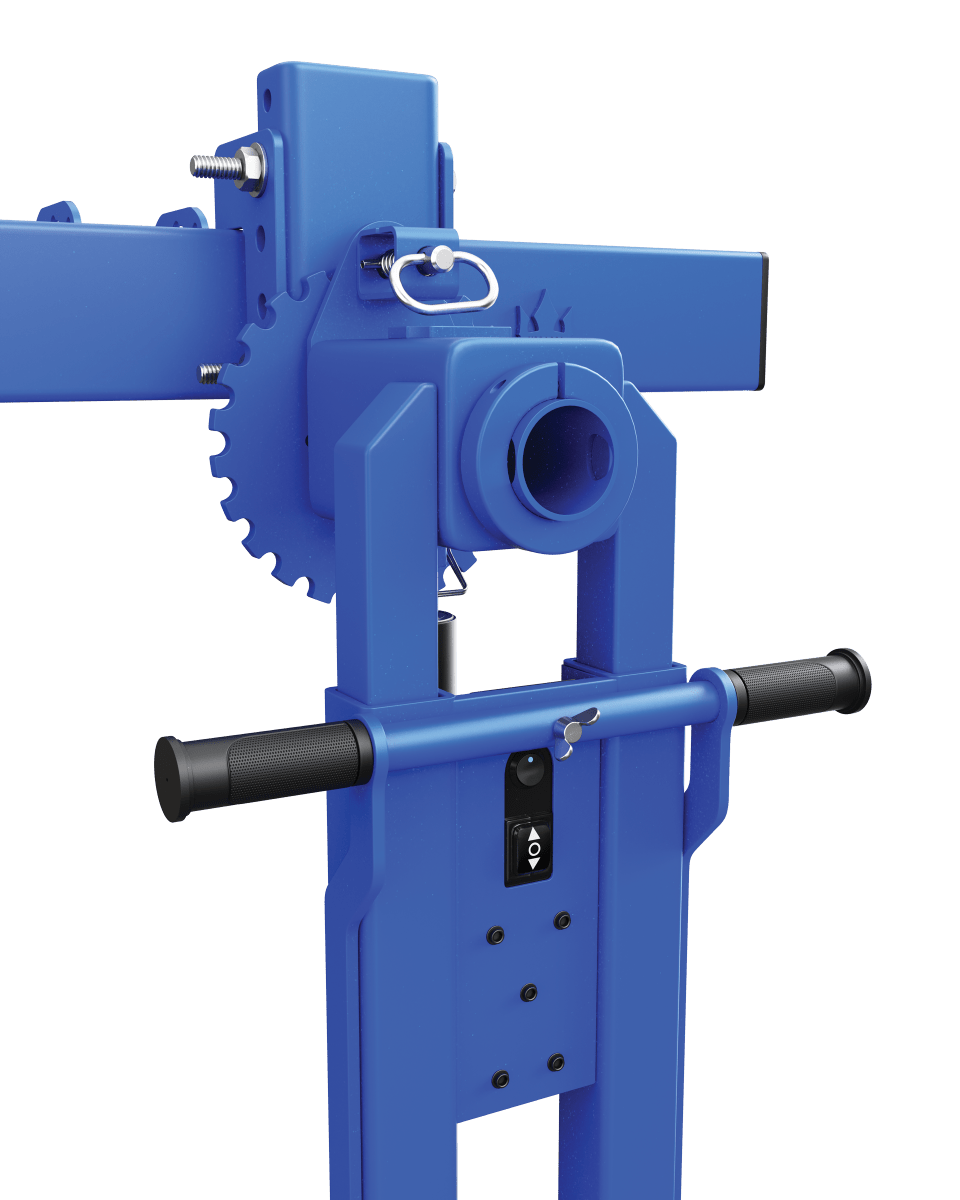

– Balanced Load Tilt Adjuster: Built in to our design design, the adjustable tilt axis point allows you to make adjustments to balance the weight of the slab load to minimize effort needed to tilt a workload.

– Telescopic Outriggers: Outriggers allow for a more stable platform and minimize the risk of tipping in the event of off balanced loading. They simply slide in/out or can be removed entirely when not needed.

– Locking Swivel Casters: – Six(6) Solid Rubber full swivel casters (Eight(8) w/ outriggers) allow more contact points for stability while rolling on uneven terrain and providing better weight distribution over softer surfaces while reducing the risk of damage to flooring. The Locking wheel feature for each wheel is ideal for securing position while transport/hauling.
