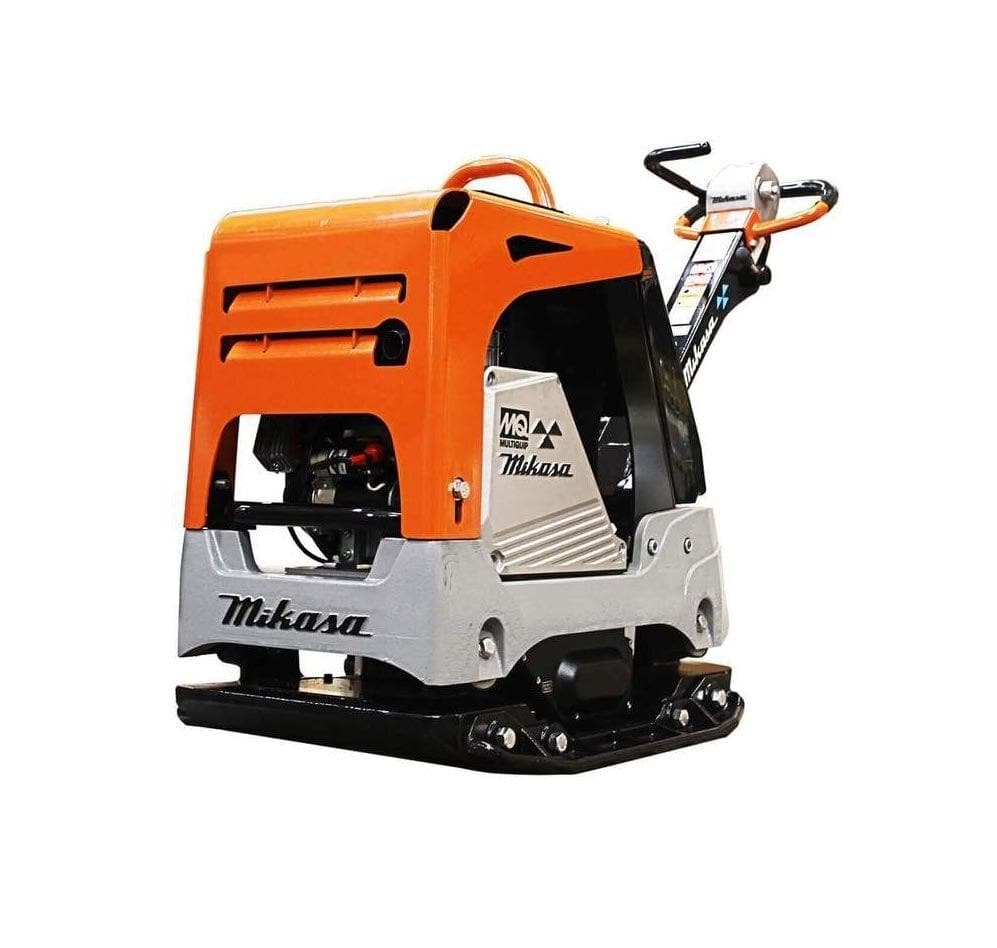

MVH128GH Reversible Plate Compactor
SKU: MVH128GH
MVH128GH Reversible Plate Compactor ideal for high production jobs
Multiquip's Mikasa Reversible Plate Compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.
- Reliable Honda GX160 engine.
- Fold-out front cover for easy access to all maintenance points.
- Hour/Tachometer to measure machine hour usage and engine RPM.
- Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
- Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
- Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
- Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
- Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
- Low profile base plate lowers the center of gravity dramatically improving travel speed.
- Optional- tool-free wheel kit, model WHL158
| Centrifugal Force | 5283 lbf | 23.5 kN |
| Exciter Speed | 5400 VPM | |
| Plate Size |
23.2x15.8 in 590x400 mm |
|
|
Max Forward Speed Per Min. |
89 ft | 27 m |
| Overall Length | 40.55 in | 1030 mm |
| Overall Width | 15.75 in | 400 mm |
| Overall Height | 38 in | 965 mm |
| Operating Weight | 268 lb | 122 kg |
Notice: Features and equipment specifications are subject to change without notice.
