Babcock-Davis  |  SKU: BSTRM

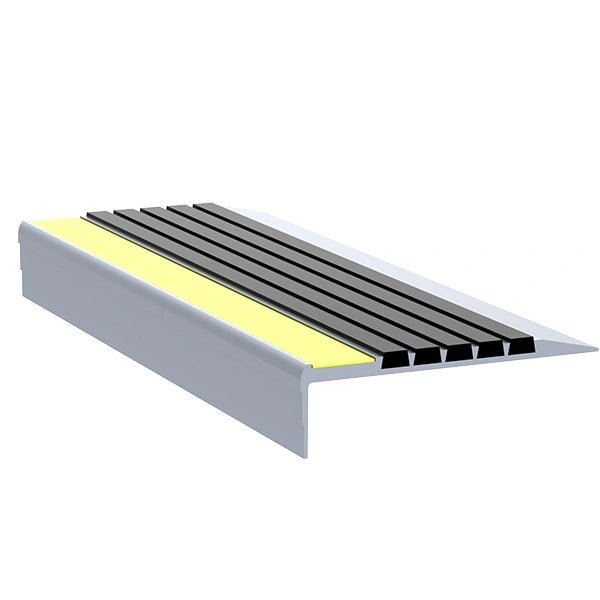

Lume-A-Lite™ Renovation Nosing

Call for Pricing

Shipping calculated at checkout.


Safe & Secure Payments.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Manufactured with the same material as our bar and full renovation stair treads, Babcock-Davis' renovation treads are designed for restoration of all stair types.

The renovation stair treads are a quick and economical alternative to new construction and provide a safe, non-slip surface.

Features

  • Anti-Slip Safety
  • Continuous Color
  • Vision Line Option
  • 14 Color Options
  • Title 24 Compliant*

Title 24 Compliant/Vision Impairment requires 2 inches of a contrasting color at the edge of the stair indicating a change of plane.

Specifications

Model BSTRM
Material Extruded Aluminum, Abrasive Grit or EcoTread™, and 53 mil Resin Insert or 16 mil Abrasive Grit Insert
Color Photoluminescent Strip and Optional Tread Colors
Application Poured Concrete, Sloped, Steel Pan, Terrazzo or Wood
Tread Ribbed Bar Abrasive or EcoTread
Width 5 inches
Mounting Drilled Holes
Nosing Long or Angled Long
Compliance California Title 24, Section 3306
Options Vision Line, Abrasive Colors, Mitered Cuts, Painted Undersides and Taped Tops
Warranty 1 Year



Order Guide

Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.

MODEL WIDTH NOSING TREAD/INSERT INSTALL
BSTRM-A5D 5" Angled Long Abrasive Grit and Resin Strip Drilled Hole, Mech. Fastened
BSTRM-A5D-ECO 5" Angled Long EcoTread and Resin Strip Drilled Hole, Mech. Fastened
BSTRM-A5D-T 5" Angled Long Abrasive Grit Tread and Strip Drilled Hole, Mech. Fastened
BSTRM-A5D-T-ECO 5" Angled Long EcoTread and Abrasive Grit Strip Drilled Hole, Mech. Fastened
BSTRM-L5D 5" Long Abrasive Grit and Resin Strip Drilled Hole, Mech. Fastened
BSTRM-L5D-ECO 5" Long EcoTread and Resin Strip Drilled Hole, Mech. Fastened
BSTRM-L5D-T 5" Long Abrasive Grit Tread and Strip Drilled Hole, Mech. Fastened
BSTRM-L5D-T-ECO 5" Long EcoTread and Abrasive Grit Strip Drilled Hole, Mech. Fastened

Description Model Shop Drawing CAD Revit/BIM Data Sheet 3-Part Specs LEED Installation Warranty
Abrasive Grit
5" Width,
Long Nose
BSTRM-L5D PDF DWG LINK PDF WORD PDF WORD PDF
5" Width,
Angled Nose
BSTRM-A5D PDF DWG LINK PDF WORD PDF WORD PDF
5" Width,
Angled Nose
BSTRM-L5D-T PDF DWG LINK PDF WORD PDF WORD PDF
5" Width,
Angled Nose
BSTRM-A5D-T PDF DWG LINK PDF WORD PDF WORD PDF
EcoTread
5" Width,
Long Nose
BSTRM-L5D-ECO PDF DWG LINK PDF WORD PDF WORD PDF
5" Width,
Angled Nose
BSTRM-A5D-ECO PDF DWG LINK PDF WORD PDF WORD PDF
5" Width,
Long Nose
BSTRM-L5D-T-ECO PDF DWG LINK PDF WORD PDF WORD PDF
5" Width,
Angled Nose
BSTRM-A5D-T-ECO PDF DWG LINK PDF WORD PDF WORD PDF



Photoluminescent Insert Colors

Photoluminescent Resin Insert Photoluminescent Grit Insert
Photoluminescent
Resin Strip
Photoluminescent
Abrasive Grit Strip

Abrasive Colors

Black Gray Brown burgundy Green Blue Red
Black Gray Brown Burgundy Green Blue Red
Buff Yellow Photoluminescent
Buff (Orange) Yellow Photoluminescent

EcoTread Colors

Black Safety Yellow Blue Gray
Black Safety Yellow Blue Gray

Nosing Options

Long Nose Long Angle
Long Long-Angled

Mounting Options

Drilled Holes, Mech. Fastened
Drilled Holes,
Mech. Fastenend


Options



Custom Cuts Painted Undersides Taped Tops
Mitered Cuts Painted Undersides Taped Tops
