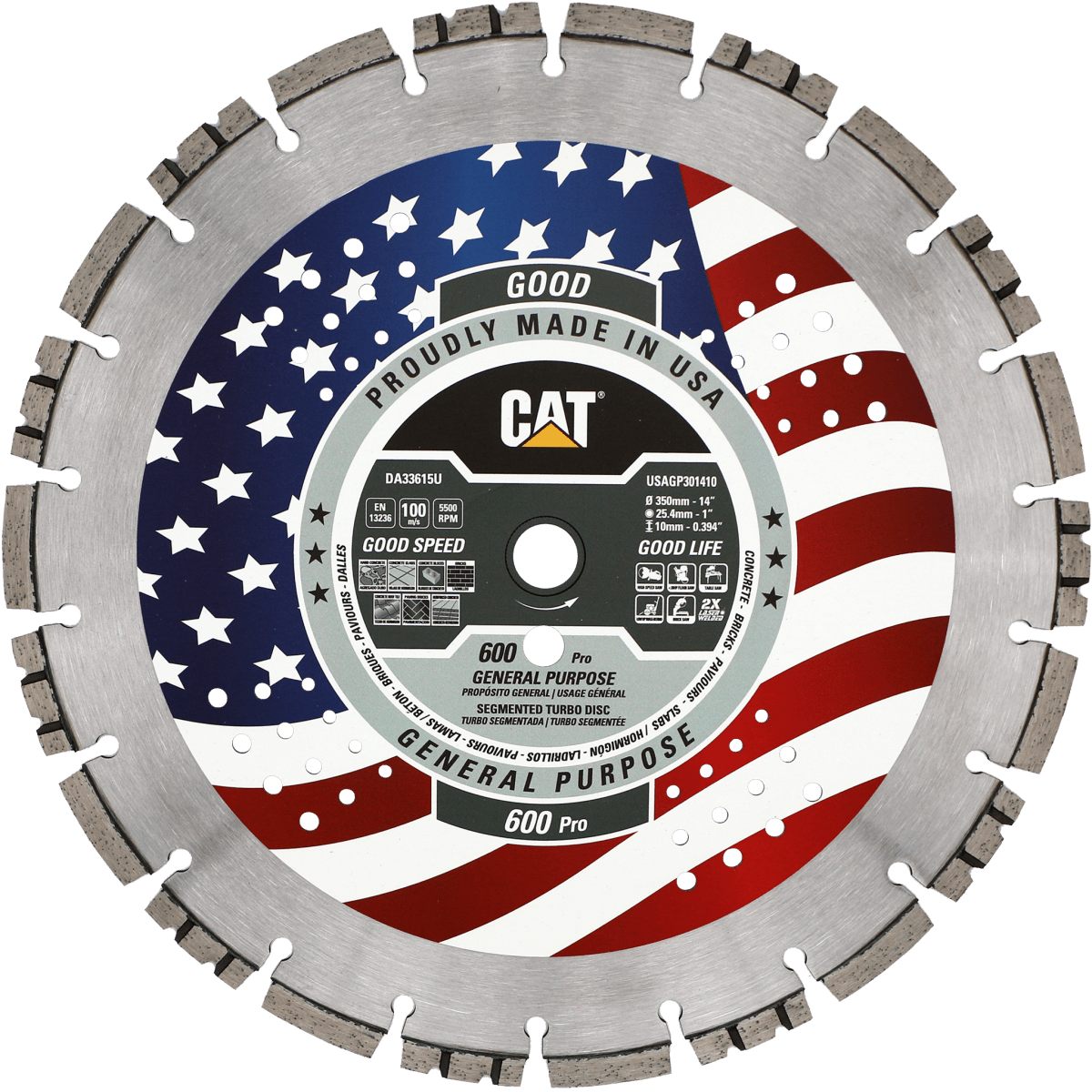

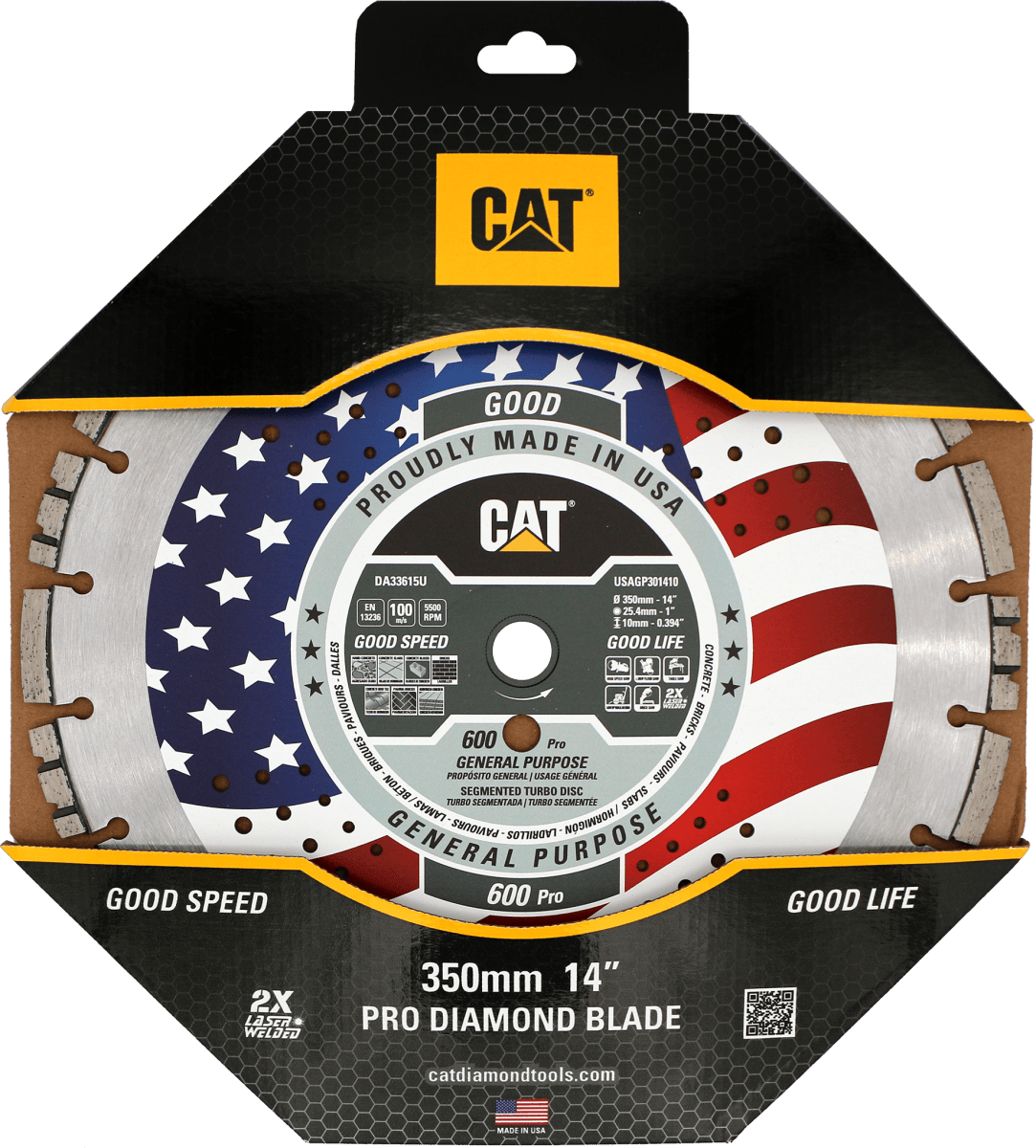

Cat® 600 Pro General Purpose Diamond Blade - 10mm Segment

$231⁷¹ ~~$261⁴¹~~

Shipping calculated at checkout.

Made in USA

Size

12" 14" 16" 18"

Quantity

Single Pack of 5 Pack of 10

Product variants

Safe & Secure Payments.

Cat® General Purpose blades are designed for intensive use across the 3 performance grades: Good, Better and Best.

Good - 10mm (600 Expert)

Better - 12mm (800 Expert)

Best - 15mm (1000 Expert)

Each individual product has specifically designed segments shape and geometry which complements the diamond grit and bond formulation that has been proven to enhance the cutting performance in terms of fluidity and smoothness of cut, speed and blade life. Cat® General Purpose blades are able to cut a wide span of applications and a multitude of materials. Each increase in performance rating increases the performance in terms of speed and life by use of higher diamond quality and diamond concentration, bond formulation and segment height.

ATTRIBUTES

Above Industry Standard Diamond Quality & Bond Formulation
Long Life & Speed Of Cut
Vented Cooling Holes For Rapid Heat Dispersion
2X Laser Welded For Safety & Stability Of Segments
Unique Turbo Alternate Standard Segment Design For Aggressive Cutting Action
Special V Turbo Design Clears Abrasive Fines From The Cut & Generates Less Friction
Keyhole Gullet Design For Dust Extraction From Cut.

★★★★

Soft - Medium Aggregate Concrete (Granite - Limestone), Terracotta, Class B Engineering Brick 75N/Mm2, Limestone Aggregate Concrete, Lightly Reinforced Concrete, Concrete Paviours - Kerbs - Slabs, Concrete Roof Tiles - Pipes, Medium Facing Brick, Soft Facing Bricks, Concrete Blocks Over 15N/Mm2, Hard Sandstone (Fine Grit), Medium Sandstone (Medium Grit), Plaster - Grout.

★★★

Hard To Medium Aggregate Concrete (Chert - Trap Rock - River Gravel), Medium Aggregate Concrete (Traprock - Quartz), Basalt, Hard Limestone, Hard Facing Brick, Hard Slate, Soft Slate, Concrete Screed.

★★

Granite, Quartzite, Class A Engineering Brick 125 N/Mm2, Refractory Brick, Clay Pipe - Roof Tiles, Clay Paviours, Travertine, Porphyry, Soft Sandstone (Coarse Grit), Mortar (Hard), Mortar (Abrasive), Asphalt Over Concrete, Concrete Block Under 15N/Mm2, Thermal Block 7 N/Mm2, Lignacite Blocks.

★

Heavily Steel Reinforced Concrete, Critically Hard Aggregate Concrete (Flint, Chert), Asphalt, Green Concrete Universal, Green Concrete With Very Hard Aggregate, Green Concrete With Medium Hard Aggregate, Green Concrete With Medium Soft Aggregate, Lava Rock, Pumice.

Key

★★★★

Correct Bond For Application Optimal Performance, Speed & Life

★★★

Good Match Bond For Application Excellent Performance Speed & Life

★★

Acceptable Bond For Application Reduced Performance, Speed & Life

★

Occasional Use Only - Much Reduced Performance, Speed & Short Life - Glazing & Premature Wear Will Occur

PRODUCT TYPE		DIAMETER		SEGMENT HEIGHT		SEGMENT WIDTH		MAIN ARBOR - BORE		REDUCING RINGS INCLUDED
PART NO	CODE NO	MM	INCH	MM	INCH	MM	INCH	MM	INCH	MM	INCH
DA33614U	USAGP301210	300	12	10	0.394	3.175	0.125	25.4+P	1+P	20MM	0.78
DA33615U	USAGP301410	350	14	10	0.394	3.175	0.125	25.4+P	1+P	20MM	0.78
DA33616U	USAGP301610	400	16	10	0.394	3.175	0.125	25.4+P	1+P	20MM	0.78
DA33617U	USAGP301810	450	18	10	0.394	3.175	0.125	25.4+P	1+P	20MM	0.78
