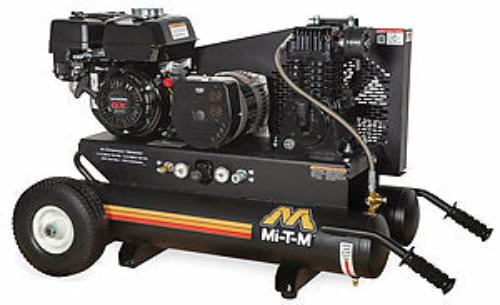

8-Gallon Single Stage Combination Air Compressor Generator - AG1-PH65-08M1
SKU: AG1-PH65-08M1
8-Gallon Single Stage Gasoline Combination - AG1-PH65-08M1
Combining two machines into one, this air compressor/generator combination unit is great for completing multiple jobs requiring both air power and electricity.
Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator
Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A receptacles
Frame
Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tires
Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16 ½-inch fly wheel · Quality pilot valve unloader
Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
Specifications
-
CFM @ PSI
11.9 @ 90
-
CFM @ PSI
10.9 @ 125
-
Alternator Wattage: Max. Output
1800 watts
-
Alternator Wattage: Cont. with Comp. On-Load
600 watts
-
Alternator Wattage: Cont. with Comp. Off-Load
1600 watts
-
Displacement/ Engine
196cc Honda GX200 OHV
Weights & Dimensions
-
Net Weight
207.00 lbs.
-
Shipping Weight
257.00 lbs.
-
Length
44.50 in.
-
Width
26.00 in.
-
Height
27.50 in.
Warranty Information
- 2 Year Alternator
- 2 Year Pump Exchange
- 3 Year Honda Engine
